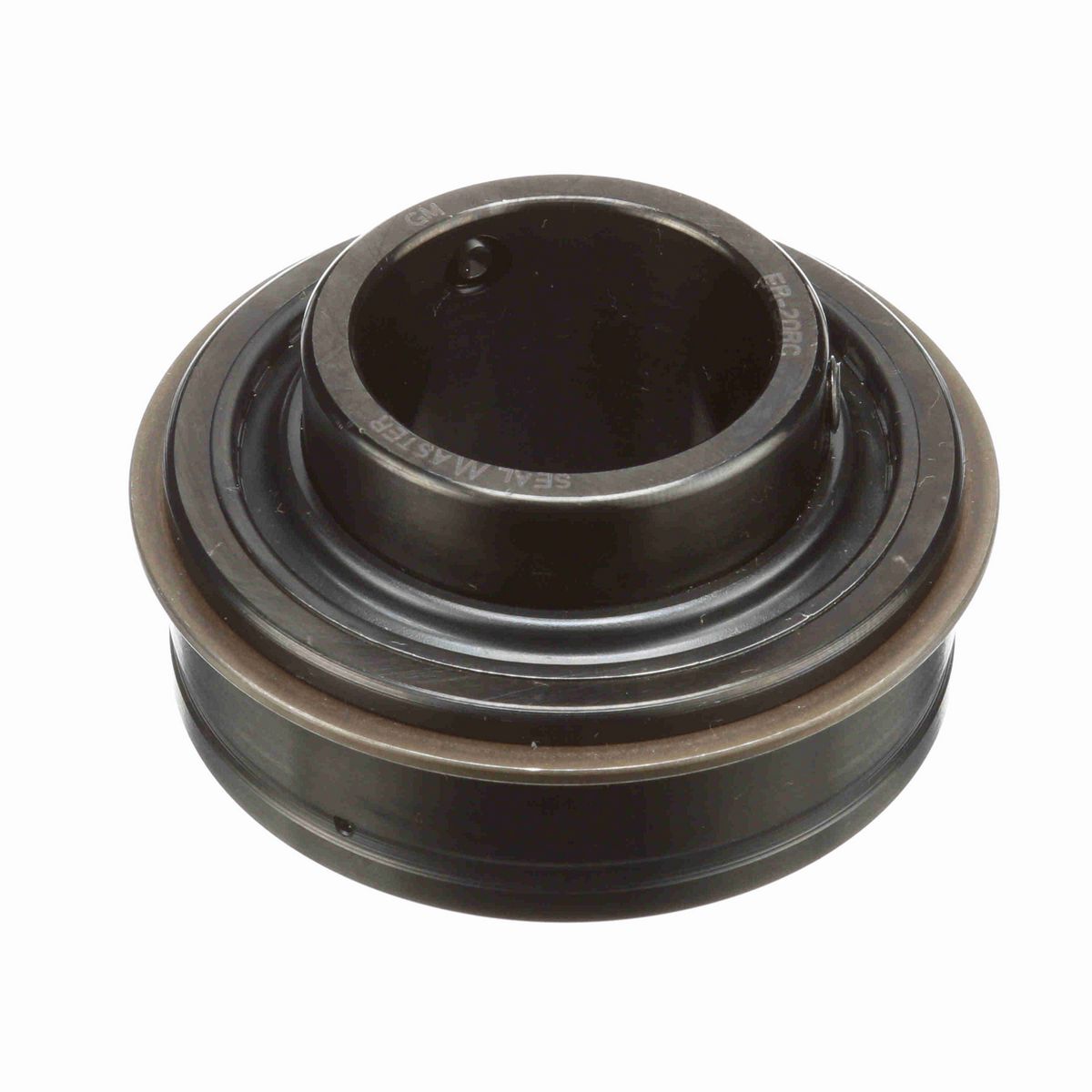

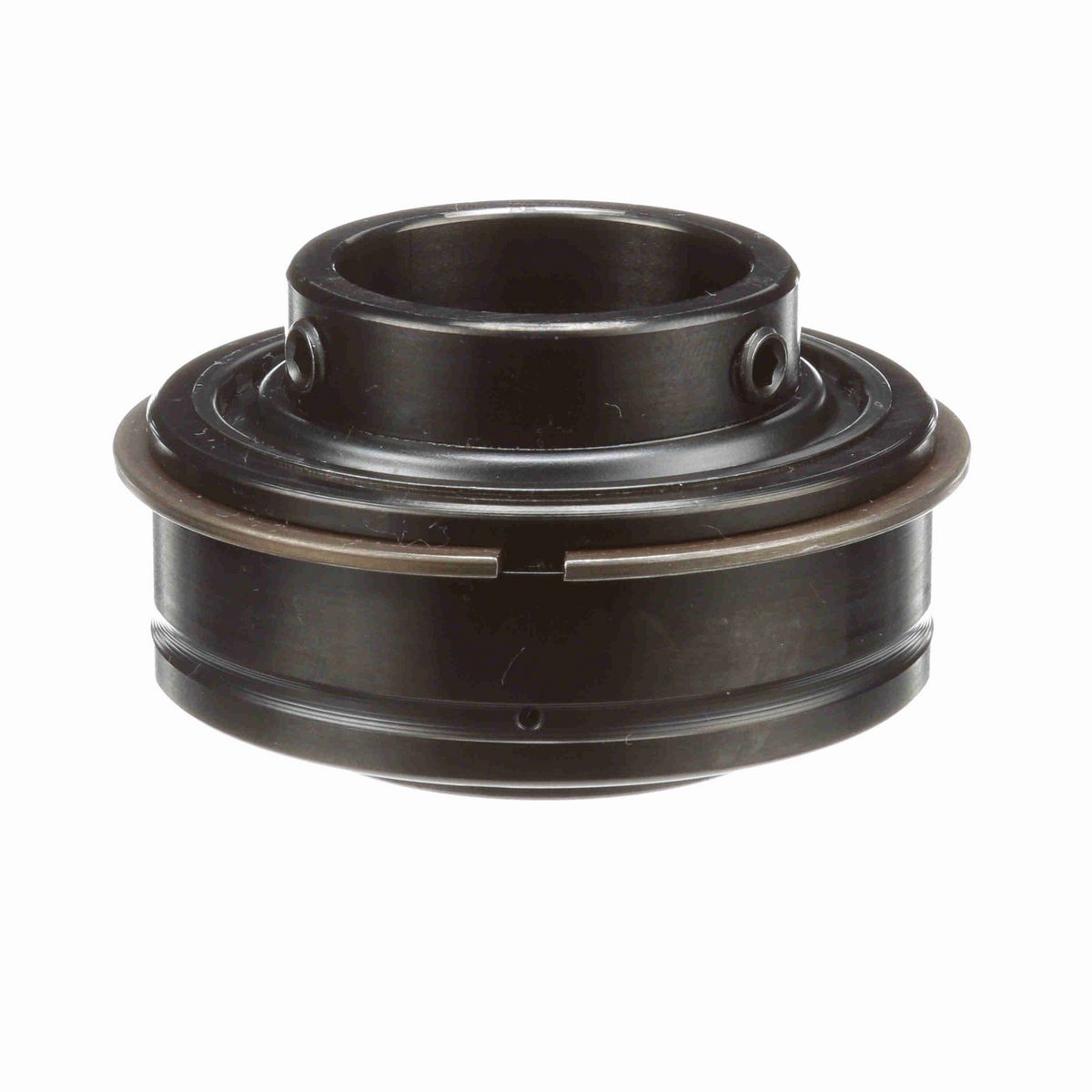

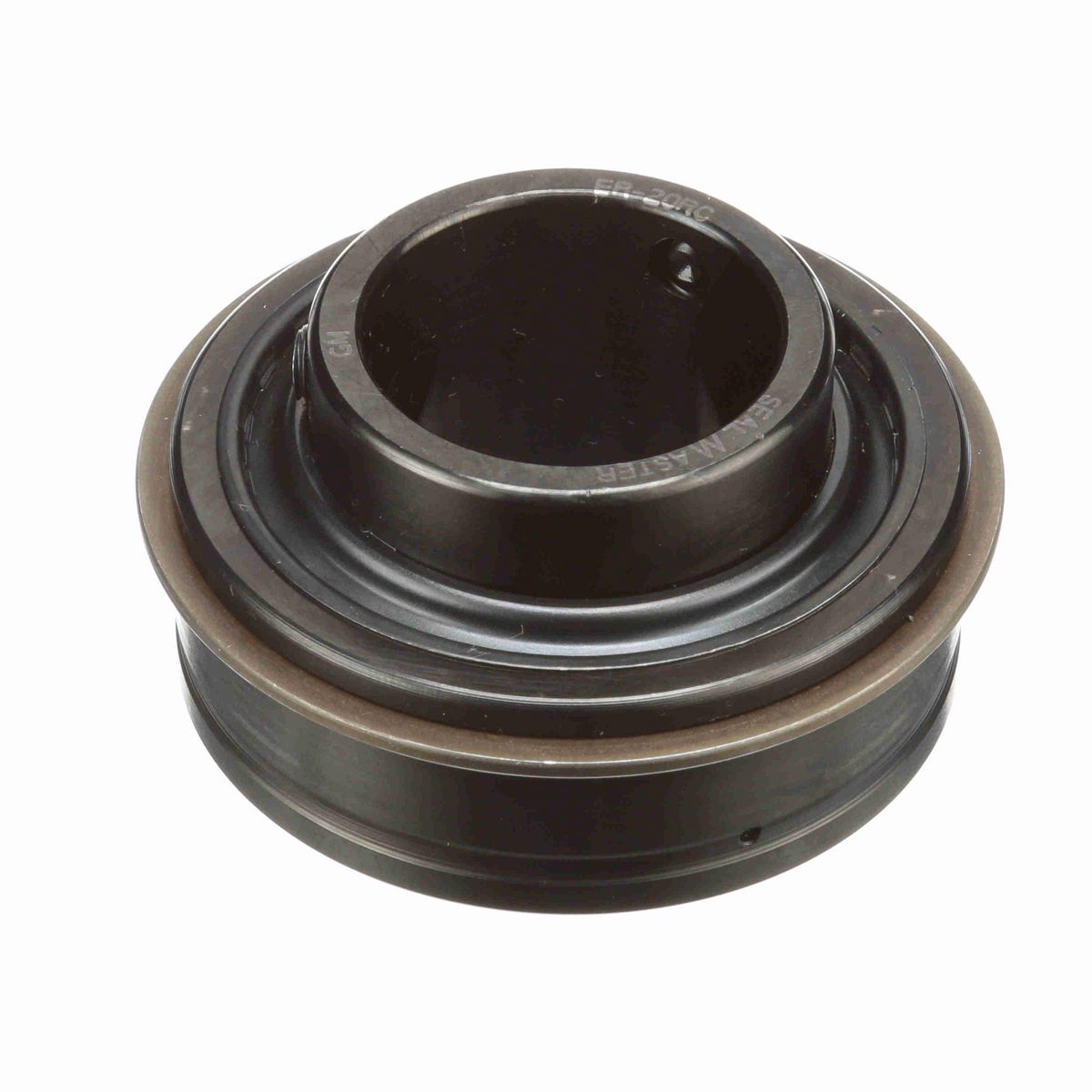

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.25 in
Outer Race OD (in)	2.4409 in
Centerline to Front Face (in)	0.875 in
Outer Race Width (in)	0.875 in
Inner Ring OD (in)	1.594 in
Outer Race OD (mm)	62 mm
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Set Screw Thread	1/4-28 UNF
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Measure Units	Inch
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Expansion	No
Misalignment	None
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Inner Ring Defect	0.0905 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Ring Fillet Radius (in)	0.04 in
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Size Code	2-13
Maximum Speed (rpm)	5450 rpm
Inner Race Heat Treat Method	Zone-Hardened
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Roller Spin	0.0385 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0595 cps
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb

General Specifications

UPC	662461075883
Weight	0.80 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
