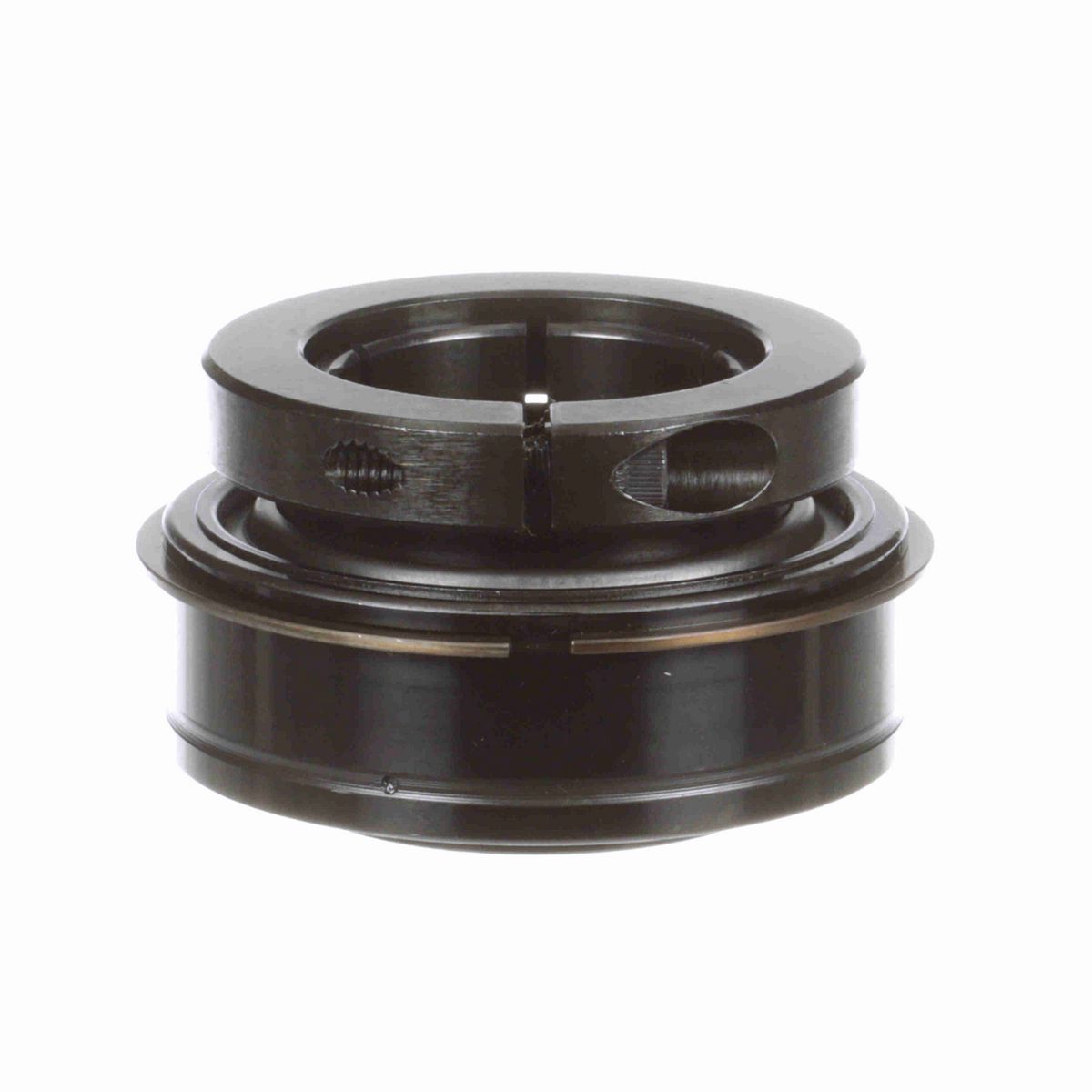

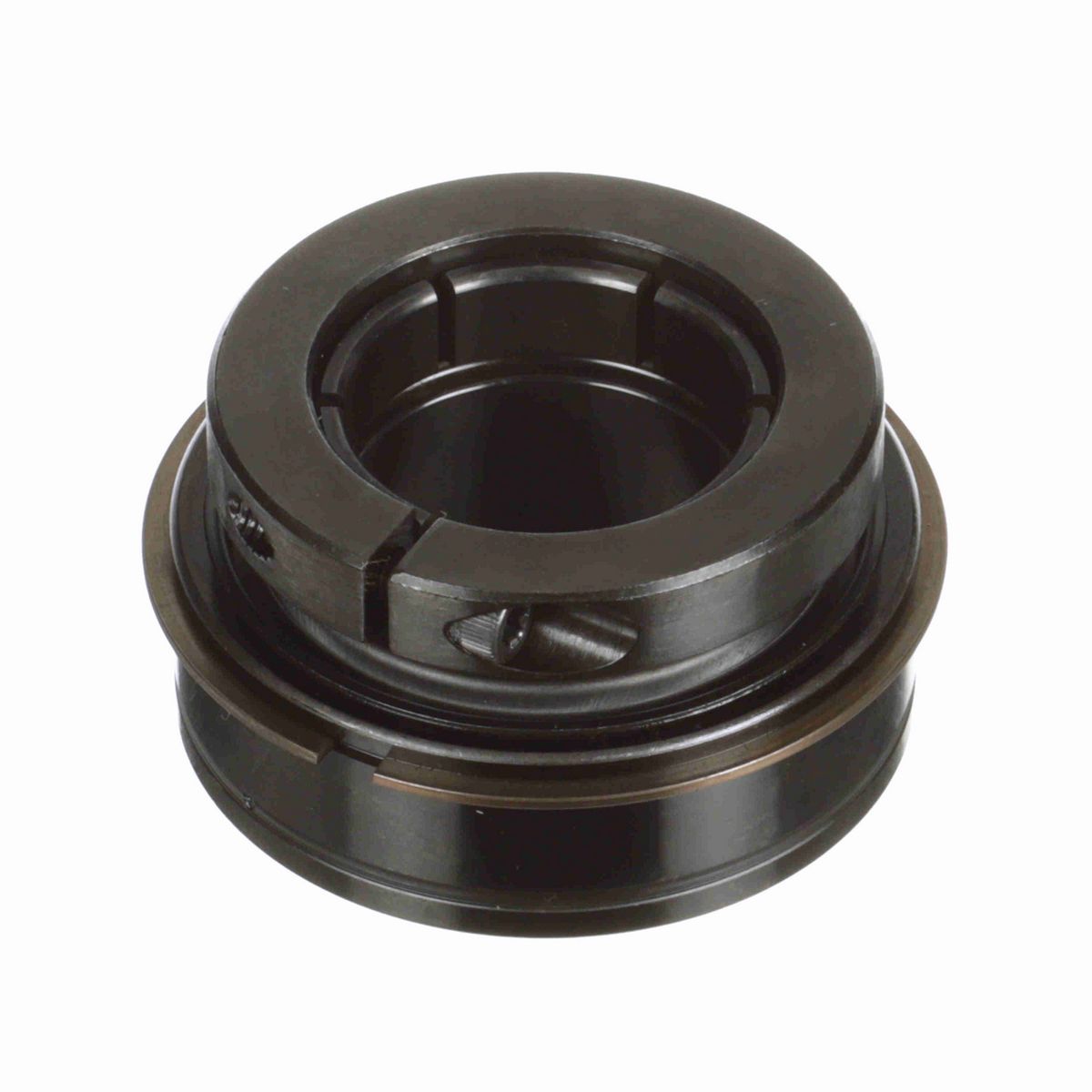

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (mm)	45 mm
Outer Race OD (in)	3.3465 in
Inner Ring OD (in)	2.297 in
Collar OD (in)	3 in
Outer Race Width (in)	1.094 in
Centerline to Front Face (in)	1.25 in
Outer Race OD (mm)	85 mm
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Torx Cap Screw	1/4-20 UNC
Measure Units	Metric
Expansion	No
Internal Clearance	Standard
Misalignment	None
Platform	Gold Line Ball Bearing
End Cap	No
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Outer Ring Defect	0.0673 cps
Vibration Frequency Roller Spin	0.0417 cps
Size Code	2-111
Duty/Status	Standard
Series	Unmounted Replacement Bearings
Vibration Frequency Fundamental Train	0.0067 cps
Setscrew Torque (in-lbs)	240 in/lbs
Maximum Speed (rpm)	3800 rpm
Vibration Frequency Inner Ring Defect	0.0994 cps
Locking Type	Concentric
Inner Race Heat Treat Method	Zone-Hardened
Inner Ring Fillet Radius (in)	0.06 in
Ability to Relubricate	Yes
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	7,901 lb
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,139 lb

General Specifications

UPC	662461254028
Weight	2.25 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
