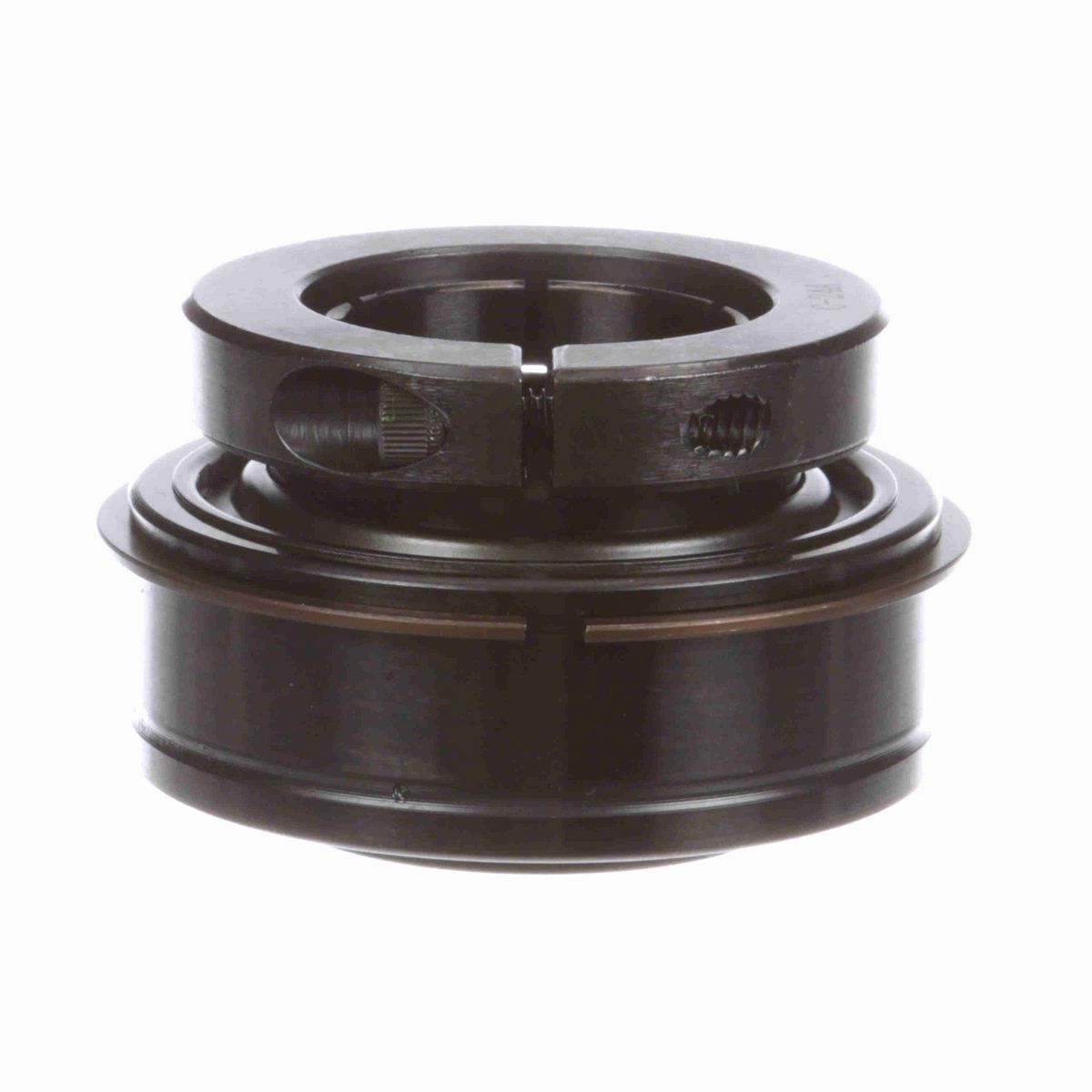

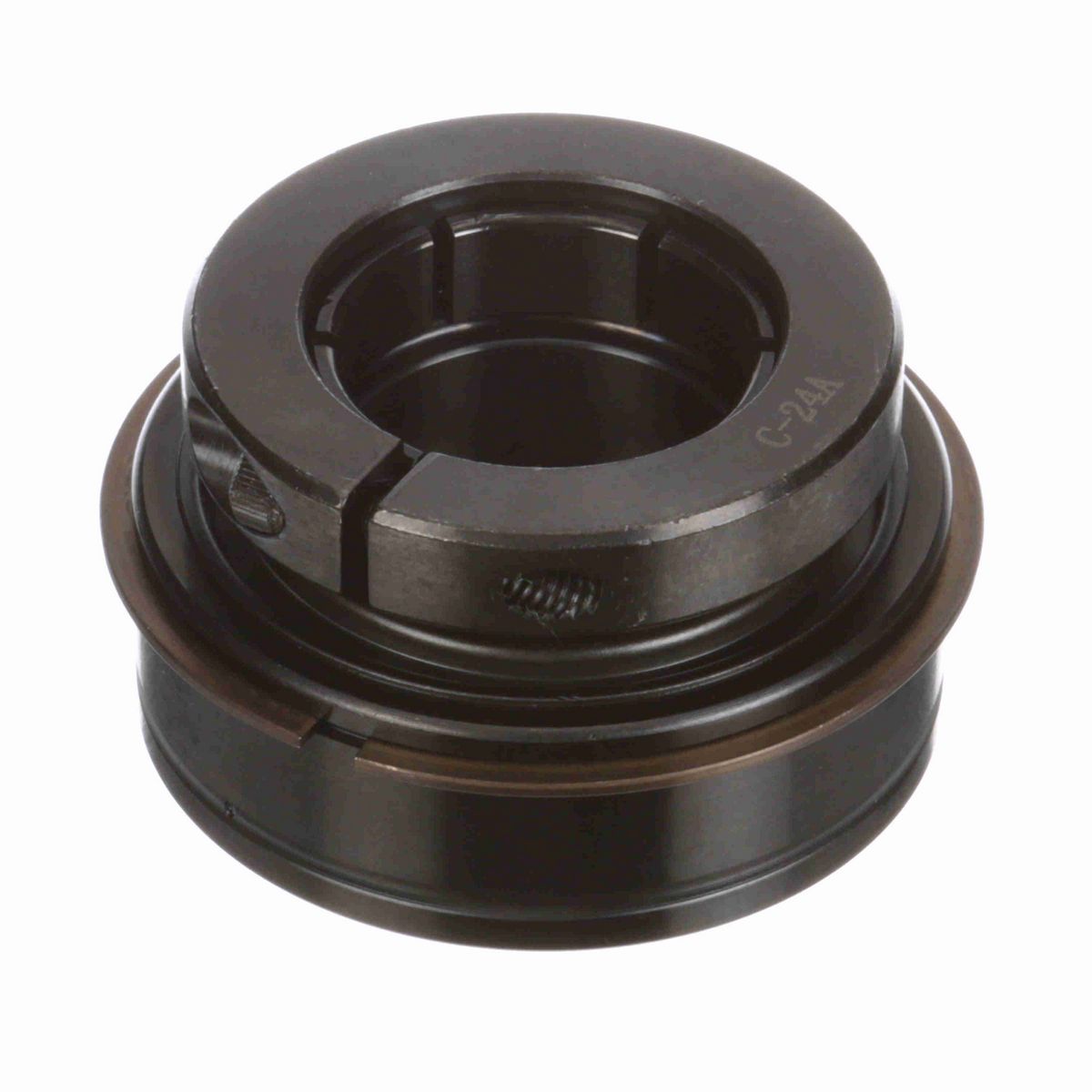

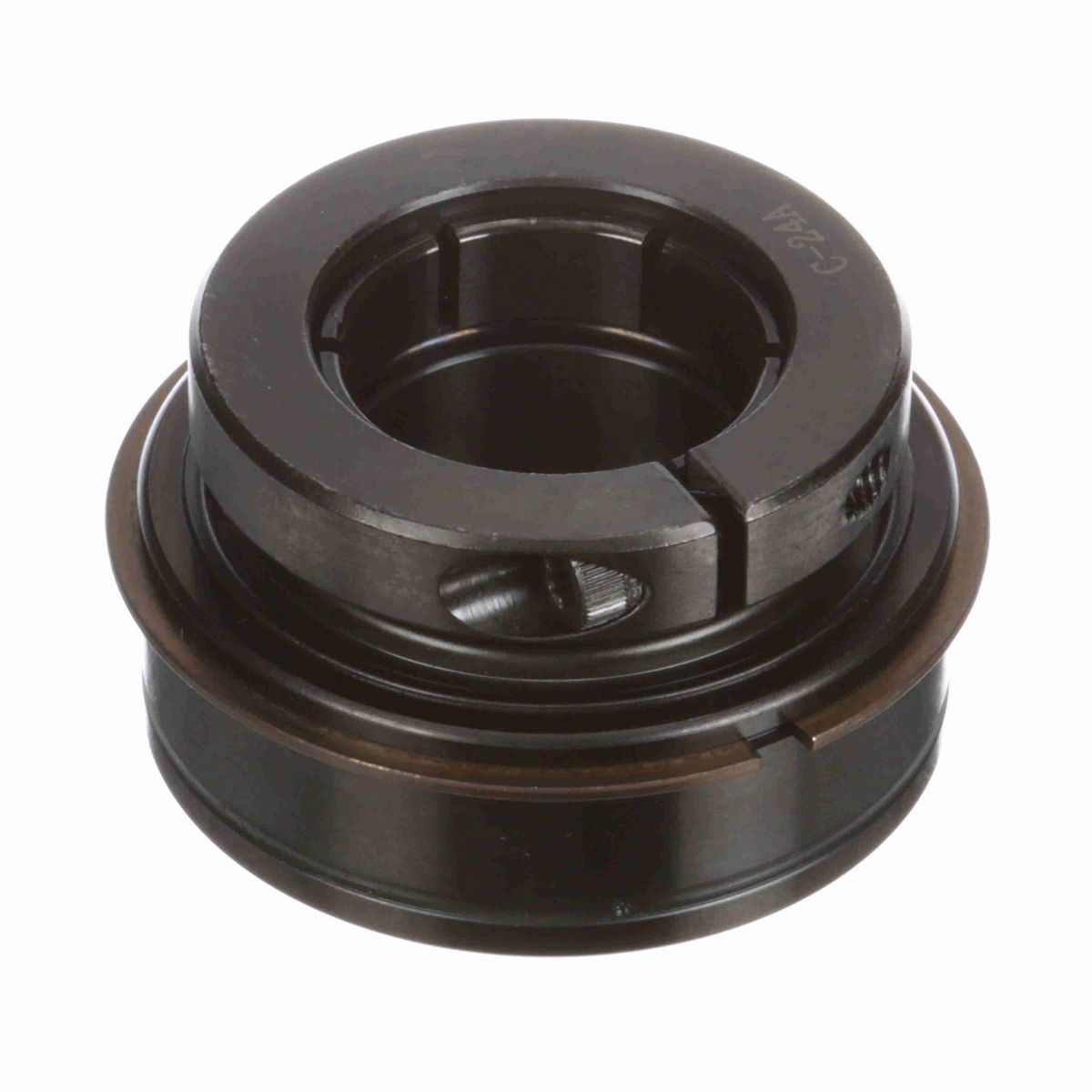

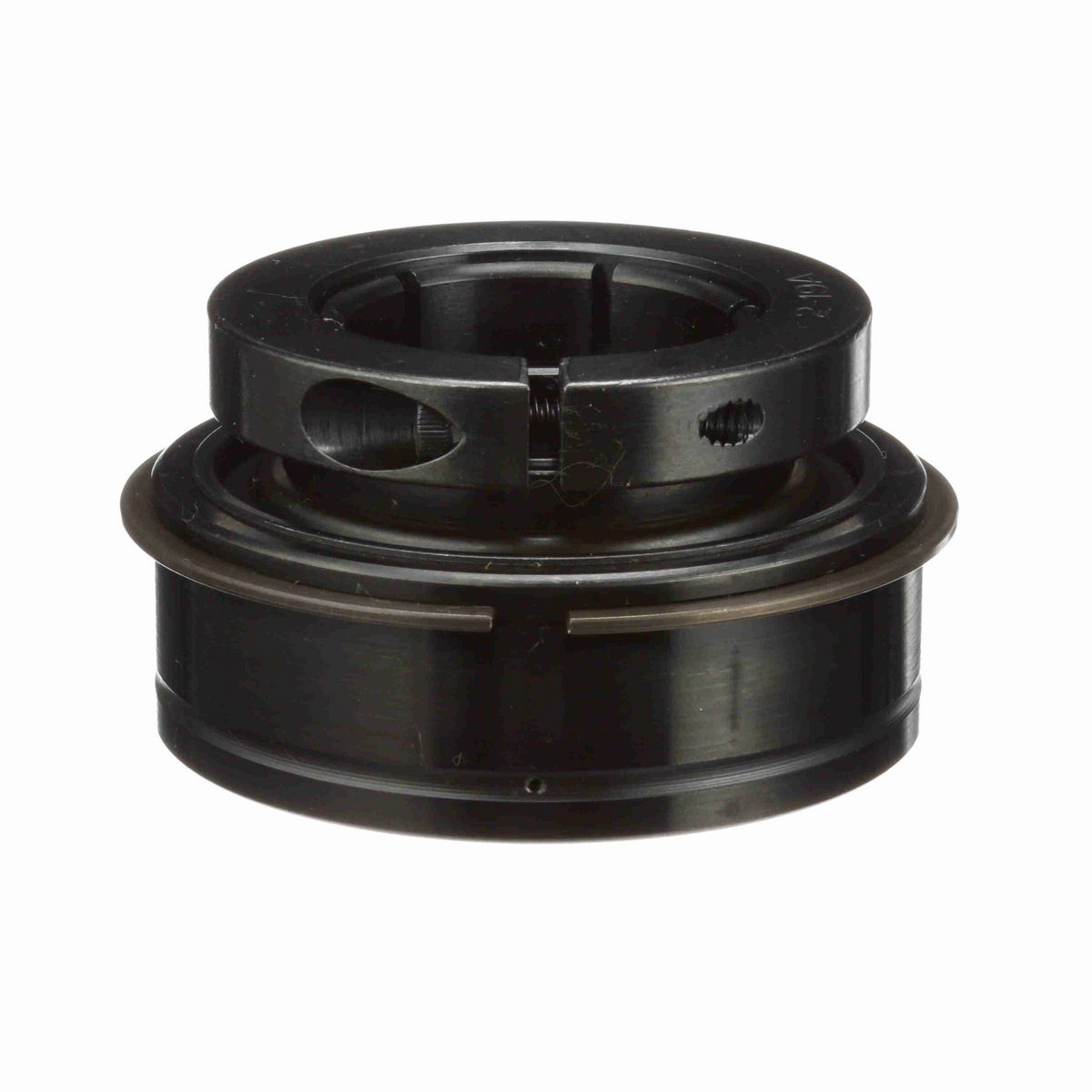

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (mm)	40 mm
Outer Race OD (in)	3.1496 in
Centerline to Front Face (in)	1.25 in
Outer Race Width (in)	1.093 in
Inner Ring OD (in)	2.063 in
Outer Race OD (mm)	80 mm
Collar OD (in)	2.75 in
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Torx Cap Screw	10-24 UNC
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Type	Insert (ER Style)
Measure Units	Metric
Insert Material	52100 Bearing Steel
Expansion	No
Misalignment	None
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Status	Standard
Size Code	2-19
Vibration Frequency Inner Ring Defect	0.0909 cps
Series	Unmounted Replacement Bearings
Inner Ring Fillet Radius (in)	0.06 in
Maximum Speed (rpm)	4150 rpm
Vibration Frequency Roller Spin	0.0376 cps
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0066 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.0591 cps
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Setscrew Torque (in-lbs)	100 in/lbs
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,340 lb
Static Load Rating (lb)	4,467 lb

General Specifications

UPC	662461254011
Weight	2.02 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
