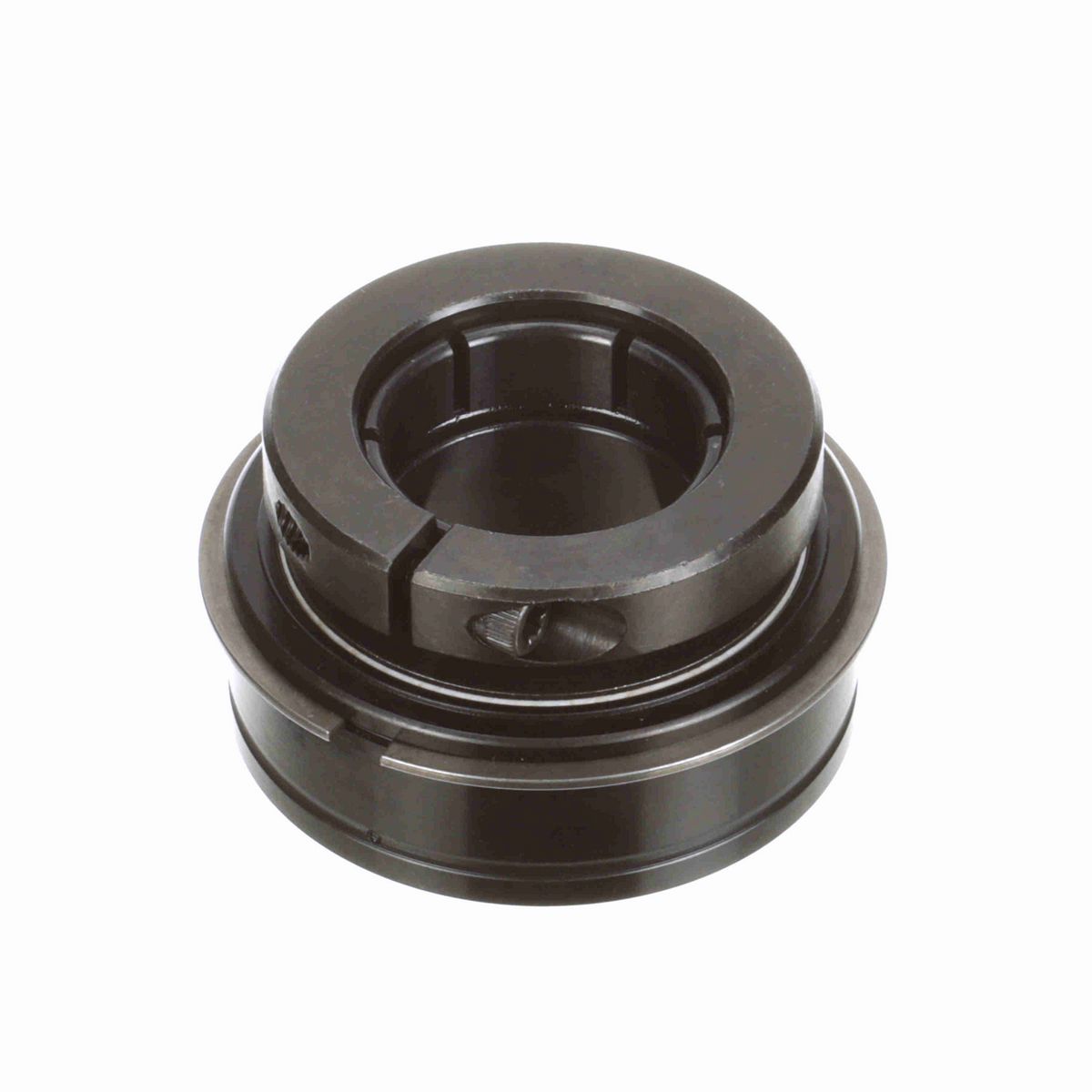

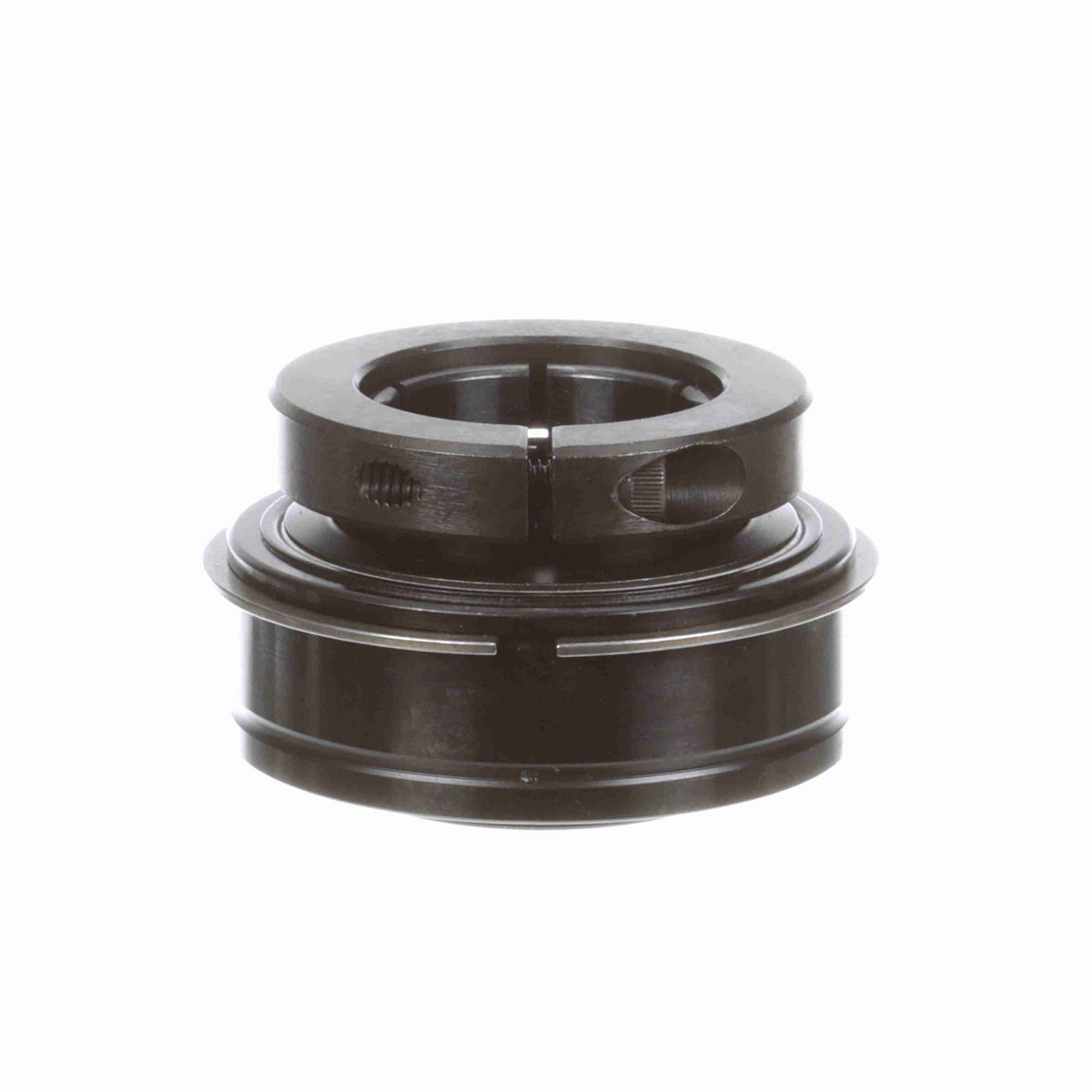

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	2.06 in
Bore Size (mm)	40 mm
Outer Race Width (in)	1.093 in
Outer Race OD (mm)	80 mm
Centerline to Front Face (in)	1.25 in
Outer Race OD (in)	3.1496 in
Collar OD (in)	2.75 in
Inner Ring OD (in)	2.063 in
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Metric
Torx Cap Screw	10-24 UNC
Housing Type	Insert (ER Style)
Seal Type	Felt Labyrinth Seal
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Misalignment	None
Internal Clearance	Standard
Expansion	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
End Cap	No
Platform	Gold Line Ball Bearing
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Outer Ring Defect	0.0591 cps
Duty/Status	Standard
Series	Unmounted Replacement Bearings
Vibration Frequency Roller Spin	0.0376 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Setscrew Torque (in-lbs)	100 in/lbs
Maximum Speed (rpm)	5850 rpm
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Vibration Frequency Inner Ring Defect	0.0909 cps
Maximum Operating Temperature (F)	220 °F
Size Code	2-19
Inner Ring Fillet Radius (in)	0.06 in
Vibration Frequency Fundamental Train	0.0066 cps
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,340 lb
Static Load Rating (lb)	4,467 lb

General Specifications

UPC	662461253250
Weight	2.05 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
