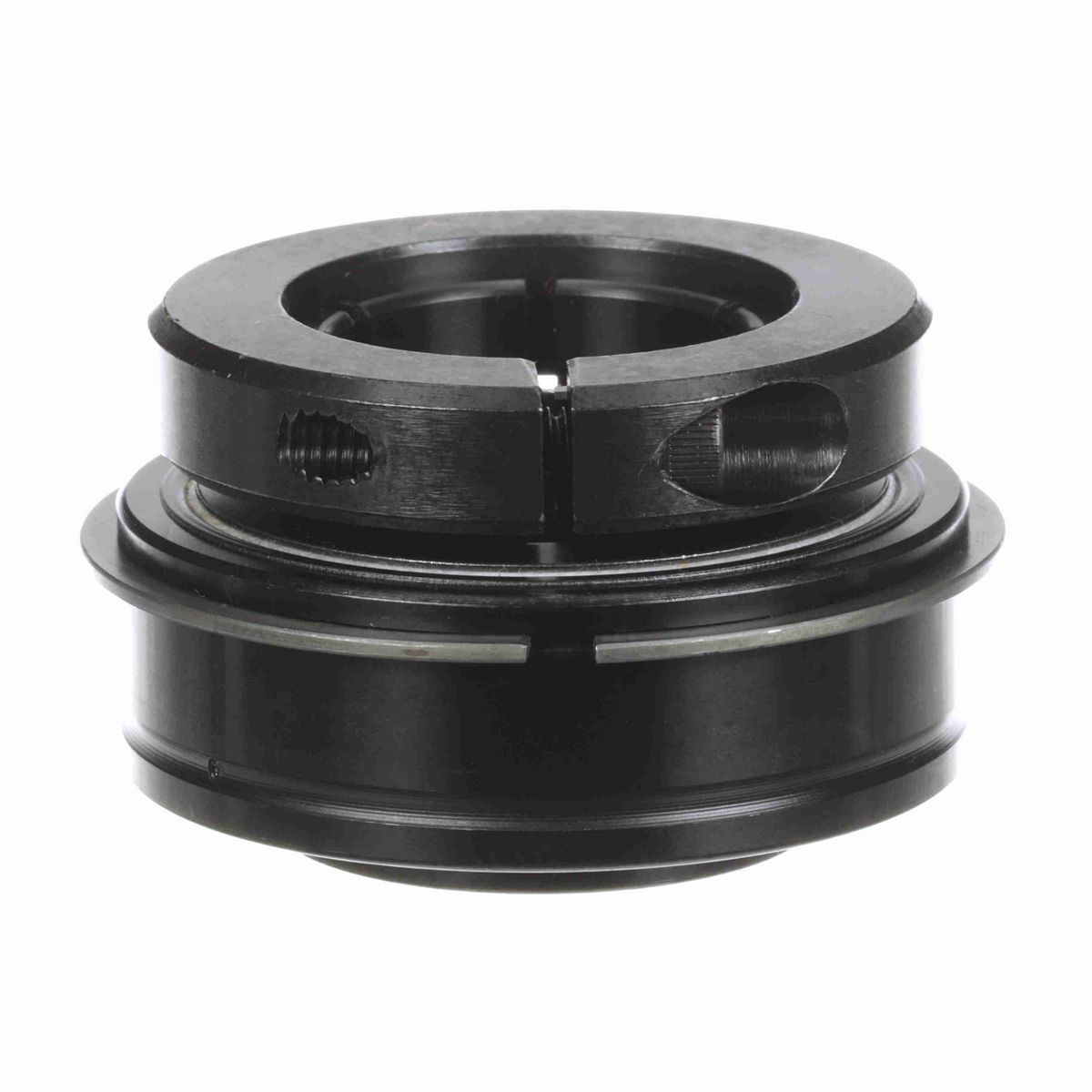

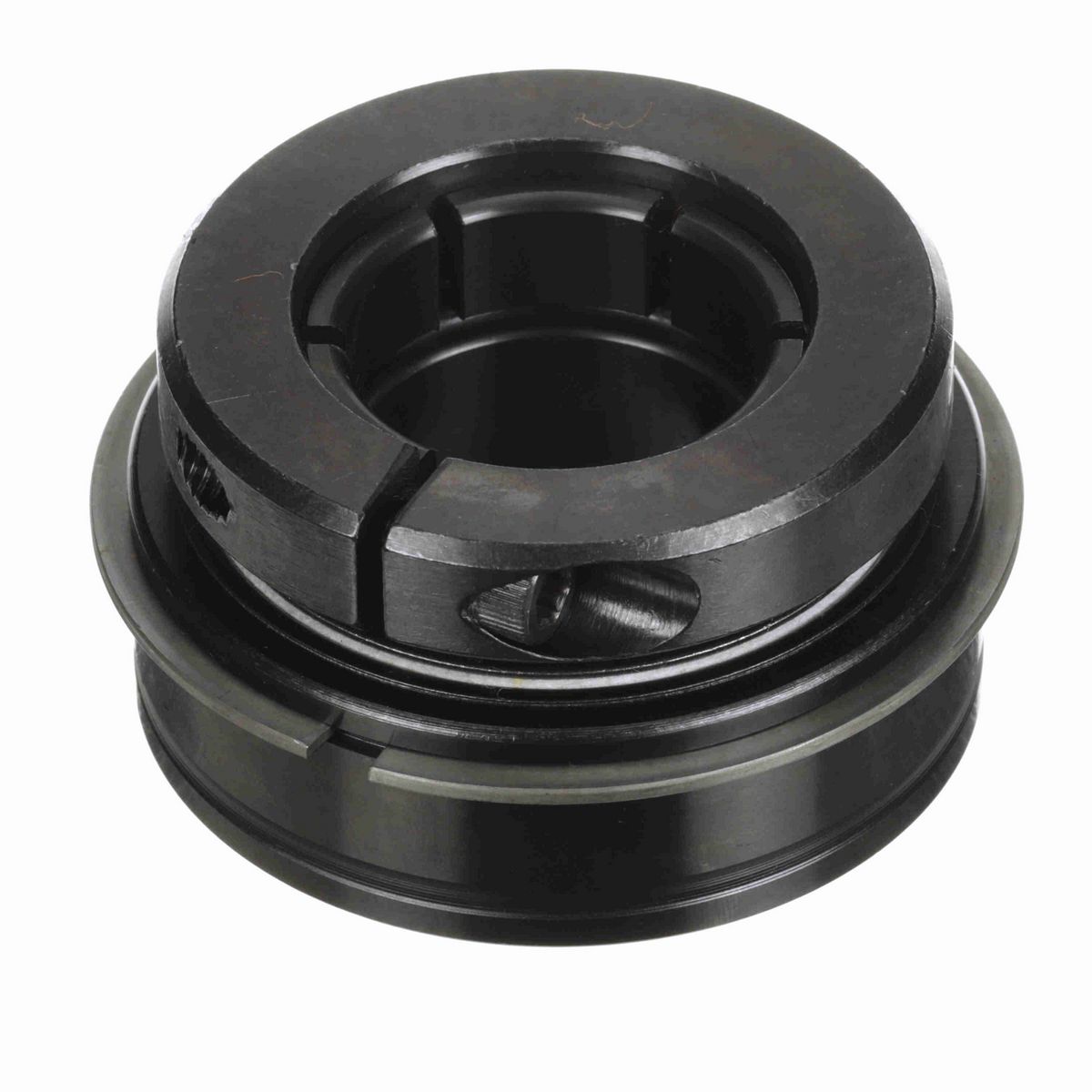

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.75 in
Bore Size (mm)	35 mm
Collar OD (in)	2.62 in
Centerline to Front Face (in)	1.063 in
Outer Race OD (mm)	72 mm
Outer Race OD (in)	2.8346 in
Outer Race Width (in)	0.938 in
Inner Ring OD (in)	1.859 in
Length Through Bore (in)	1.75 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Torx Cap Screw	1/4-20 UNC
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Seal Type	Felt Labyrinth Seal
Measure Units	Metric
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Expansion	No
Internal Clearance	Standard
Misalignment	None
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Outer Ring Defect	0.0595 cps
Duty/Status	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0067 cps
Ability to Relubricate	Yes
Locking Type	Concentric
Setscrew Torque (in-lbs)	240 in/lbs
Maximum Speed (rpm)	6500 rpm
Series	Unmounted Replacement Bearings
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-17
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0383 cps
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Static Load Rating (lb)	3,493 lb
Dynamic Load Rating (lb)	5,782 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461253243
Weight	1.37 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
