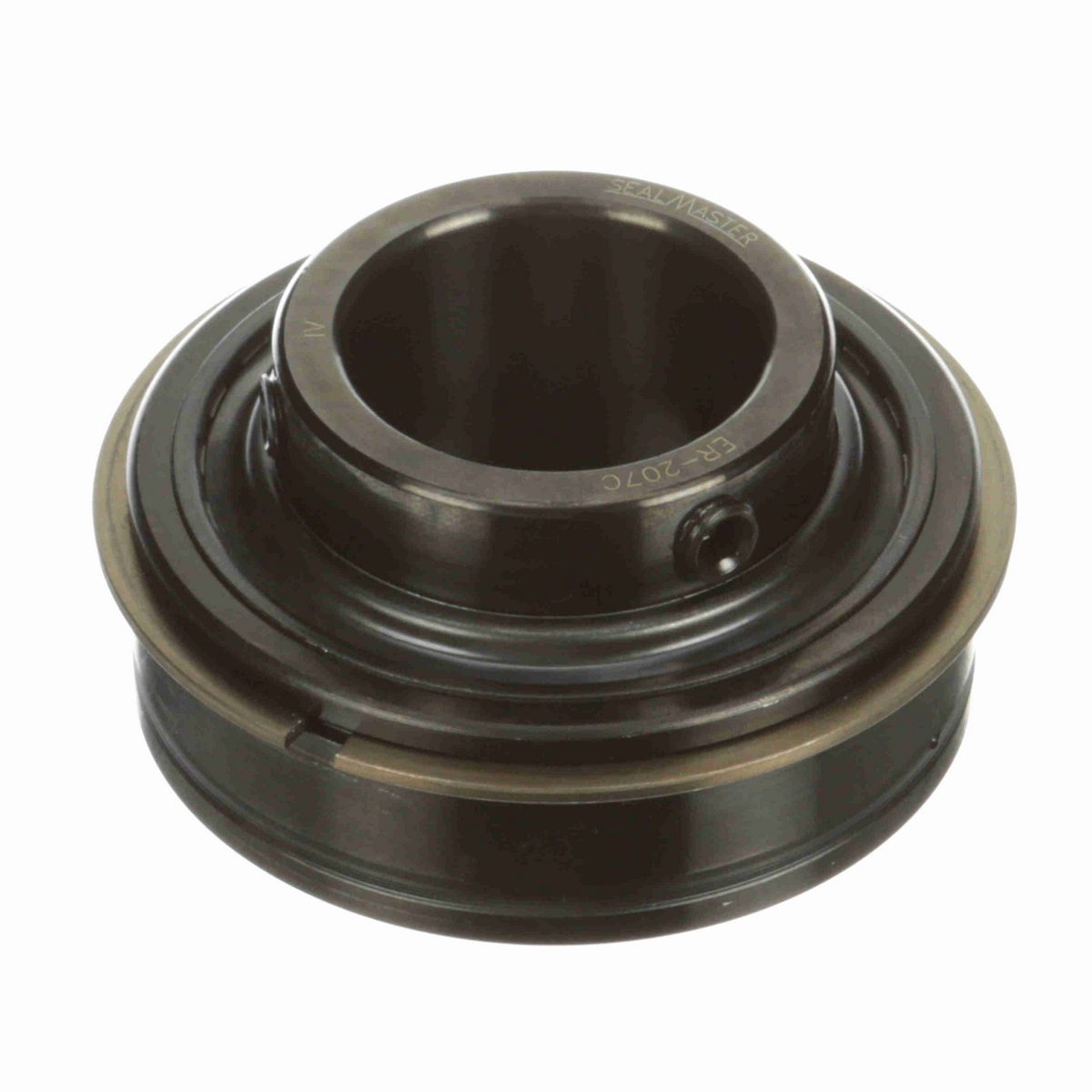

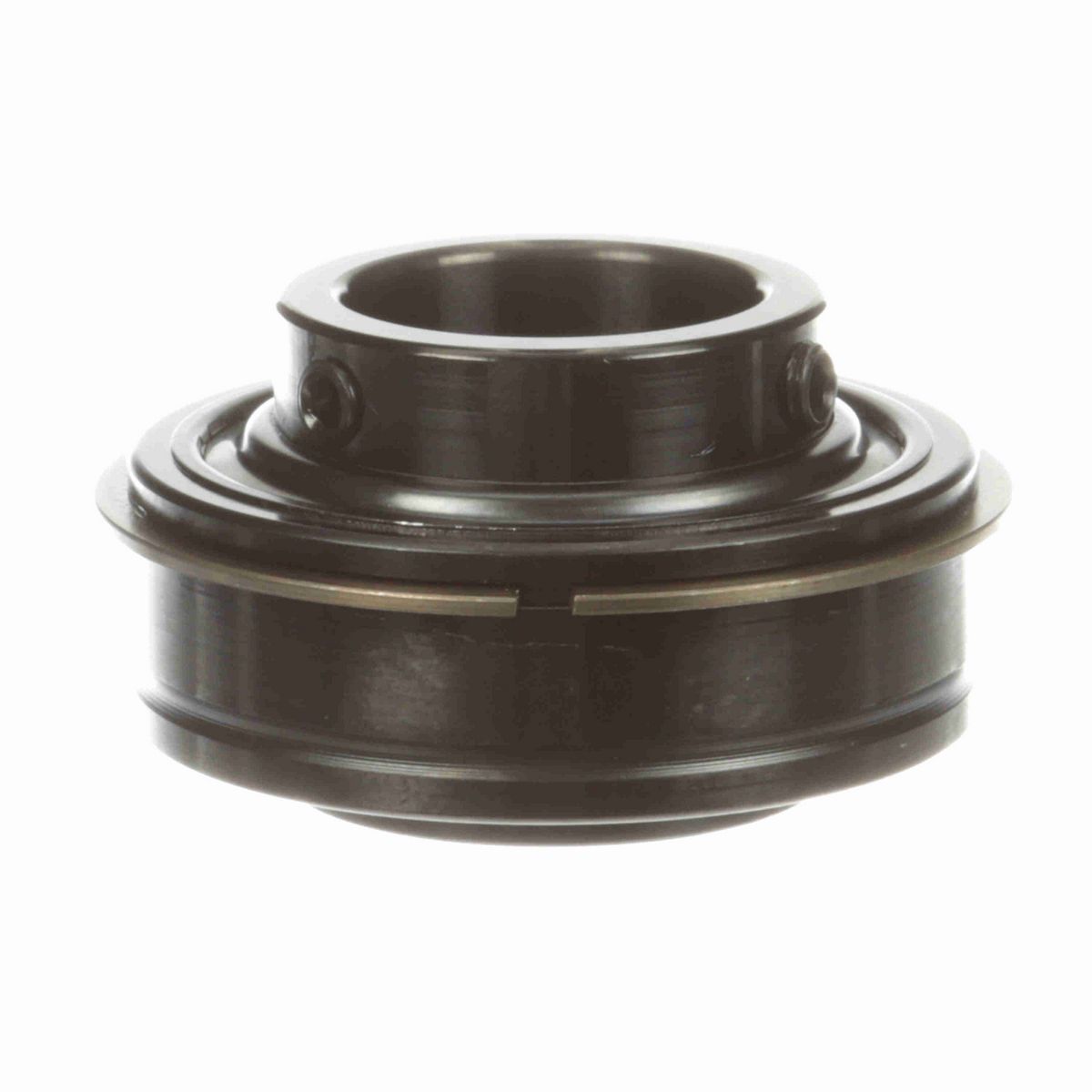

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.69 in
Bore Size (mm)	35 mm
Inner Ring OD (in)	1.859 in
Centerline to Front Face (in)	1 in
Outer Race OD (in)	2.8346 in
Outer Race Width (in)	0.938 in
Outer Race OD (mm)	72 mm
Length Through Bore (in)	1.688 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Measure Units	Metric
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Internal Clearance	Standard
Expansion	No
Misalignment	None
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Status	Standard
Series	Unmounted Replacement Bearings
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Roller Spin	0.0383 cps
Size Code	2-17
Ability to Relubricate	Yes
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (rpm)	4650 rpm
Vibration Frequency Fundamental Train	0.0067 cps
Inner Ring Fillet Radius (in)	0.04 in
Maximum Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	5,782 lb
Static Load Rating (lb)	3,493 lb

General Specifications

UPC	662461024836
Weight	1.26 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
