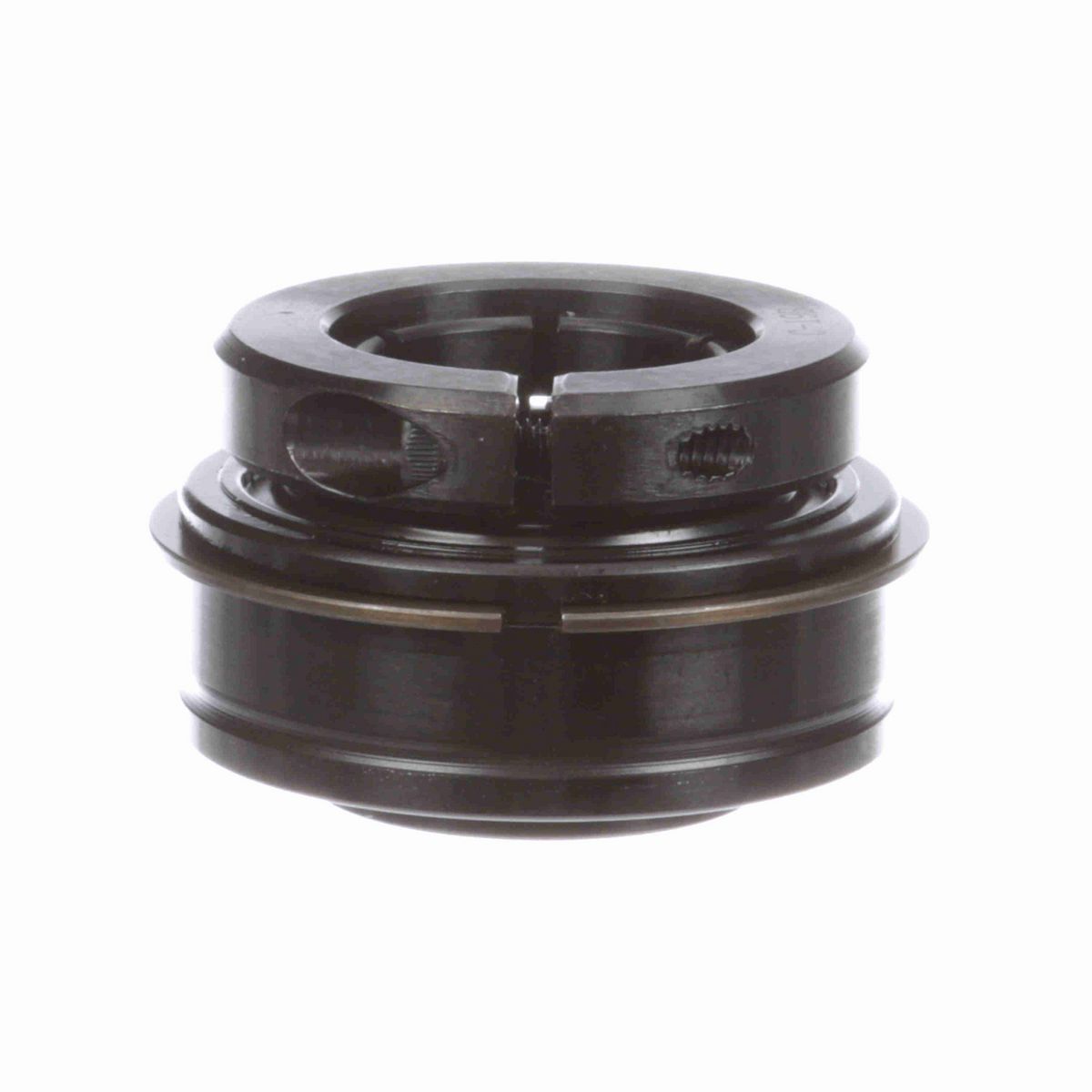

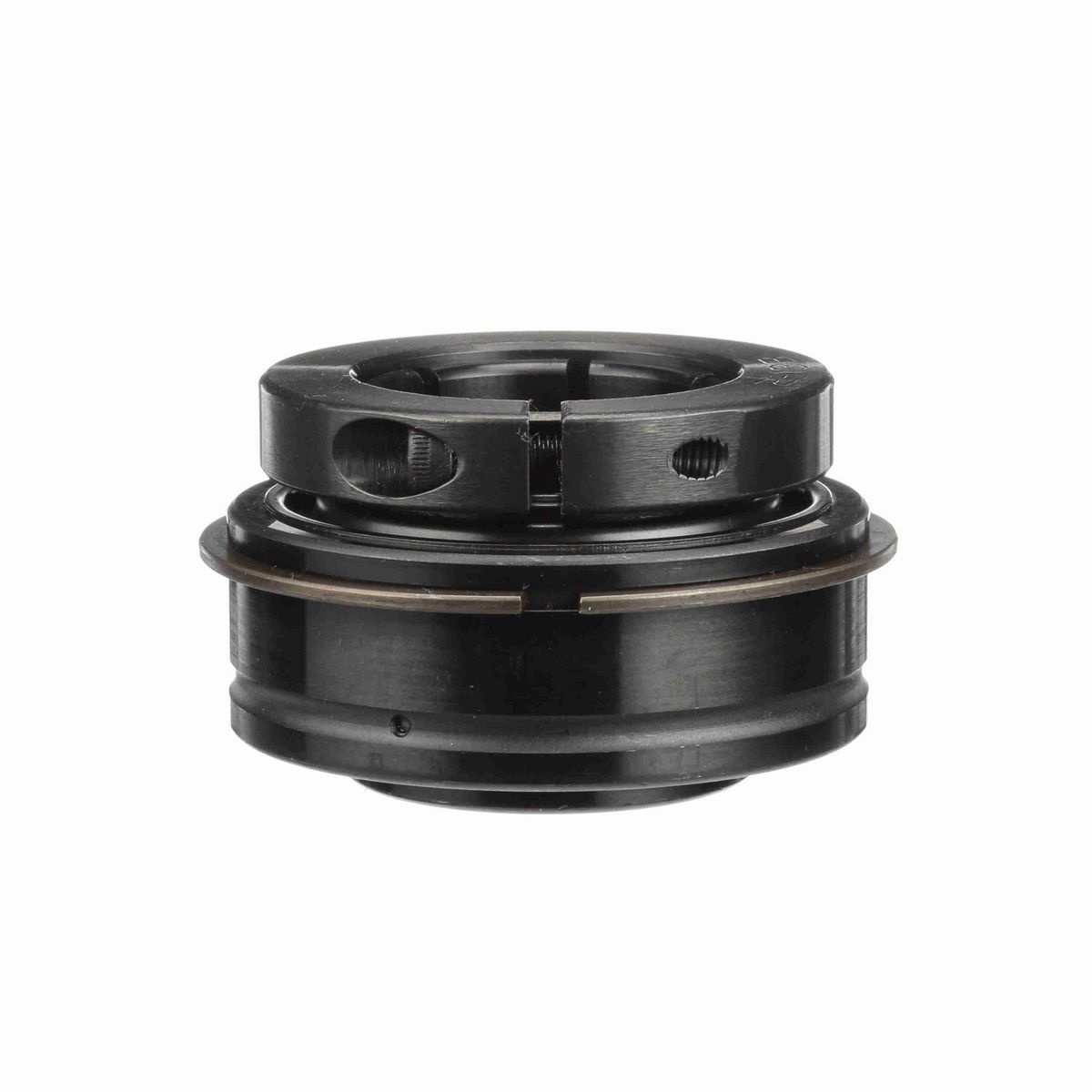

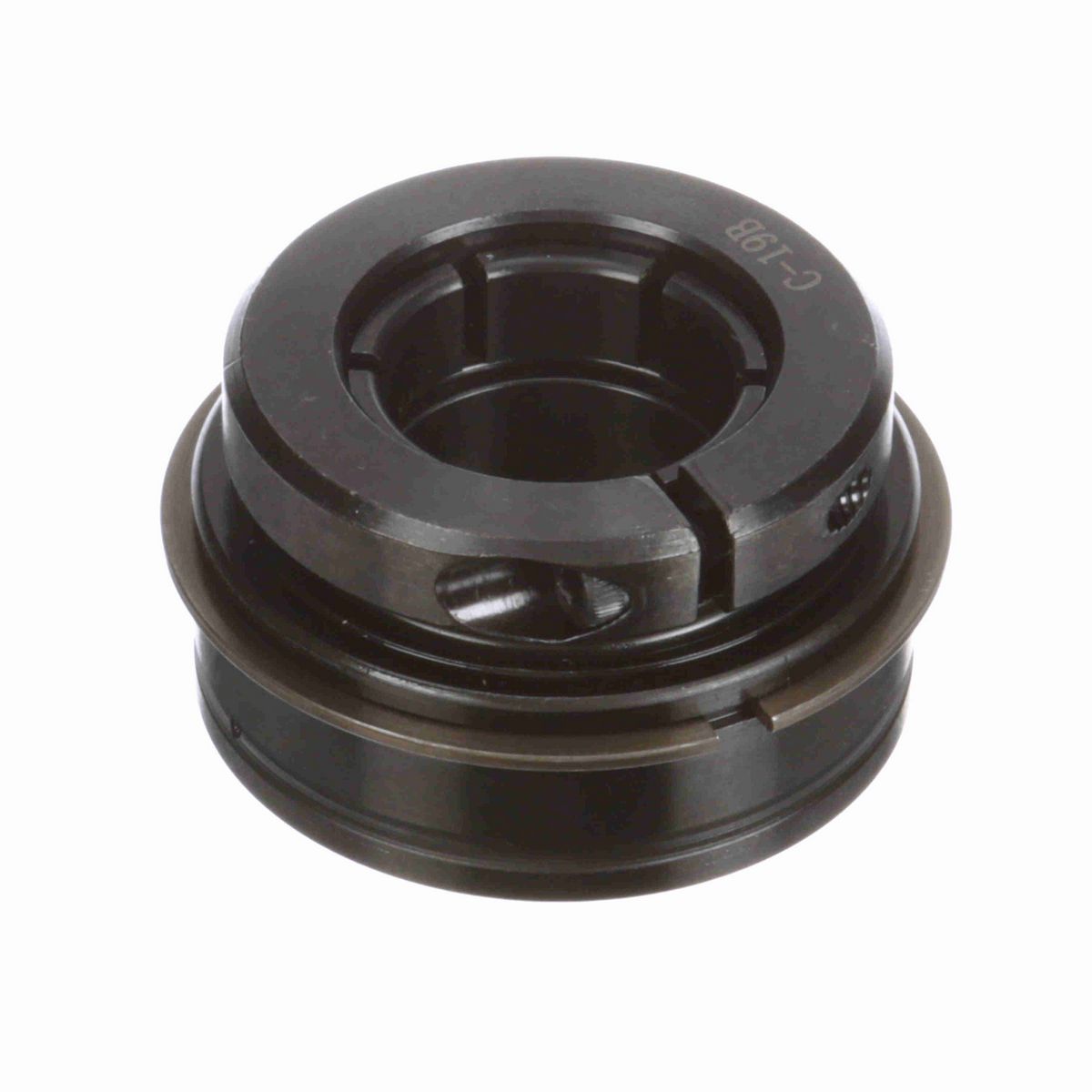

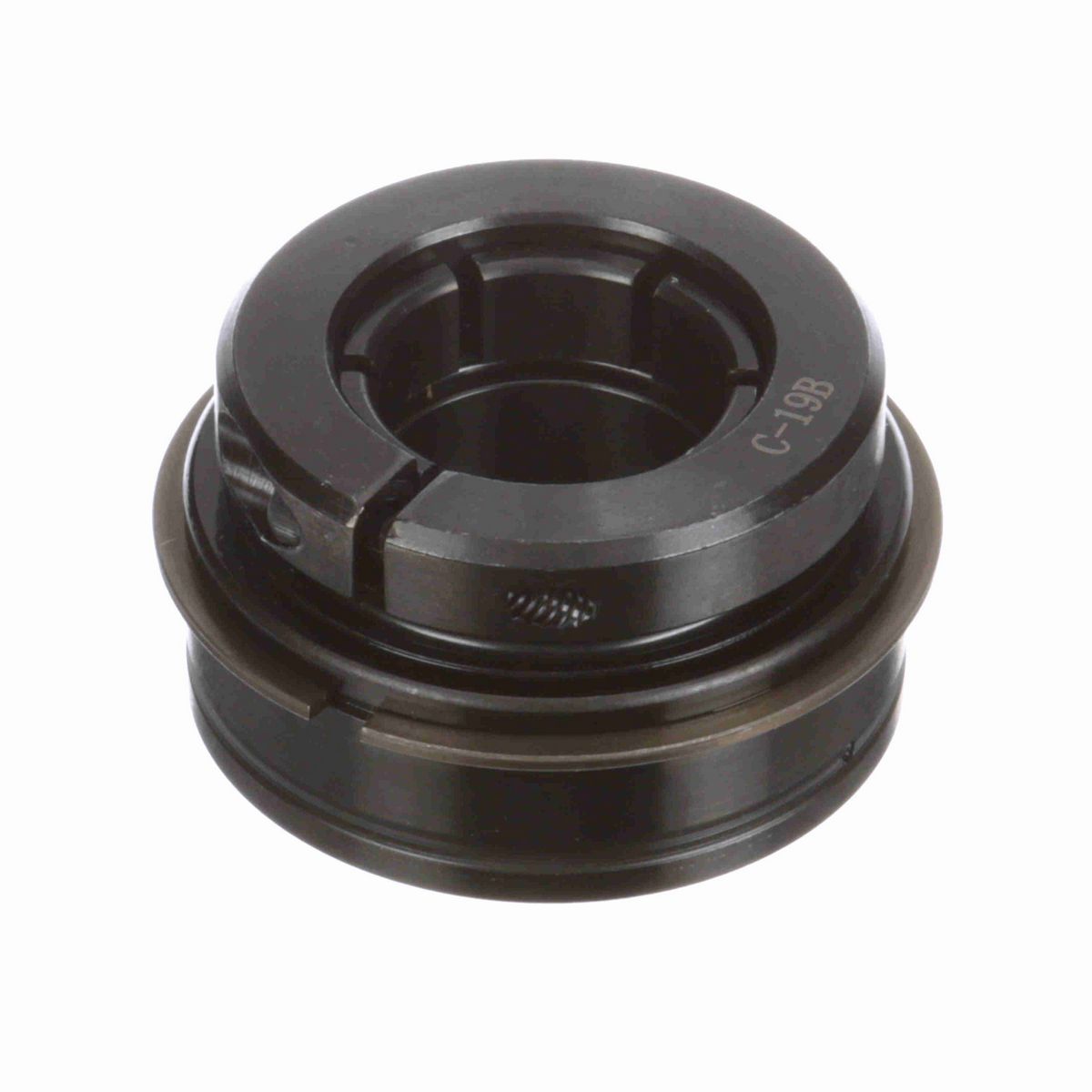

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.56 in
Bore Size (mm)	30 mm
Inner Ring OD (in)	1.594 in
Outer Race OD (in)	2.4409 in
Collar OD (in)	2.23 in
Outer Race Width (in)	0.875 in
Centerline to Front Face (in)	0.938 in
Outer Race OD (mm)	62 mm
Length Through Bore (in)	1.56 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Torx Cap Screw	10-24 UNC
Rolling Element	Ball Bearing
Bore Shape	Straight
Measure Units	Metric
Seal Type	Single Lip Contact Seal
Expansion	No
Internal Clearance	Standard
Misalignment	None
Outer Ring Land Profile	Tapered Lands
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Roller Spin	0.0385 cps
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Setscrew Torque (in-lbs)	100 in/lbs
Locking Type	Concentric
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Speed (rpm)	5450 rpm
Size Code	2-13
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461253991
Weight	1.03 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
