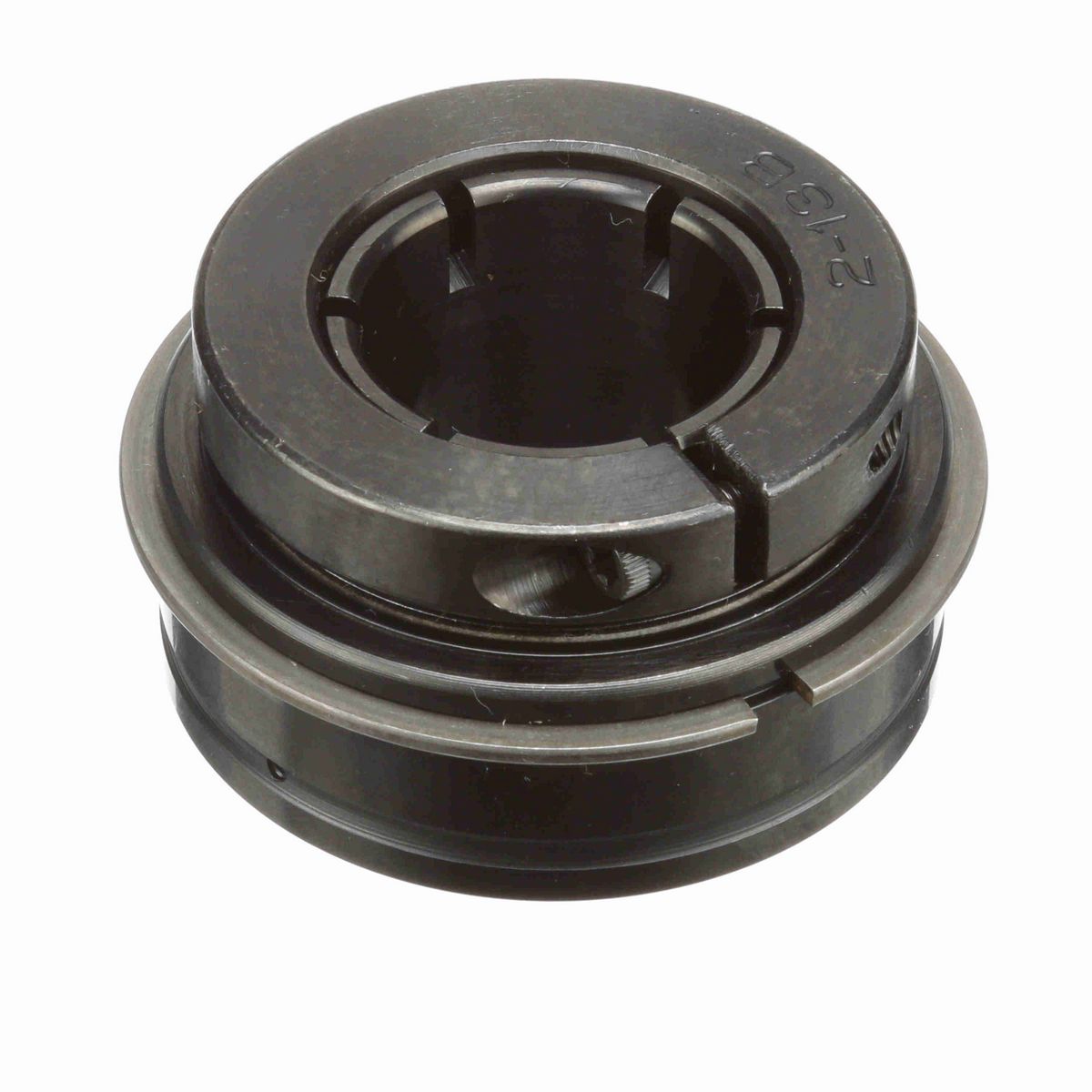

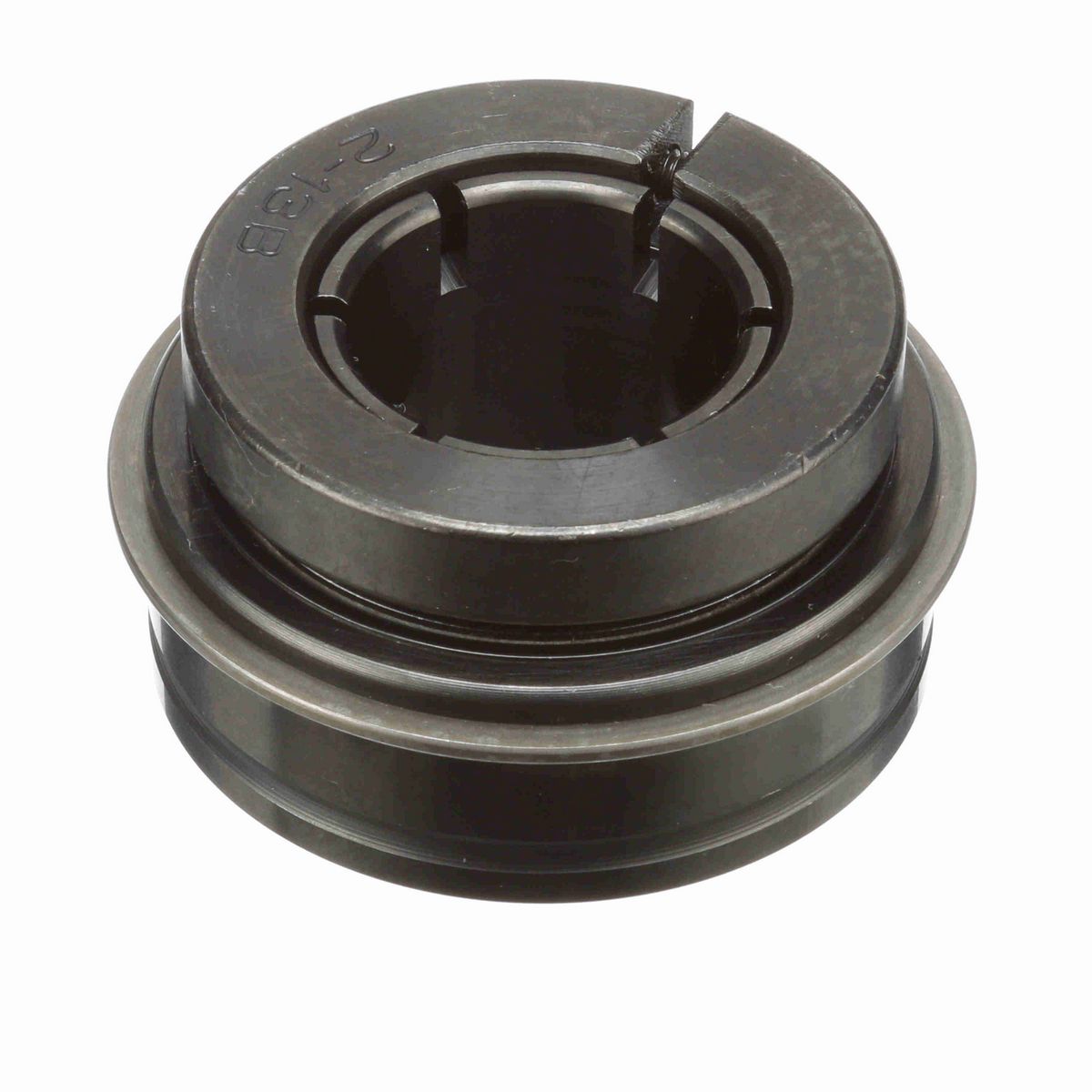

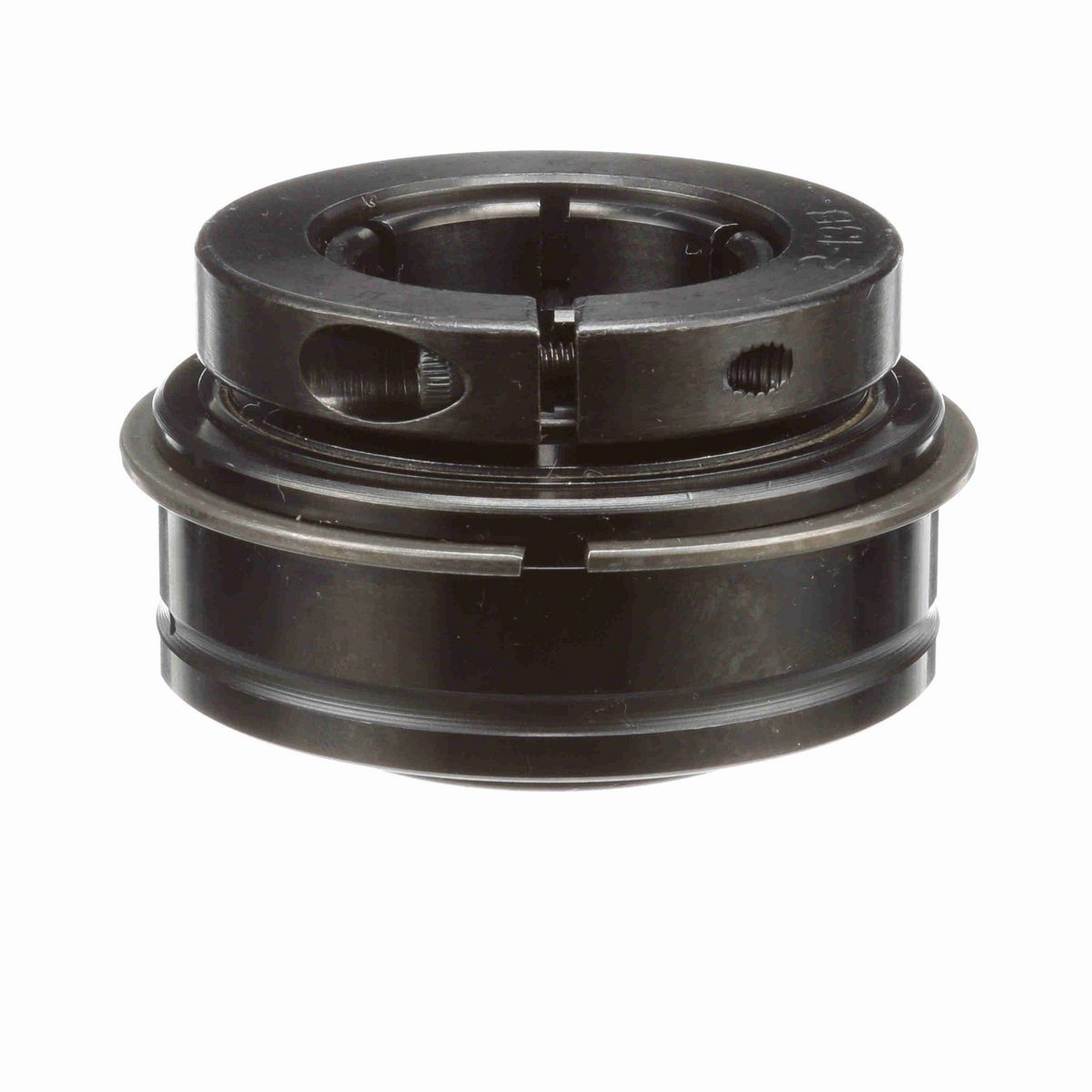

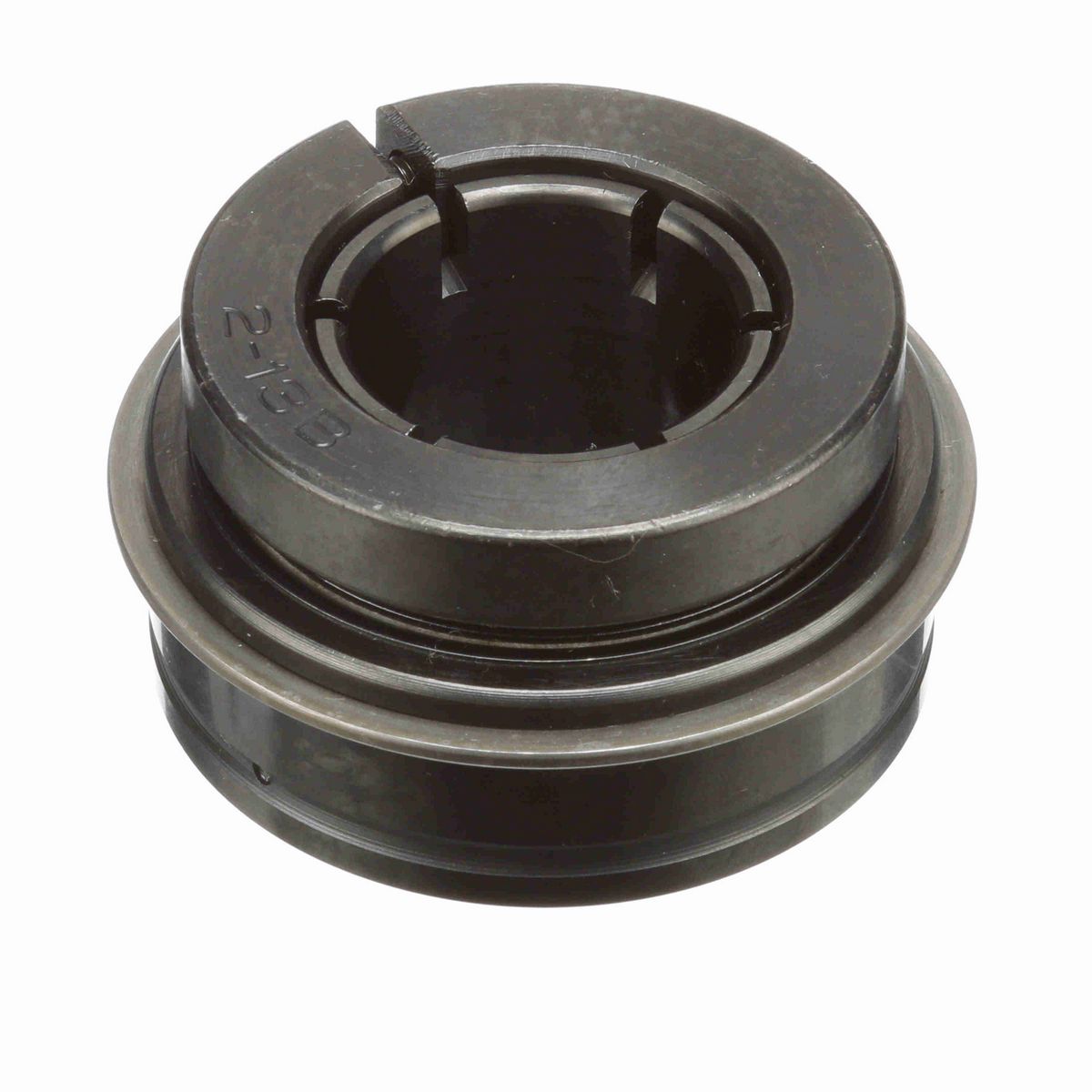

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.56 in
Bore Size (mm)	30 mm
Outer Race OD (mm)	62 mm
Outer Race OD (in)	2.4409 in
Outer Race Width (in)	0.875 in
Collar OD (in)	2.23 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.938 in
Length Through Bore (in)	1.56 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Seal Type	Felt Labyrinth Seal
Measure Units	Metric
Expansion	No
Internal Clearance	Standard
Misalignment	None
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Ability to Relubricate	Yes
Size Code	2-13
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Series	Unmounted Replacement Bearings
Setscrew Torque (in-lbs)	100 in/lbs
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Operating Temperature (F)	220 °F
Locking Type	Concentric
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0385 cps
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Speed (rpm)	7600 rpm
Static Load Rating (lb)	2,567 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	4,381 lb

General Specifications

UPC	662461253236
Weight	1.10 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
