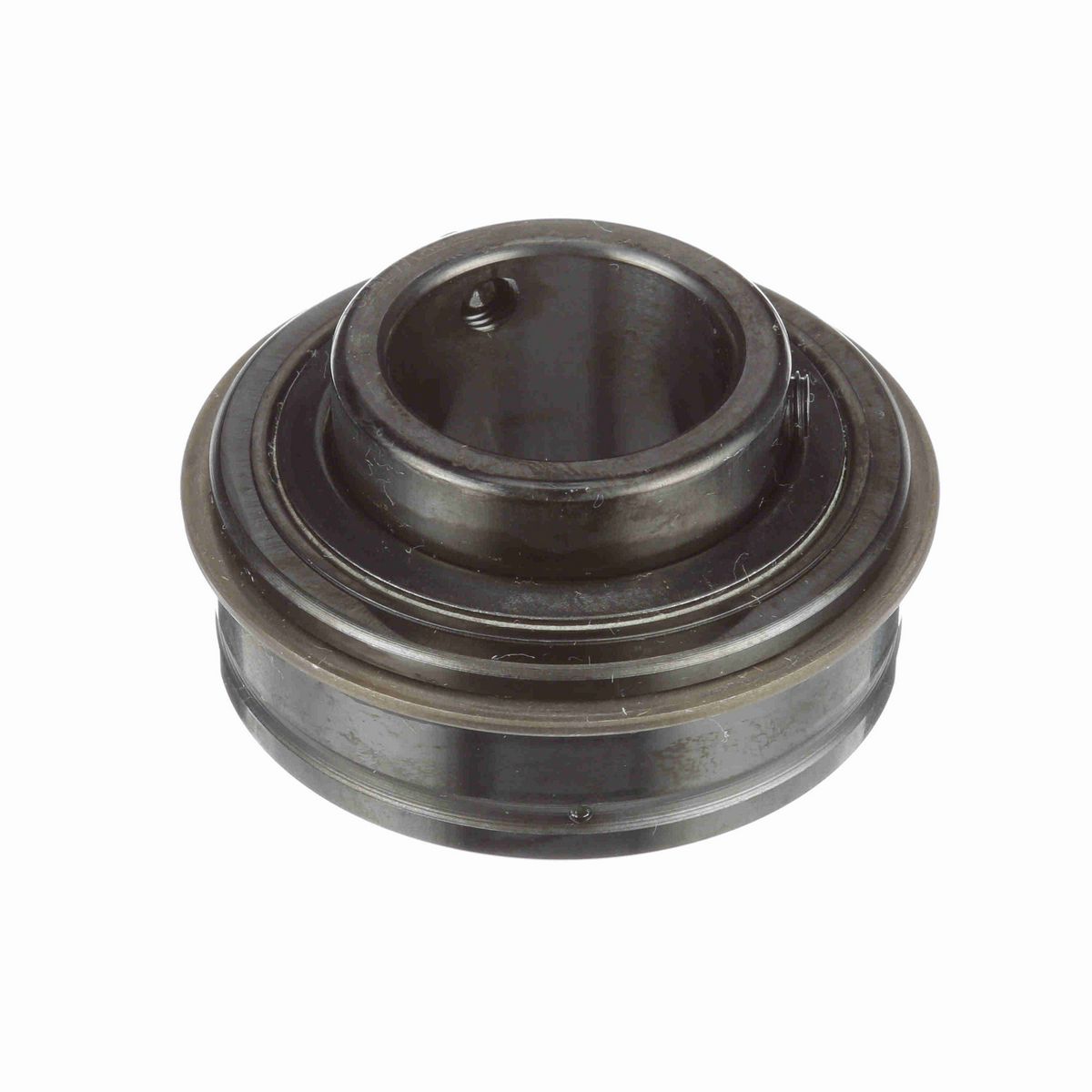

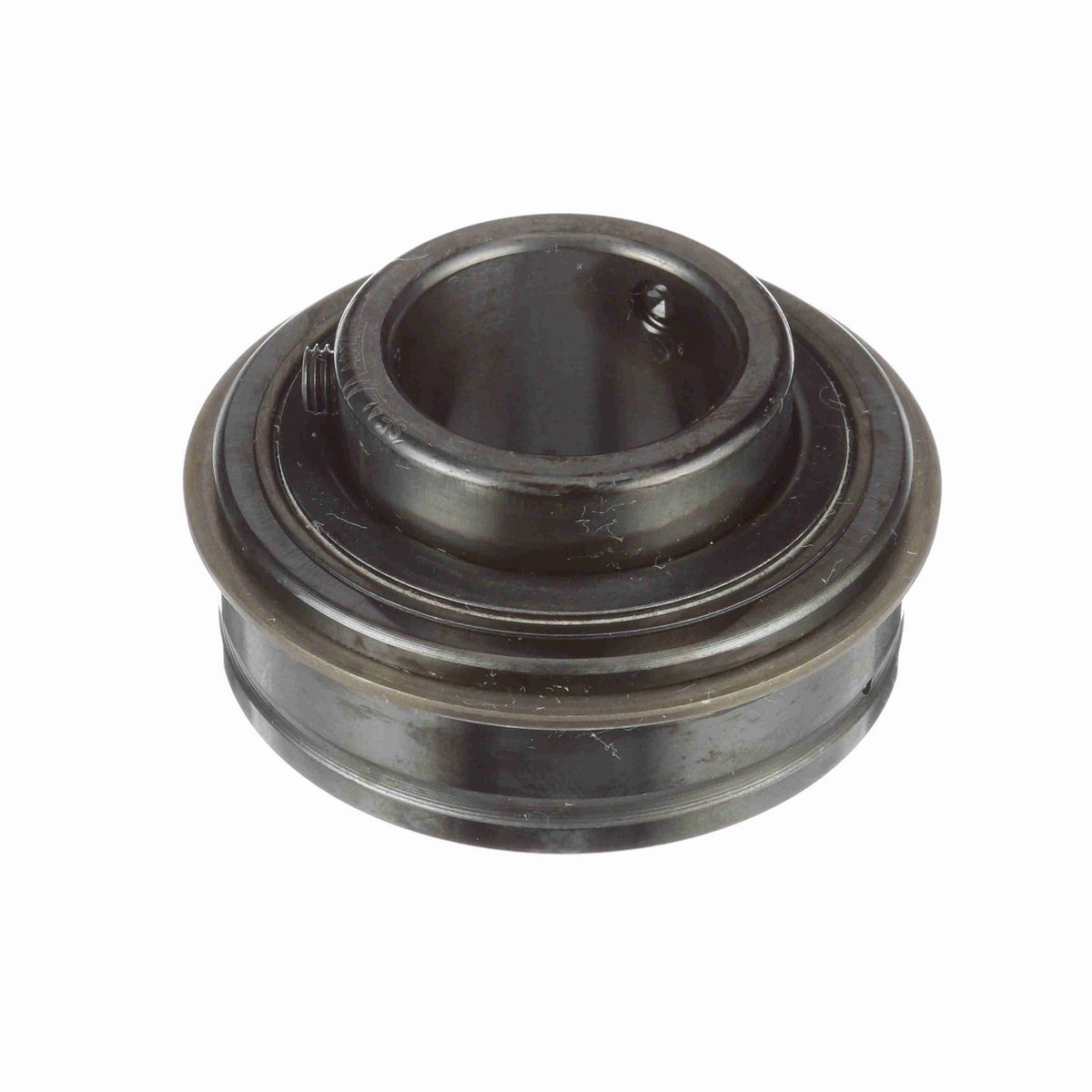

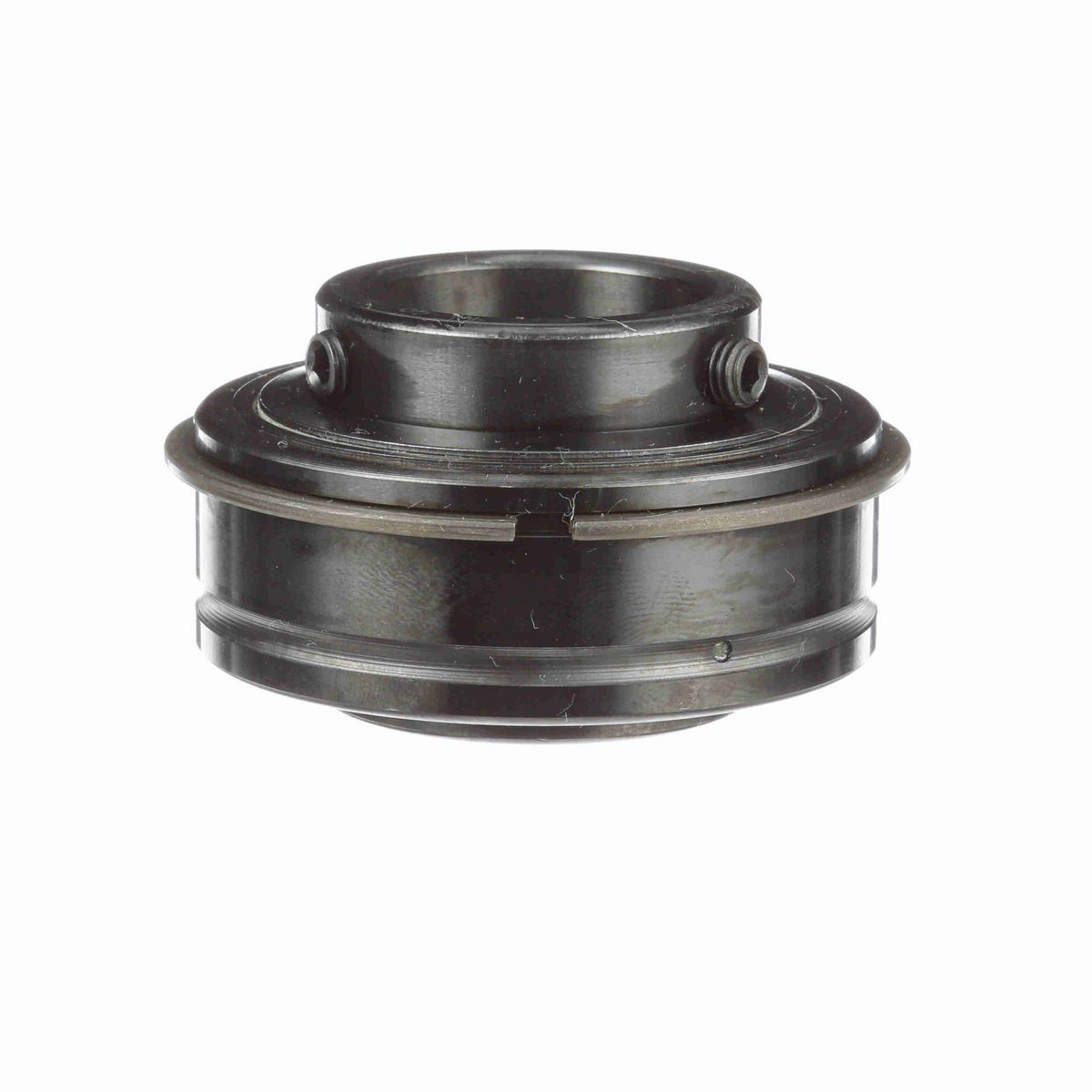

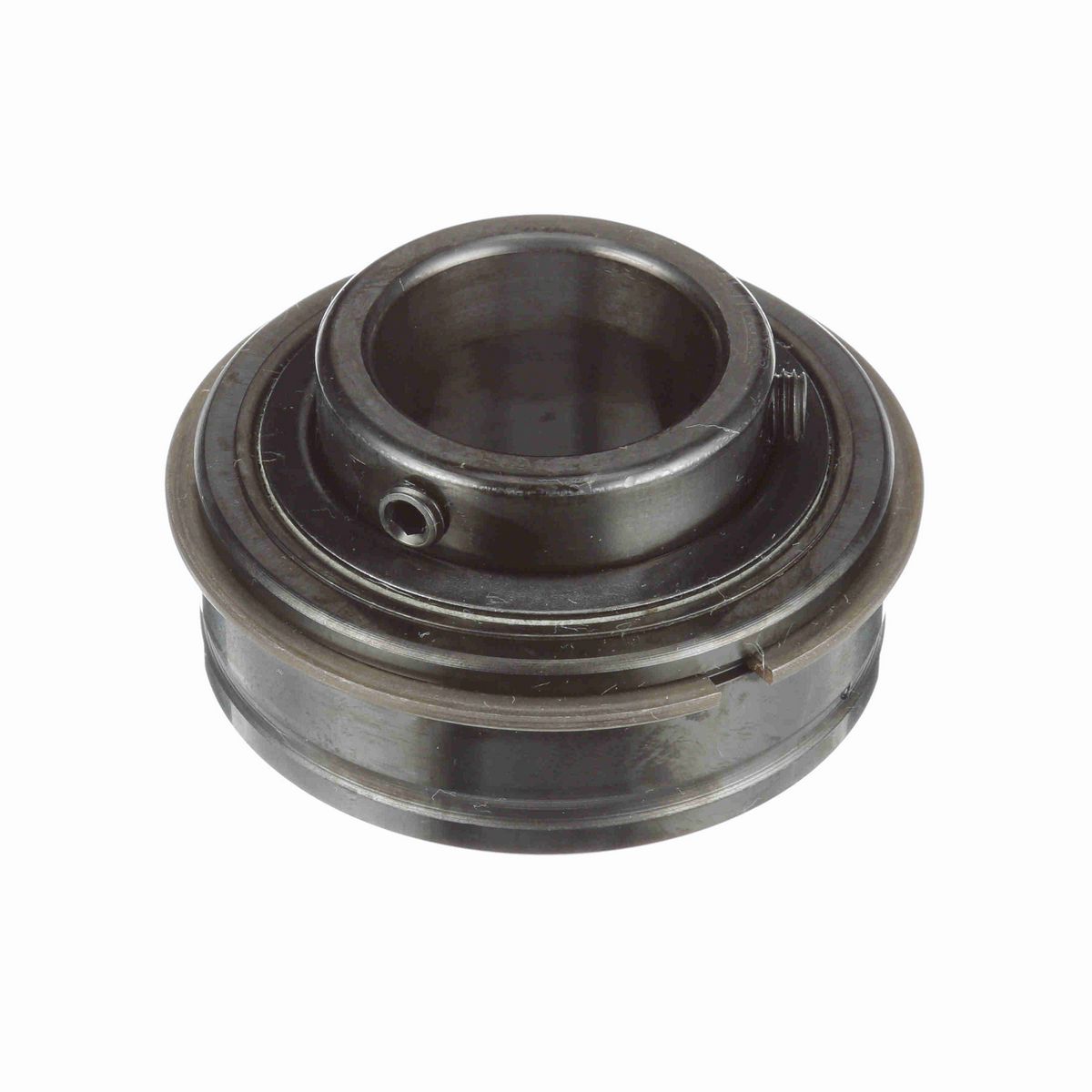

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (mm)	30 mm
Outer Race OD (in)	2.4409 in
Centerline to Front Face (in)	0.875 in
Inner Ring OD (in)	1.594 in
Outer Race OD (mm)	62 mm
Outer Race Width (in)	0.875 in
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Rolling Element	Ball Bearing
Seal Type	Felt Labyrinth Seal
Housing Type	Insert (ER Style)
Bore Shape	Straight
Measure Units	Metric
Insert Material	52100 Bearing Steel
Set Screw Thread	M6 x 1
Expansion	No
Misalignment	None
Internal Clearance	Standard
Outer Ring Land Profile	Tapered Lands
End Cap	No
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Fundamental Train	0.0066 cps
Duty/Status	Standard
Maximum Operating Temperature (F)	220 °F
Maximum Speed (rpm)	5450 rpm
Vibration Frequency Inner Ring Defect	0.0905 cps
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0595 cps
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Vibration Frequency Roller Spin	0.0385 cps
Size Code	2-13
Lubrication Type	Lithium Complex NLGI 2 Grease
Setscrew Torque (in-lbs)	65-85 in/lbs
Inner Ring Fillet Radius (in)	0.04 in
Static Load Rating (lb)	2,567 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	4,381 lb

General Specifications

UPC	662461008584
Weight	0.87 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
