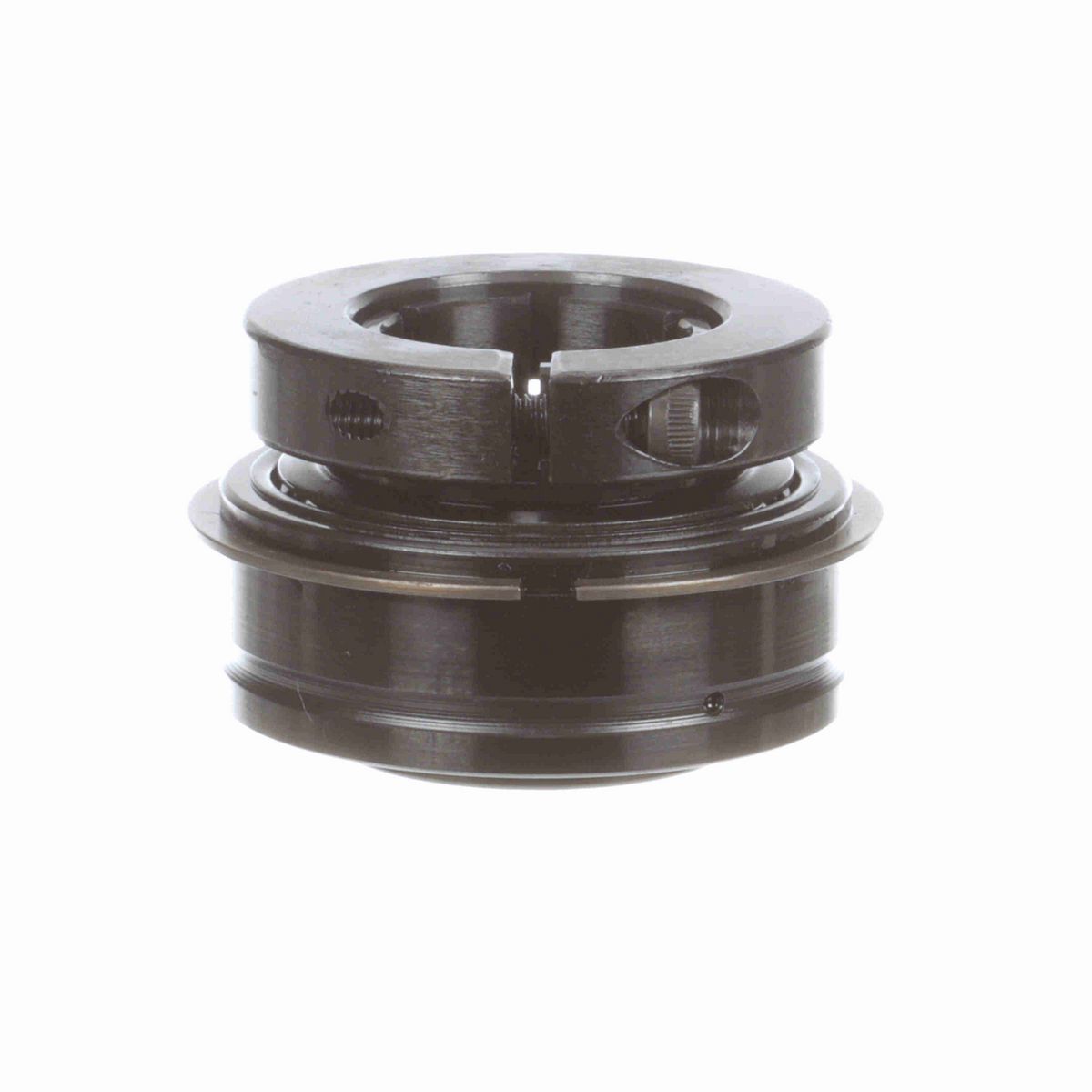

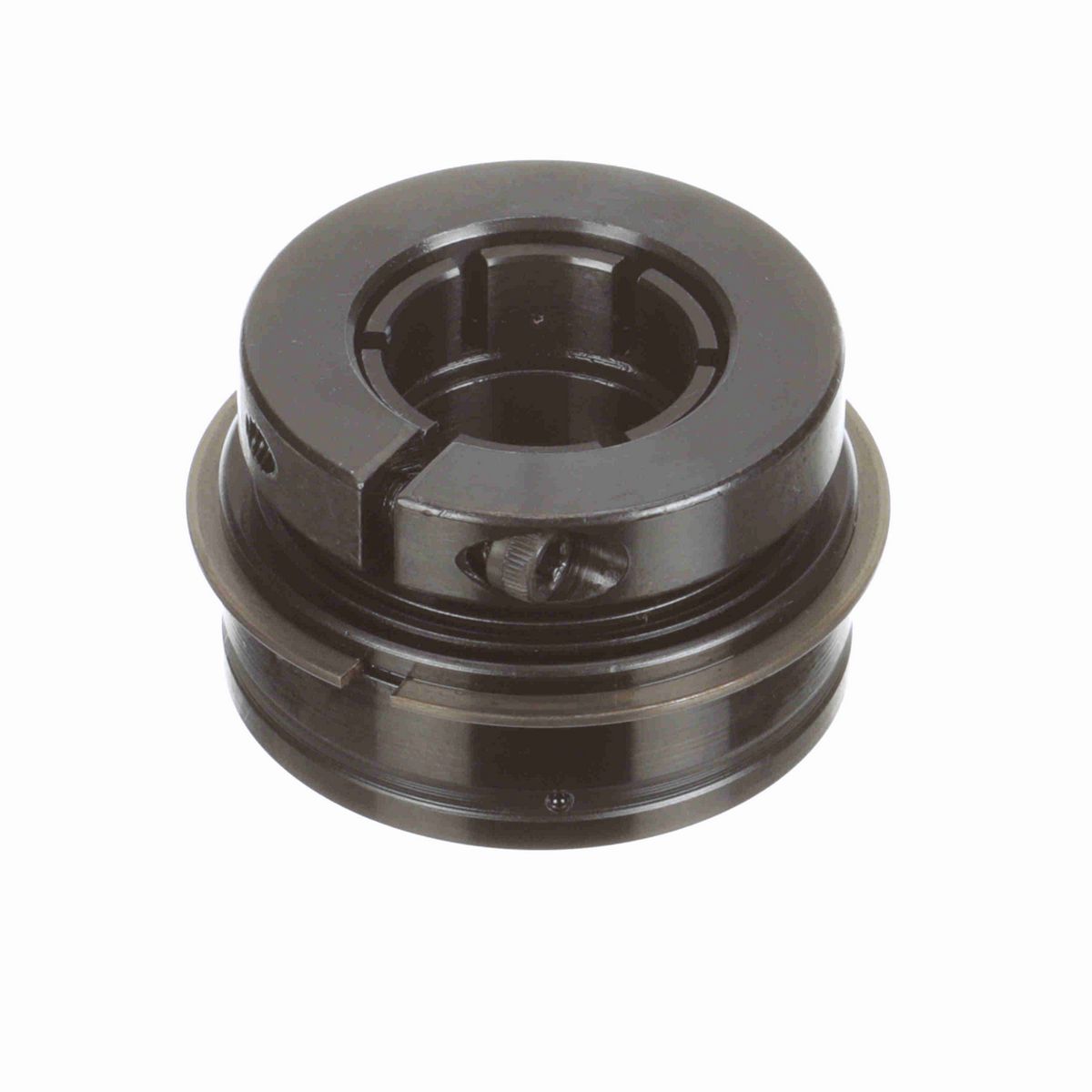

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Labyrinth seal and flinger
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.44 in
Bore Size (mm)	25 mm
Centerline to Front Face (in)	0.922 in
Collar OD (in)	1.98 in
Outer Race OD (mm)	52 mm
Outer Race OD (in)	2.0472 in
Inner Ring OD (in)	1.375 in
Outer Race Width (in)	0.75 in
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Set Screw Thread	10-24 UNC
Seal Type	Labryinth Seal
Housing Type	Insert (ER Style)
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Measure Units	Metric
Internal Clearance	Standard
Misalignment	None
Expansion	No
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (rpm)	9000 rpm
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.0682 cps
Series	Unmounted Replacement Bearings
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Setscrew Torque (in-lbs)	70 in/lbs
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Locking Type	Concentric
Size Code	2-015
Vibration Frequency Roller Spin	0.0442 cps
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Inner Ring Defect	0.0985 cps
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	12,459 lb

General Specifications

UPC	662461281406
Weight	0.70 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5048
Country of Origin	Mexico
