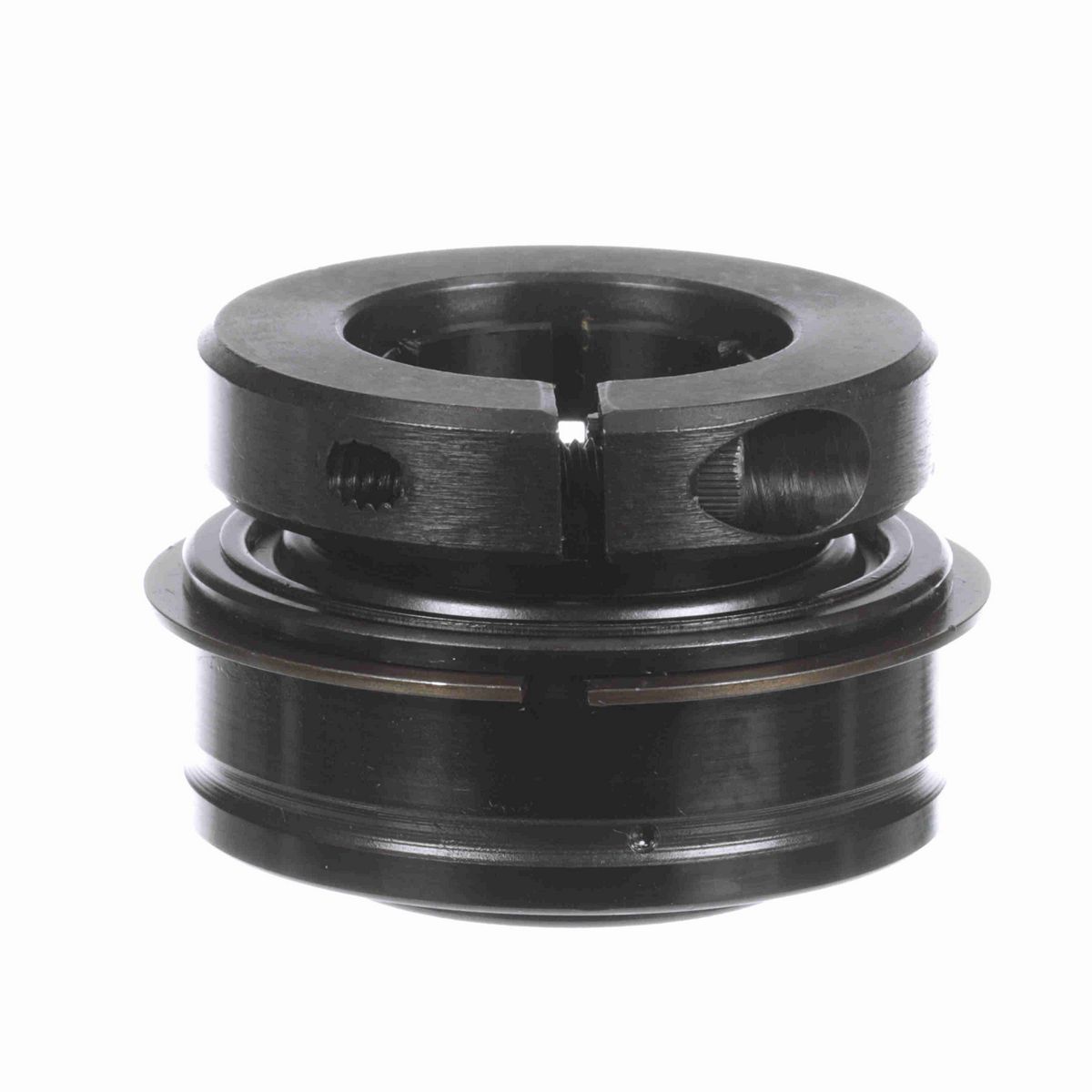

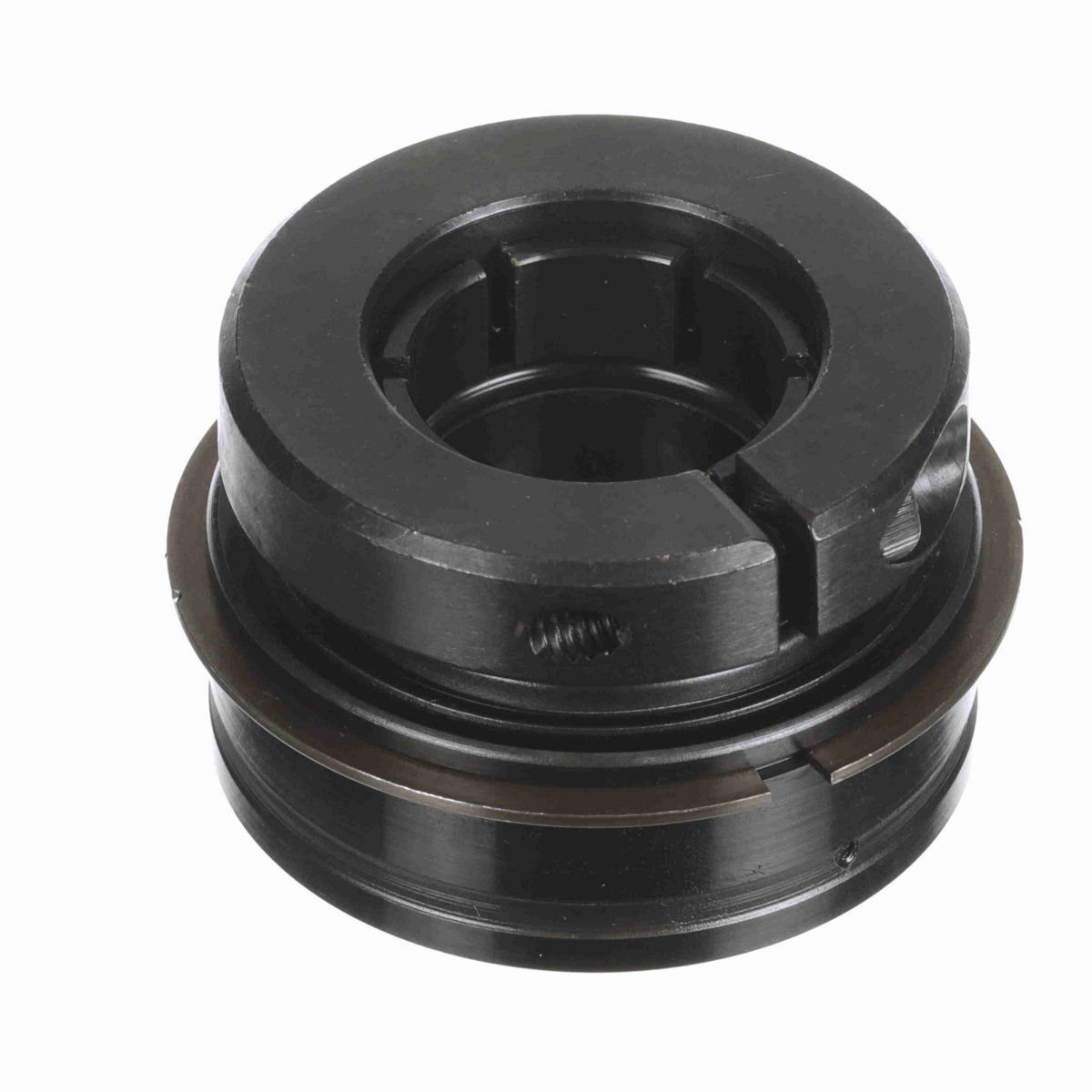

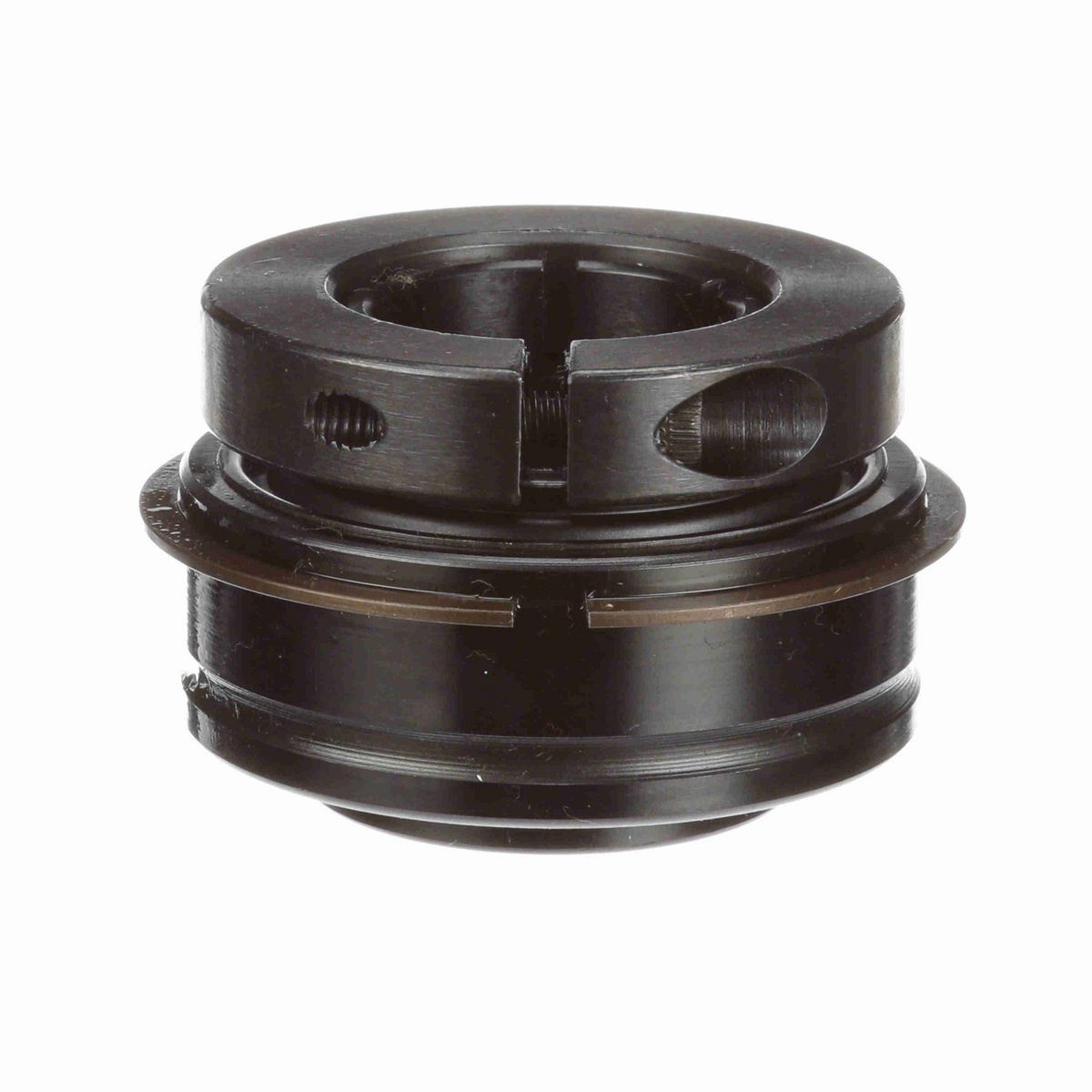

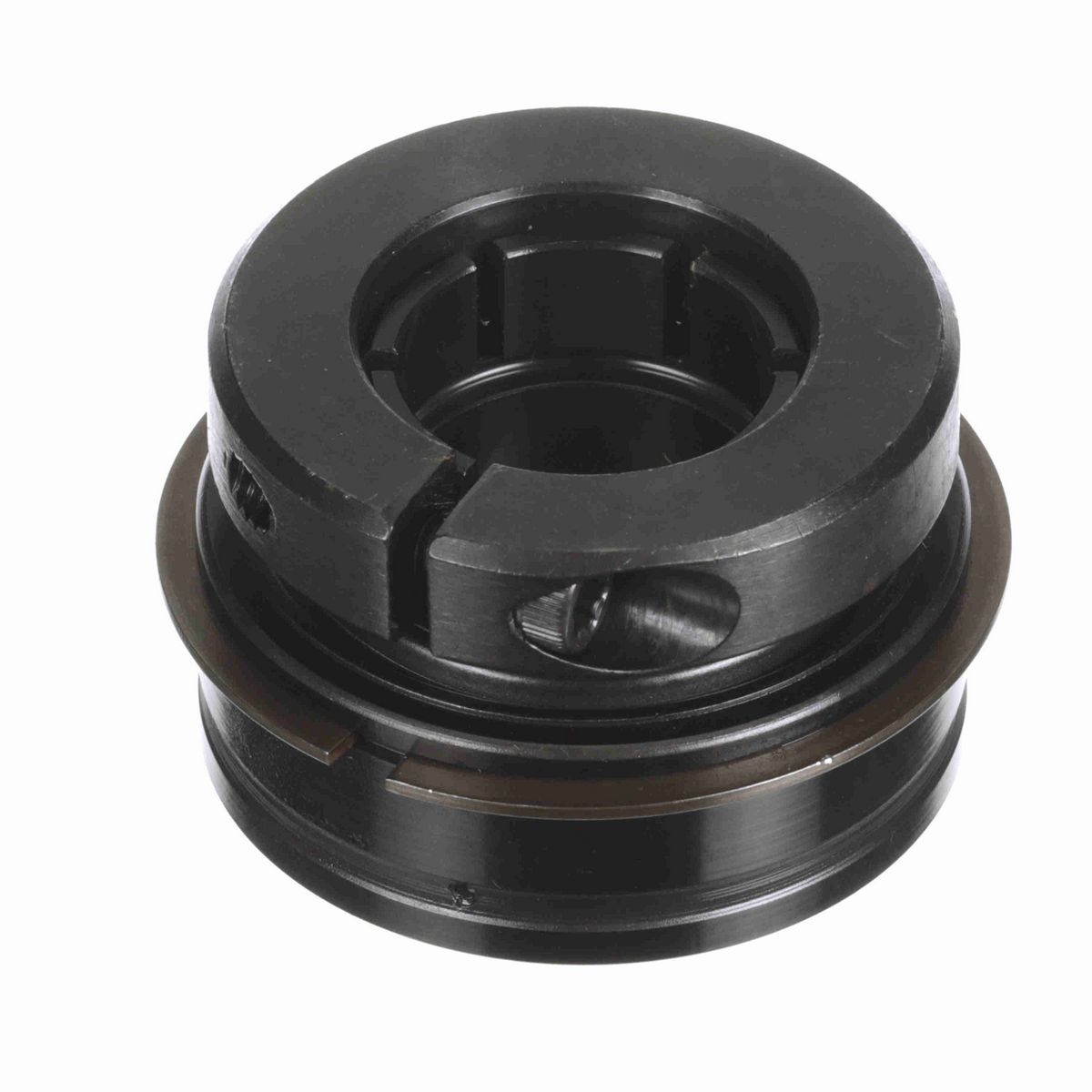

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.44 in
Bore Size (mm)	25 mm
Centerline to Front Face (in)	0.922 in
Outer Race OD (mm)	52 mm
Outer Race OD (in)	2.0472 in
Collar OD (in)	1.98 in
Outer Race Width (in)	0.75 in
Inner Ring OD (in)	1.375 in
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Metric
Bore Shape	Straight
Set Screw Thread	10-24 UNC
Insert Material	52100 Bearing Steel
Torx Cap Screw	10-24 UNC
Seal Type	Single Lip Contact Seal
Housing Type	Insert (ER Style)
Misalignment	None
Internal Clearance	Standard
Expansion	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (rpm)	6350 rpm
Size Code	2-015
Vibration Frequency Inner Ring Defect	0.0985 cps
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0682 cps
Setscrew Torque (in-lbs)	70 in/lbs
Inner Ring Fillet Radius (in)	0.04 in
Series	Unmounted Replacement Bearings
Vibration Frequency Roller Spin	0.0442 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Static Load Rating (lb)	1,651 lb
Dynamic Load Rating (lb)	2,801 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461232262
Weight	0.70 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
