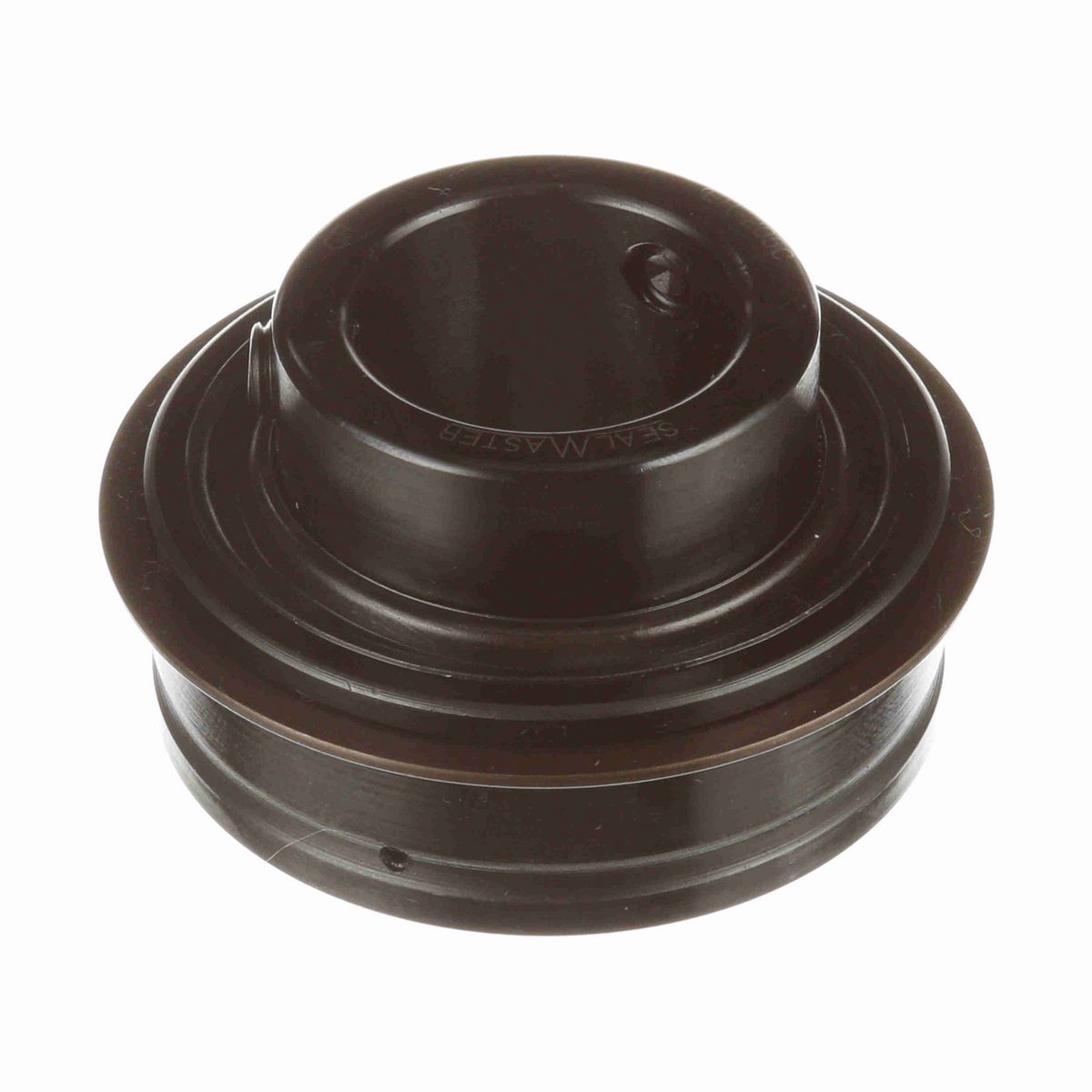

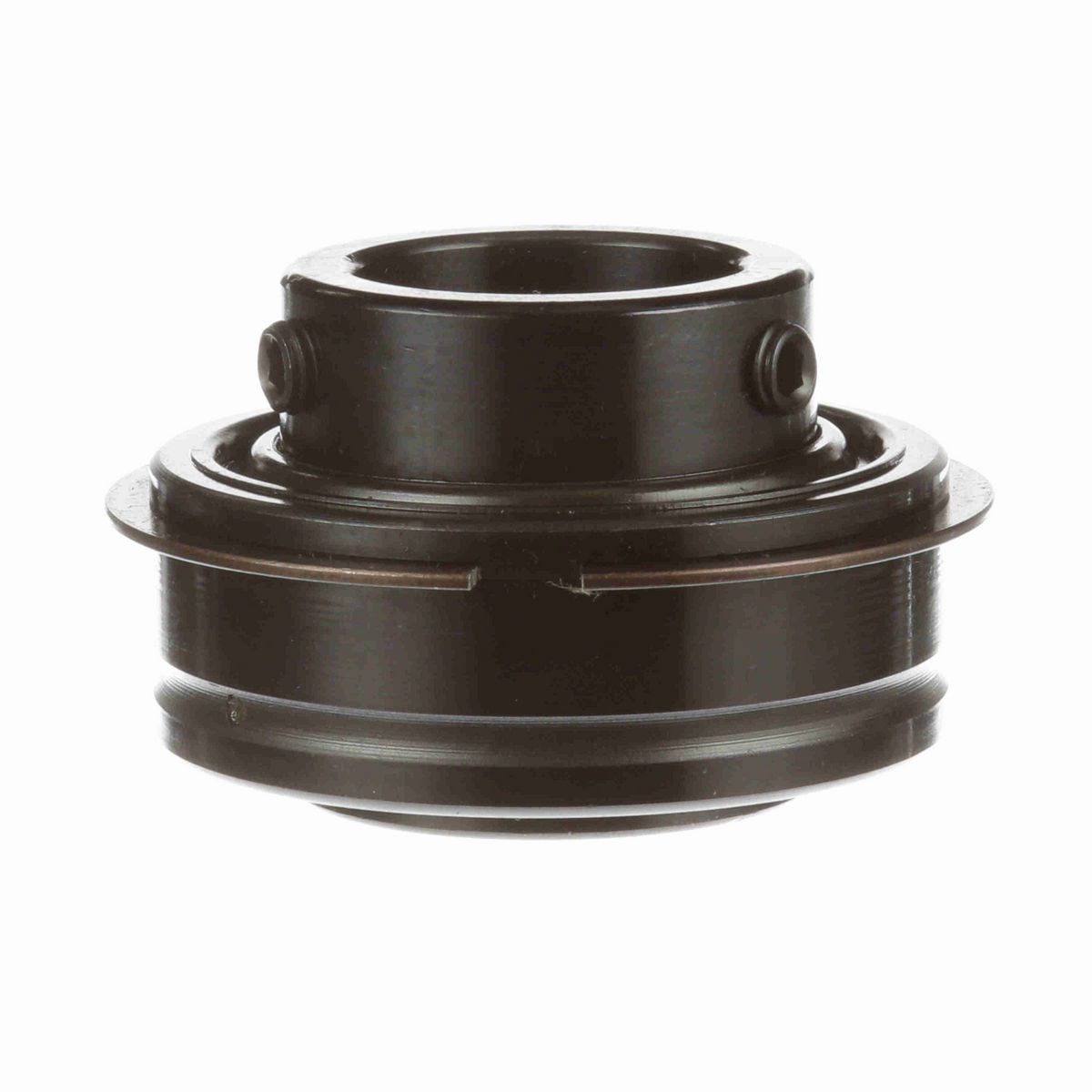

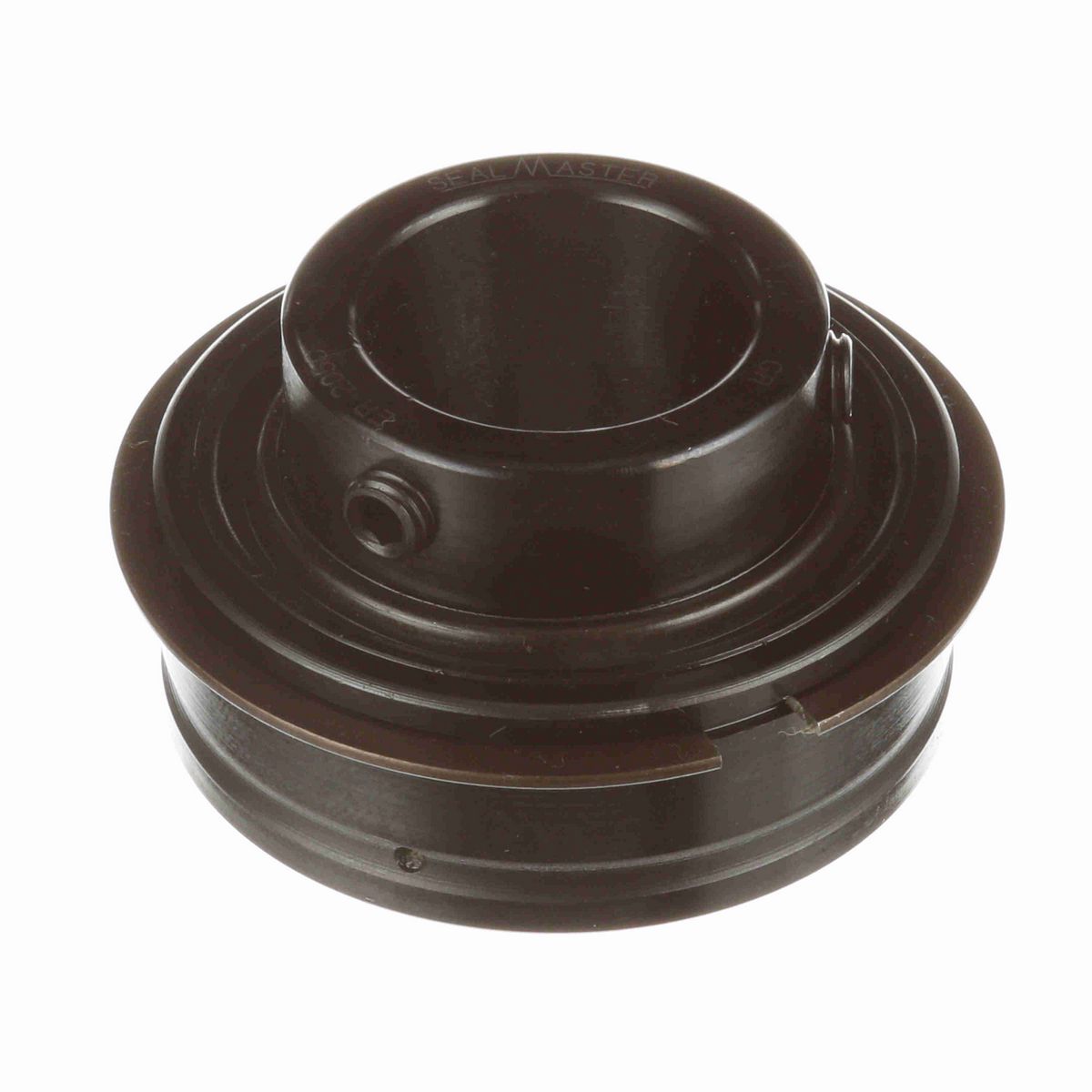

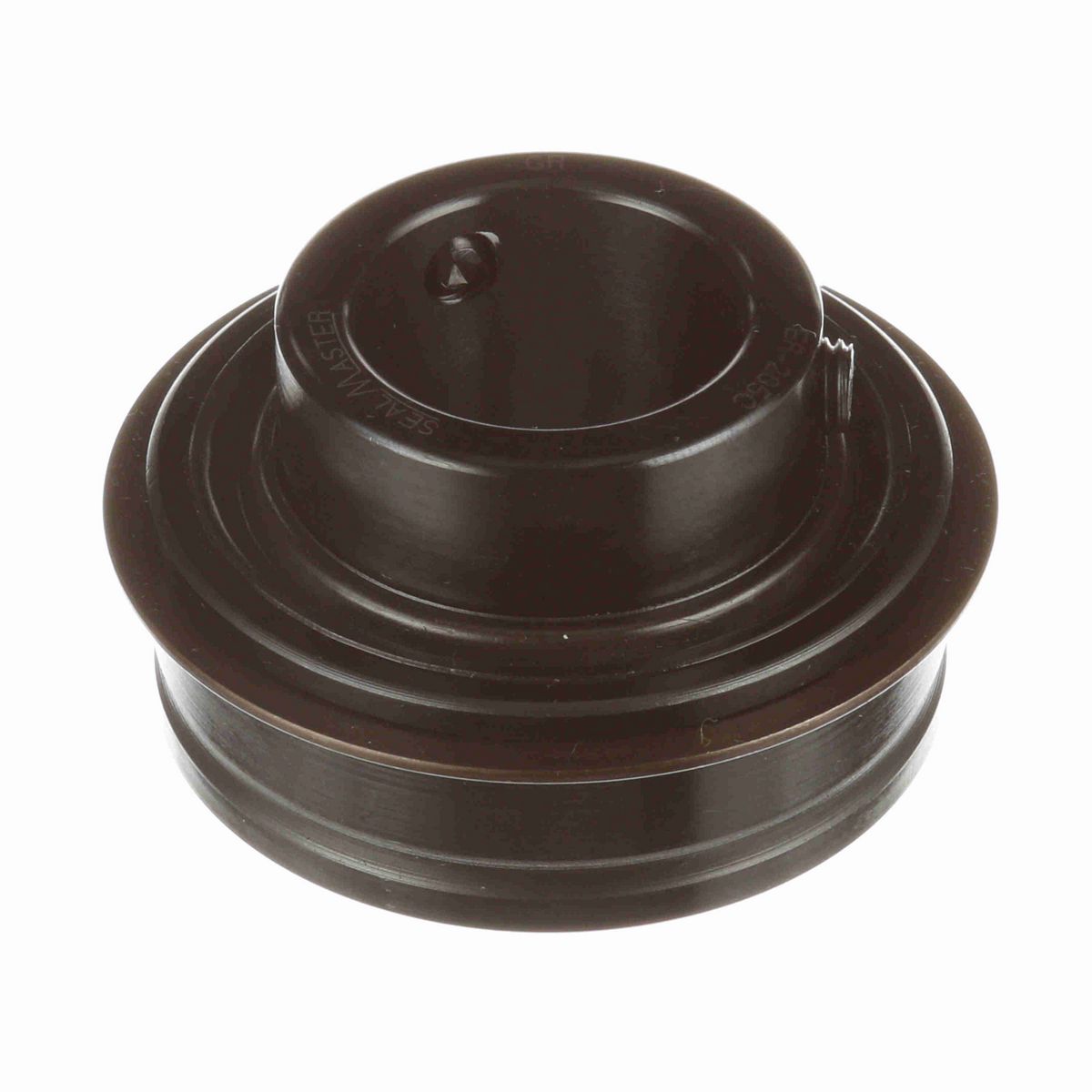

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.37 in
Bore Size (mm)	25 mm
Outer Race OD (mm)	52 mm
Centerline to Front Face (in)	0.859 in
Outer Race Width (in)	0.75 in
Outer Race OD (in)	2.0472 in
Inner Ring OD (in)	1.375 in
Length Through Bore (in)	1.371 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Set Screw Thread	1/4-28 UNF
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Bore Shape	Straight
Measure Units	Metric
Seal Type	Single Lip Contact Seal
Expansion	No
Internal Clearance	Standard
Misalignment	None
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	6350 rpm
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Inner Ring Defect	0.0985 cps
Maximum Operating Temperature (F)	220 °F
Size Code	2-015
Vibration Frequency Roller Spin	0.0442 cps
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.04 in
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0068 cps
Setscrew Torque (in-lbs)	65-85 in/lbs
Lubrication Type	Lithium Complex NLGI 2 Grease
Locking Type	Set Screw
Dynamic Load Rating (lb)	2,801 lb
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461024768
Weight	0.56 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
