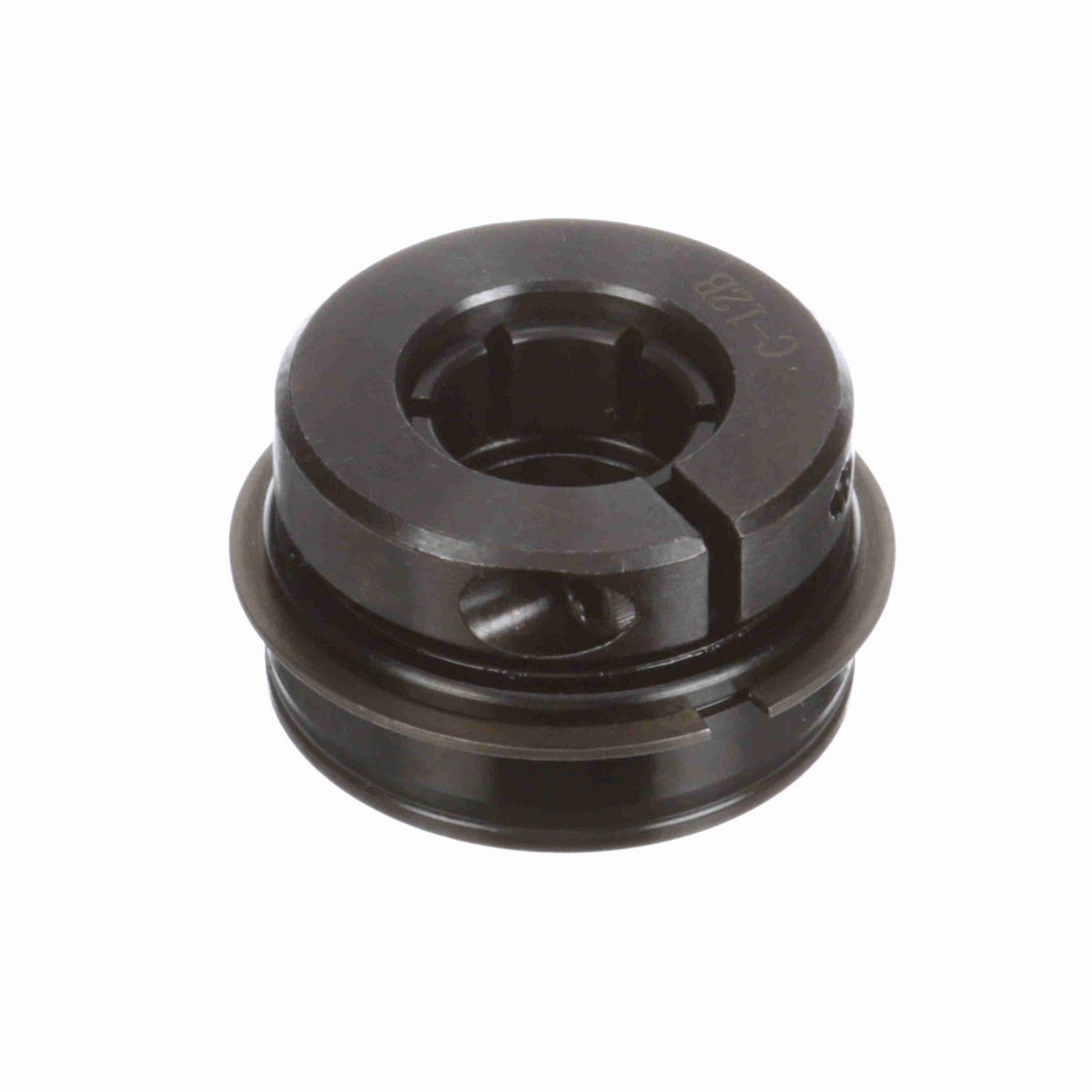

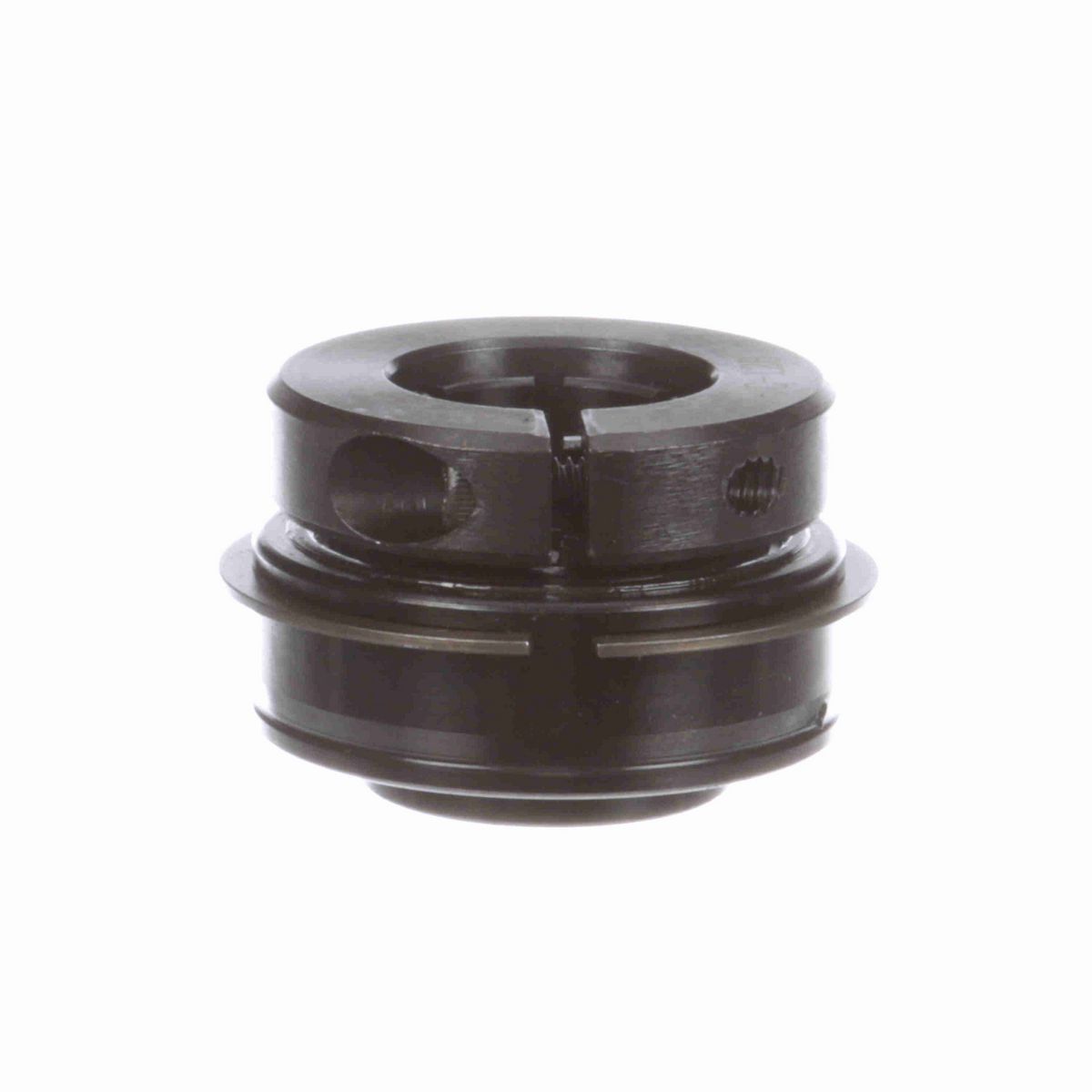

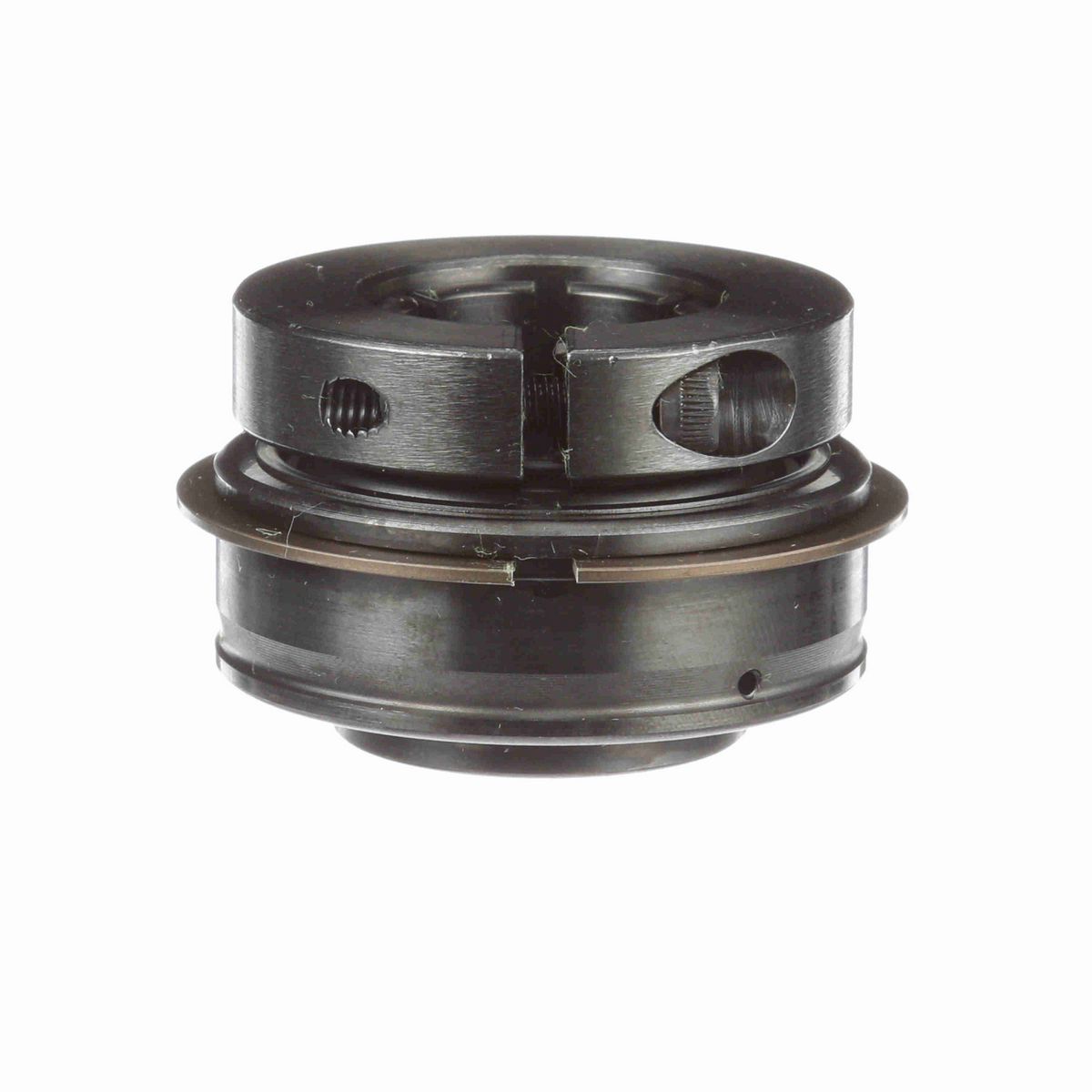

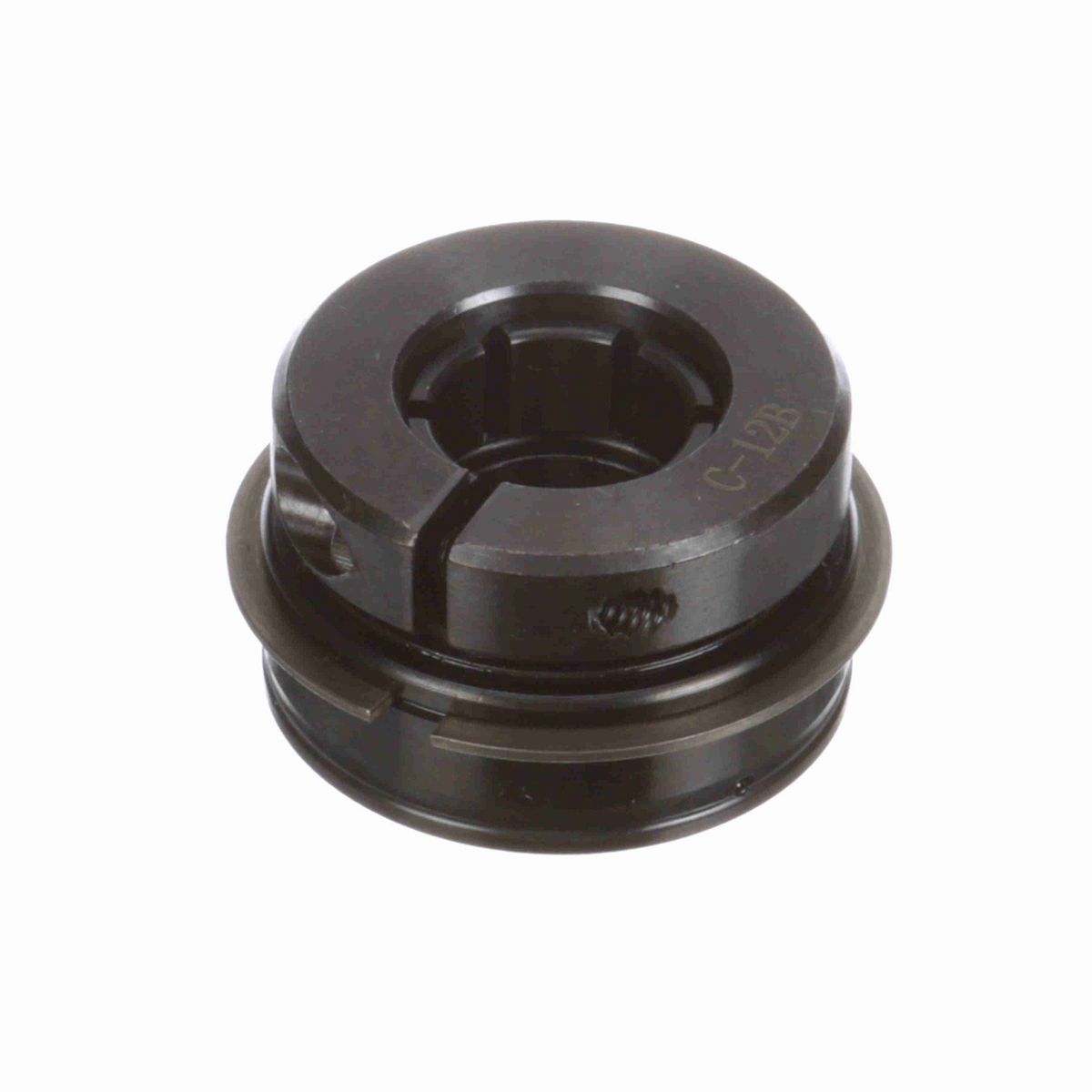

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.22 in
Bore Size (mm)	20 mm
Outer Race OD (mm)	47 mm
Collar OD (in)	1.8 in
Outer Race OD (in)	1.8504 in
Centerline to Front Face (in)	0.813 in
Outer Race Width (in)	0.625 in
Inner Ring OD (in)	1.188 in
Length Through Bore (in)	1.22 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Insert Material	52100 Bearing Steel
Measure Units	Metric
Bore Shape	Straight
Torx Cap Screw	10-24 UNC
Set Screw Thread	10-24 UNC
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
End Cap	No
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Operating Temperature (F)	220 °F
Inner Ring Fillet Radius (in)	0.04 in
Lubrication Type	Lithium Complex NLGI 2 Grease
Size Code	2-012
Vibration Frequency Inner Ring Defect	0.0907 cps
Setscrew Torque (in-lbs)	70 in/lbs
Ability to Relubricate	Yes
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0066 cps
Locking Type	Concentric
Vibration Frequency Outer Ring Defect	0.0593 cps
Maximum Speed (rpm)	6450 rpm
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Roller Spin	0.0381 cps
Series	Unmounted Replacement Bearings
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,611 lb
Static Load Rating (lb)	1,444 lb

General Specifications

UPC	662461253984
Weight	0.56 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
