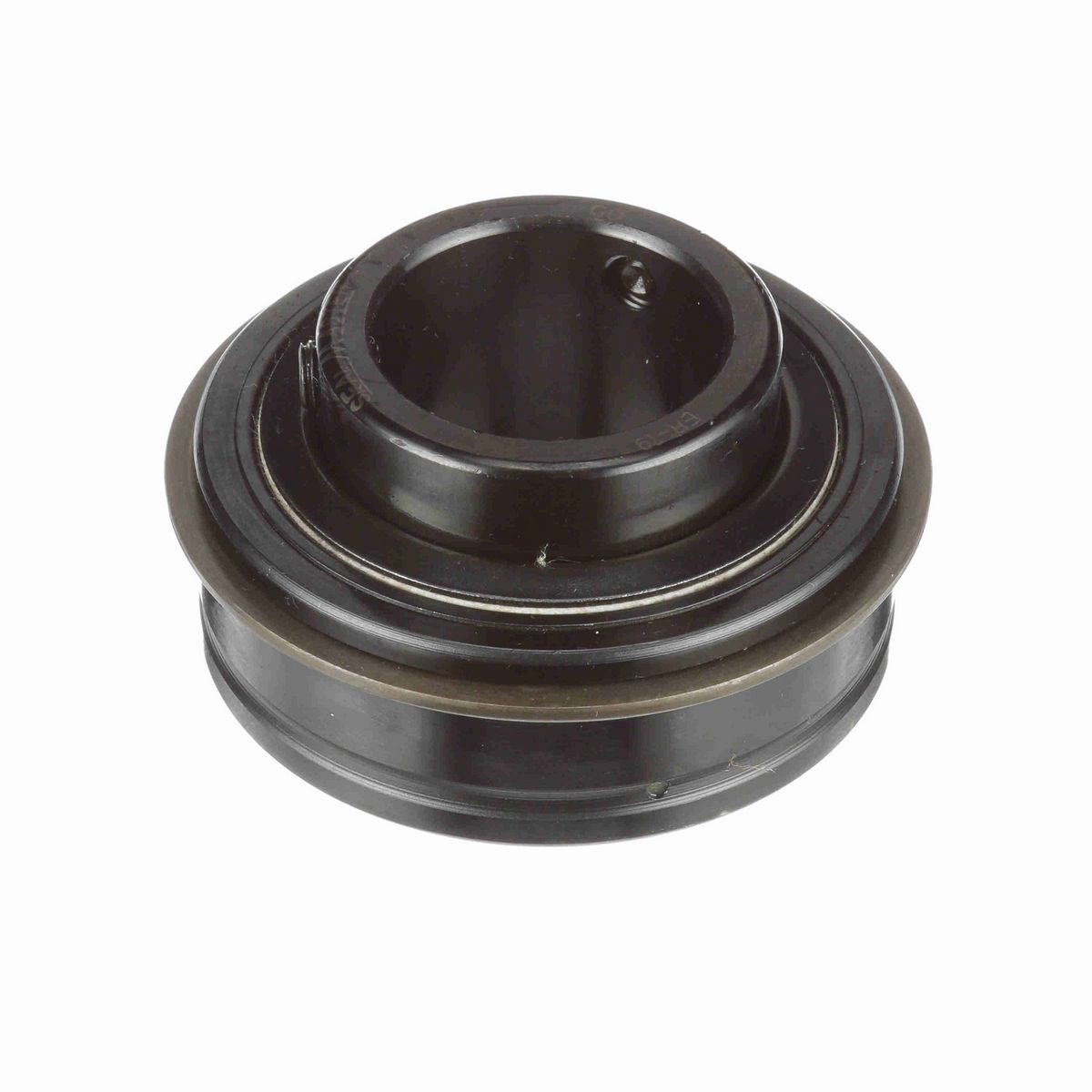

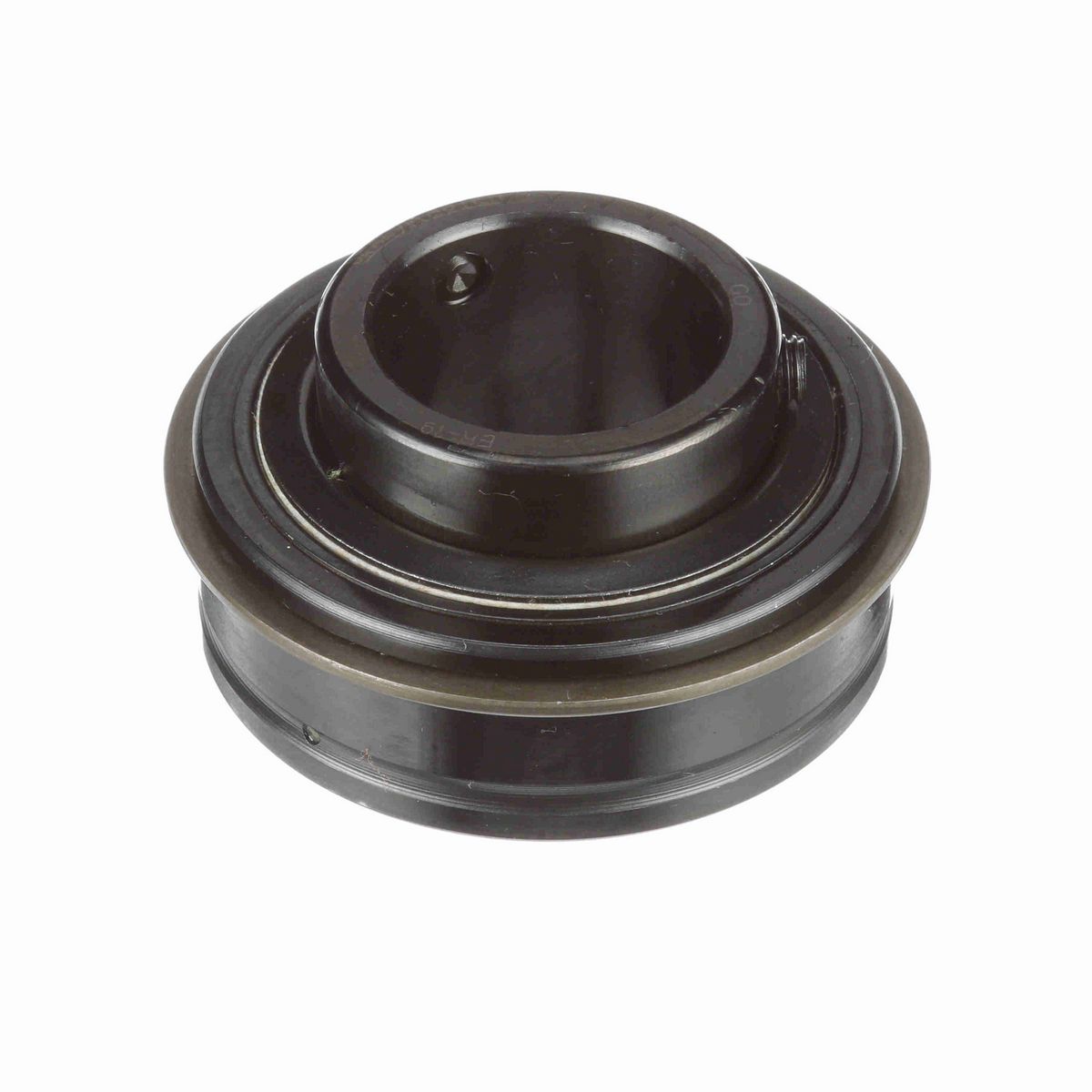

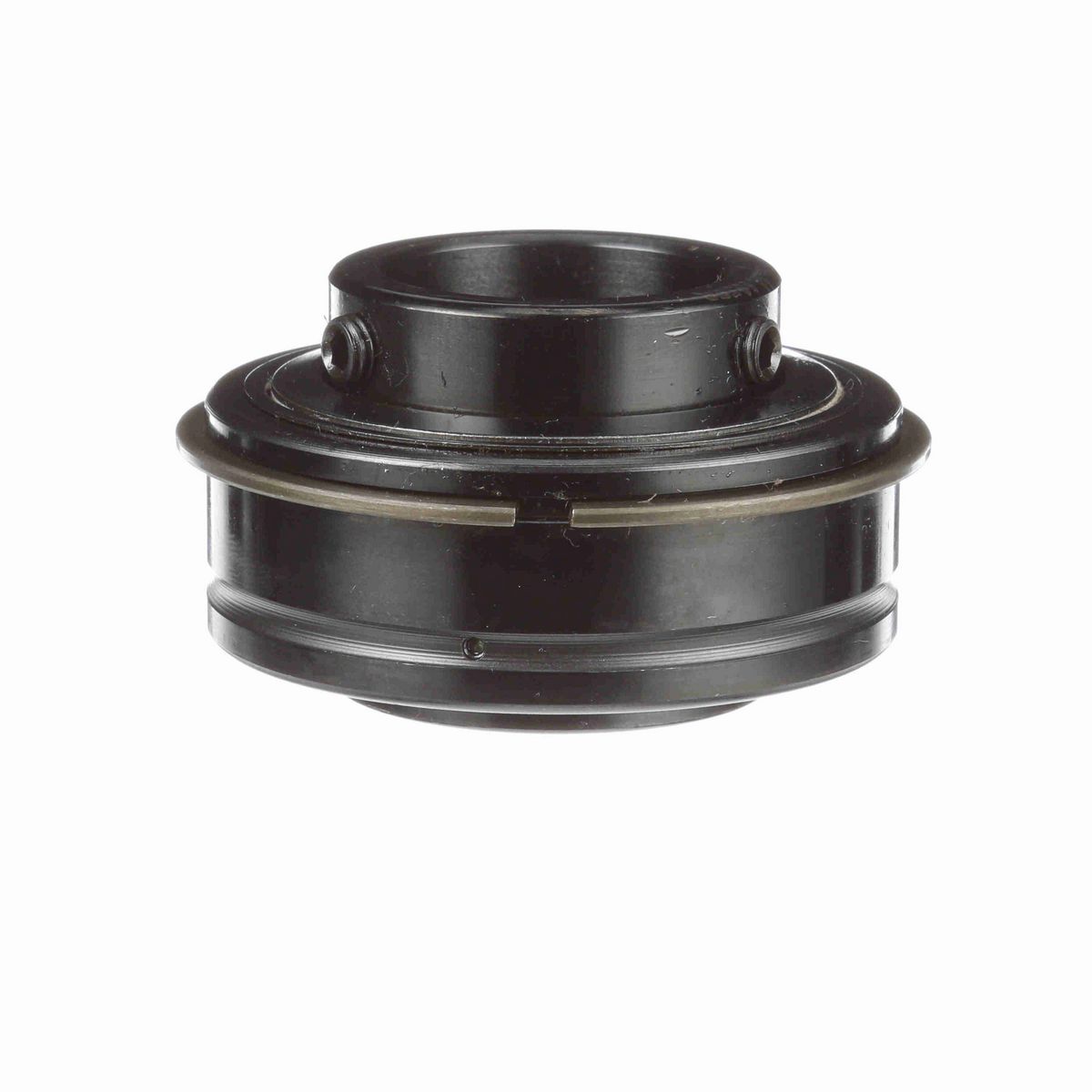

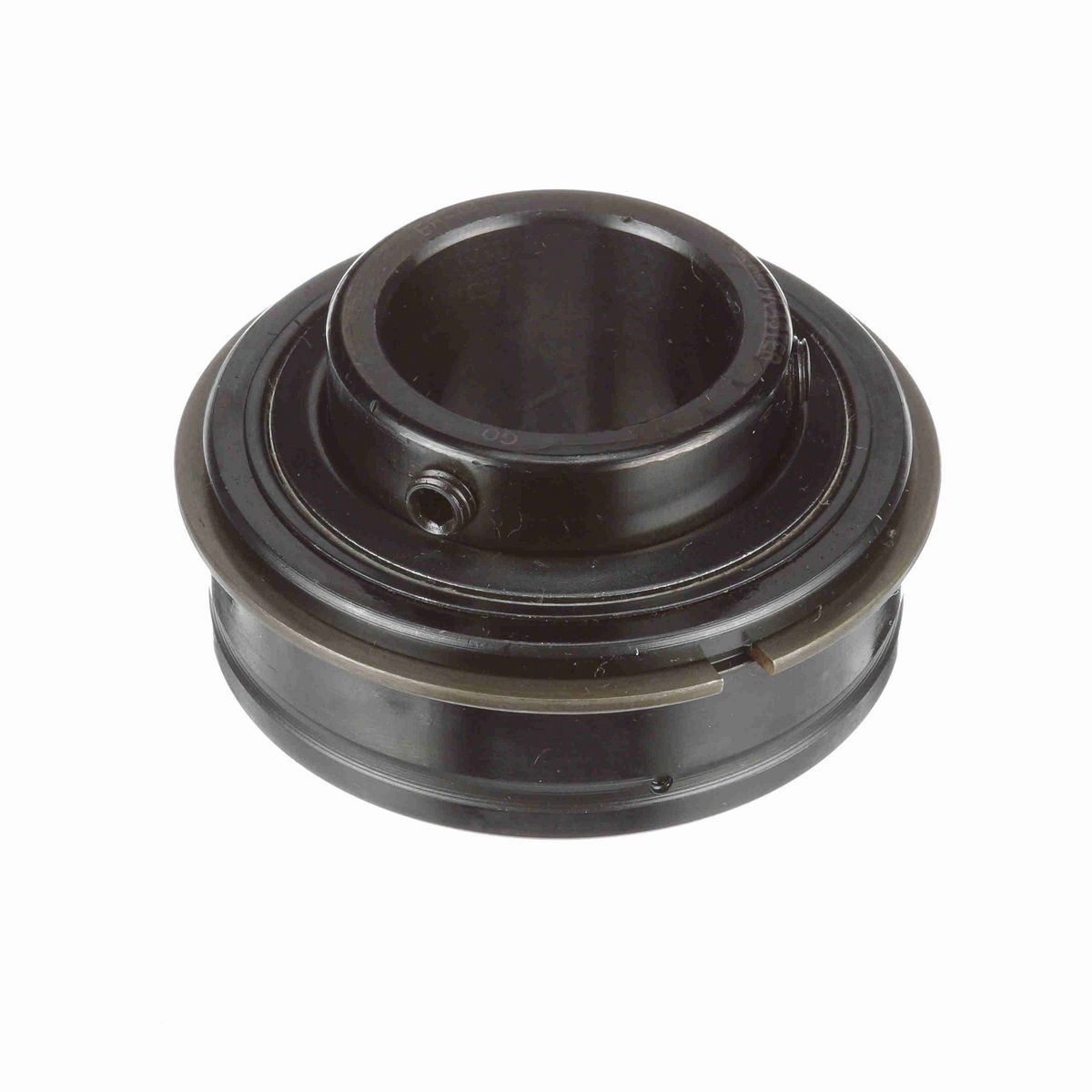

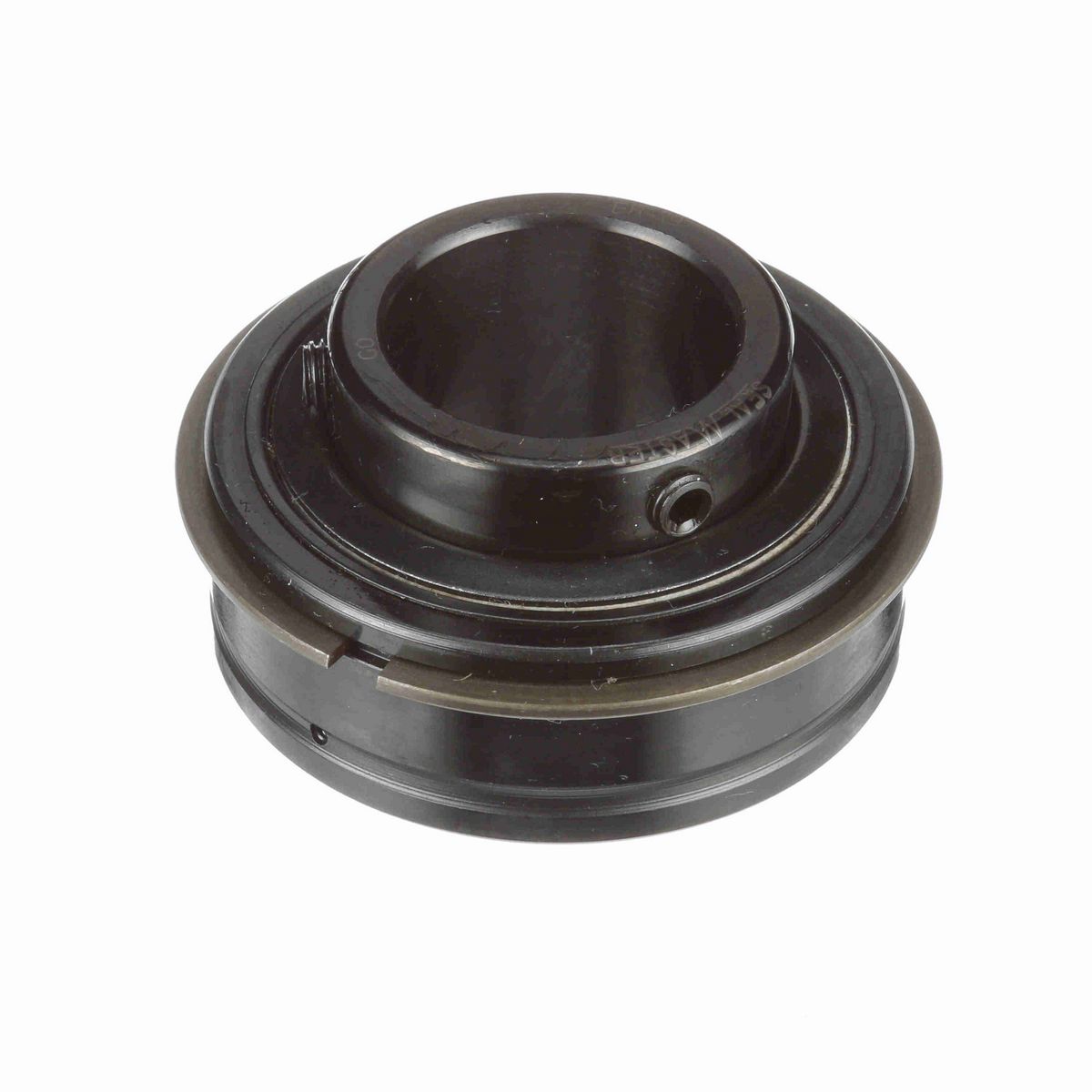

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.1875 in
Outer Race OD (in)	2.4409 in
Outer Race Width (in)	0.875 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.875 in
Outer Race OD (mm)	62 mm
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Housing Type	Insert (ER Style)
Seal Type	Felt Labyrinth Seal
Set Screw Thread	1/4-28 UNF
Bore Shape	Straight
Measure Units	Inch
Rolling Element	Ball Bearing
Internal Clearance	Standard
Misalignment	None
Expansion	No
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
End Cap	No
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Roller Spin	0.0385 cps
Maximum Speed (rpm)	5450 rpm
Series	Unmounted Replacement Bearings
Locking Type	Set Screw
Ability to Relubricate	Yes
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0905 cps
Inner Ring Fillet Radius (in)	0.04 in
Lubrication Type	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Operating Temperature (F)	220 °F
Size Code	2-13
Cage Type	Land Riding Retainer
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb

General Specifications

UPC	662461008607
Weight	0.87 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
