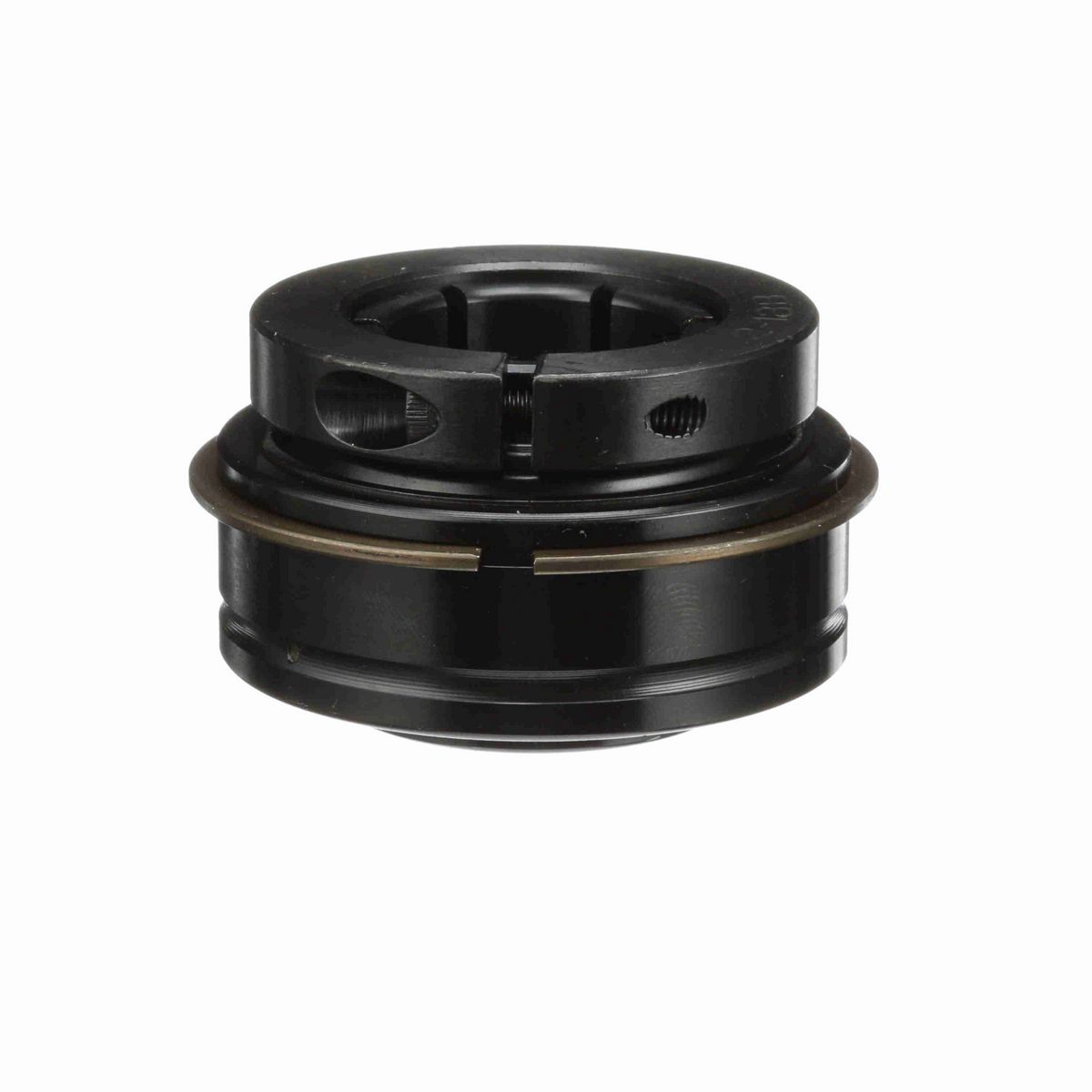

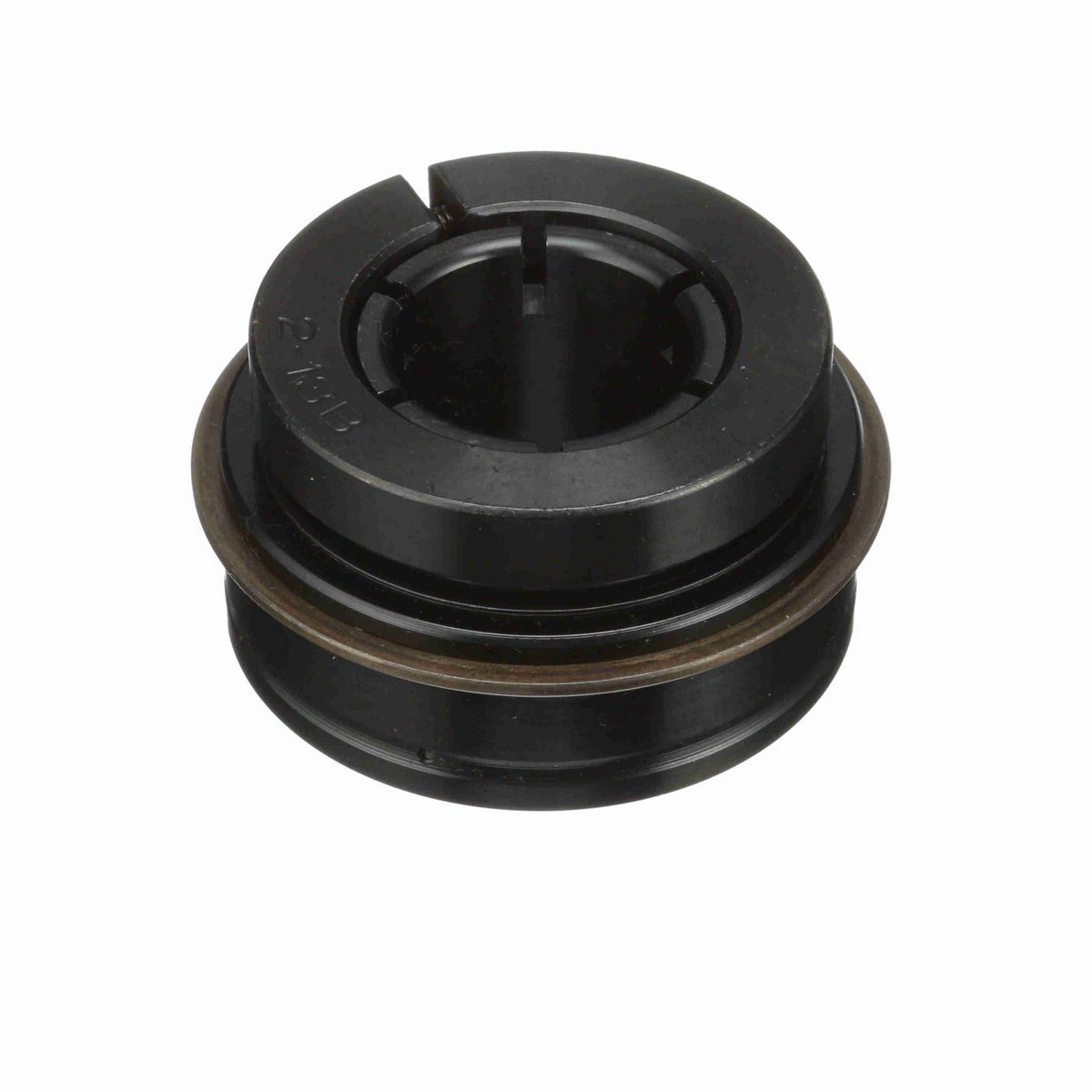

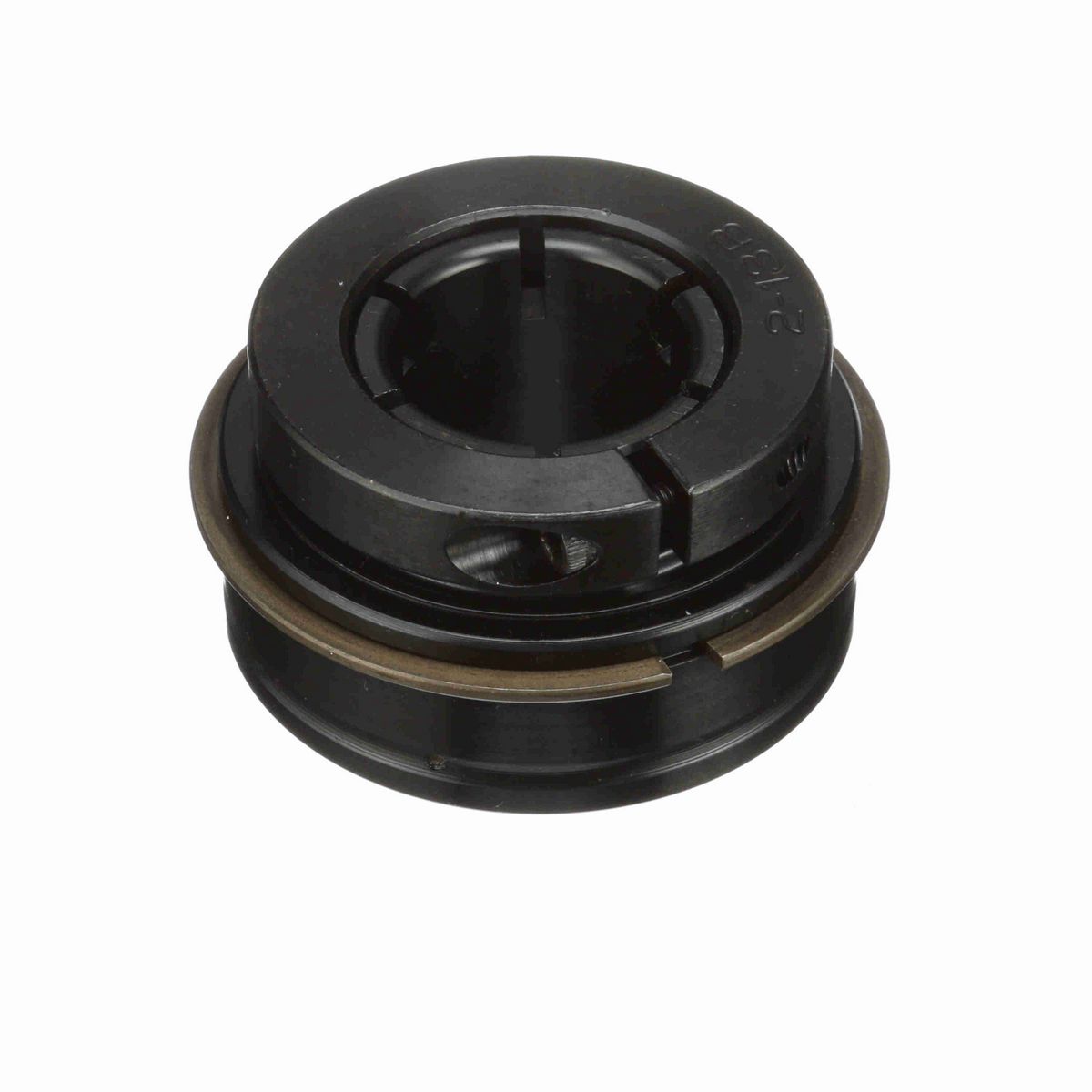

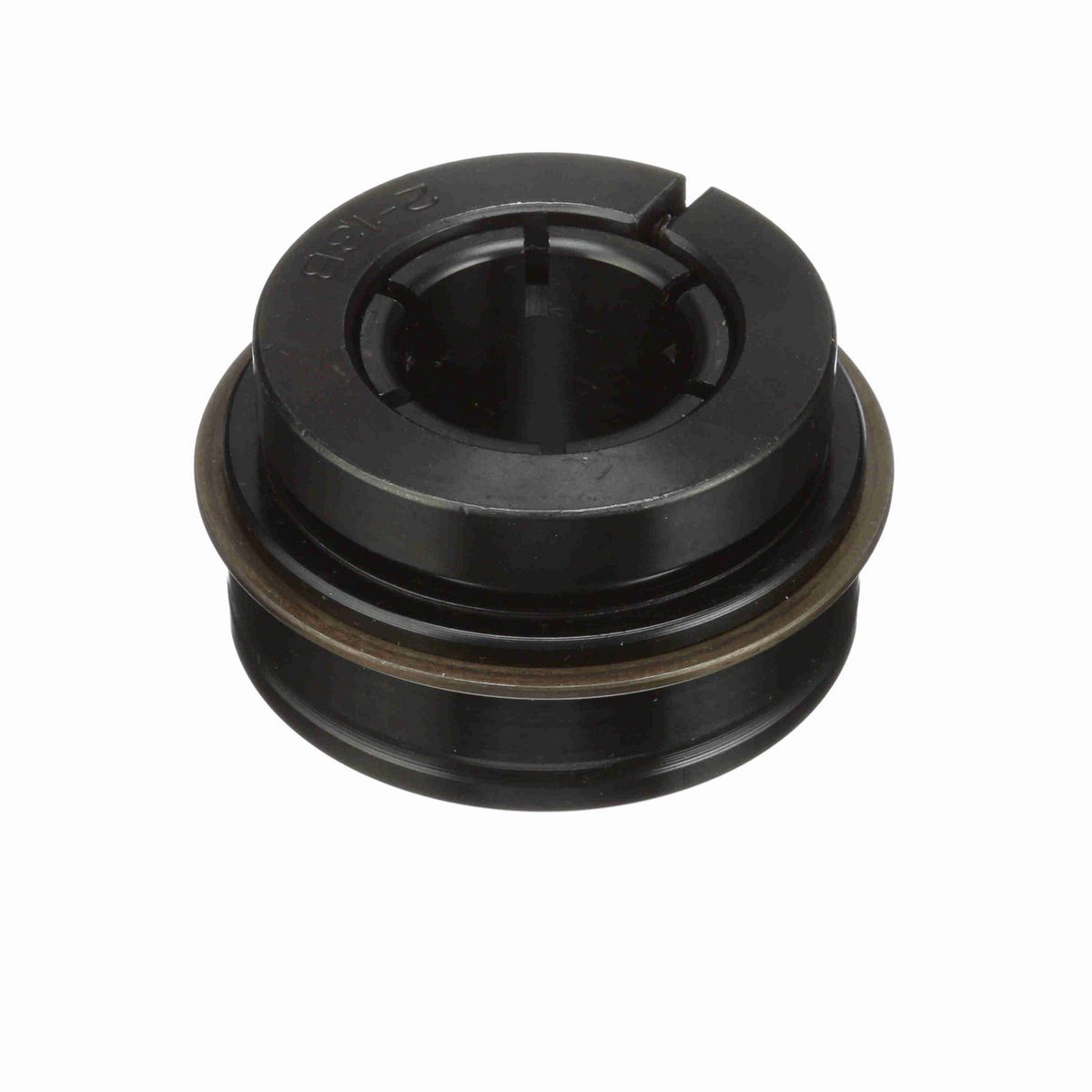

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.56 in
Bore Size (in)	1.125 in
Outer Race Width (in)	0.875 in
Collar OD (in)	2.23 in
Outer Race OD (mm)	62 mm
Inner Ring OD (in)	1.594 in
Outer Race OD (in)	2.4409 in
Centerline to Front Face (in)	0.938 in
Length Through Bore (in)	1.56 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Inch
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Seal Type	Single Lip Contact Seal
Expansion	No
Internal Clearance	Standard
Misalignment	None
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Inner Ring Fillet Radius (in)	0.04 in
Series	Unmounted Replacement Bearings
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-13
Duty/Status	Standard
Vibration Frequency Inner Ring Defect	0.0905 cps
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	100 in/lbs
Vibration Frequency Outer Ring Defect	0.0595 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Speed (rpm)	5450 rpm
Locking Type	Concentric
Vibration Frequency Roller Spin	0.0385 cps
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Operating Temperature (F)	220 °F
Static Load Rating (lb)	2,567 lb
Dynamic Load Rating (lb)	4,381 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461034187
Weight	1.07 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
