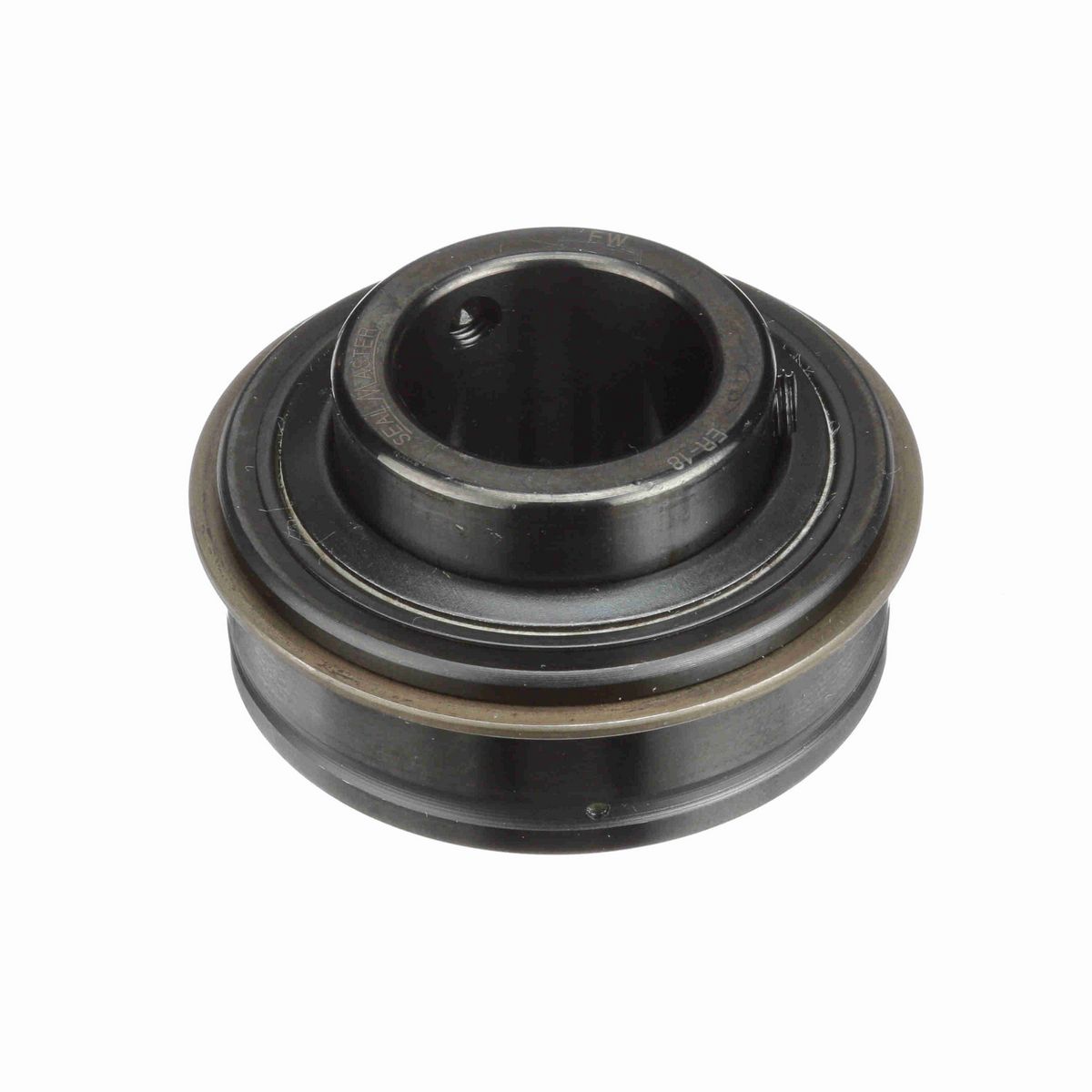

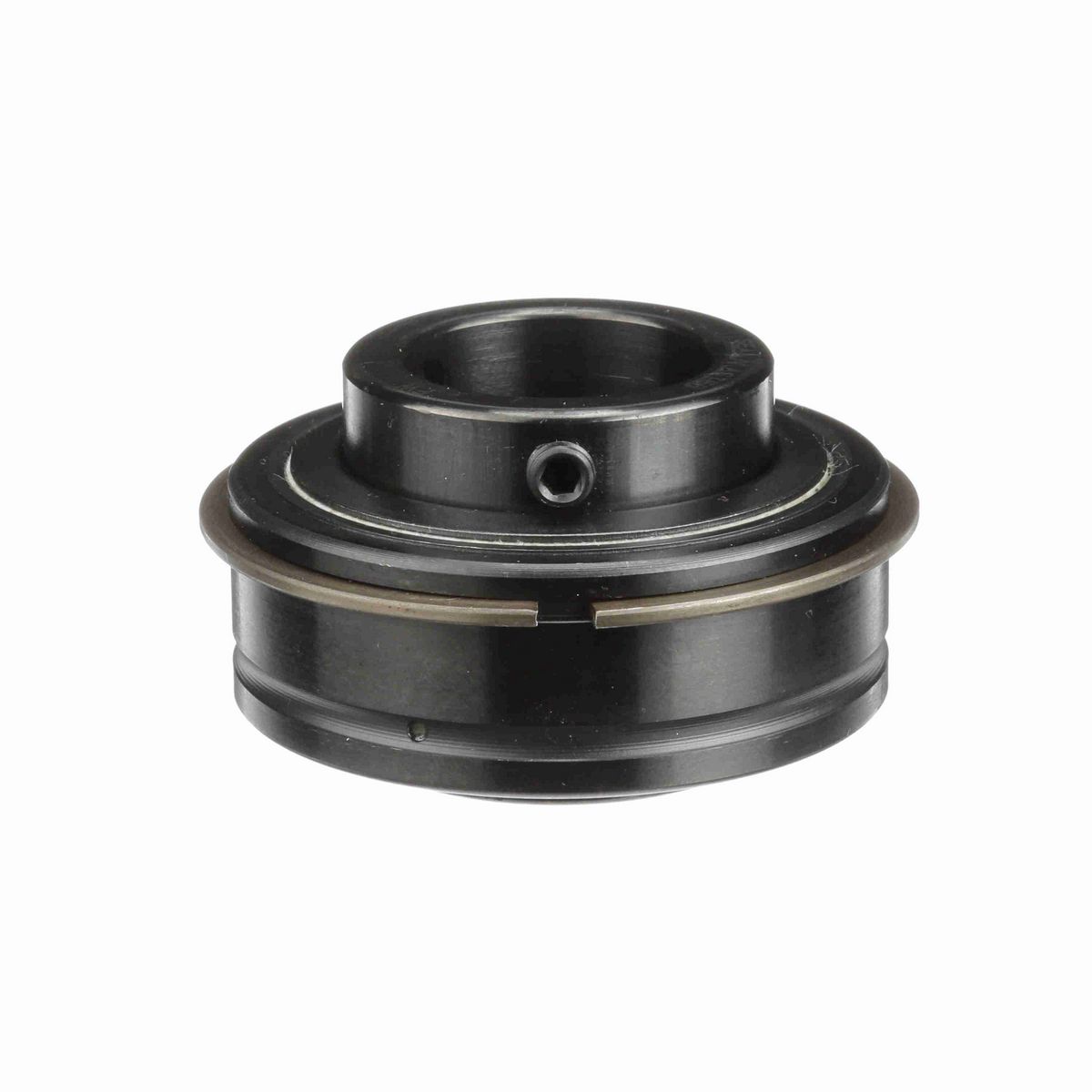

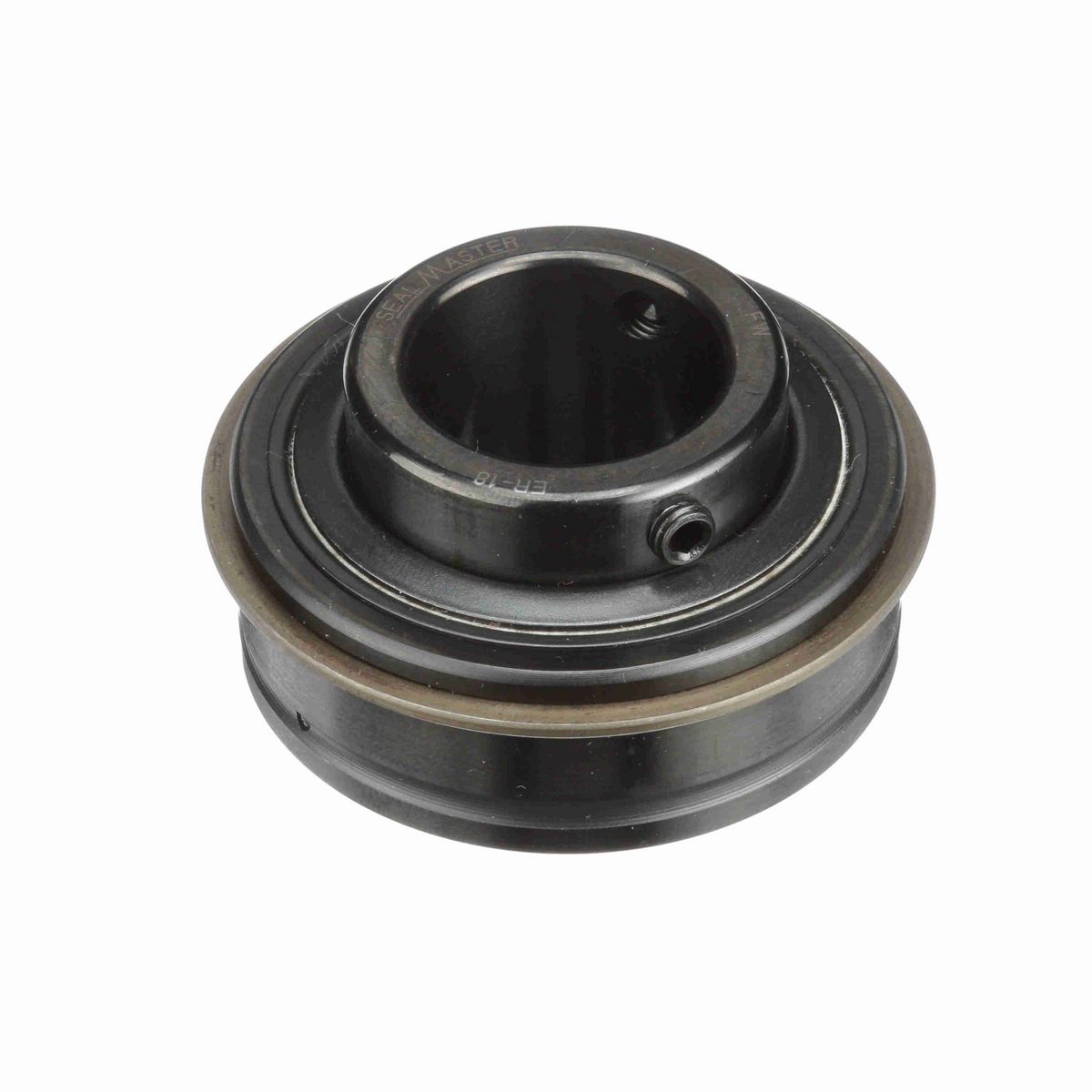

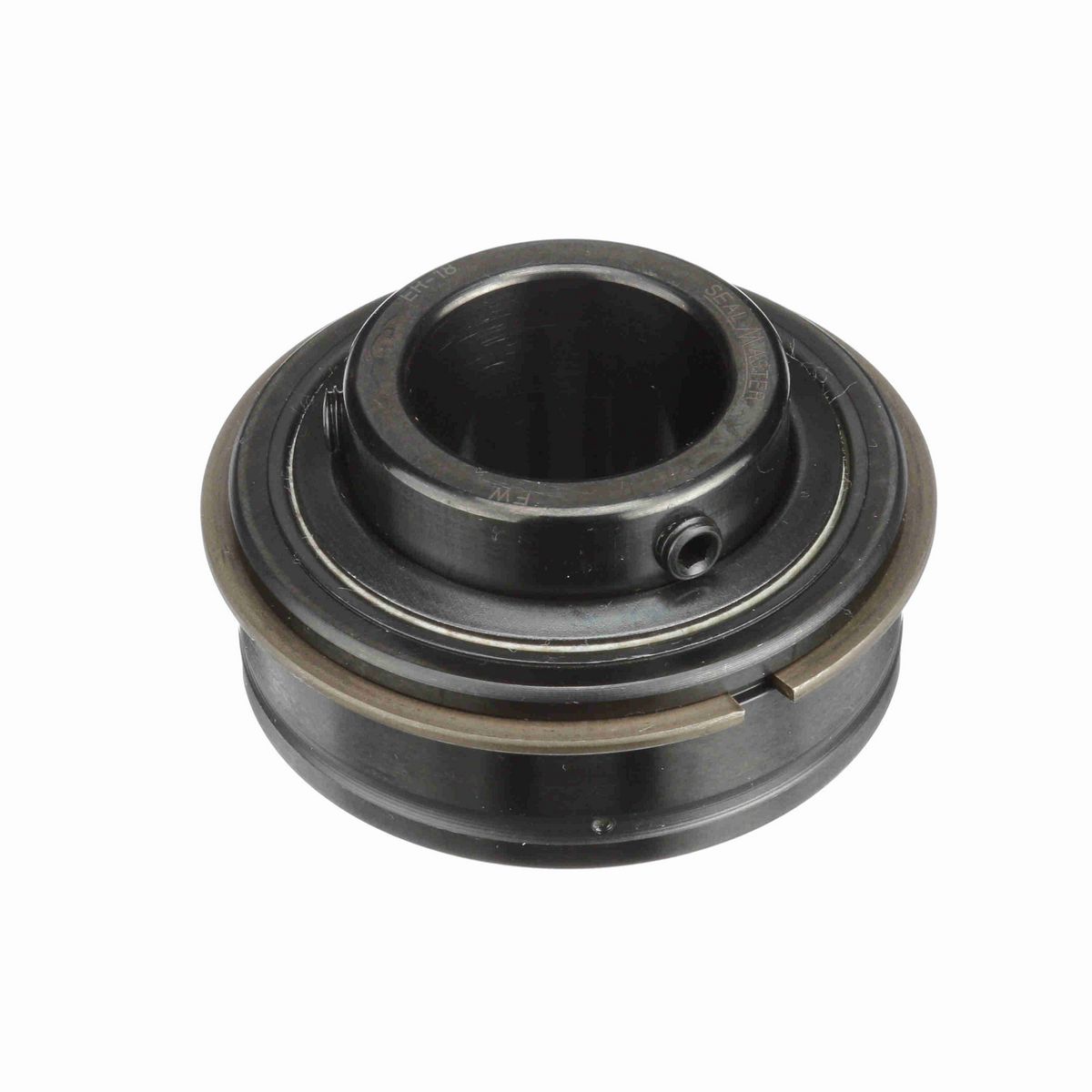

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.125 in
Outer Race OD (in)	2.4409 in
Outer Race Width (in)	0.875 in
Inner Ring OD (in)	1.594 in
Centerline to Front Face (in)	0.875 in
Outer Race OD (mm)	62 mm
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Set Screw Thread	1/4-28 UNF
Insert Material	52100 Bearing Steel
Seal Type	Felt Labyrinth Seal
Measure Units	Inch
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Bore Shape	Straight
Internal Clearance	Standard
Misalignment	None
Expansion	No
Platform	Gold Line Ball Bearing
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Fundamental Train	0.0066 cps
Ability to Relubricate	Yes
Locking Type	Set Screw
Duty/Status	Standard
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	5450 rpm
Vibration Frequency Outer Ring Defect	0.0595 cps
Vibration Frequency Roller Spin	0.0385 cps
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Setscrew Torque (in-lbs)	65-85 in/lbs
Size Code	2-13
Inner Ring Fillet Radius (in)	0.04 in
Dynamic Load Rating (lb)	4,381 lb
Static Load Rating (lb)	2,567 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461008591
Weight	0.91 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
