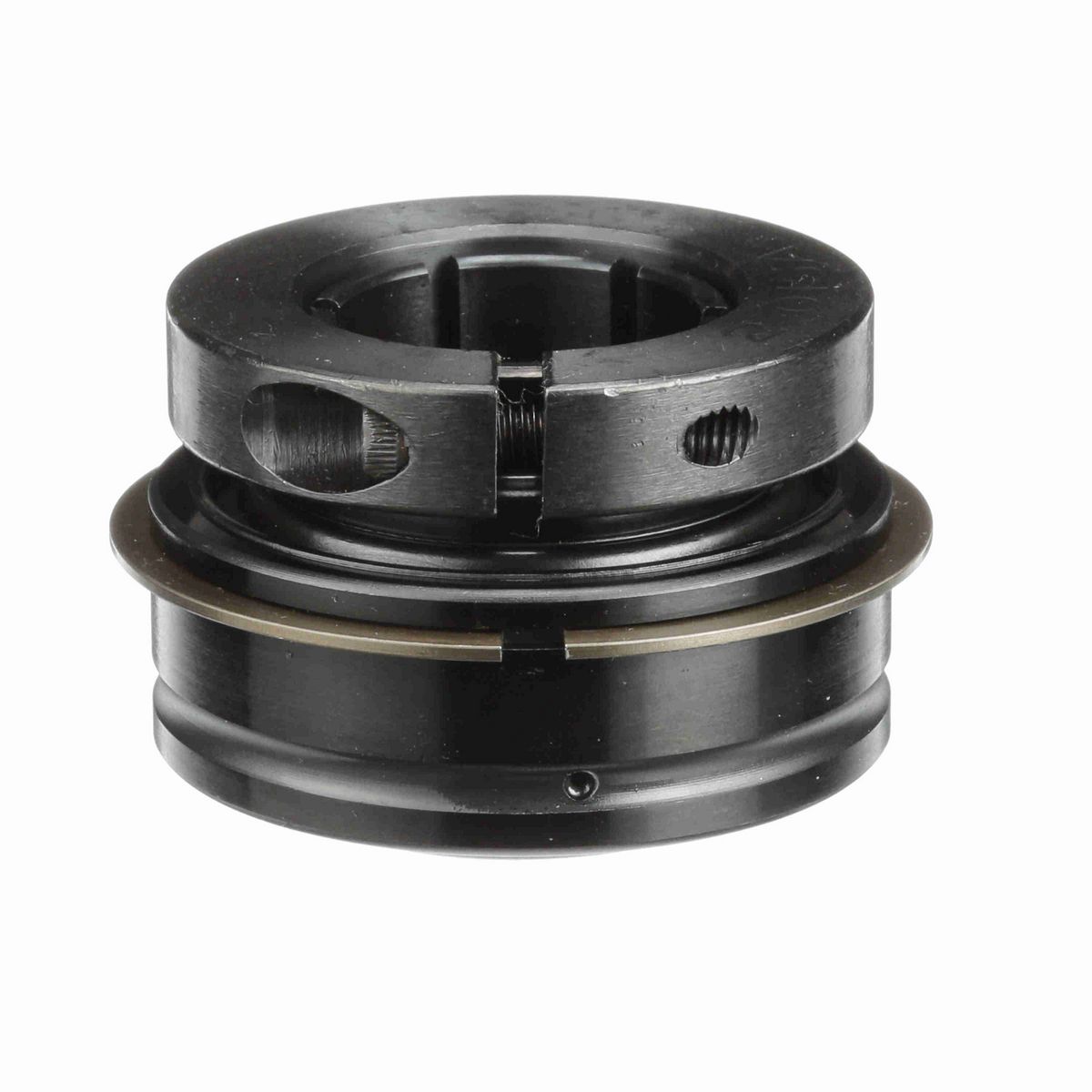

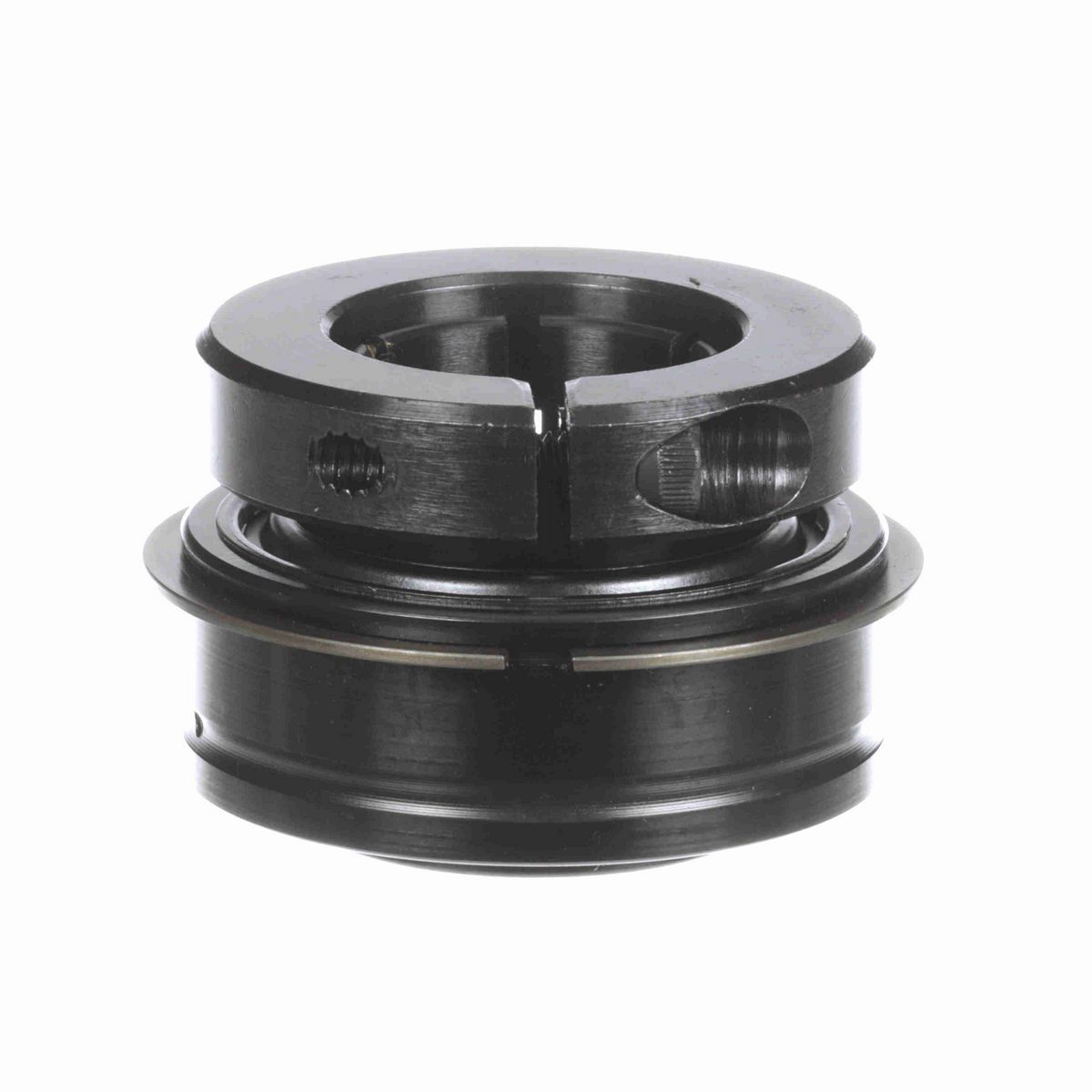

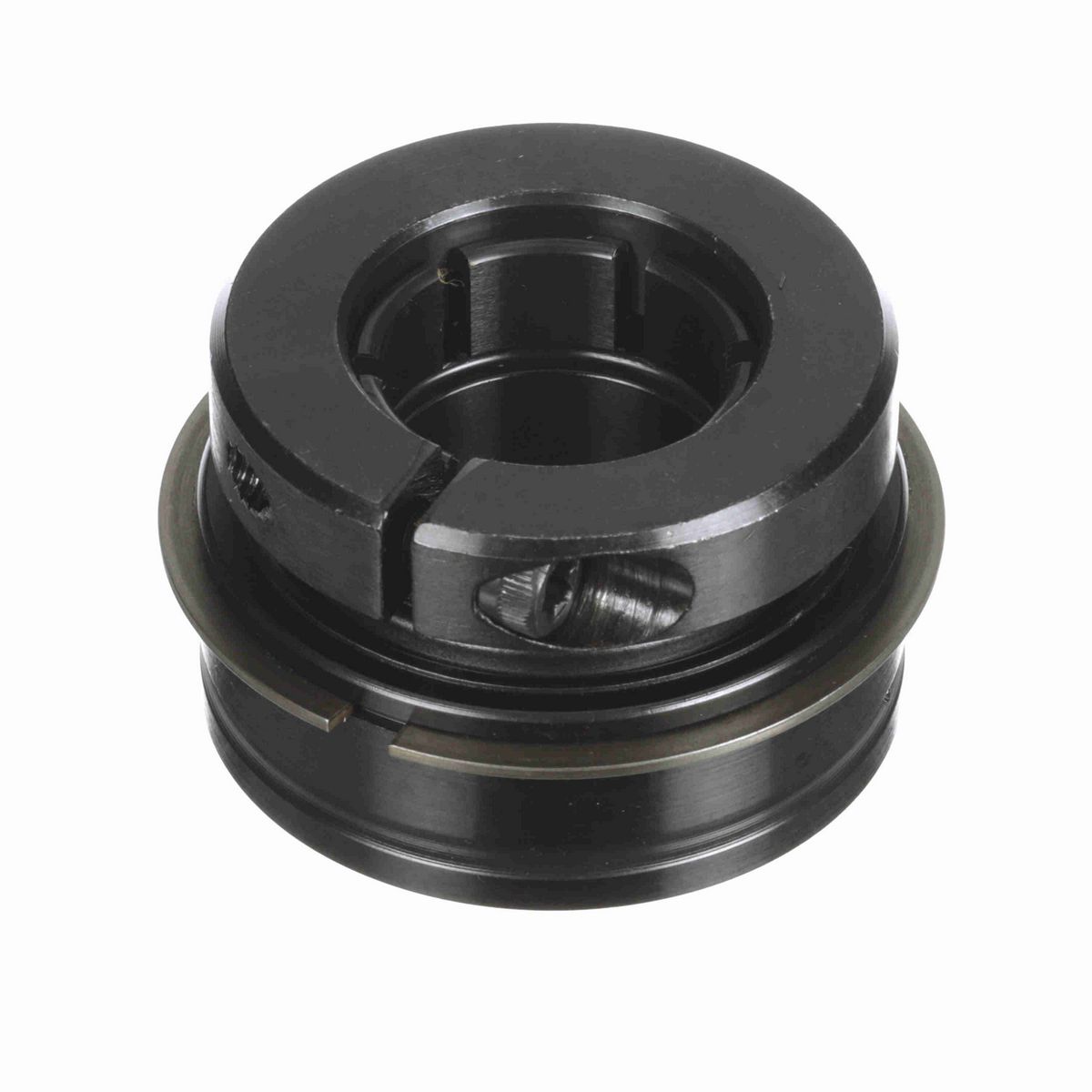

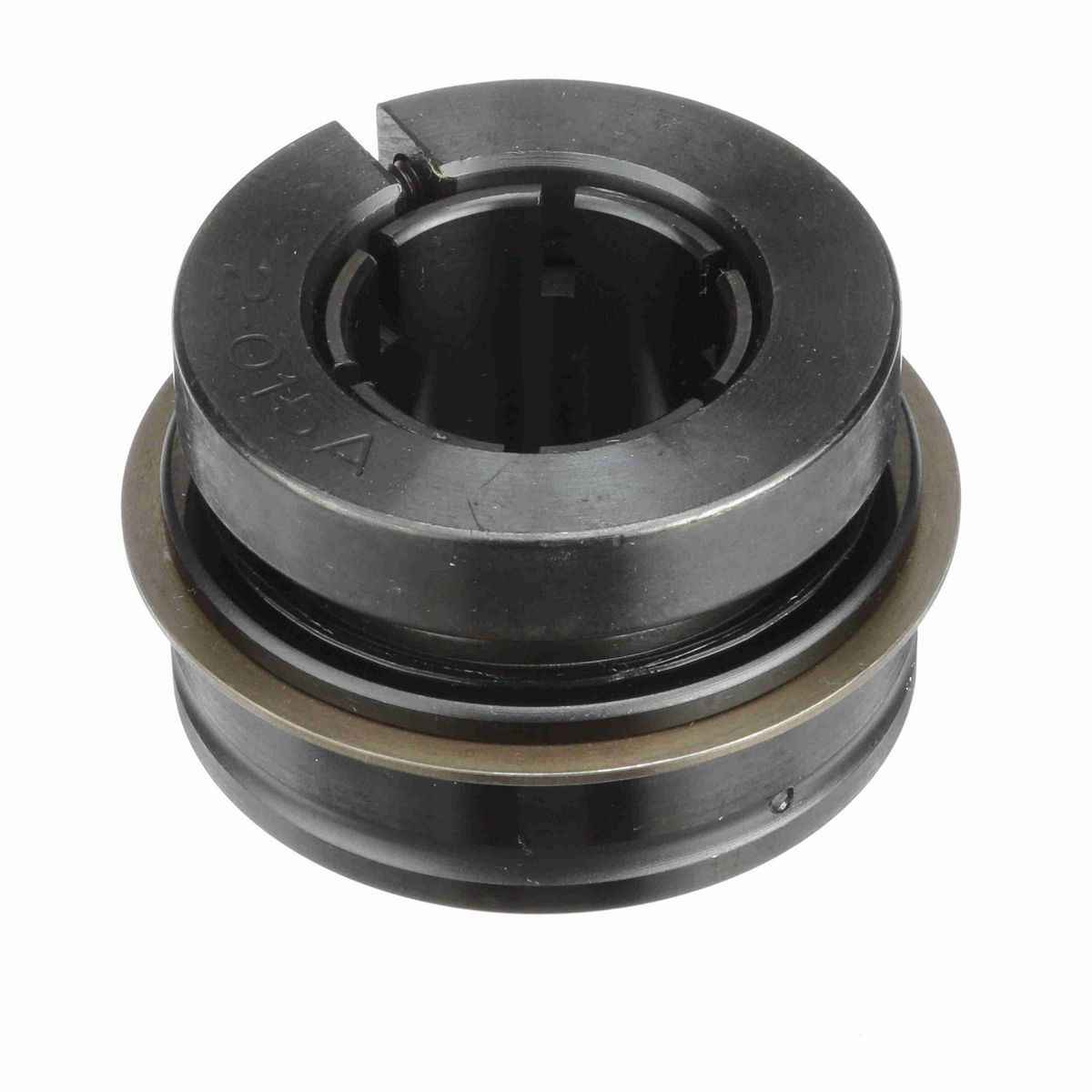

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.44 in
Bore Size (in)	1 in
Centerline to Front Face (in)	0.922 in
Outer Race OD (mm)	52 mm
Collar OD (in)	1.98 in
Outer Race OD (in)	2.0472 in
Inner Ring OD (in)	1.375 in
Outer Race Width (in)	0.75 in
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Torx Cap Screw	10-24 UNC
Seal Type	Single Lip Contact Seal
Housing Type	Insert (ER Style)
Measure Units	Inch
Bore Shape	Straight
Rolling Element	Ball Bearing
Insert Material	52100 Bearing Steel
Set Screw Thread	10-24 UNC
Internal Clearance	Standard
Misalignment	None
Expansion	No
Outer Ring Land Profile	Tapered Lands
End Cap	No
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Vibration Frequency Fundamental Train	0.0068 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0682 cps
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.0985 cps
Maximum Speed (rpm)	6350 rpm
Locking Type	Concentric
Inner Race Heat Treat Method	Zone-Hardened
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Setscrew Torque (in-lbs)	70 in/lbs
Vibration Frequency Roller Spin	0.0442 cps
Maximum Operating Temperature (F)	220 °F
Size Code	2-015
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,801 lb
Static Load Rating (lb)	1,651 lb

General Specifications

UPC	662461034170
Weight	0.69 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
