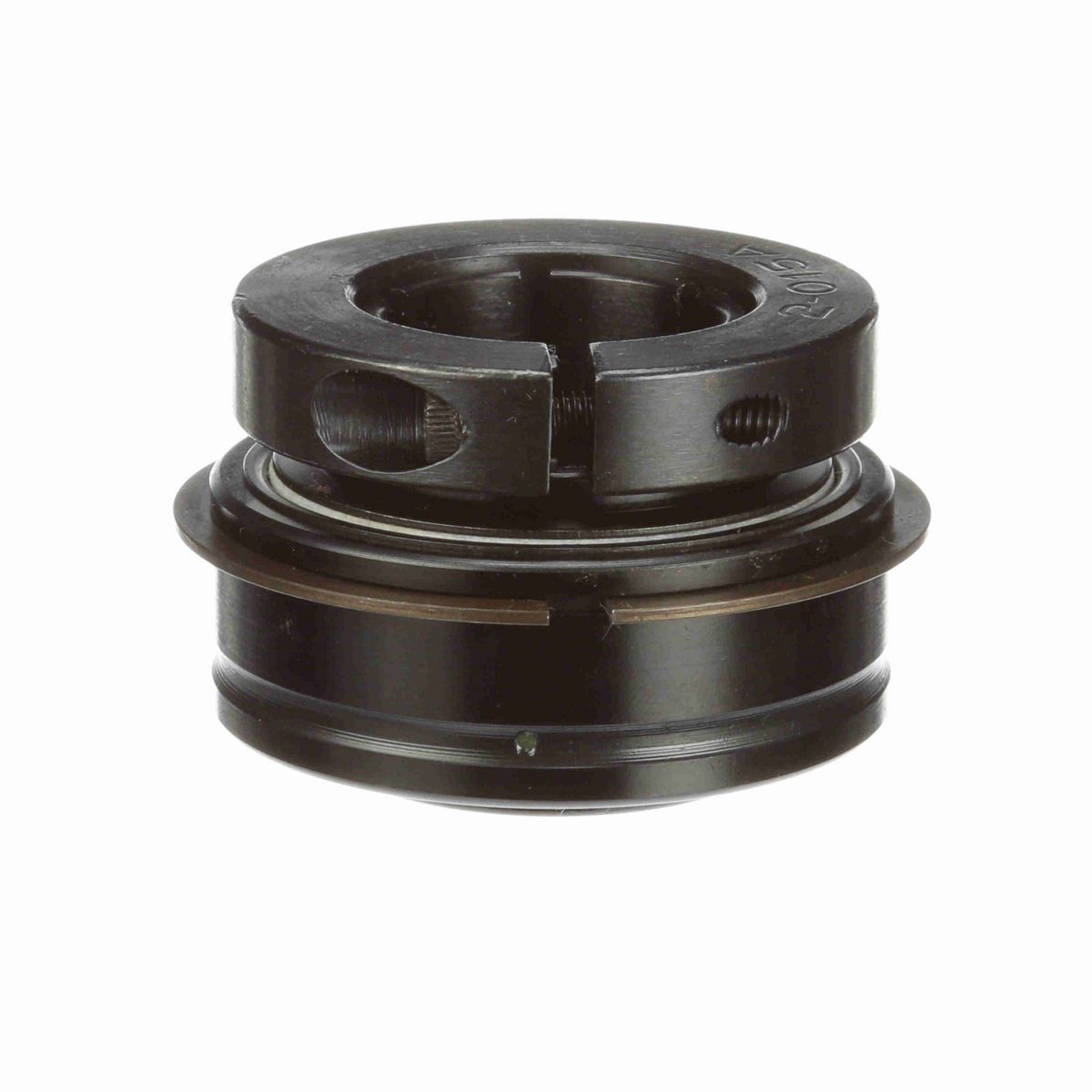

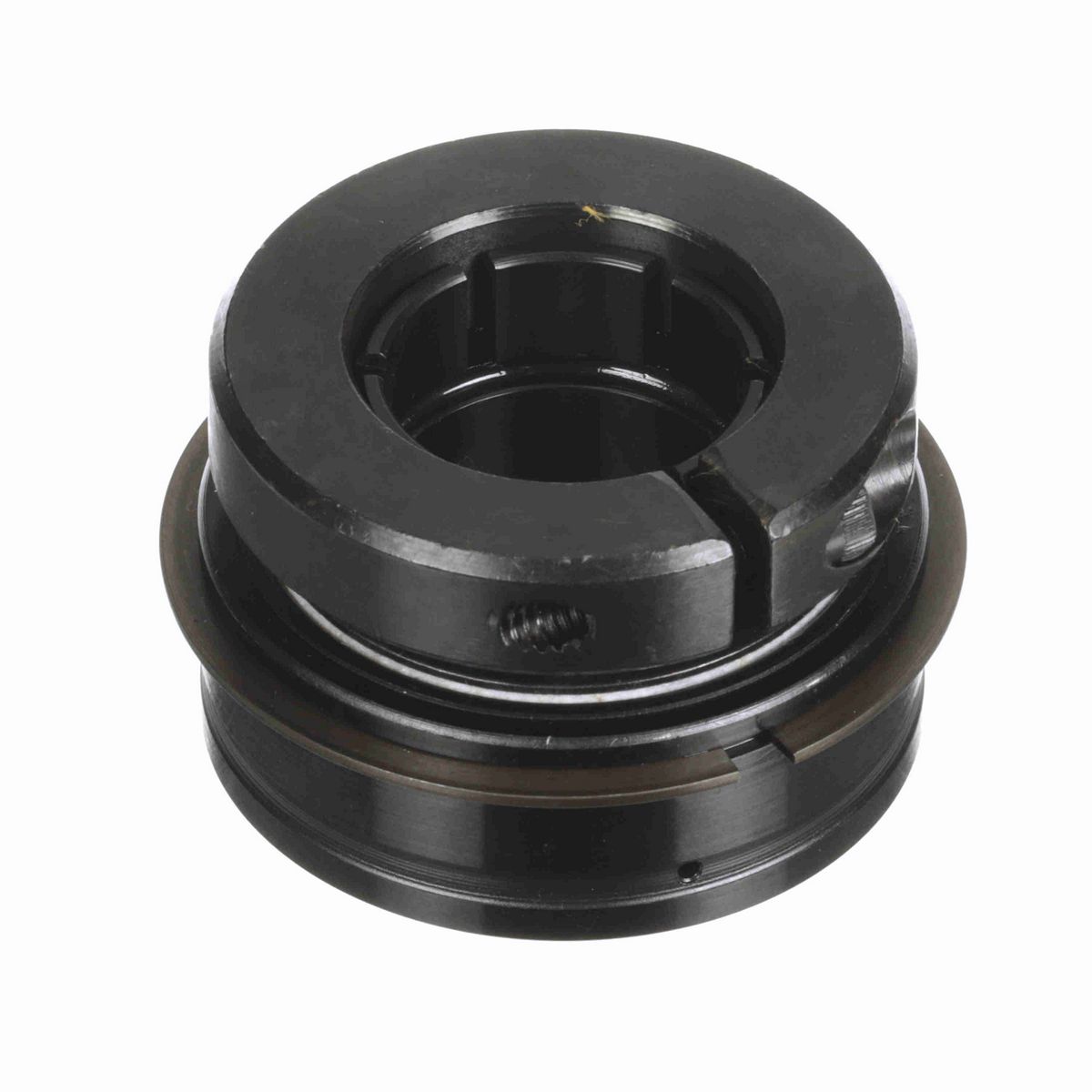

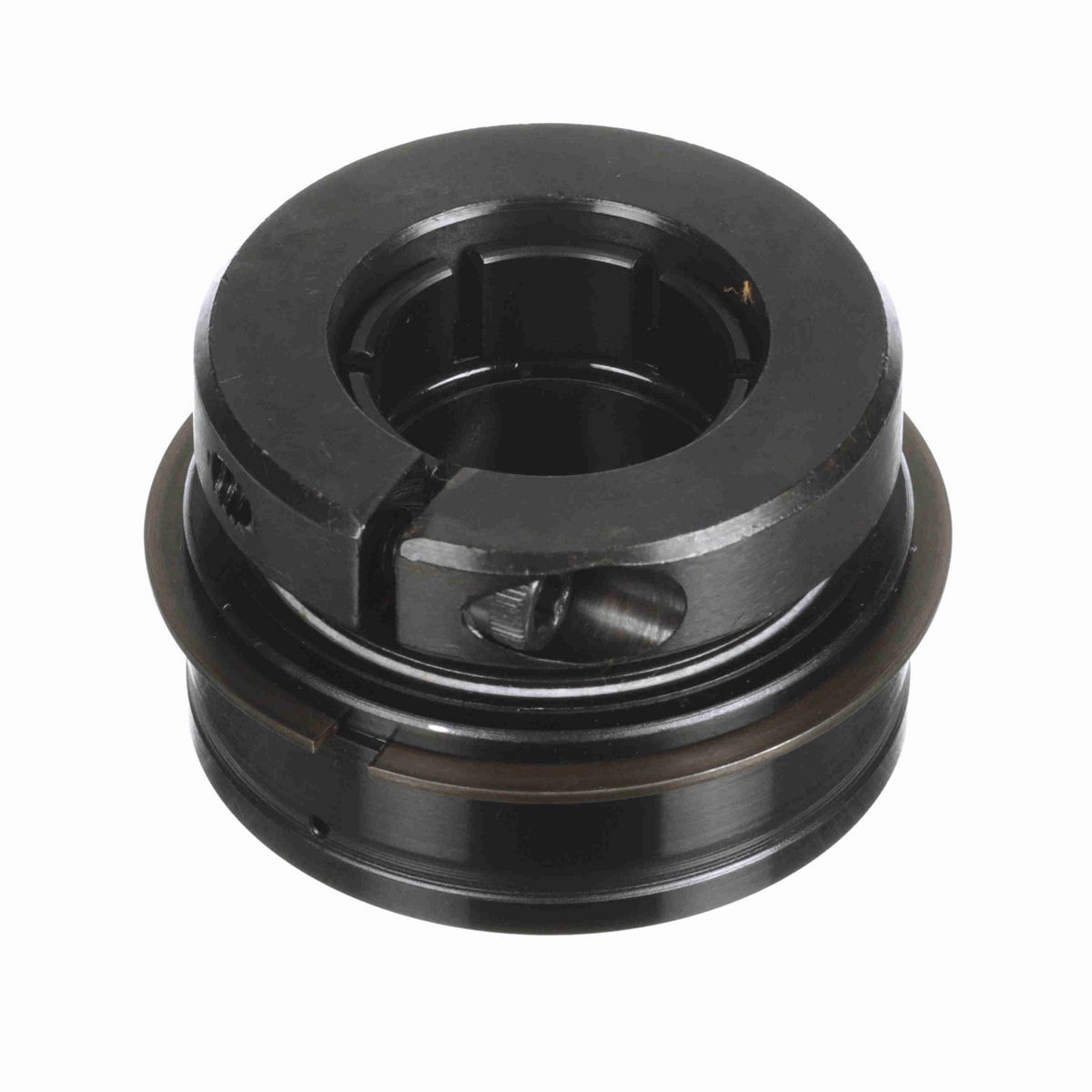

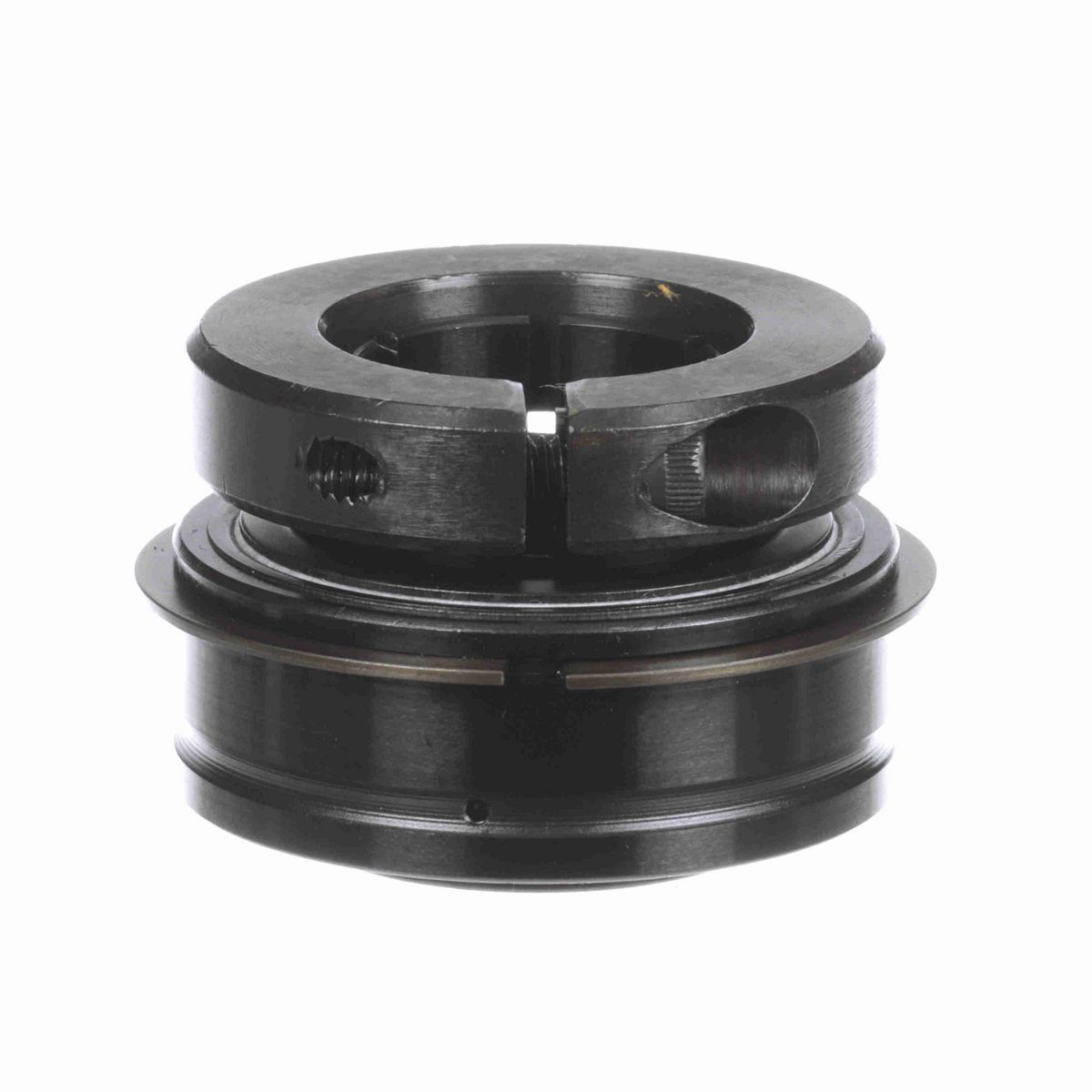

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.44 in
Bore Size (in)	1 in
Collar OD (in)	1.98 in
Centerline to Front Face (in)	0.922 in
Outer Race OD (mm)	52 mm
Outer Race Width (in)	0.75 in
Outer Race OD (in)	2.0472 in
Inner Ring OD (in)	1.375 in
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Housing Type	Insert (ER Style)
Seal Type	Felt Labyrinth Seal
Insert Material	52100 Bearing Steel
Measure Units	Inch
Set Screw Thread	10-24 UNC
Rolling Element	Ball Bearing
Torx Cap Screw	10-24 UNC
Bore Shape	Straight
Expansion	No
Internal Clearance	Standard
Misalignment	None
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Fundamental Train	0.0068 cps
Series	Unmounted Replacement Bearings
Lubrication Type	Lithium Complex NLGI 2 Grease
Setscrew Torque (in-lbs)	70 in/lbs
Inner Ring Fillet Radius (in)	0.04 in
Size Code	2-015
Vibration Frequency Roller Spin	0.0442 cps
Locking Type	Concentric
Maximum Operating Temperature (F)	220 °F
Ability to Relubricate	Yes
Duty/Status	Standard
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0985 cps
Vibration Frequency Outer Ring Defect	0.0682 cps
Maximum Speed (rpm)	9000 rpm
Dynamic Load Rating (lb)	2,801 lb
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461031193
Weight	0.70 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
