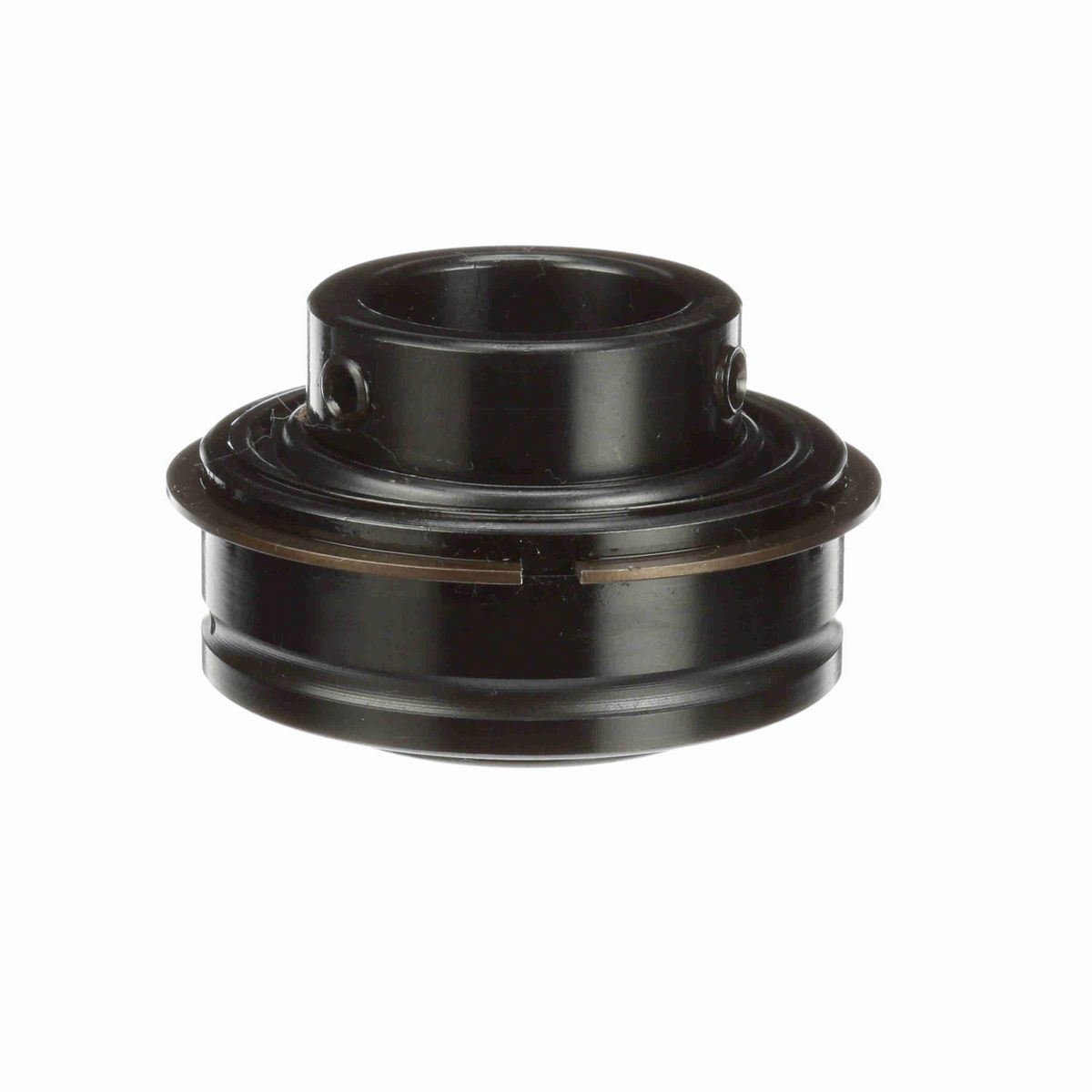

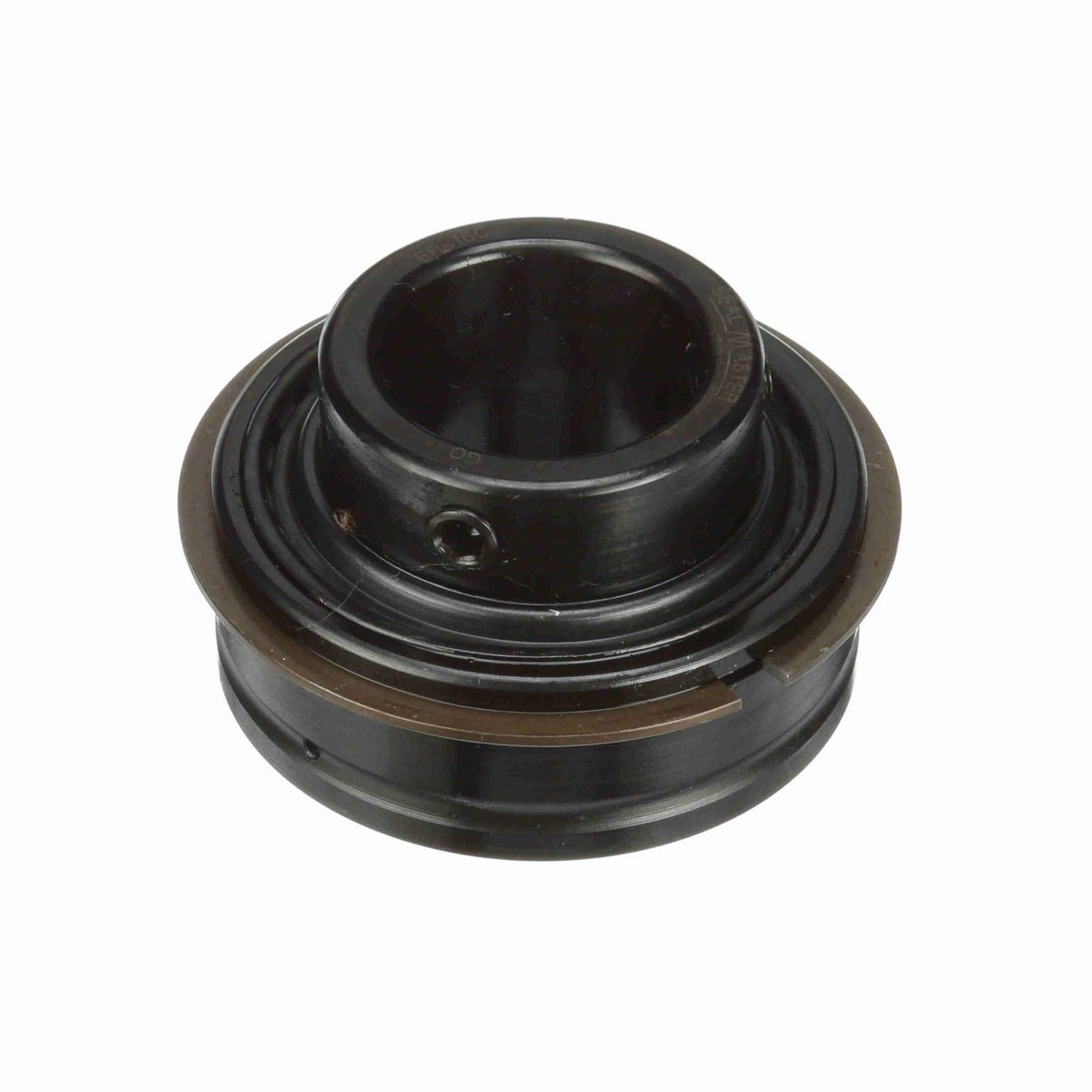

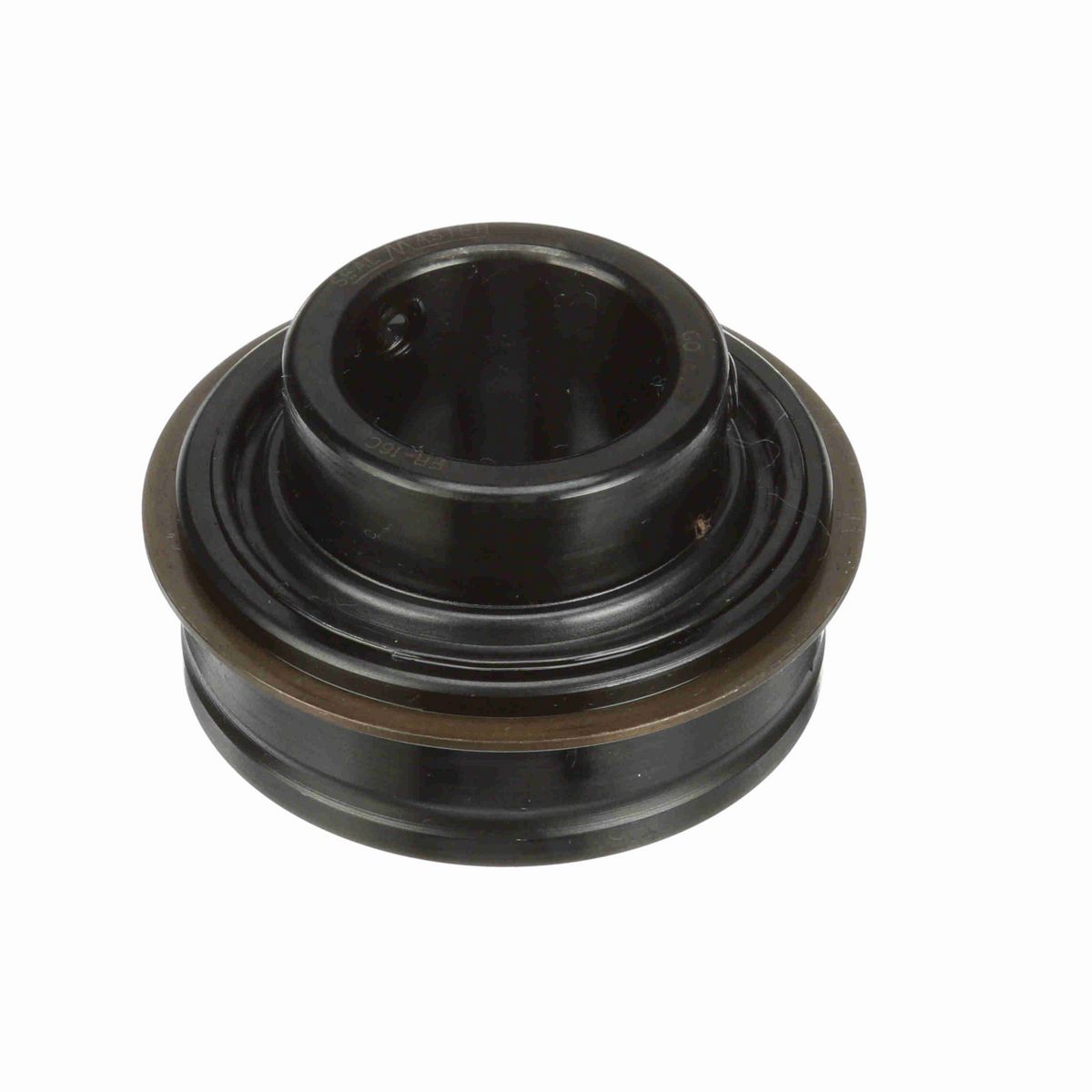

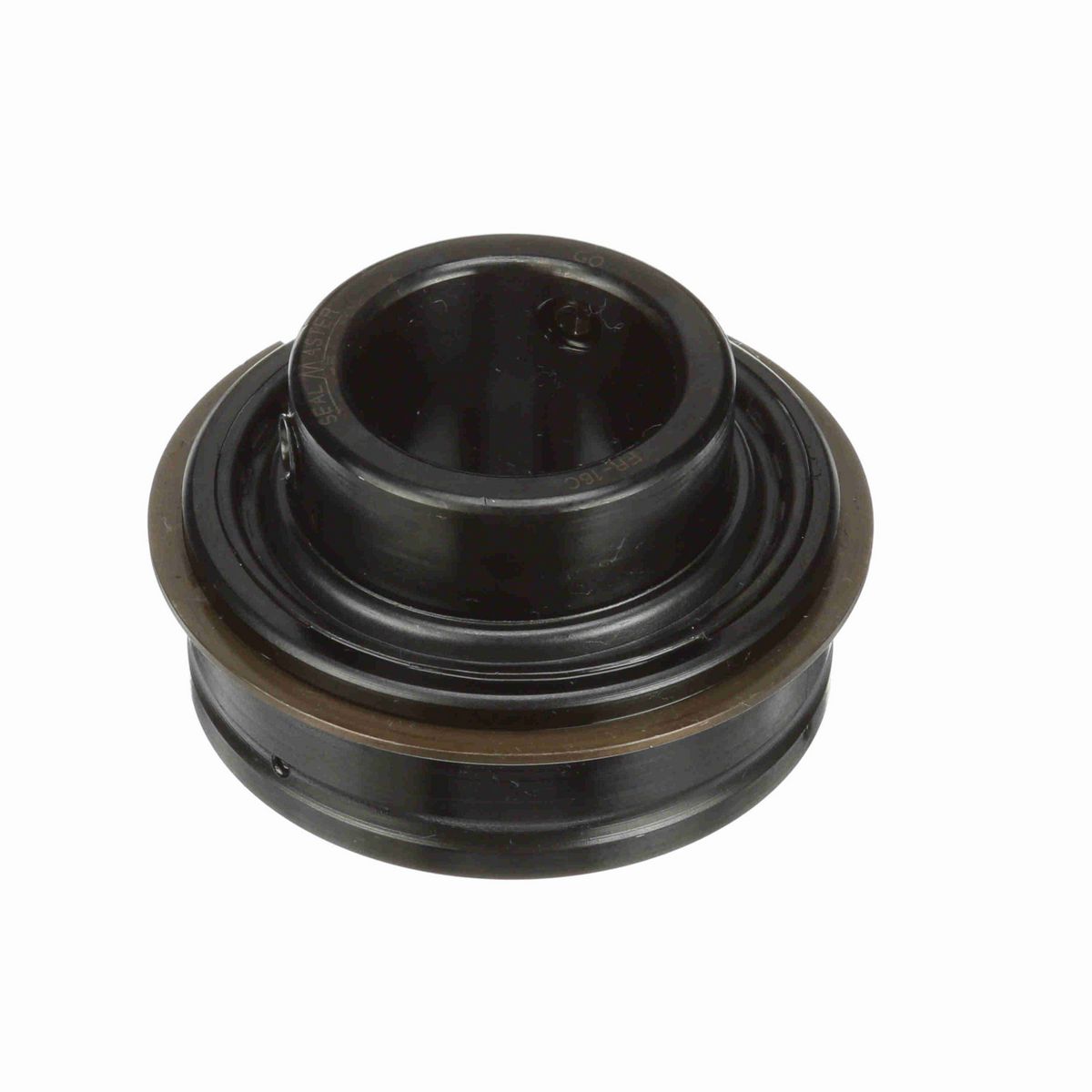

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	1 in
Centerline to Front Face (in)	0.859 in
Outer Race OD (mm)	52 mm
Inner Ring OD (in)	1.375 in
Outer Race OD (in)	2.0472 in
Outer Race Width (in)	0.75 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Bore Shape	Straight
Measure Units	Inch
Insert Material	52100 Bearing Steel
Set Screw Thread	1/4-28 UNF
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Outer Ring Land Profile	Tapered Lands
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Size Code	2-015
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Outer Ring Defect	0.0682 cps
Maximum Operating Temperature (F)	220 °F
Lubrication Type	Lithium Complex NLGI 2 Grease
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (rpm)	6350 rpm
Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0985 cps
Vibration Frequency Fundamental Train	0.0068 cps
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0442 cps
Ability to Relubricate	Yes
Series	Unmounted Replacement Bearings
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,801 lb
Static Load Rating (lb)	1,651 lb

General Specifications

UPC	662461024775
Weight	0.55 LB
Packaged Length	1.44 IN
Packaged Width	2.38 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
