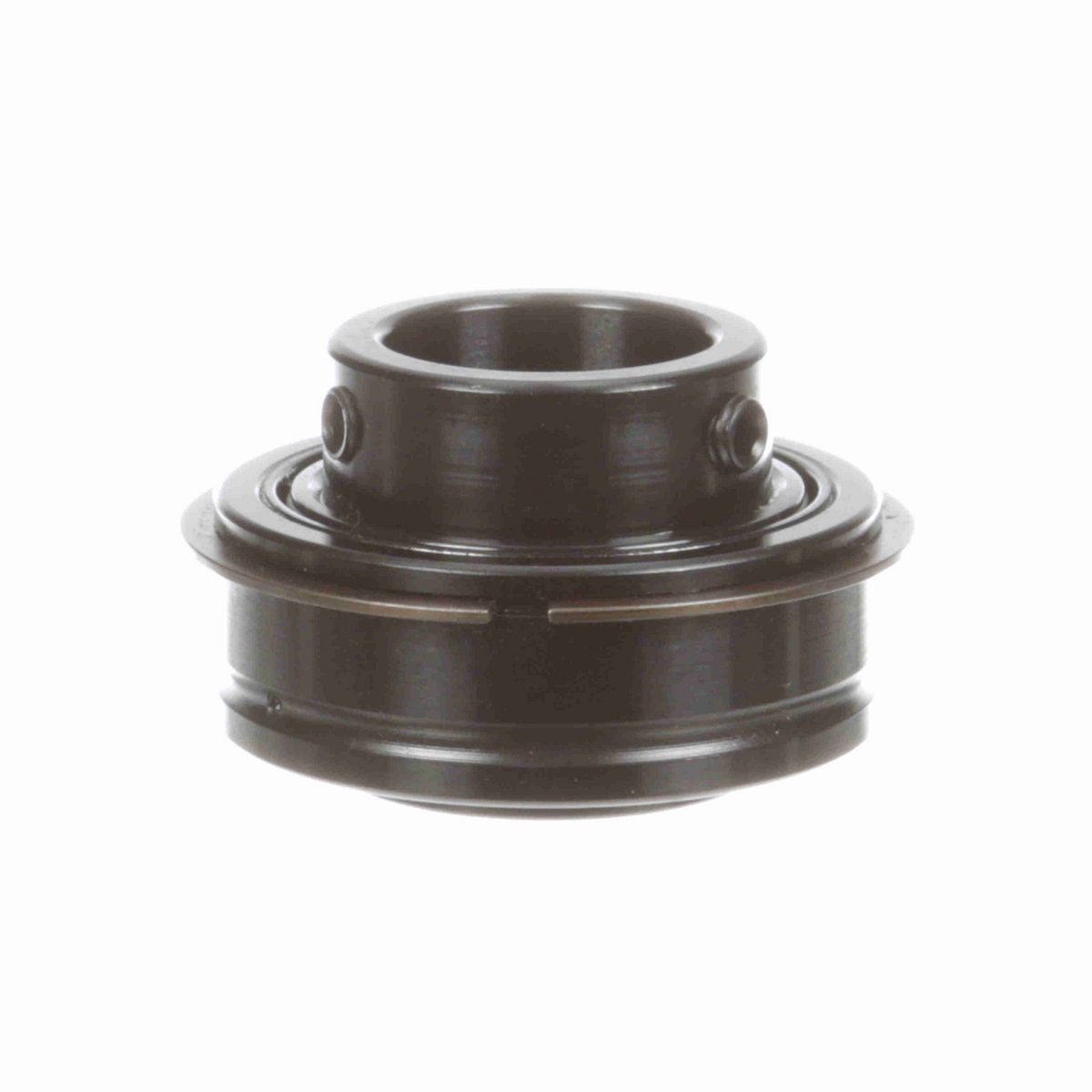

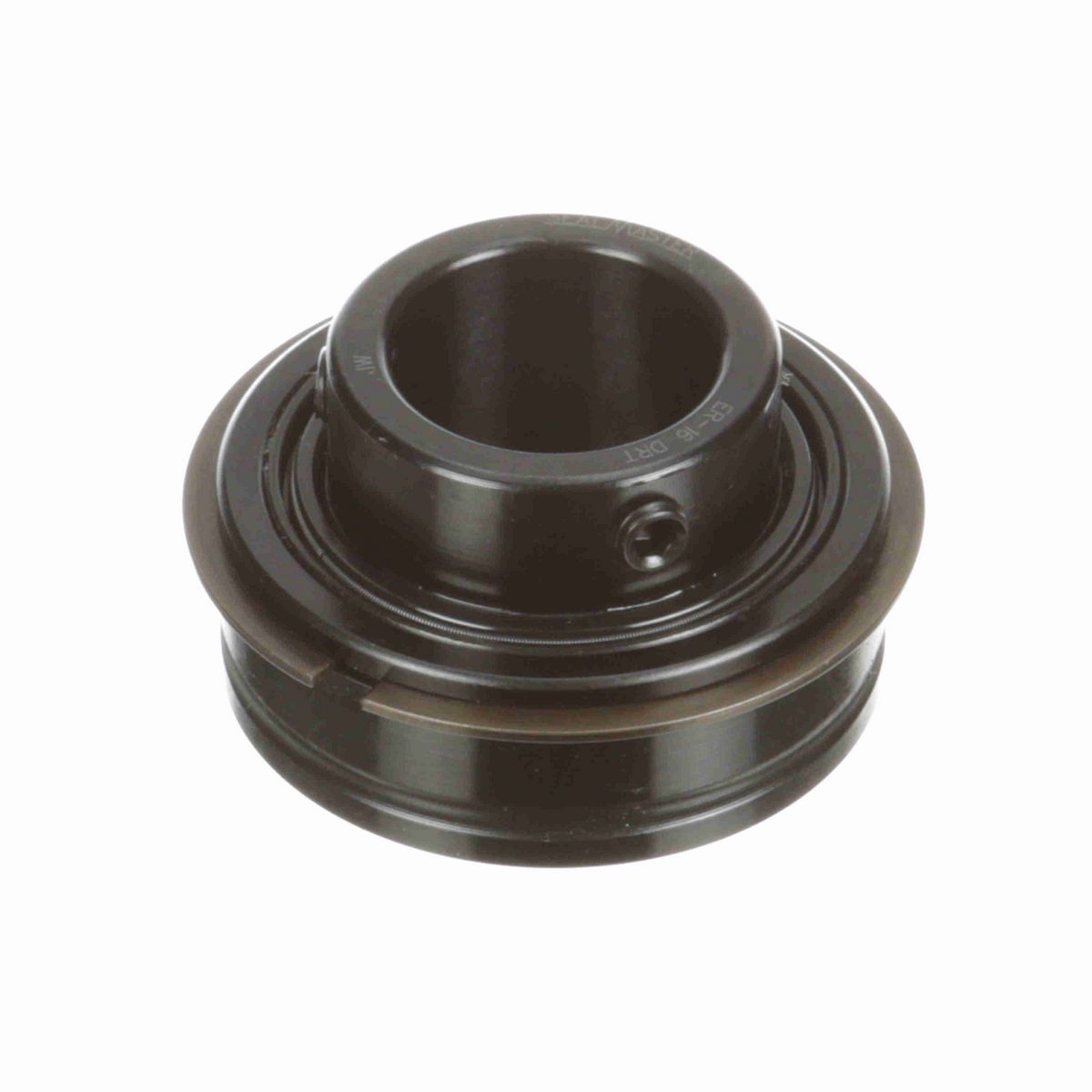

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• Multiple seal and 100% grease fill for harsh environments
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	1 in
Outer Race OD (mm)	52 mm
Inner Ring OD (in)	1.375 in
Outer Race OD (in)	2.0472 in
Outer Race Width (in)	0.75 in
Centerline to Front Face (in)	0.859 in
Collar OD (in)	1.98 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Housing Type	Insert (ER Style)
Measure Units	Inch
Seal Type	Multi-Lip Contact Seal
Torx Cap Screw	10-24 UNC
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Set Screw Thread	10-24 UNC
Rolling Element	Ball Bearing
Expansion	No
Internal Clearance	Standard
Misalignment	None
Outer Ring Land Profile	Tapered Lands
End Cap	No
Options	High Contamination
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Ring Fillet Radius (in)	0.04 in
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0682 cps
Size Code	2-015
Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0985 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Roller Spin	0.0442 cps
Duty/Status	Standard
Setscrew Torque (in-lbs)	70 in/lbs
Vibration Frequency Fundamental Train	0.0068 cps
Ability to Relubricate	Yes
Maximum Speed (rpm)	550 rpm
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Static Load Rating (lb)	1,651 lb
Dynamic Load Rating (lb)	2,801 lb

General Specifications

UPC	662461342398
Weight	0.68 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
