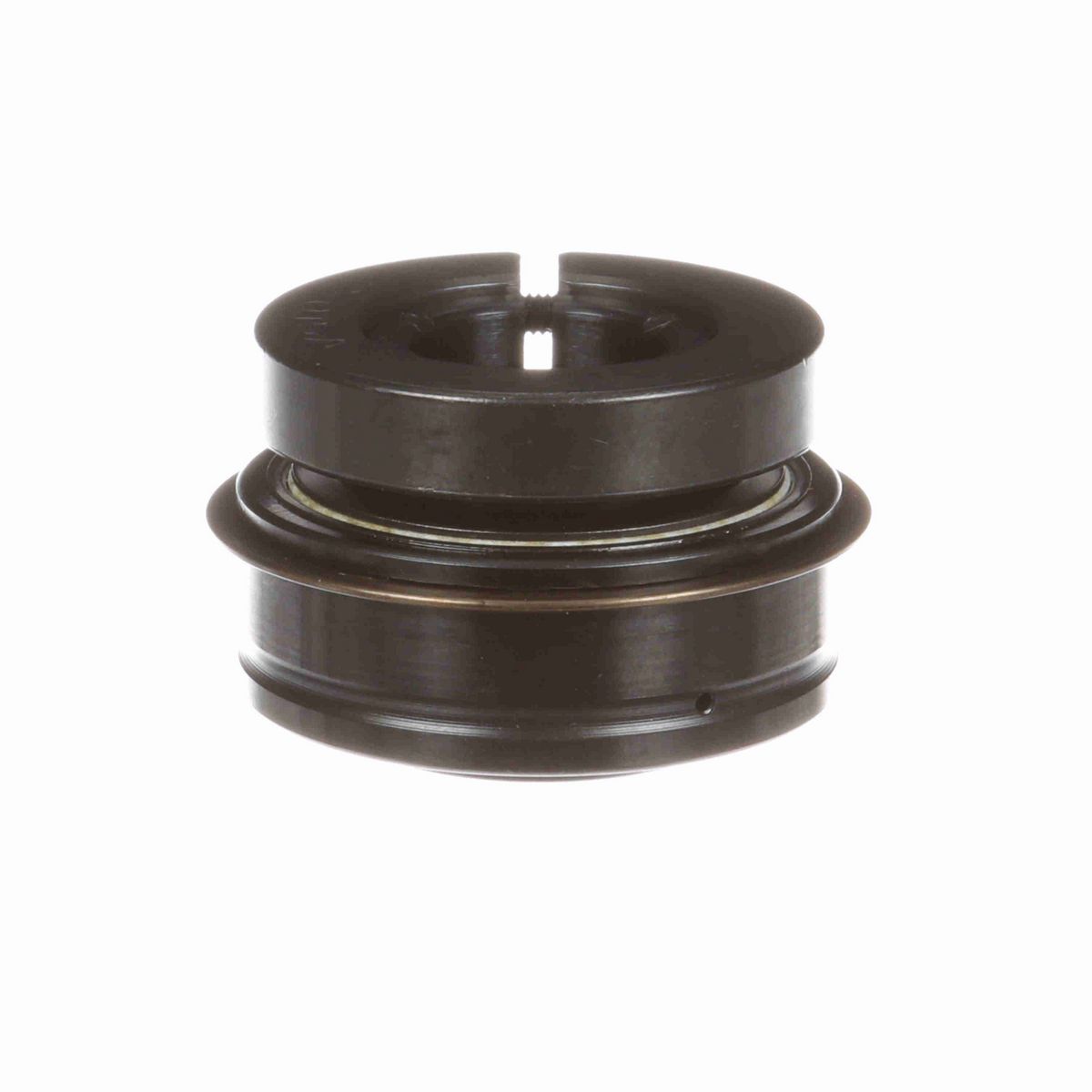

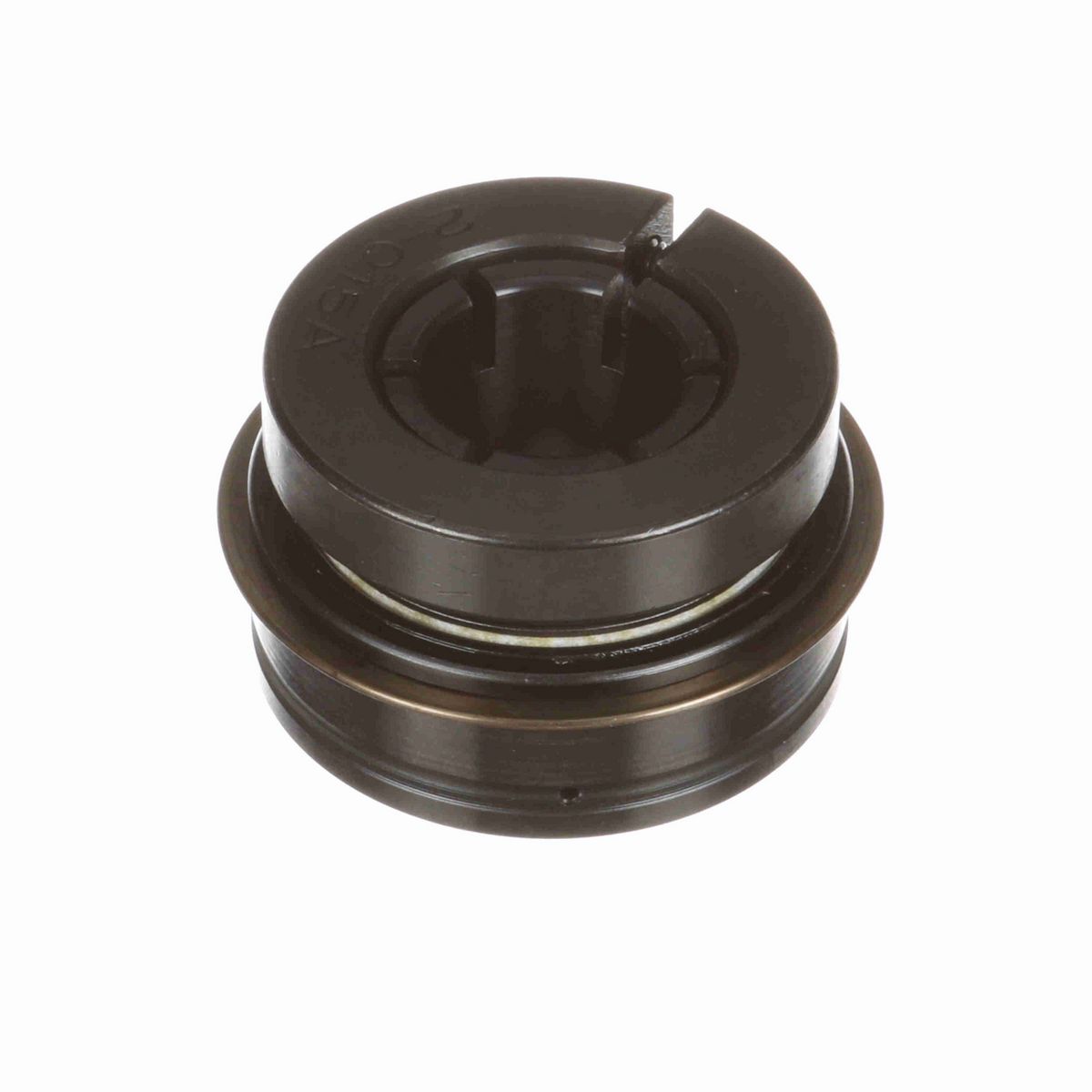

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.44 in
Bore Size (in)	0.875 in
Outer Race OD (in)	2.0472 in
Centerline to Front Face (in)	0.971 in
Inner Ring OD (in)	1.375 in
Collar OD (in)	1.98 in
Outer Race Width (in)	0.75 in
Outer Race OD (mm)	52 mm
Length Through Bore (in)	1.44 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Measure Units	Inch
Seal Type	Felt Labyrinth Seal
Rolling Element	Ball Bearing
Set Screw Thread	10-24 UNC
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Torx Cap Screw	10-24 UNC
Housing Type	Insert (ER Style)
Expansion	No
Misalignment	None
Internal Clearance	Standard
End Cap	No
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Size Code	2-015
Vibration Frequency Fundamental Train	0.0068 cps
Locking Type	Concentric
Vibration Frequency Inner Ring Defect	0.0985 cps
Series	Unmounted Replacement Bearings
Setscrew Torque (in-lbs)	70 in/lbs
Vibration Frequency Roller Spin	0.0442 cps
Vibration Frequency Outer Ring Defect	0.0682 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Duty/Status	Standard
Ability to Relubricate	Yes
Inner Ring Fillet Radius (in)	0.04 in
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (rpm)	9000 rpm
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,801 lb

General Specifications

UPC	662461308110
Weight	0.70 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
