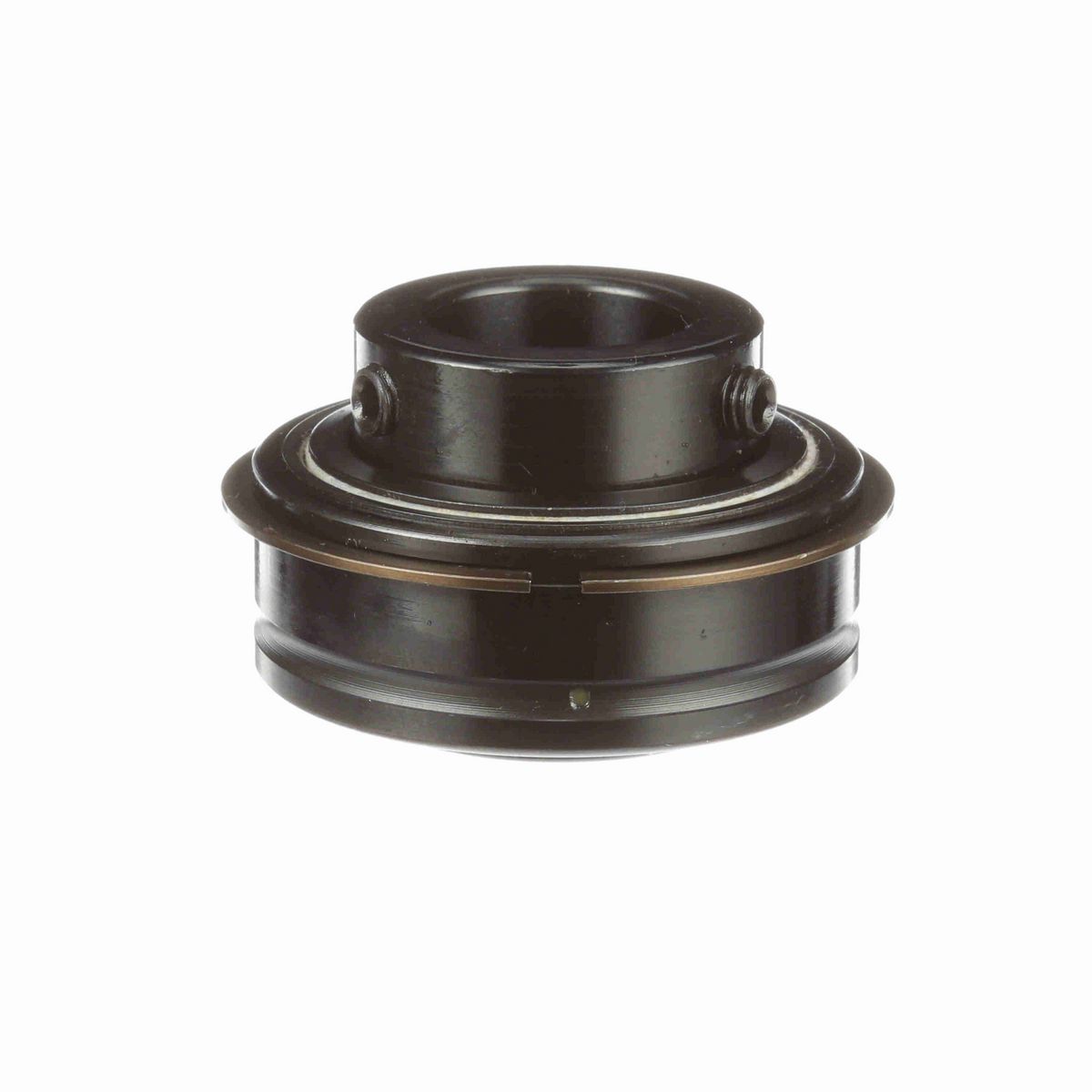

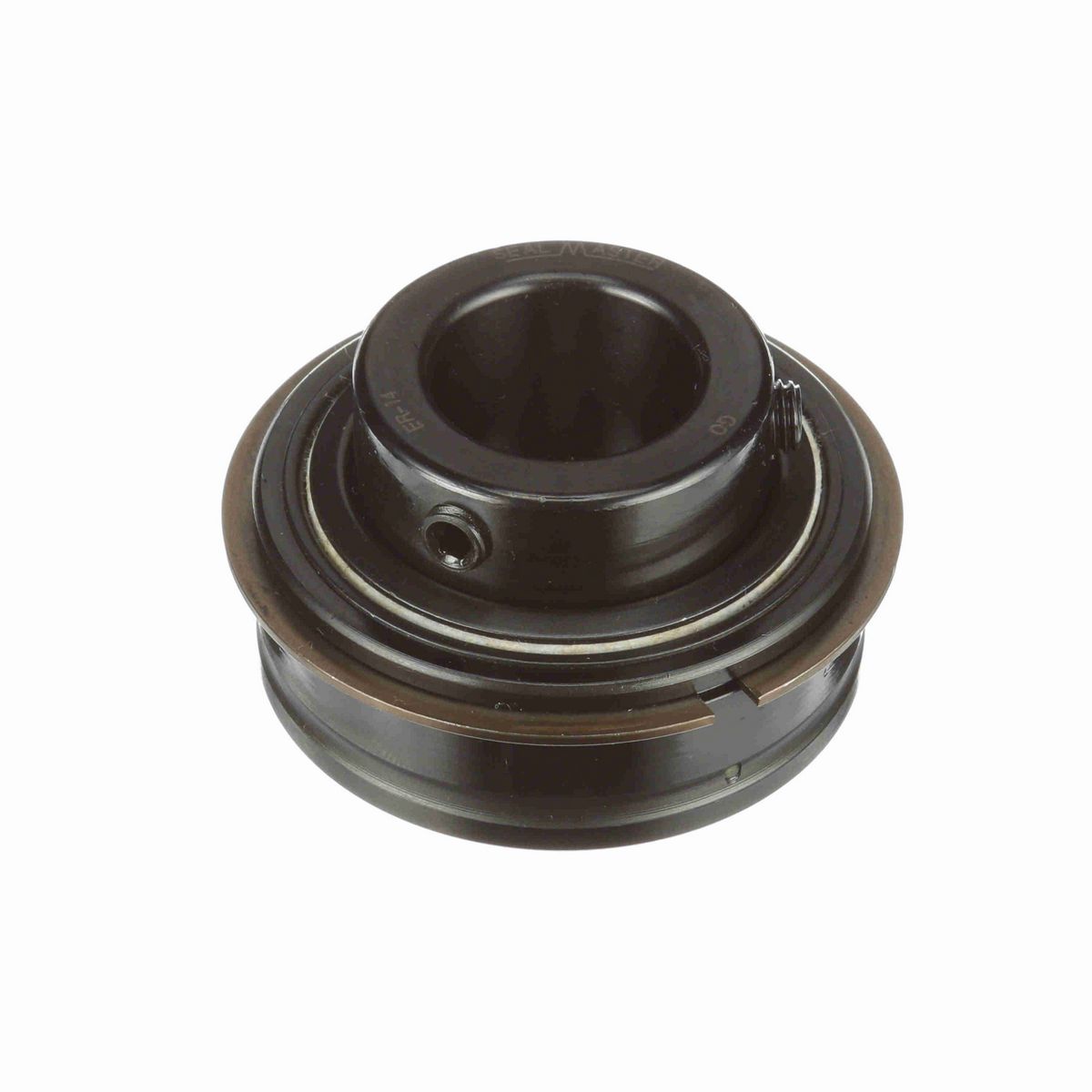

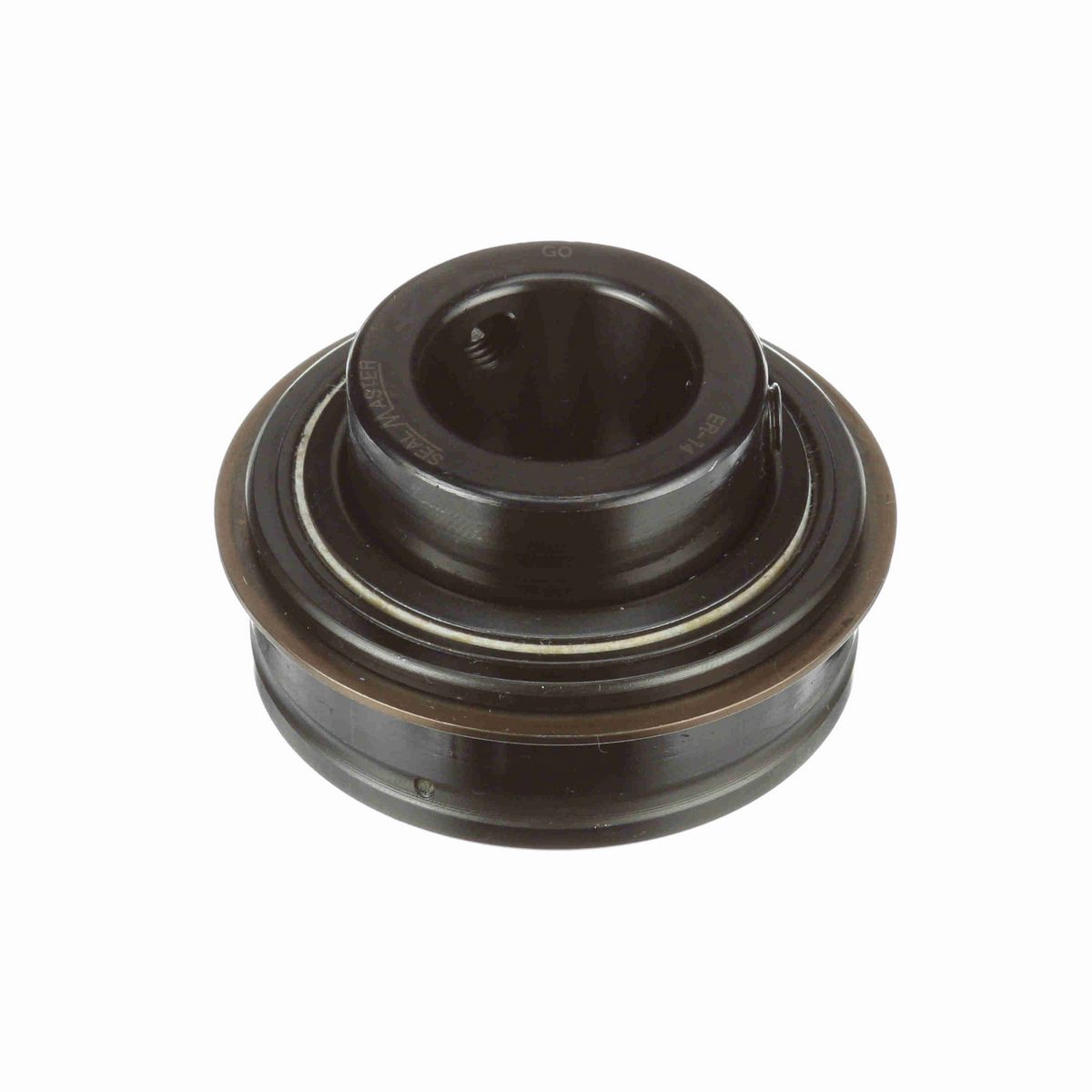

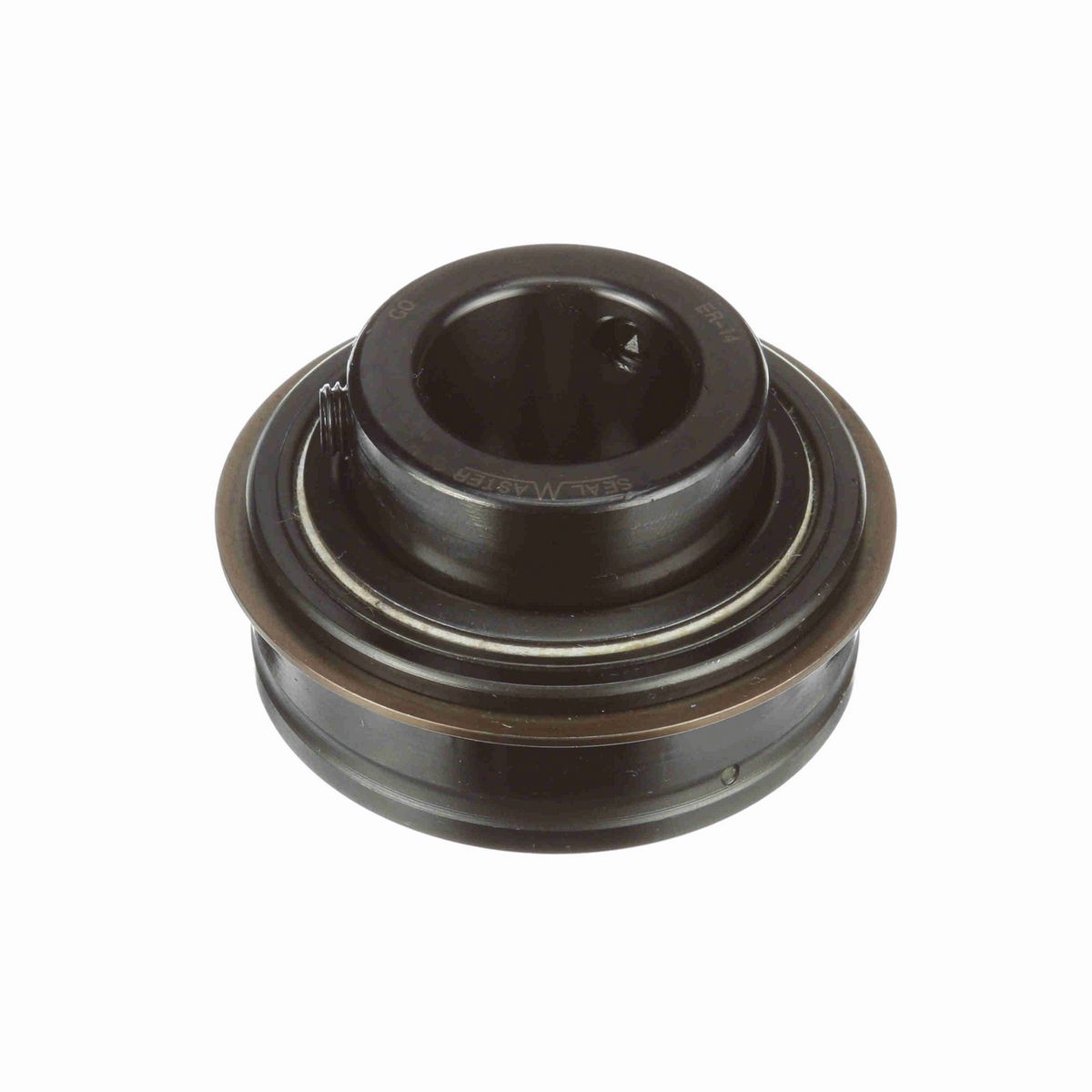

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	0.875 in
Outer Race OD (mm)	52 mm
Outer Race Width (in)	0.75 in
Outer Race OD (in)	2.0472 in
Centerline to Front Face (in)	0.859 in
Inner Ring OD (in)	1.375 in
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Set Screw Thread	1/4-28 UNF
Measure Units	Inch
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Seal Type	Felt Labyrinth Seal
Bore Shape	Straight
Housing Type	Insert (ER Style)
Misalignment	None
Expansion	No
Internal Clearance	Standard
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Lubrication Type	Lithium Complex NLGI 2 Grease
Series	Unmounted Replacement Bearings
Duty/Status	Standard
Setscrew Torque (in-lbs)	65-85 in/lbs
Maximum Speed (rpm)	6350 rpm
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Roller Spin	0.0442 cps
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Operating Temperature (F)	220 °F
Size Code	2-015
Vibration Frequency Inner Ring Defect	0.0985 cps
Inner Ring Fillet Radius (in)	0.04 in
Ability to Relubricate	Yes
Locking Type	Set Screw
Inner Race Heat Treat Method	Zone-Hardened
Static Load Rating (lb)	1,651 lb
Dynamic Load Rating (lb)	2,801 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461008539
Weight	0.62 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
