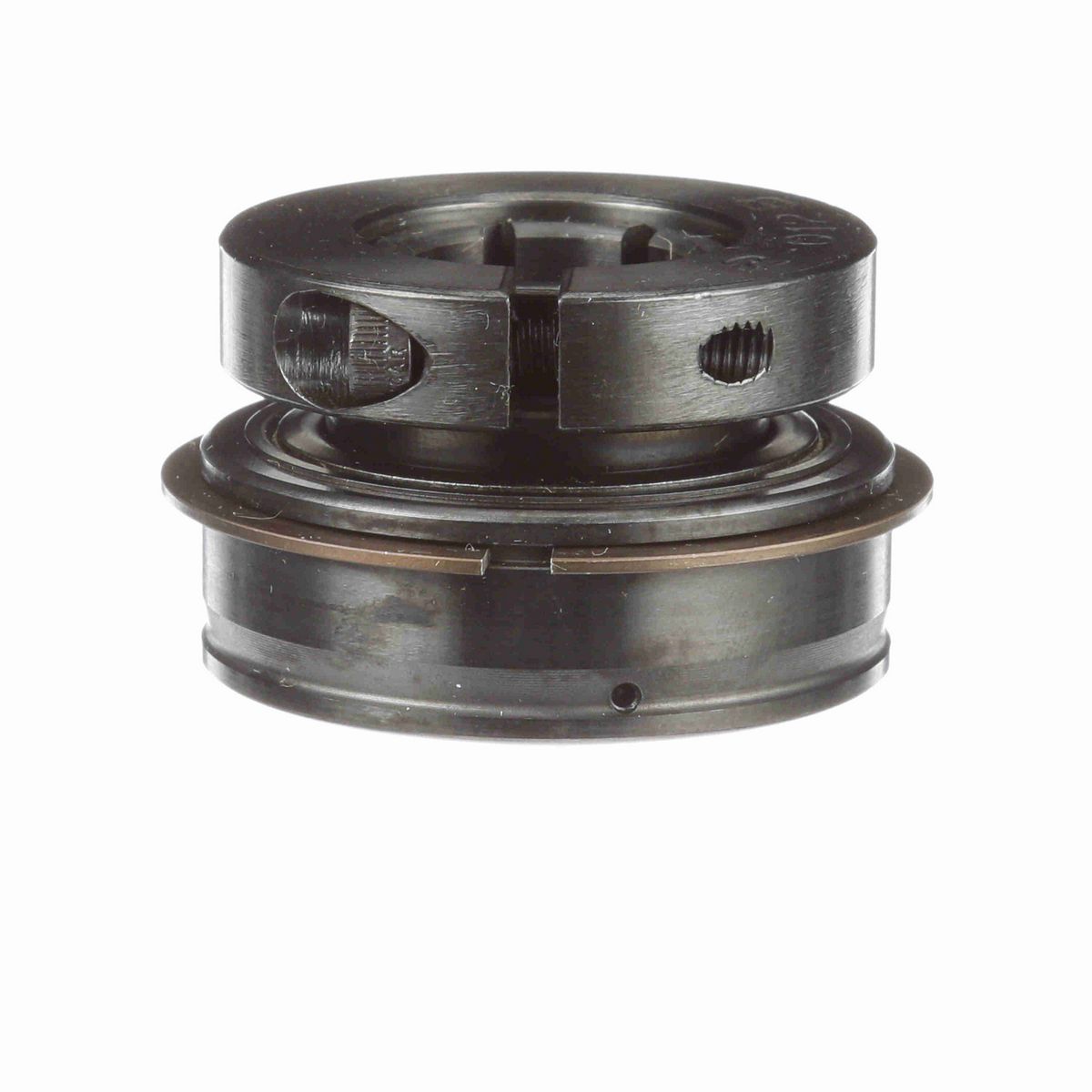

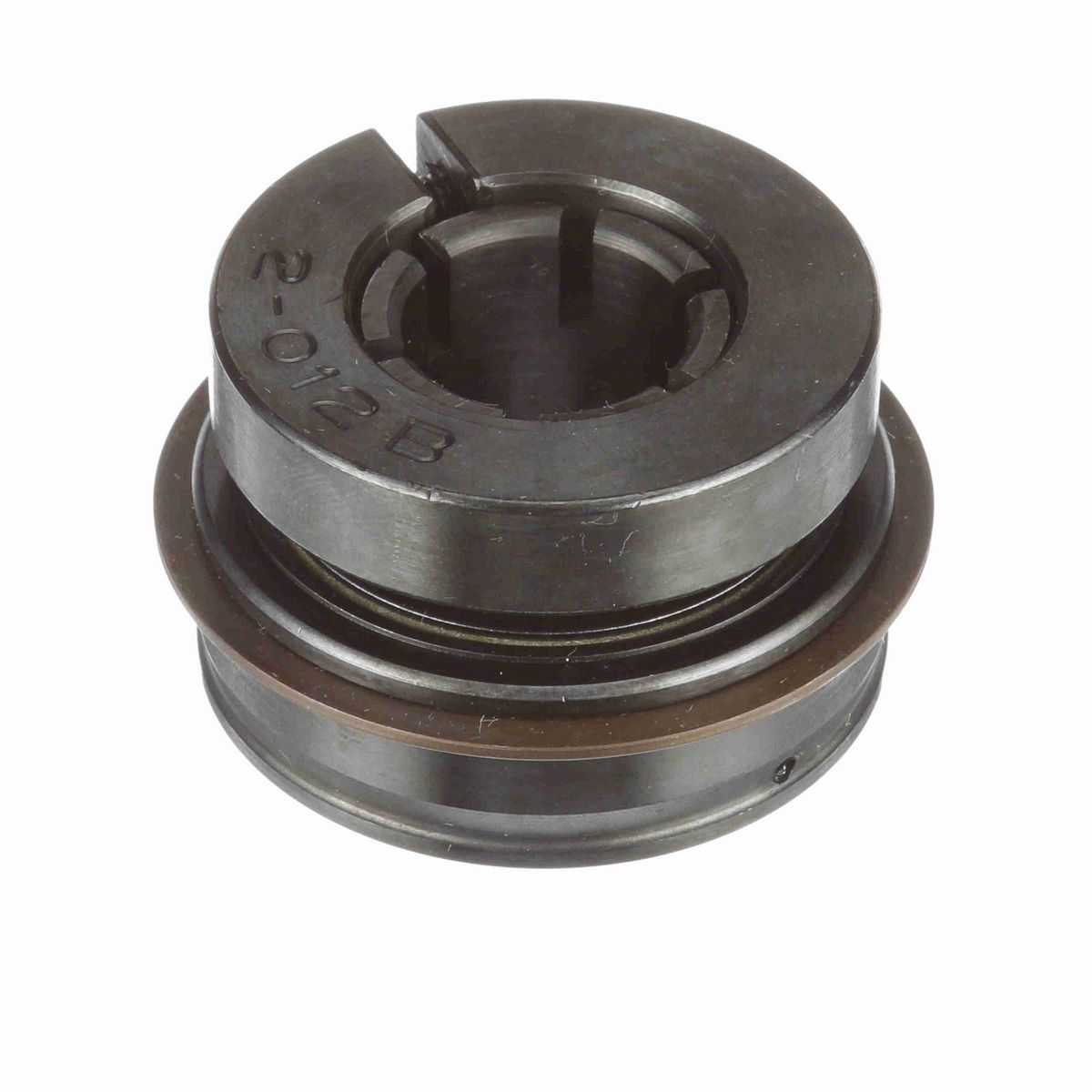

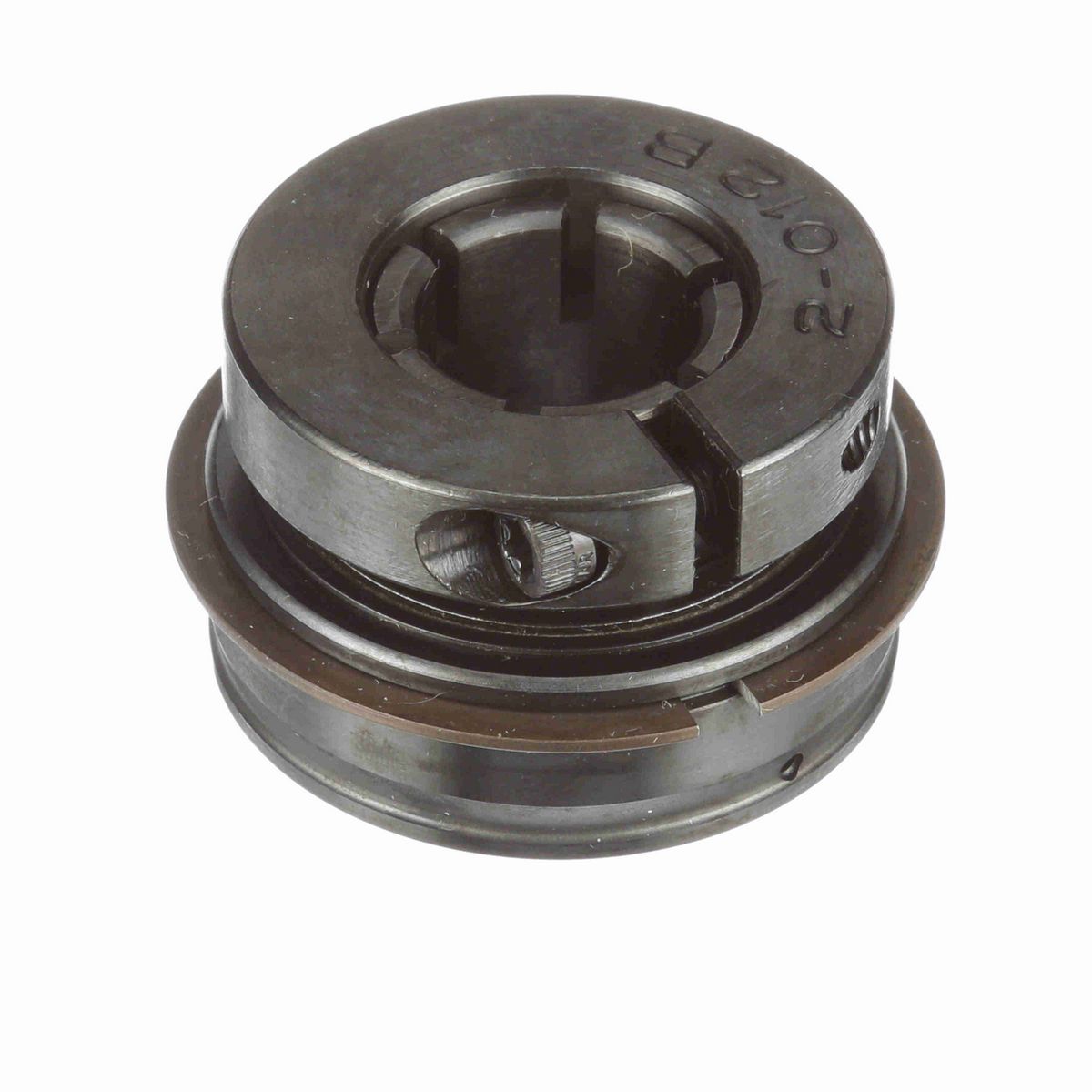

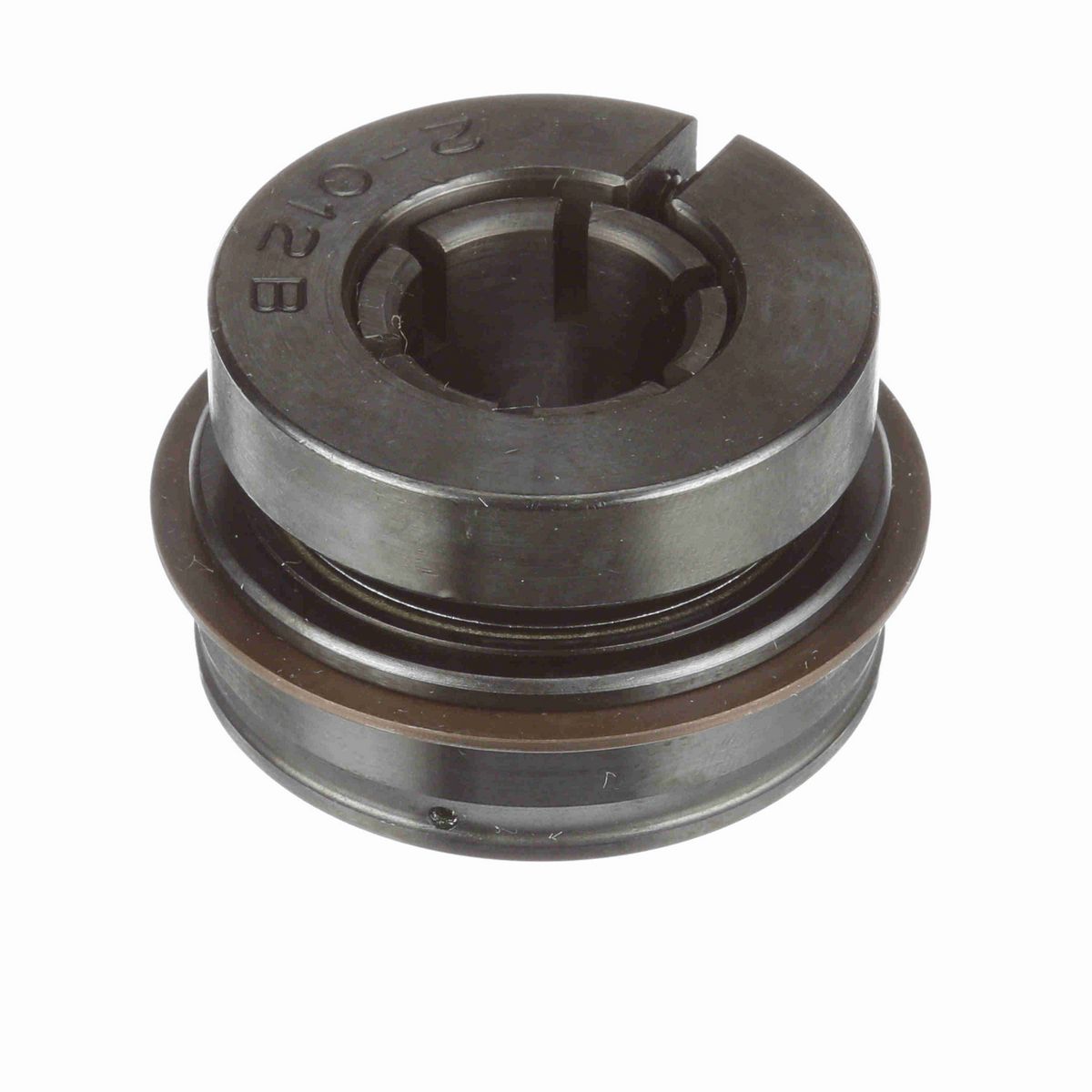

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.28 in
Bore Size (in)	0.75 in
Inner Ring OD (in)	1.188 in
Outer Race OD (mm)	47 mm
Centerline to Front Face (in)	0.813 in
Collar OD (in)	1.8 in
Outer Race OD (in)	1.8504 in
Outer Race Width (in)	0.625 in
Length Through Bore (in)	1.28 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Torx Cap Screw	10-24 UNC
Measure Units	Inch
Housing Type	Insert (ER Style)
Bore Shape	Straight
Rolling Element	Ball Bearing
Set Screw Thread	10-24 UNC
Seal Type	Felt Labyrinth Seal
Insert Material	52100 Bearing Steel
Misalignment	None
Internal Clearance	Standard
Expansion	No
Outer Ring Land Profile	Tapered Lands
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Bearing Insert Coating	Black Oxide
End Cap	No
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Locking Type	Concentric
Inner Ring Fillet Radius (in)	0.04 in
Maximum Operating Temperature (F)	220 °F
Size Code	2-012
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0381 cps
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0907 cps
Lubrication Type	Lithium Complex NLGI 2 Grease
Setscrew Torque (in-lbs)	70 in/lbs
Maximum Speed (rpm)	10200 rpm
Vibration Frequency Outer Ring Defect	0.0593 cps
Ability to Relubricate	Yes
Static Load Rating (lb)	1,444 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,611 lb

General Specifications

UPC	662461031186
Weight	0.59 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
