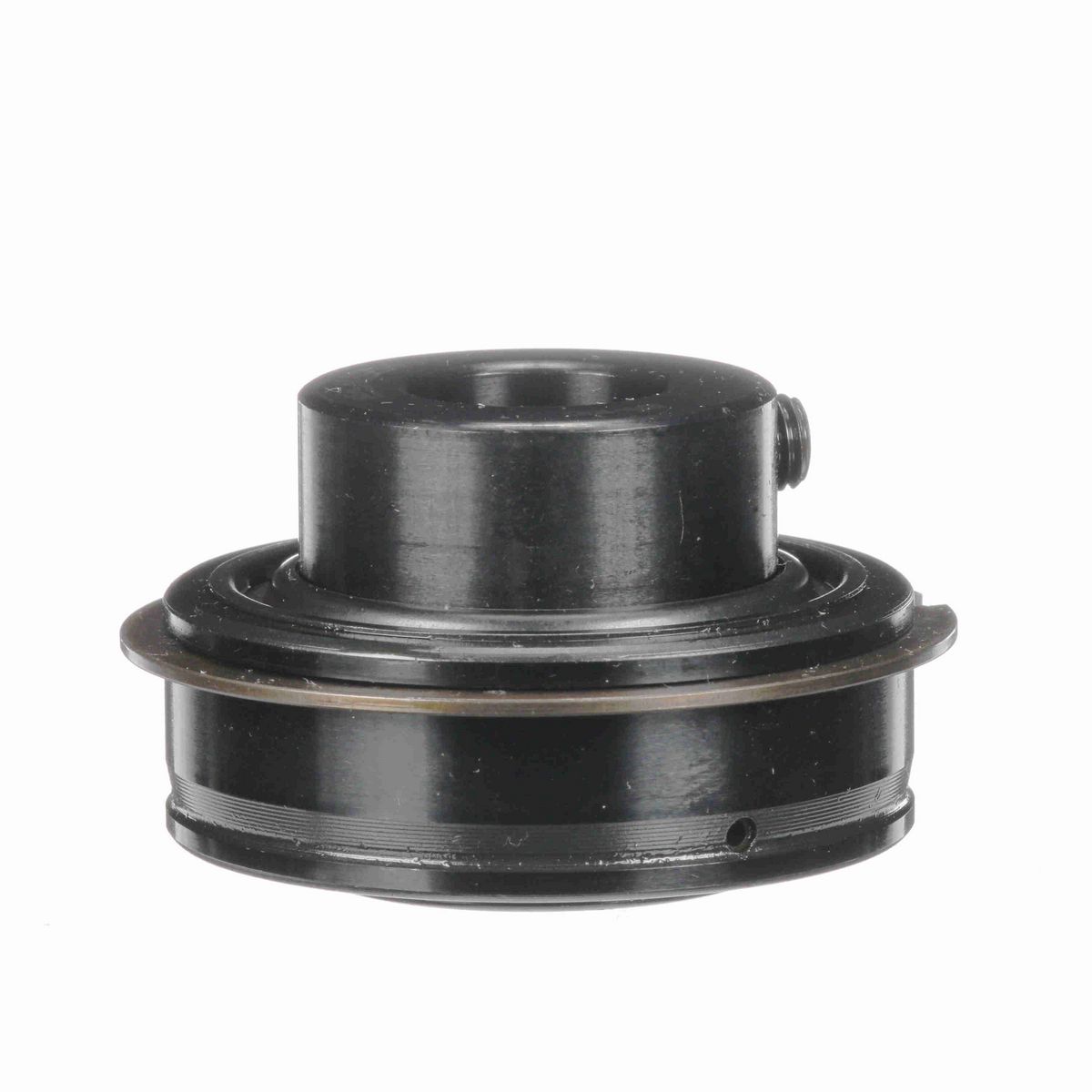

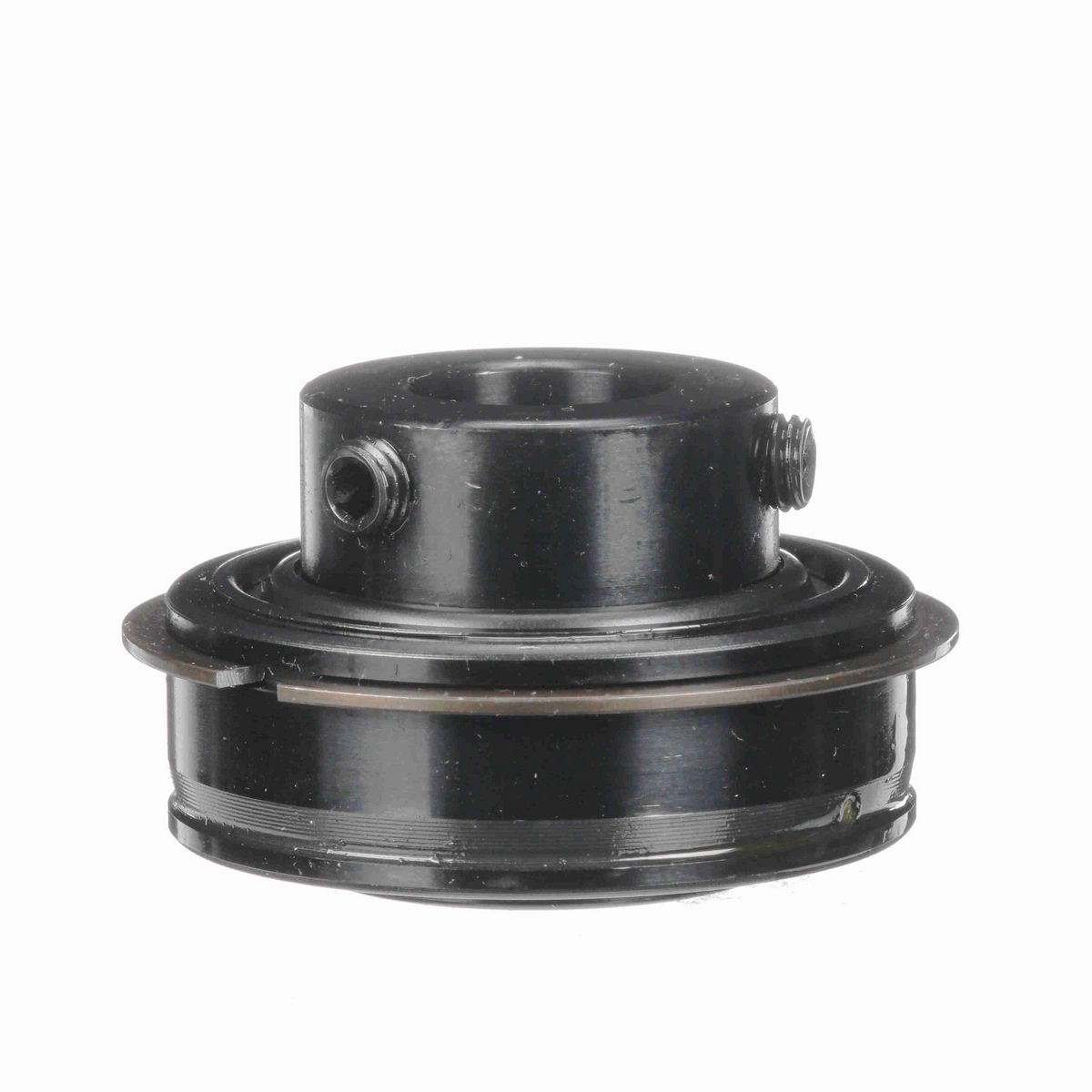

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

Dimensions

Overall Width (in)	1.22 in
Bore Size (in)	0.625 in
Outer Race OD (in)	1.8504 in
Outer Race OD (mm)	47 mm
Centerline to Front Face (in)	0.813 in
Inner Ring OD (in)	1.188 in
Outer Race Width (in)	0.625 in
Length Through Bore (in)	1.219 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Set Screw Thread	1/4-28 UNF
Measure Units	Inch
Housing Type	Insert (ER Style)
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Expansion	No
Internal Clearance	Standard
Misalignment	None
Bearing Insert Coating	Black Oxide
Platform	Gold Line Ball Bearing
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Size Code	2-012
Inner Ring Fillet Radius (in)	0.04 in
Vibration Frequency Roller Spin	0.0381 cps
Inner Race Heat Treat Method	Zone-Hardened
Duty/Status	Standard
Lubrication Type	Lithium Complex NLGI 2 Grease
Maximum Operating Temperature (F)	220 °F
Maximum Speed (rpm)	6450 rpm
Vibration Frequency Inner Ring Defect	0.0907 cps
Vibration Frequency Outer Ring Defect	0.0593 cps
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Locking Type	Set Screw
Vibration Frequency Fundamental Train	0.0066 cps
Setscrew Torque (in-lbs)	65-85 in/lbs
Cage Type	Land Riding Retainer
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb

General Specifications

UPC	662461024706
Weight	0.50 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
