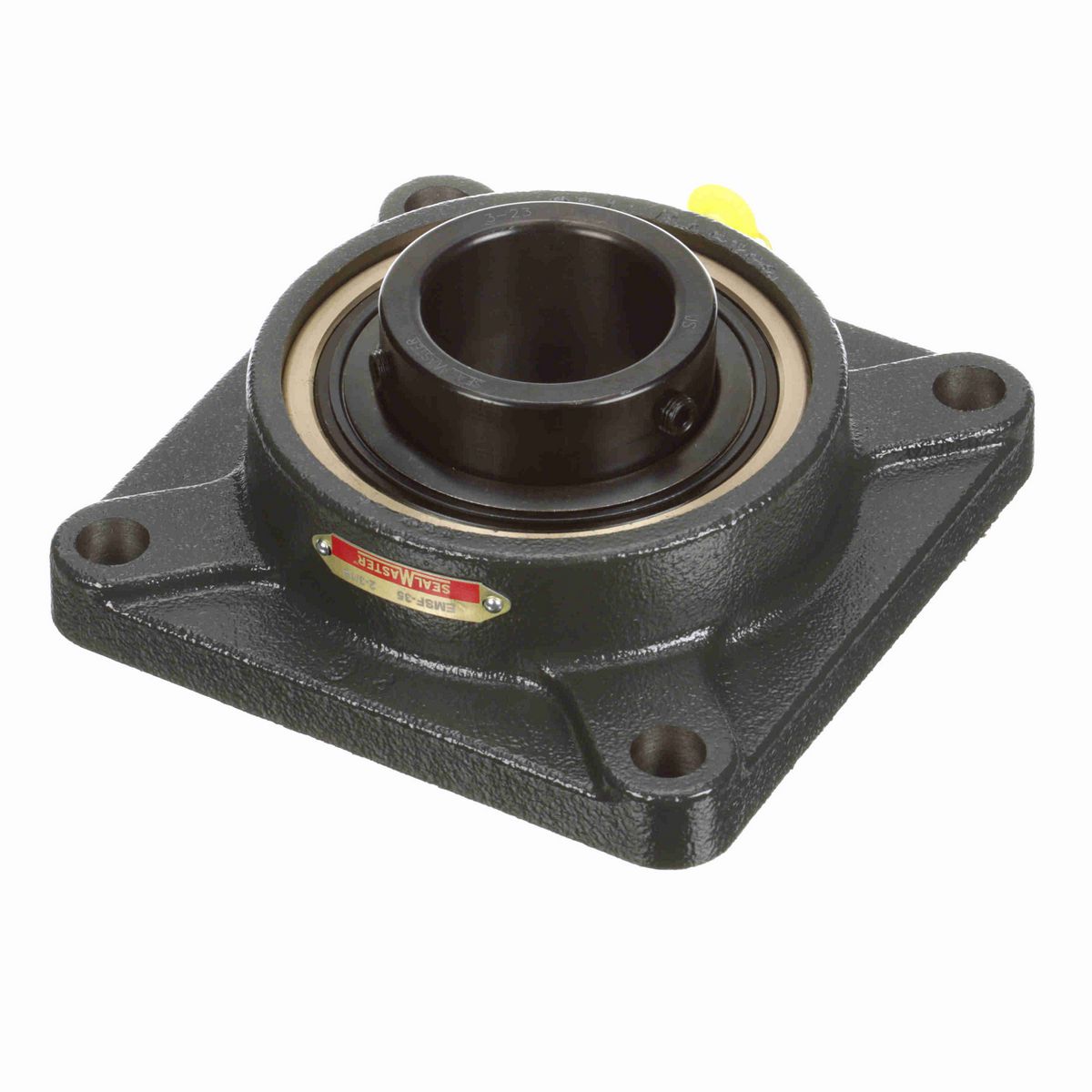

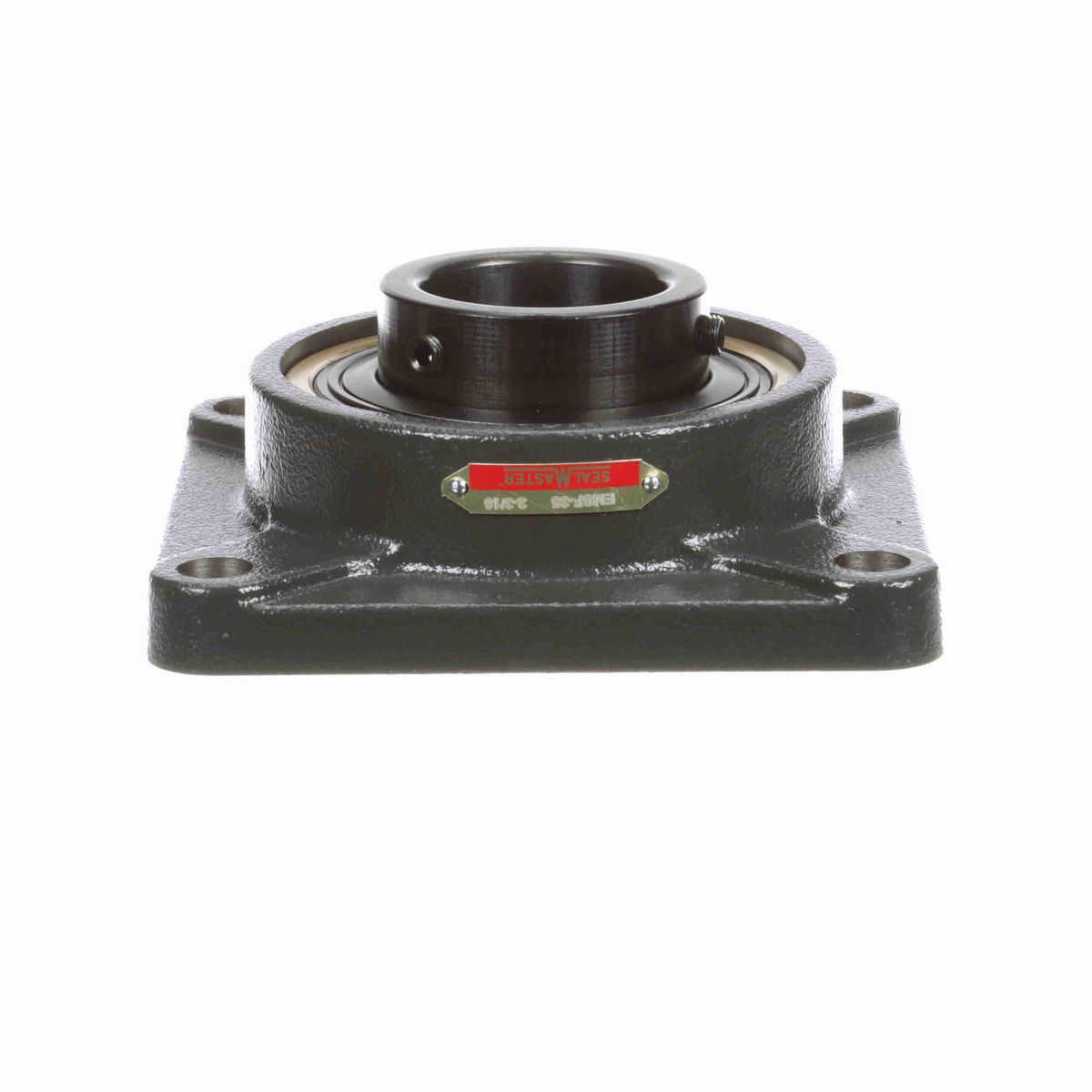

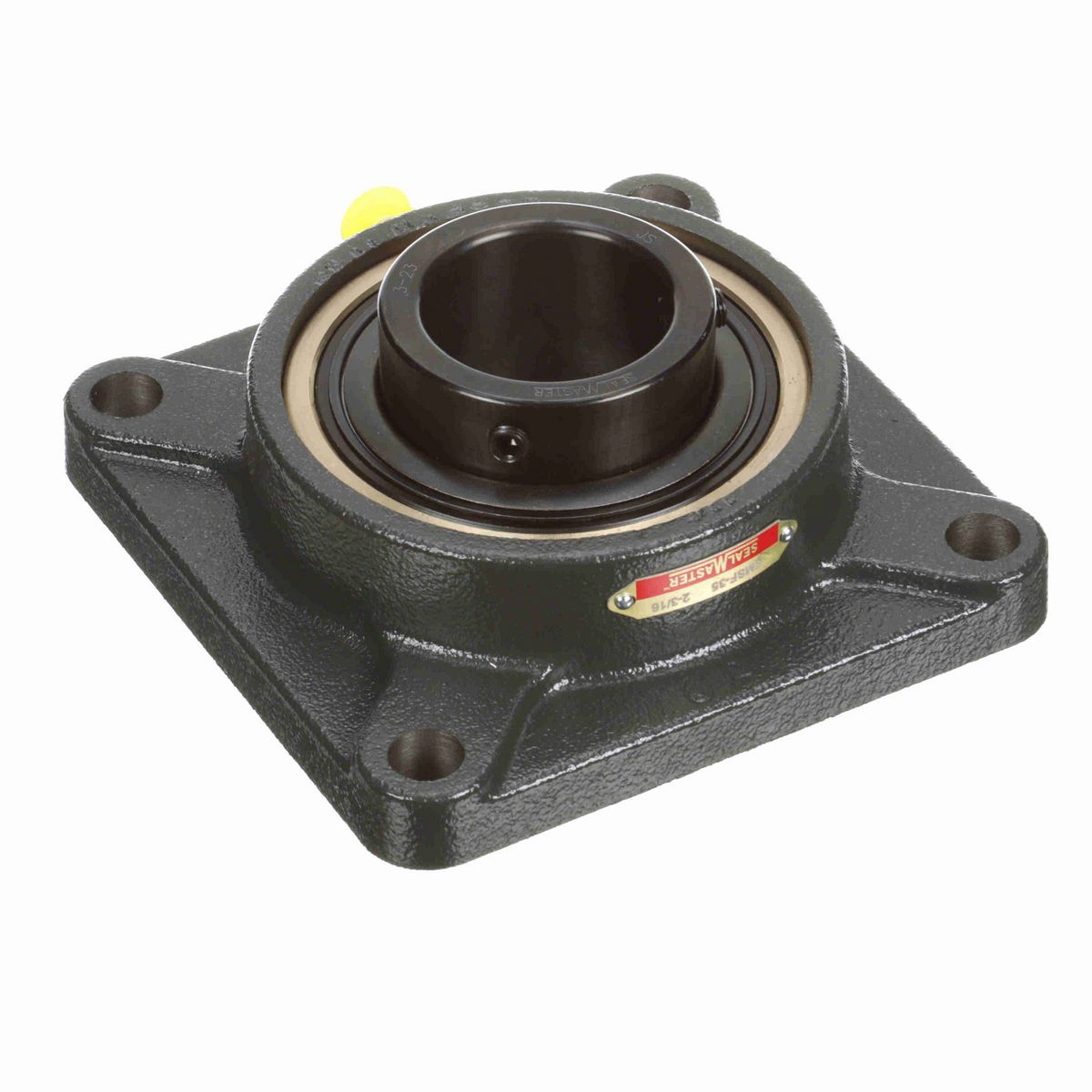

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - EMSF-35
(0) |
0 руб.
- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
| Overall Width (in) | 6.88 in |
| Bolt Size (in) | 5/8 in |
| Overall Height (in) | 2.688 in |
| Overall Length (in) | 6.88 in |
| Bore Diameter (in) | 2.1875 in |
| Foot Height (in) | 0.81 in |
| Length Through Bore (in) | 2.559 in |
| Bolt Spacing (in) | 5.6250 in |
| Bore Shape | Straight |
| Rolling Element | Ball Bearing |
| Pilot Configuration | No Pilot |
| Housing Construction | One Piece |
| Outer Ring Land Profile | Standard |
| Misalignment Type | Static Only |
| Housing Color | Black |
| Cage Material | PPS - Polyphenylene Sulfide |
| Housing Type | Flange, Four Bolt |
| Seal Type | Felt Labyrinth Seal |
| Housing Style | Flange Block |
| Inner Race Heat Treat Method | Zone-Hardened |
| Ability to Relubricate | Yes |
| Fixed vs. Expansion | Expansion |
| Housing Backside Inner Diameter | 5 |
| Lubricant | Lithium Complex NLGI 2 Grease |
| End Cap Available | No |
| Static Load Rating (lb) | 8,150 lb |
| Insert | AR-3-23 |
| Shaft Locking Type | Set Screw |
| Housing Material | Cast Iron |
| Maximum Speed (RPM) | 3000 rpm |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | 52100 Bearing Steel |
| Radial Clearance | Standard |
| Dynamic Load Rating (lb) | 11,789 lb |
| Misalignment Capability | ±2.0° Misalignment - Static Only |
| Grease Fitting Thread Size | 1/8 NPT |
| Housing Coating | Powder Coated |
| Inner Ring Outside Diameter (in) | 2.981 in |
| Max Operating Temperature (F) | 220 °F |
| Bearing Type | Medium Duty |
| Cage Type | Land Riding Retainer |
| Size Code | 2-27 |
| UPC | 662461001011 |
| Weight | 12.10 LB |
| Packaged Length | 7.19 IN |
| Packaged Width | 7.00 IN |
| Packaged Height | 3.31 IN |
| HTC | 8483.20.4040 |
| Country of Origin | United States of America |
