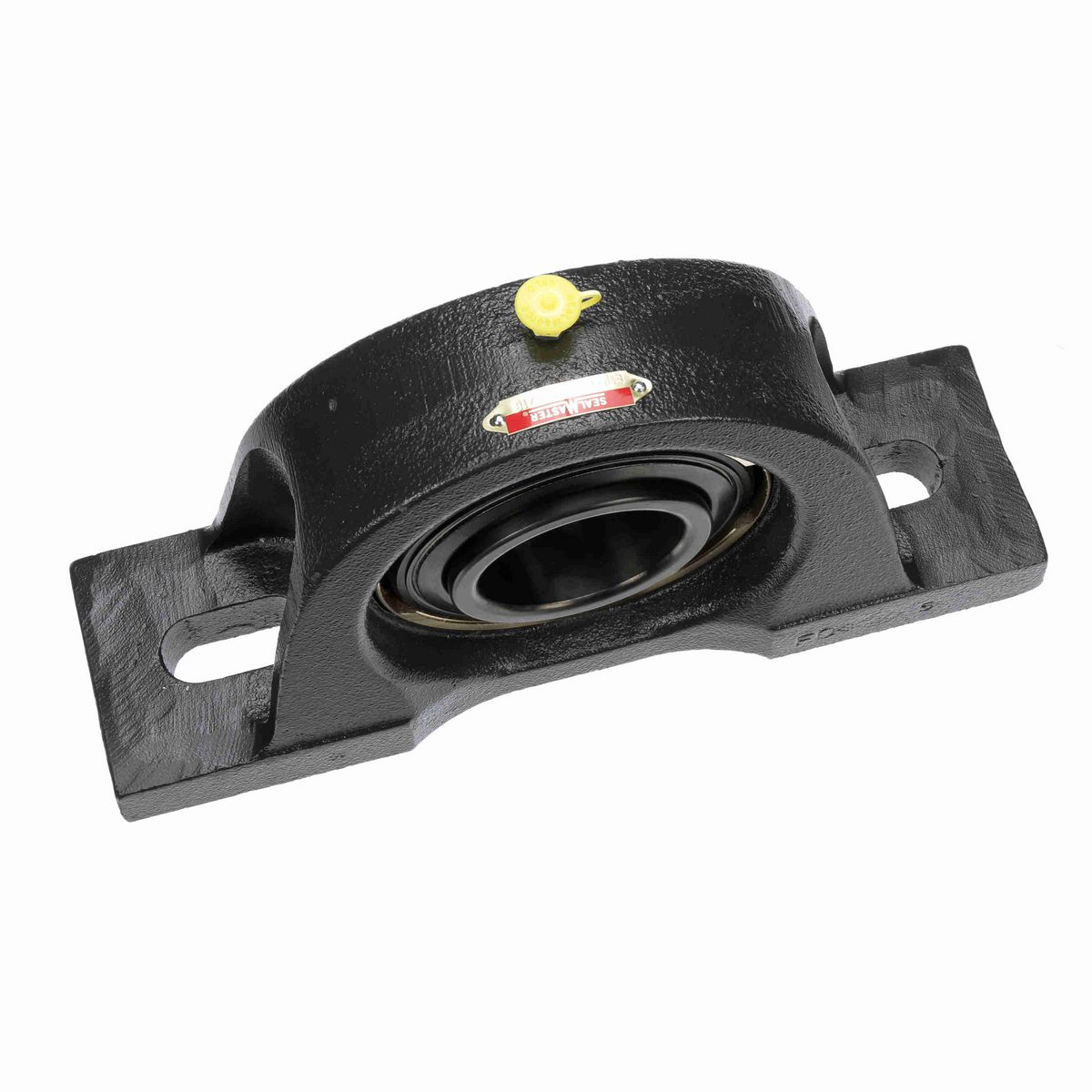

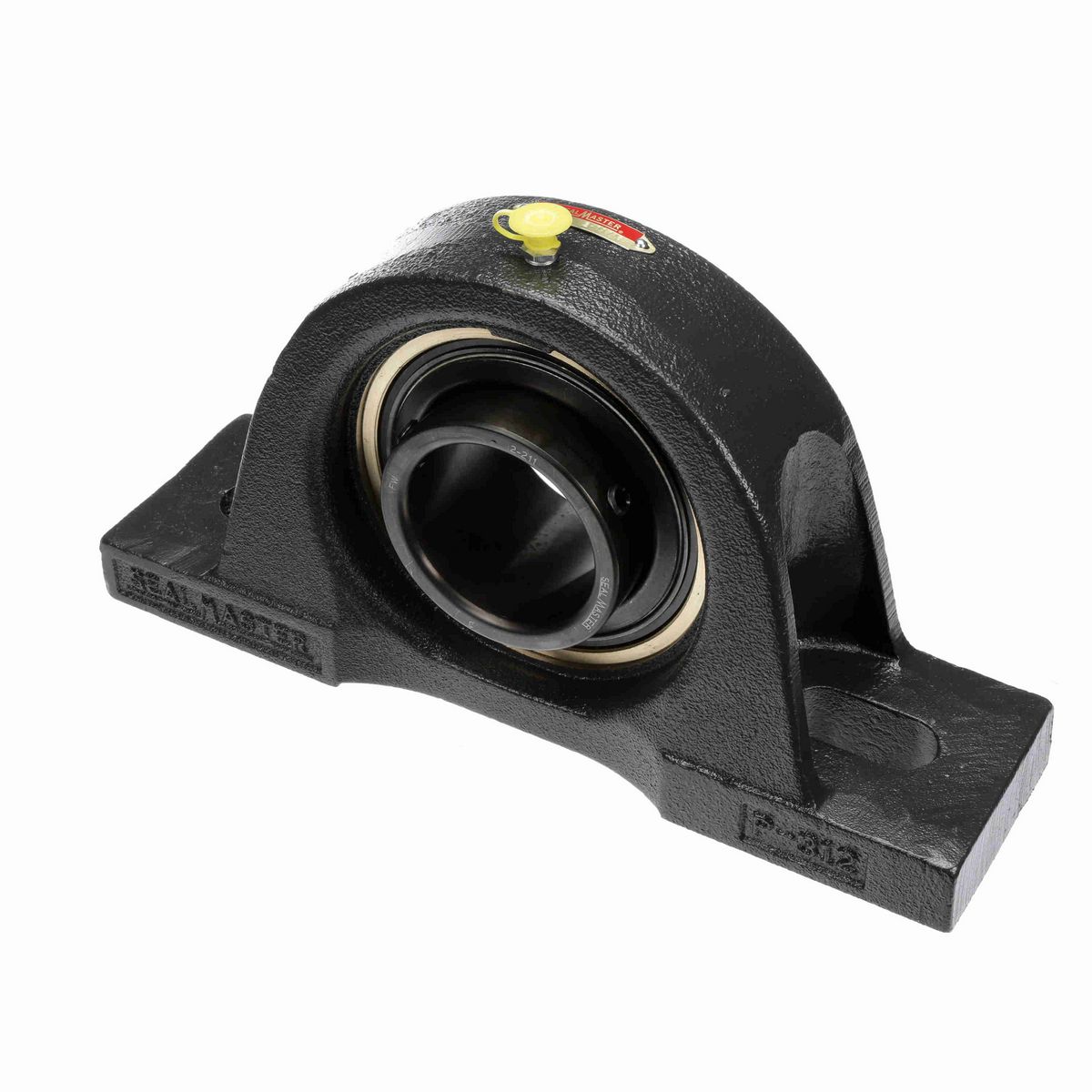

• Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.50 in
Overall Height (in)	7.00 in
Overall Length (in)	13 in
Base Width (in)	3.50 in
Bolt Size (in)	7/8 in
Bore Diameter (in)	2.6875 in
Base to Center Height (in)	3.5000 in
Foot Height (in)	1.13 in
Length Through Bore (in)	2.748 in
Bolt Spacing Min (in)	7.88 in
Bolt Spacing Max (in)	10.13 in
Centerline to Outermost Bearing Face (in)	1.750 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	Brass
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	350-450 in/lbs
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	14,839 lb
Static Load Rating (lb)	11,224 lb
Insert	AR-2-211
Inner Ring Outside Diameter (in)	3.641 in
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0476 cps
Shaft Locking Type	Set Screw
End Cap Available	No
Size Code	2-215
Vibration Frequency Fundamental Train	0.0069 cps
Bearing Insert Material	52100 Bearing Steel
Base Length (in)	13.00 in
Housing Coating	Powder Coated
Radial Clearance	Standard
Expansion Capability (in)	.19 in
Maximum Speed (RPM)	2500 rpm
Fixed vs. Expansion	Expansion
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.1072 cps
Max Operating Temperature (F)	220 °F
Bearing Type	Medium Duty
Vibration Frequency Outer Ring Defect	0.0761 cps
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461014189
Weight	27.30 LB
Packaged Length	14.25 IN
Packaged Width	8.06 IN
Packaged Height	4.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
