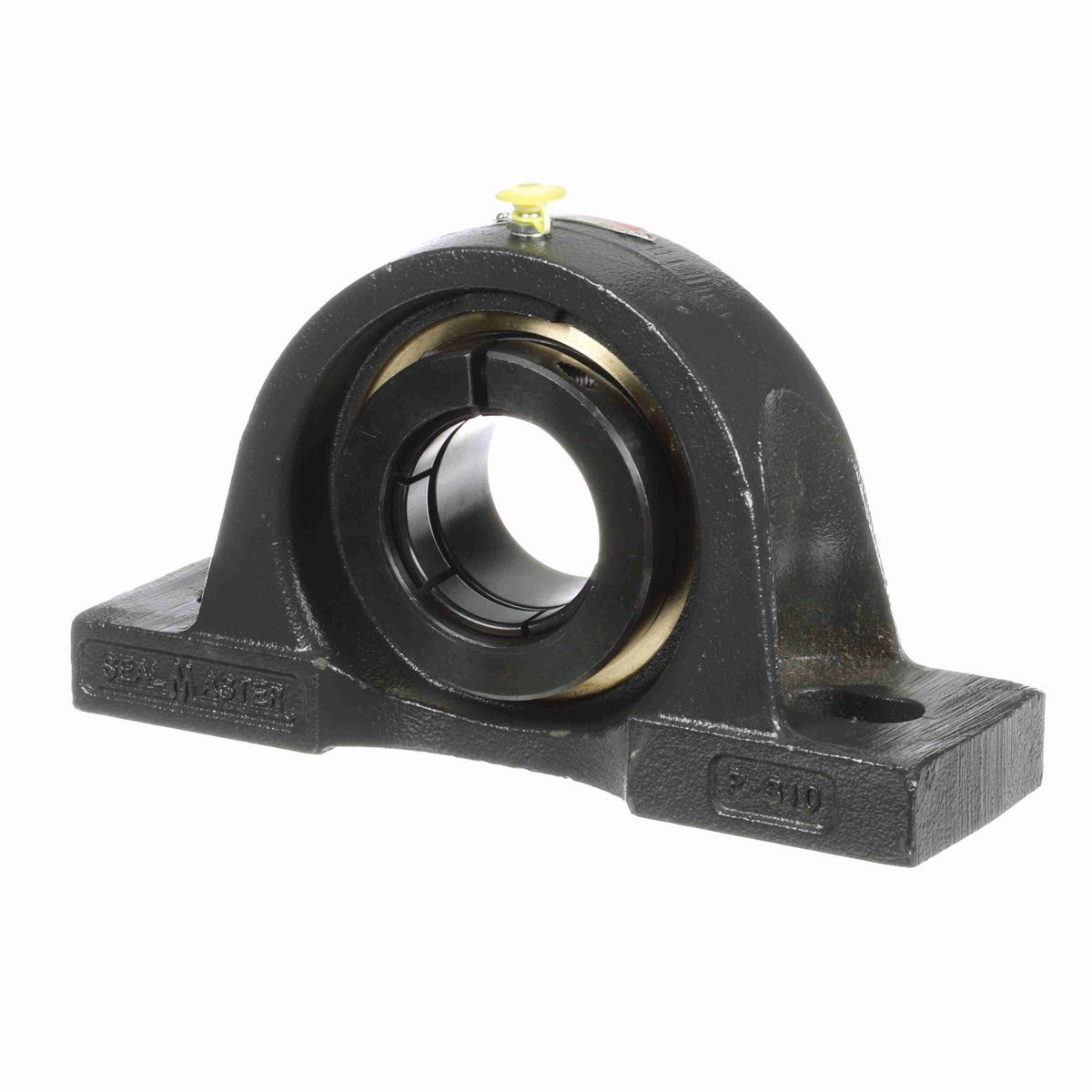

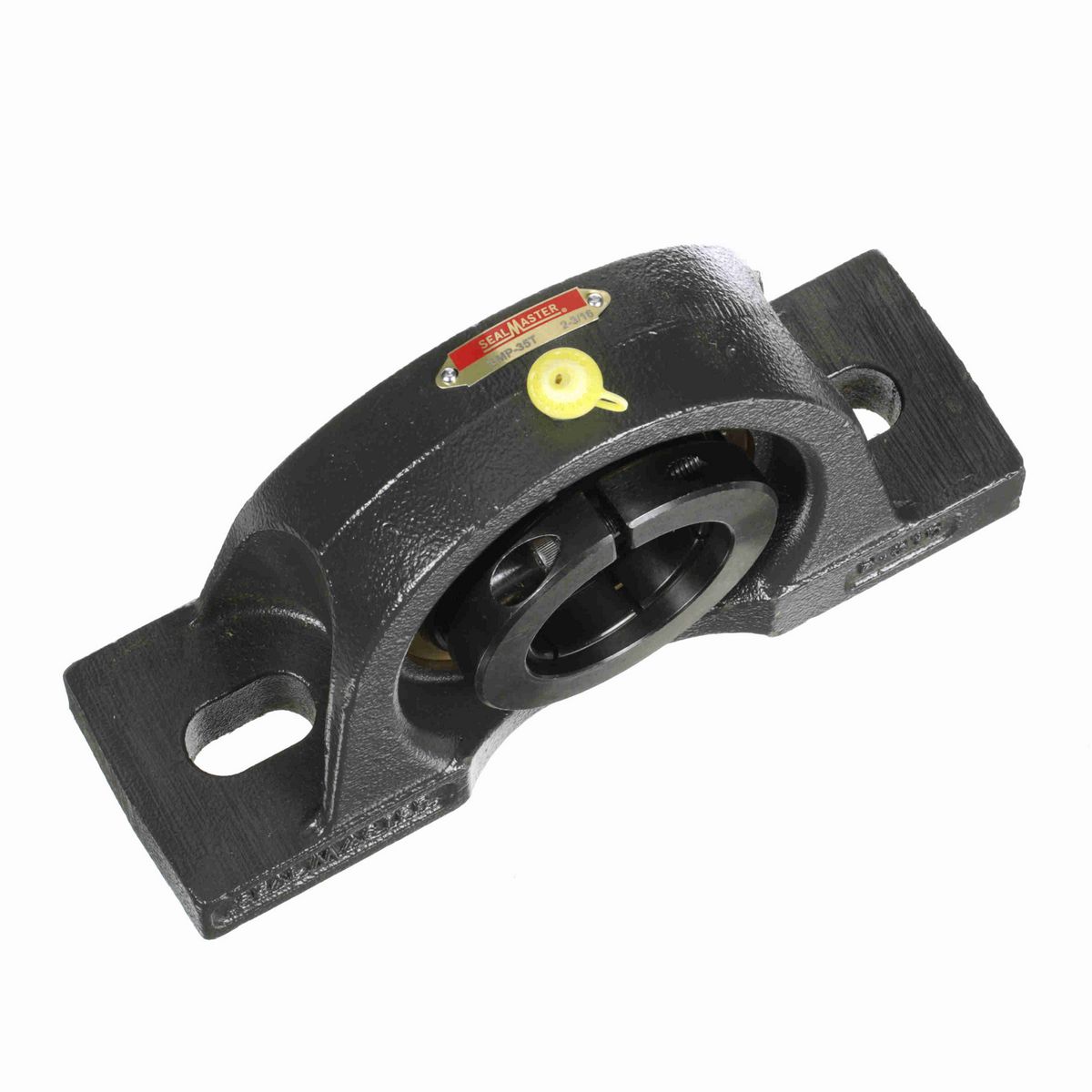

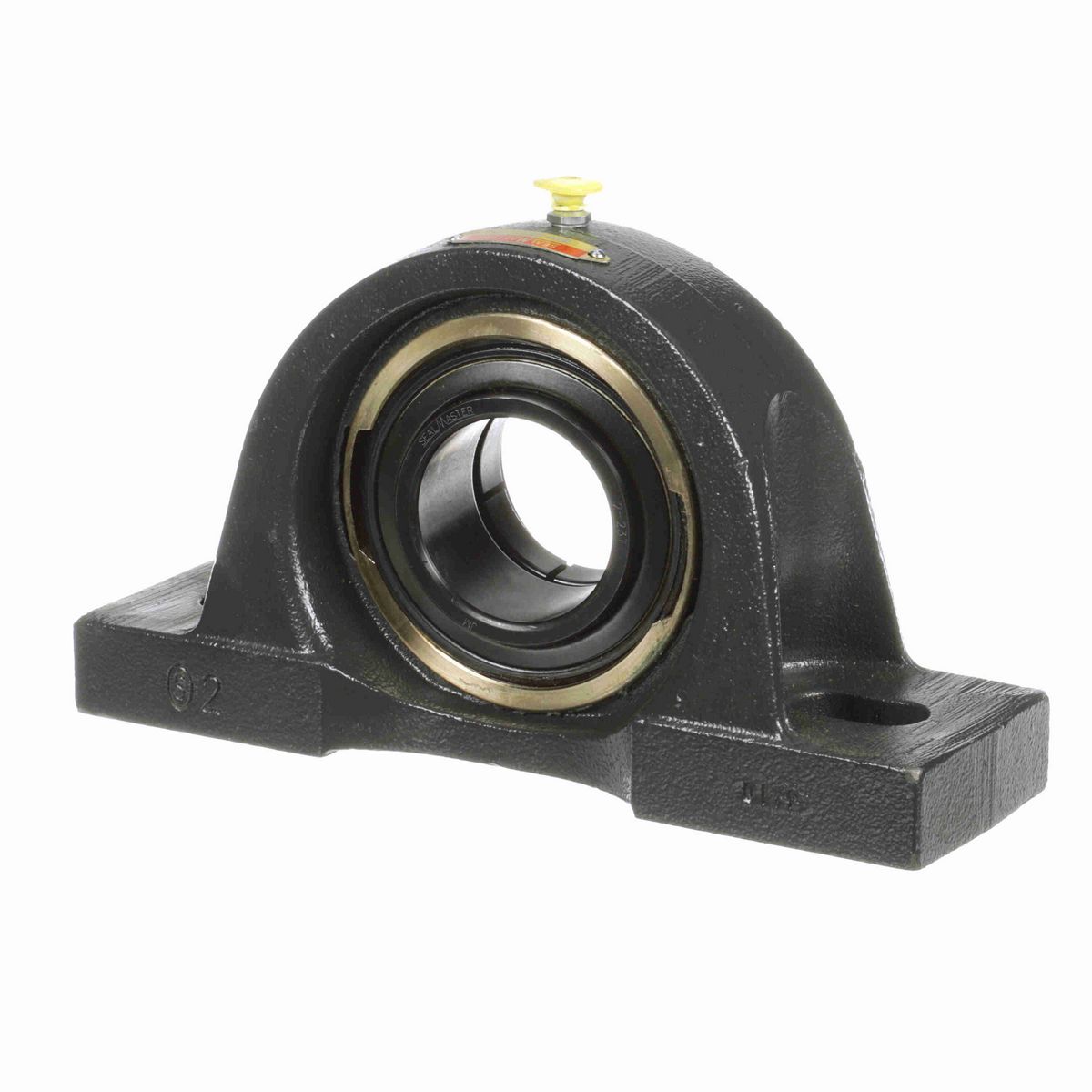

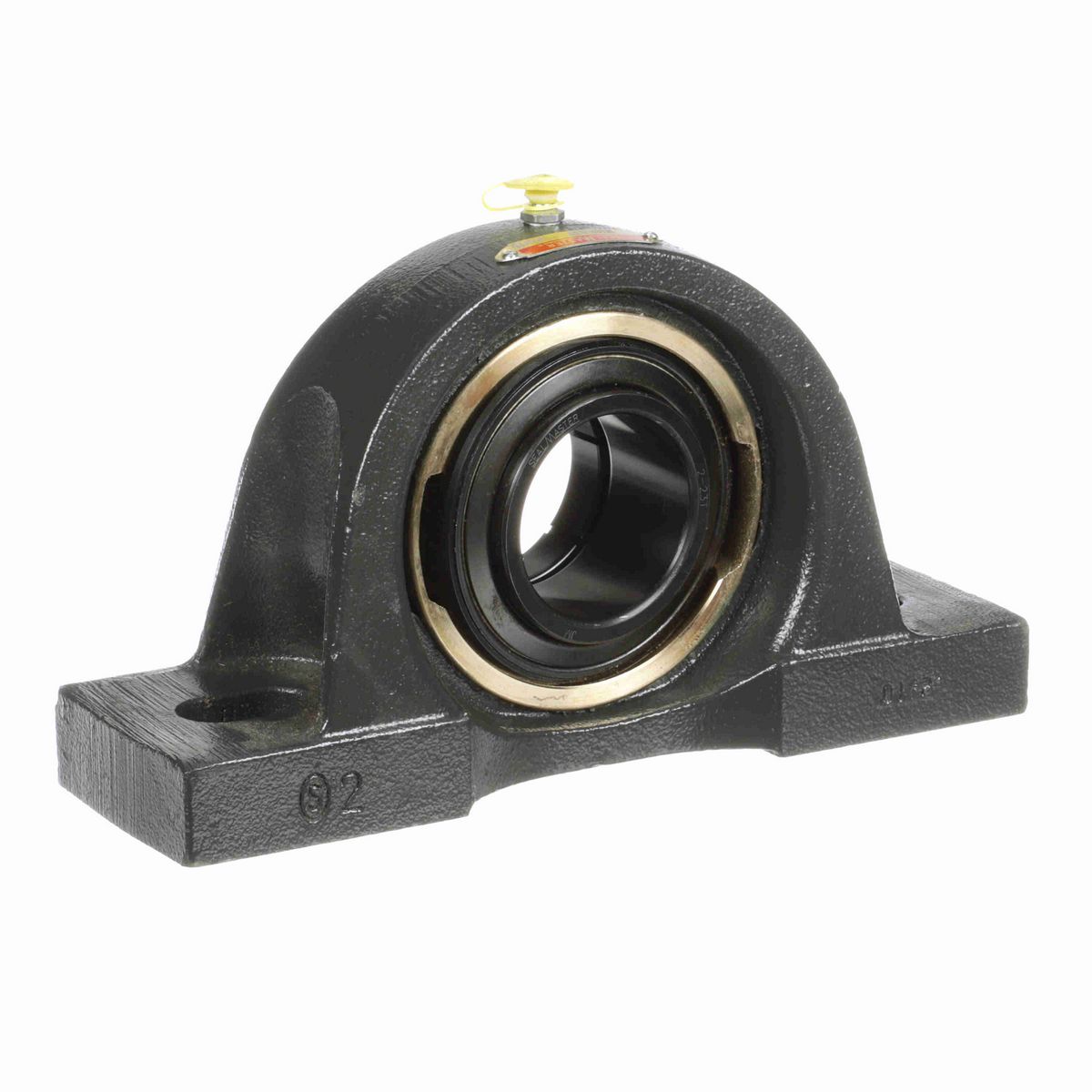

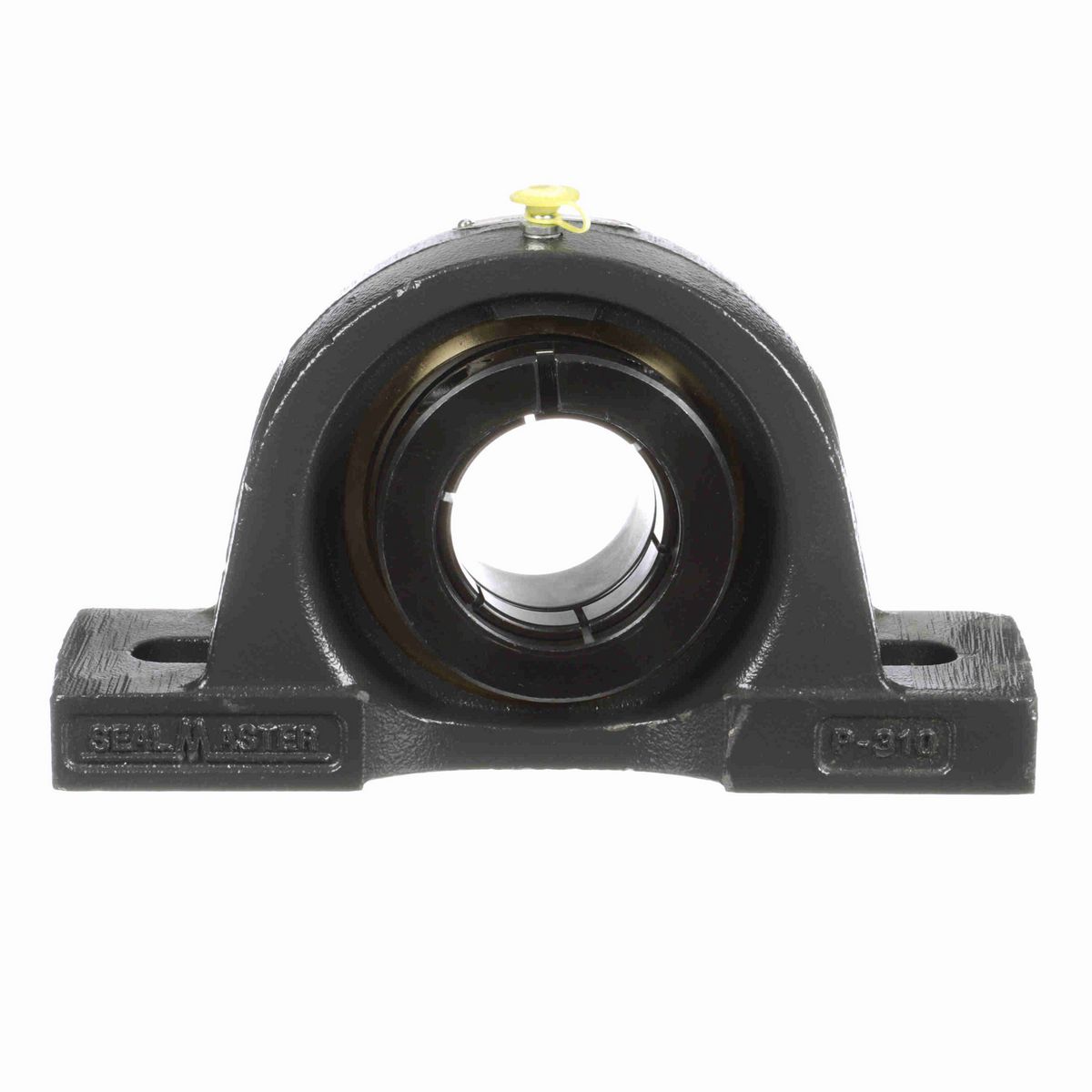

• Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	3.13 in
Overall Height (in)	5.63 in
Overall Length (in)	10.25 in
Overall Width (in)	3.13 in
Bolt Size (in)	3/4 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	1.06 in
Base to Center Height (in)	2.7500 in
Length Through Bore (in)	2.63 in
Bolt Spacing Min (in)	6.56 in
Centerline to Outermost Bearing Face (in)	1.63 in
Bolt Spacing Max (in)	7.94 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	4.06 in
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Fundamental Train	0.0068 cps
Housing Coating	Powder Coated
Fixed vs. Expansion	Expansion
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0437 cps
Maximum Speed (RPM)	4500 rpm
Dynamic Load Rating (lb)	9,752 lb
Radial Clearance	Standard
Housing Material	Cast Iron
Size Code	2-23
Vibration Frequency Inner Ring Defect	0.0987 cps
Max Operating Temperature (F)	220 °F
Base Length (in)	10.25 in
Insert	AR-2-23T
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.068 cps
Inner Ring Outside Diameter (in)	2.719 in
End Cap Available	No
Bearing Type	Medium Duty
Static Load Rating (lb)	6,601 lb

General Specifications

UPC	662461031995
Weight	16.44 LB
Packaged Length	11.13 IN
Packaged Width	6.31 IN
Packaged Height	3.19 IN
HTC	8483.20.8040
Country of Origin	United States of America
