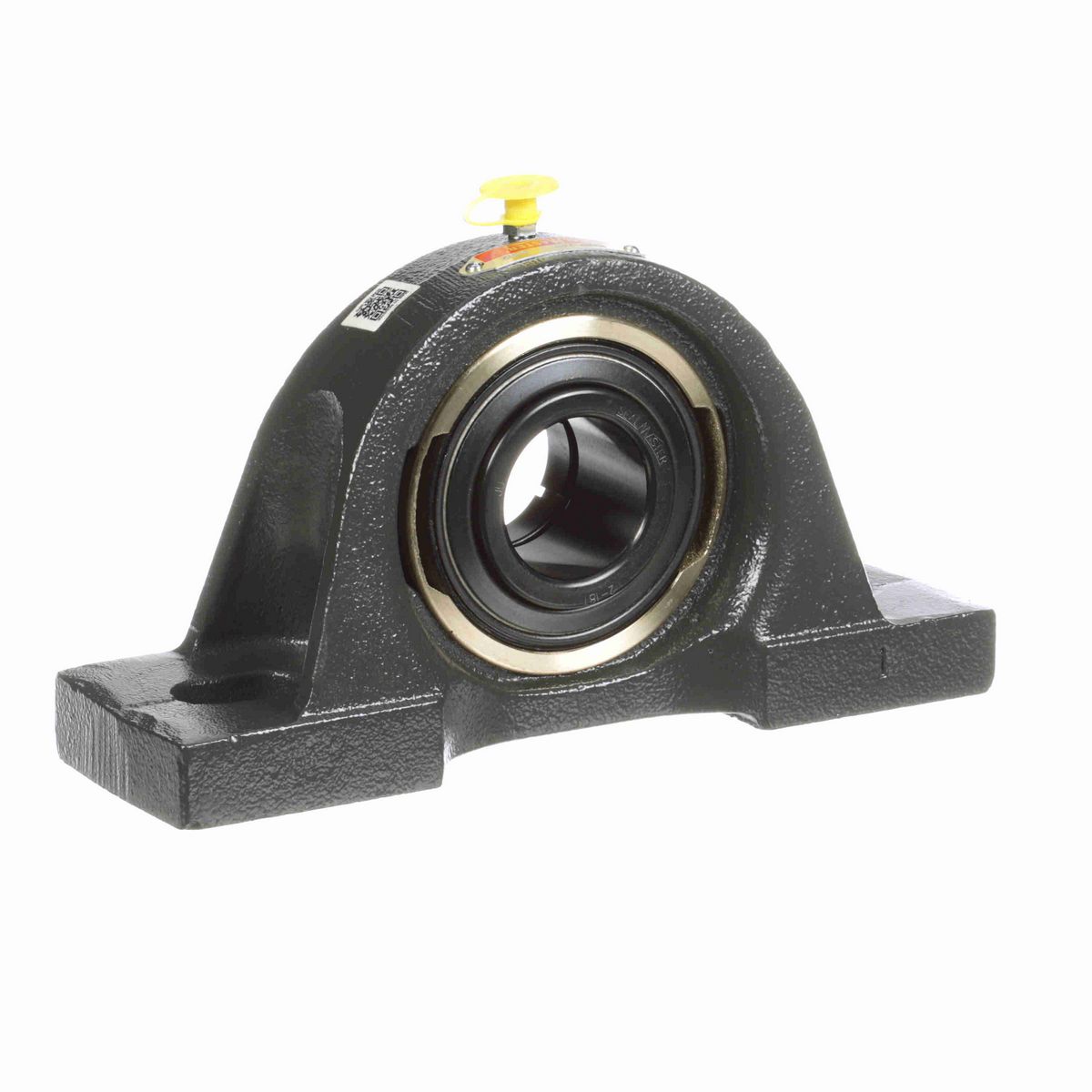

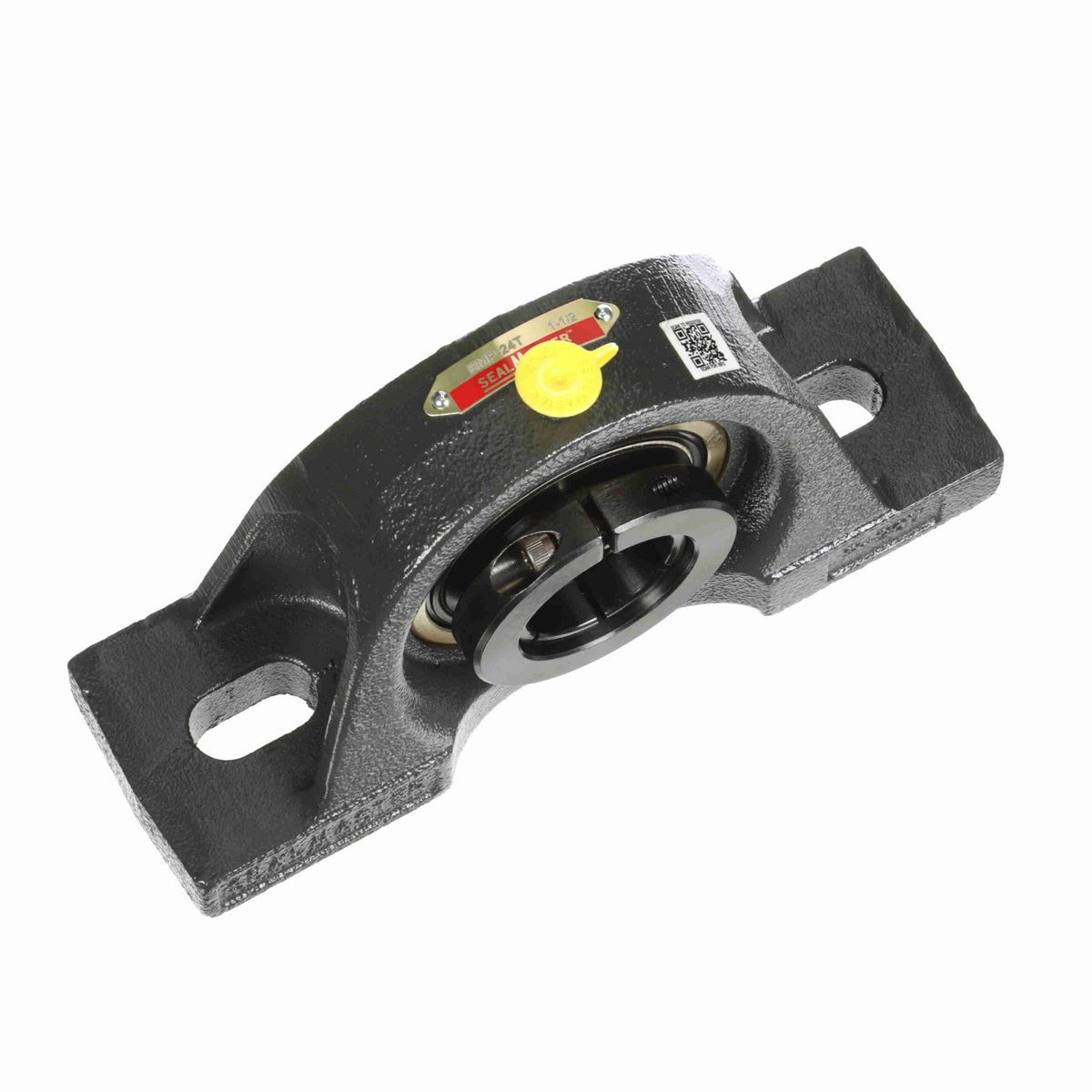

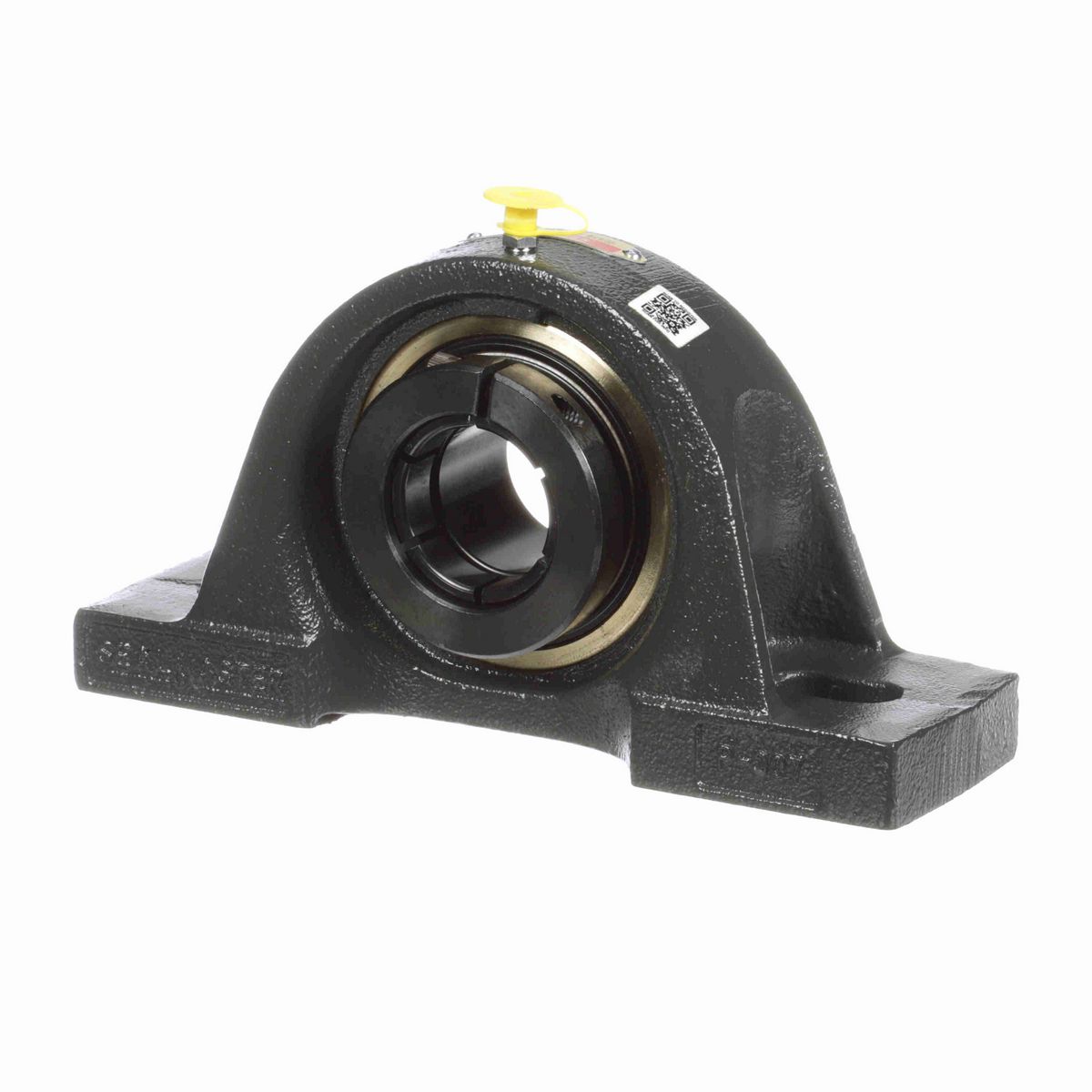

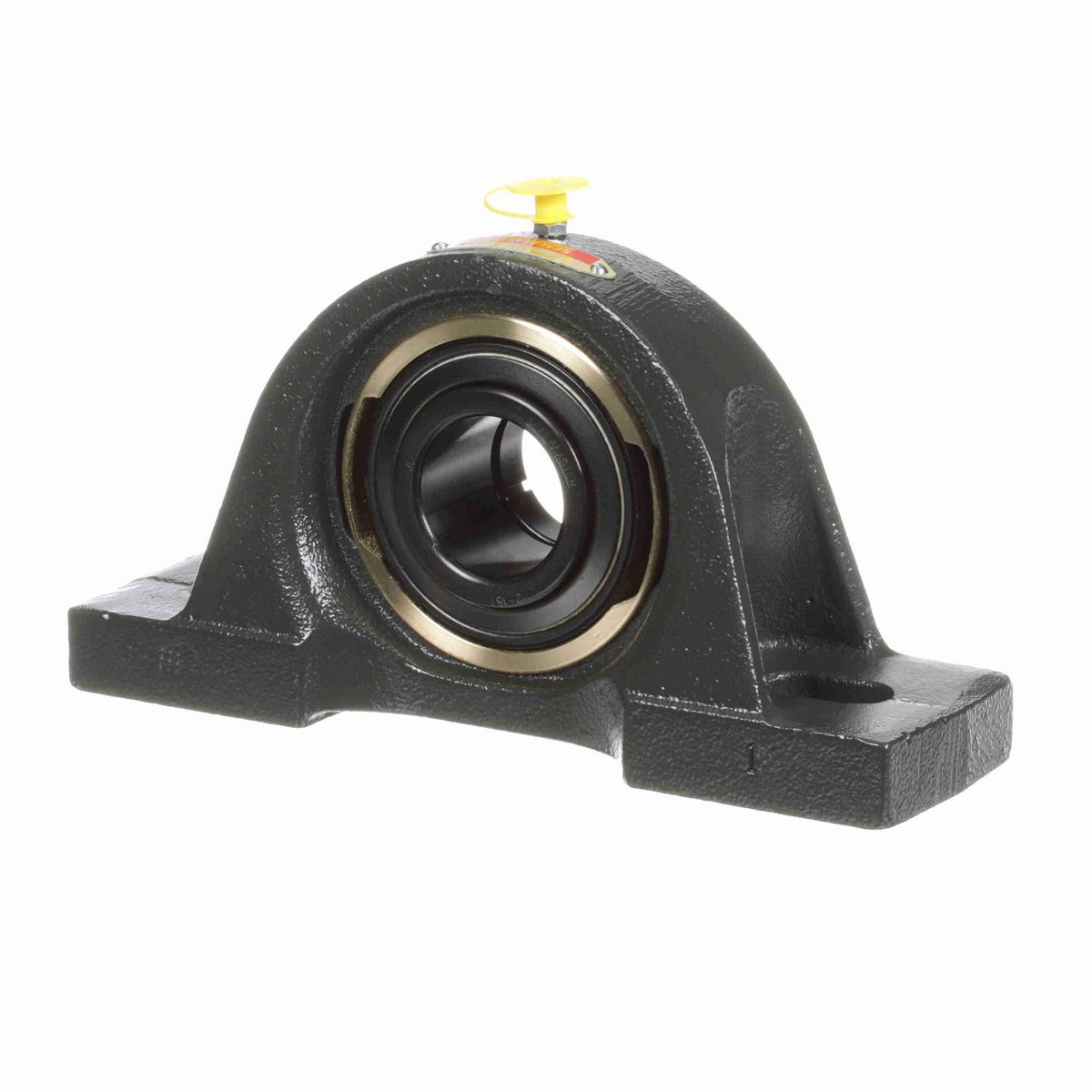

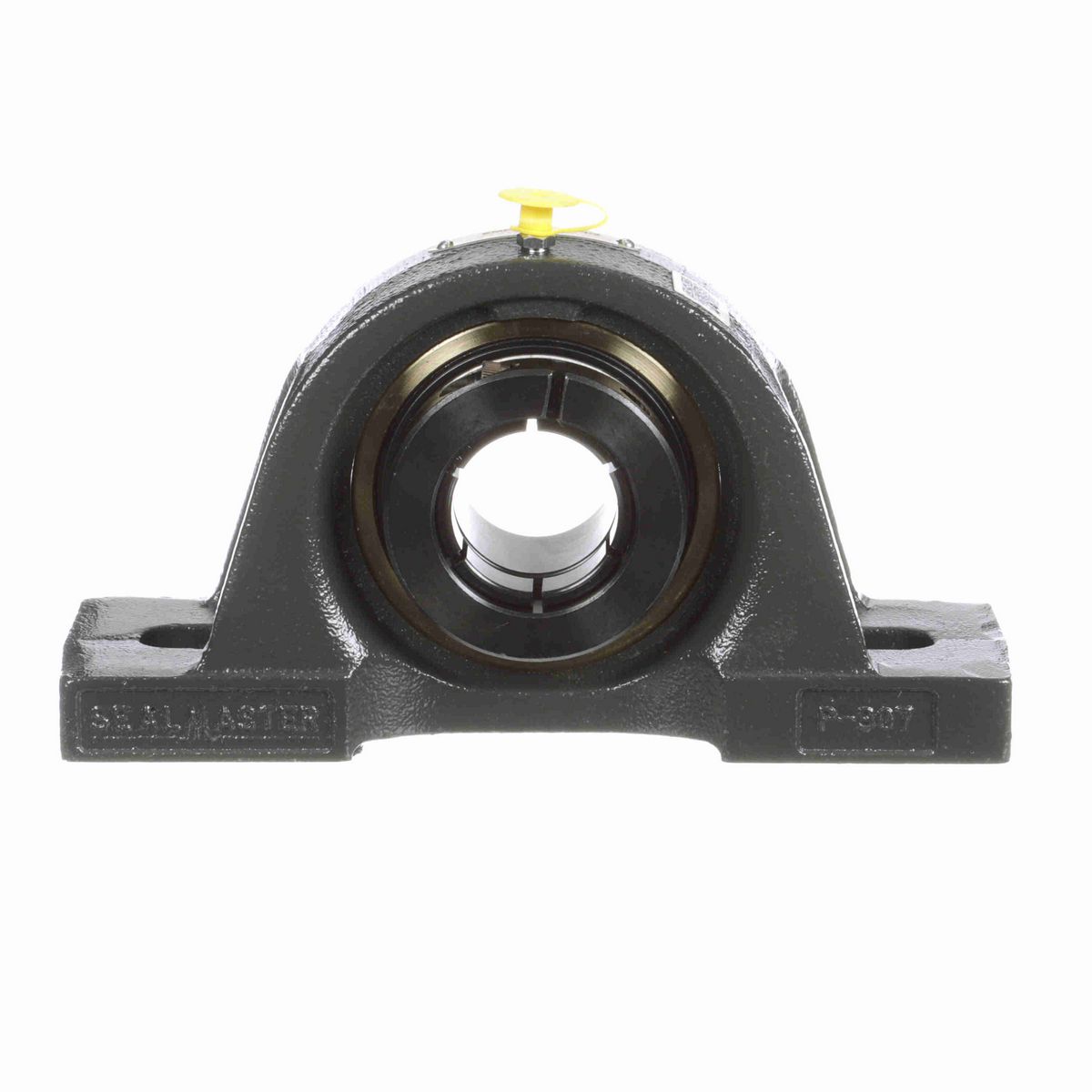

• Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2.63 in
Overall Height (in)	4.56 in
Overall Length (in)	8.75 in
Overall Width (in)	2.63 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.81 in
Base to Center Height (in)	2.3125 in
Length Through Bore (in)	2 in
Bolt Spacing Max (in)	6.75 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing Min (in)	5.5 in
Bolt Spacing (in)	6.13 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.75 in
Ability to Relubricate	Yes
Static Load Rating (lb)	4,467 lb
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	7,340 lb
Vibration Frequency Roller Spin	0.0376 cps
Bearing Type	Medium Duty
Maximum Speed (RPM)	5850 rpm
Shaft Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0066 cps
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	2.07 in
Base Length (in)	8.75 in
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Inner Ring Defect	0.0909 cps
Lubricant	Lithium Complex NLGI 2 Grease
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0591 cps
Max Operating Temperature (F)	220 °F
Size Code	2-19
Grease Fitting Thread Size	1/4-28
Insert	AR-2-18T
Radial Clearance	Standard
Fixed vs. Expansion	Expansion
Housing Coating	Powder Coated
End Cap Available	No

General Specifications

UPC	662461031964
Weight	9.30 LB
Packaged Length	9.25 IN
Packaged Width	5.12 IN
Packaged Height	3.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
