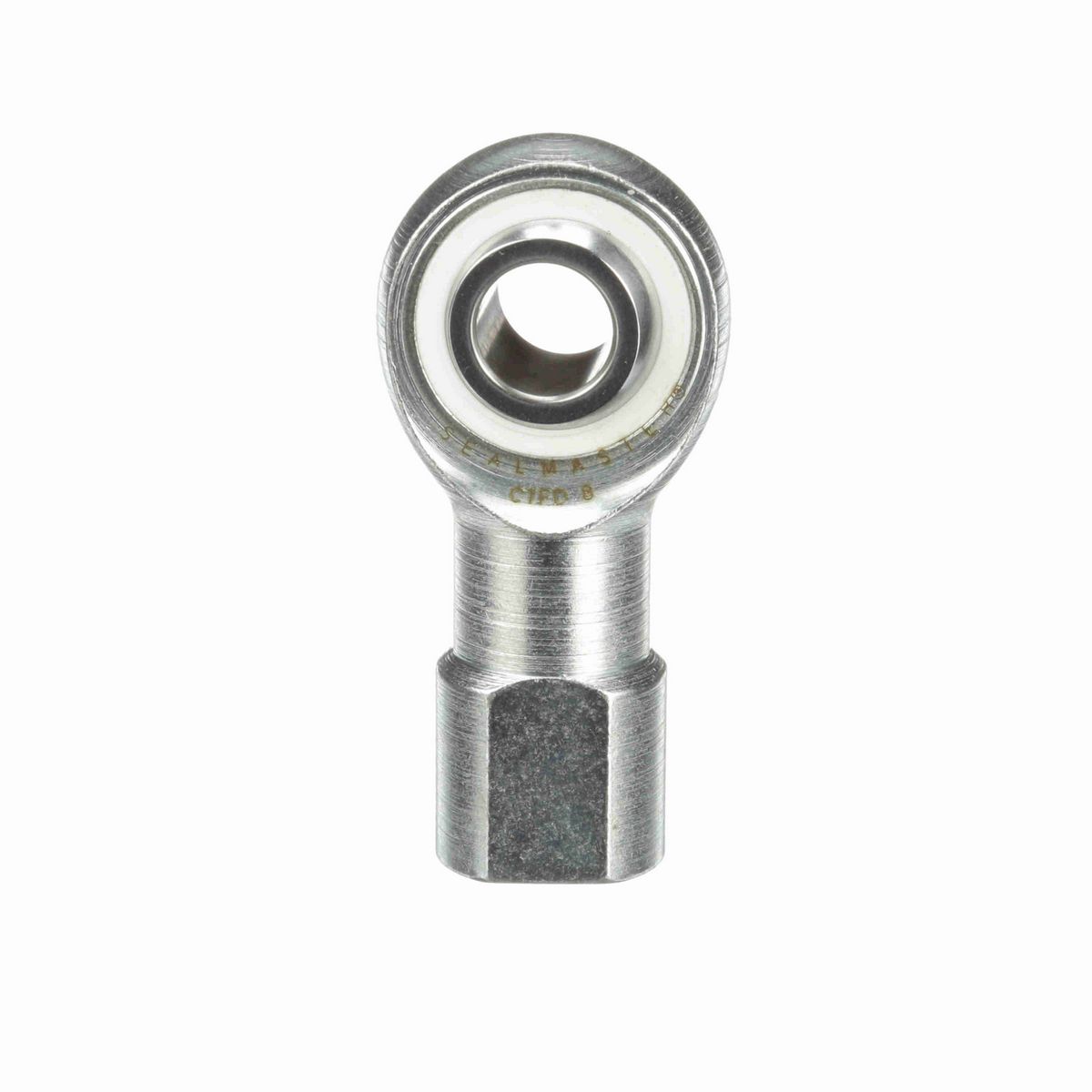

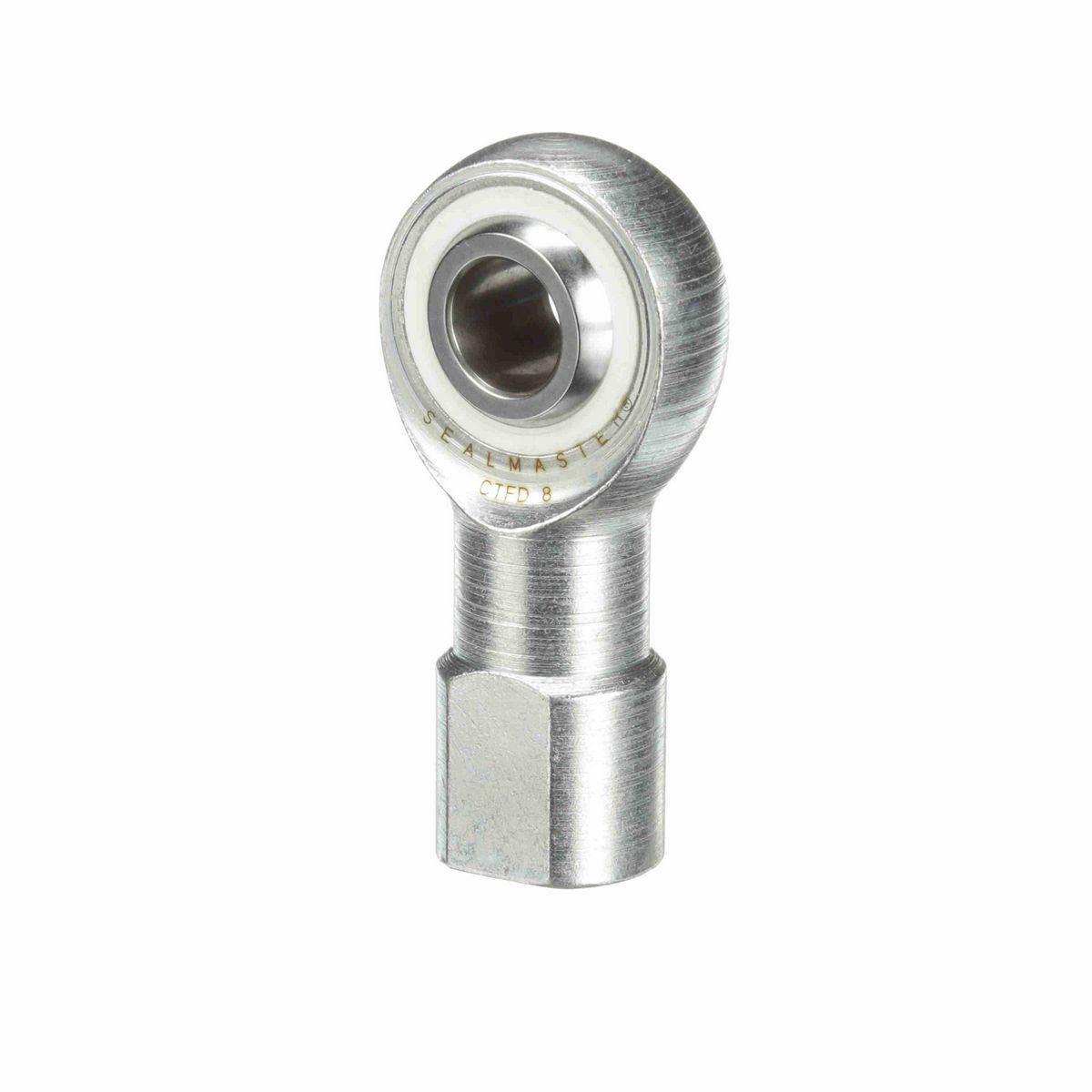

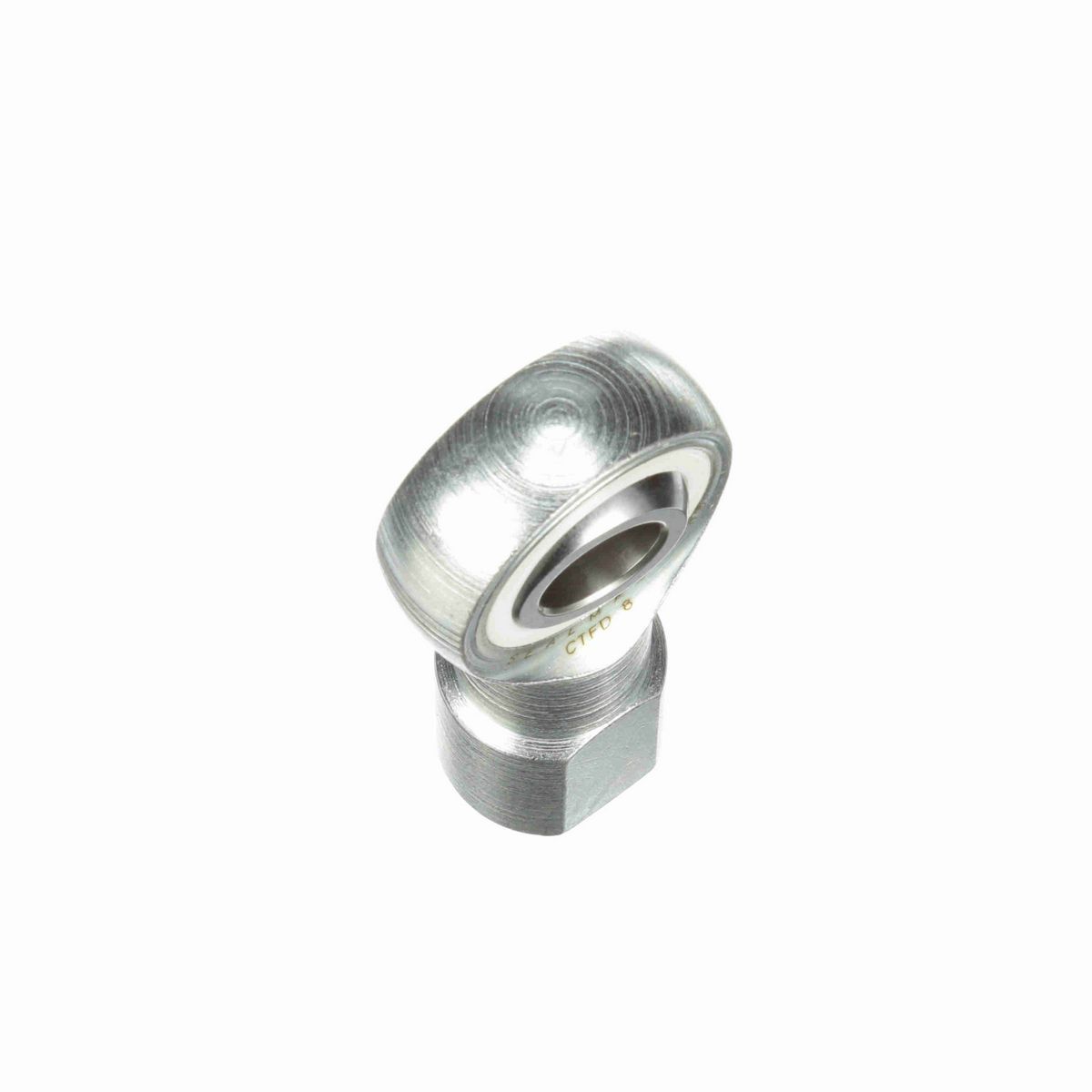

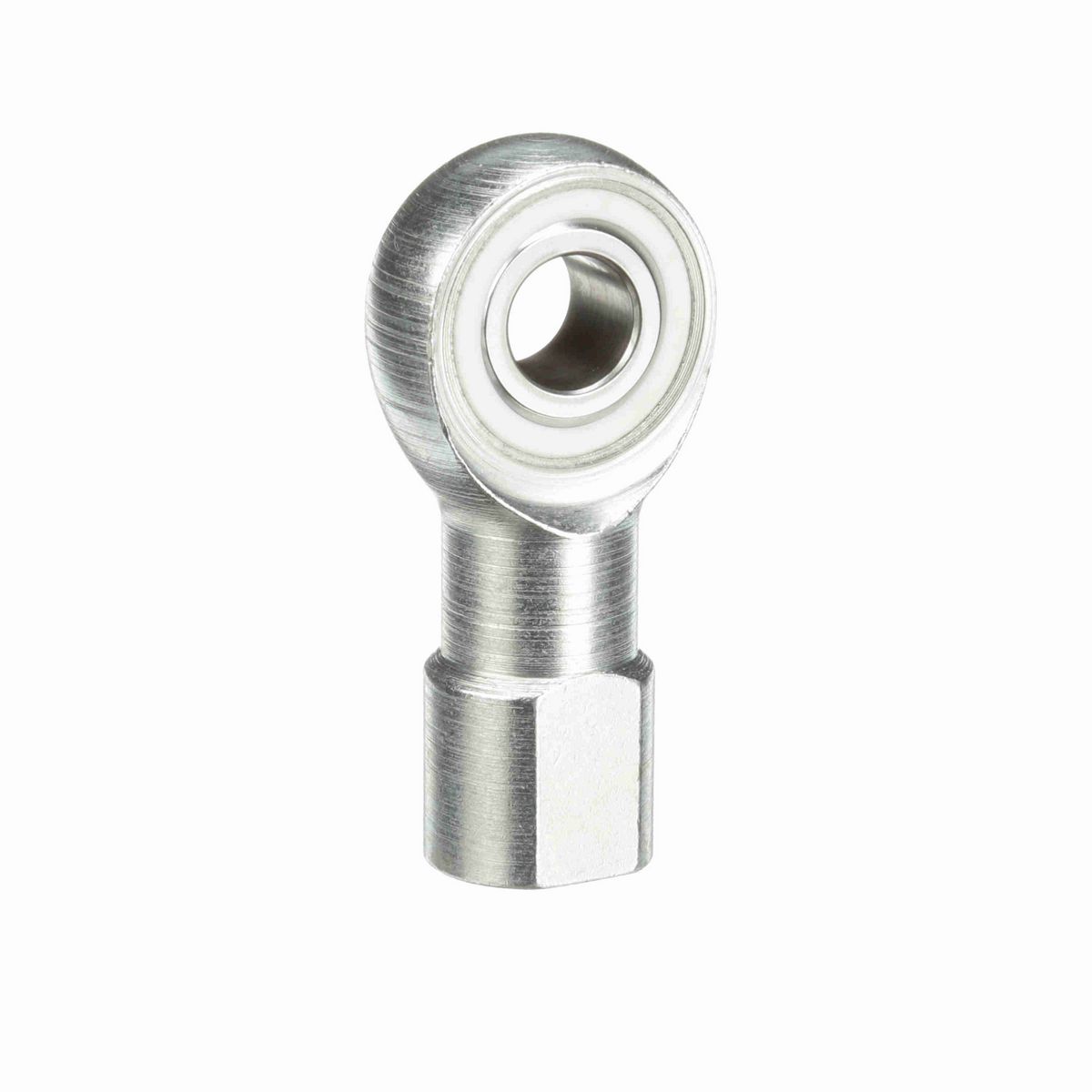

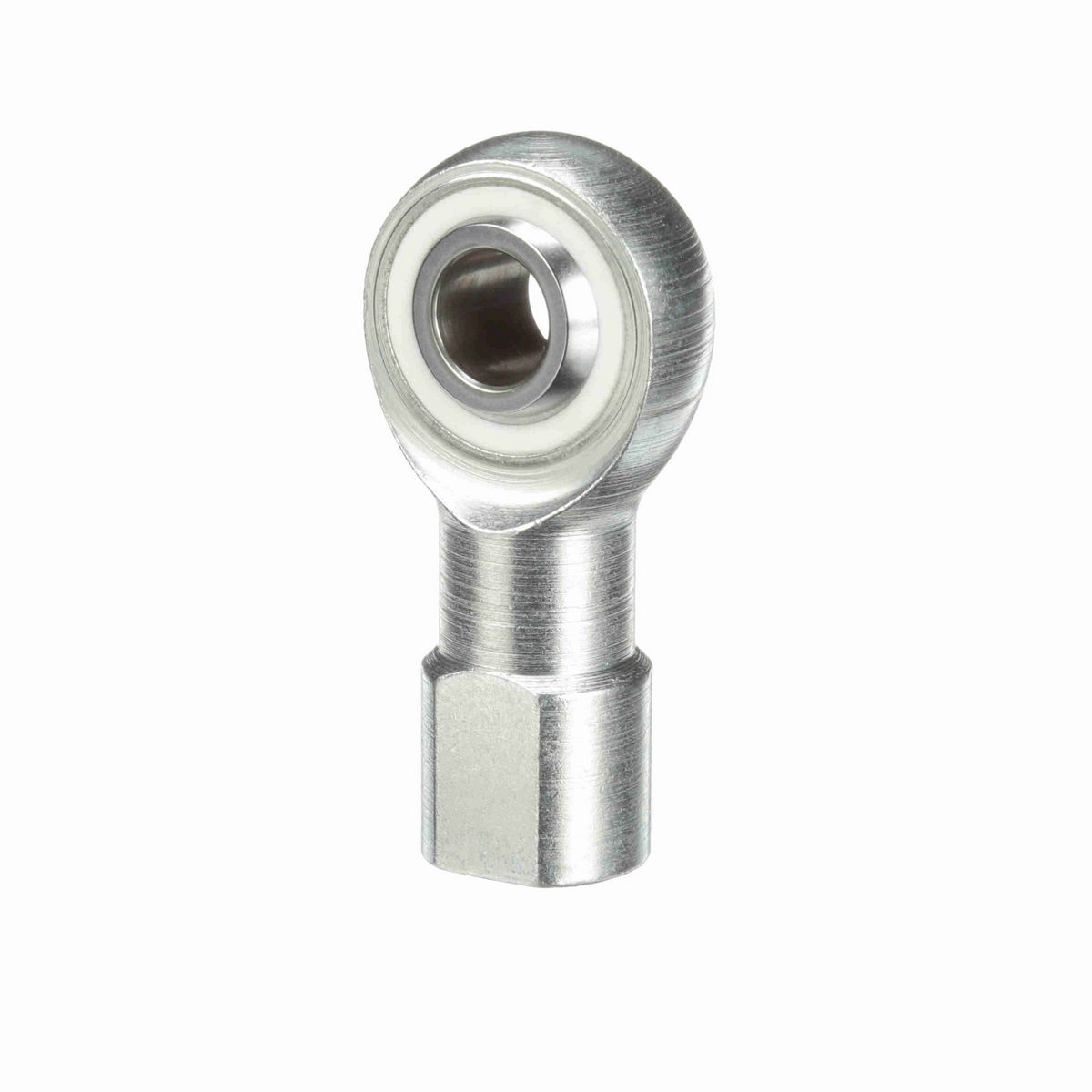

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• Delrin Race

Dimensions

Base Diameter (in)	0.875 in
Thread Size	#1/2-20
Ball Diameter (in)	0.937 in
Ball Flat Diameter (in)	0.698 in
Housing Width (in)	0.5 in
Thread Length (in)	1.156 in
Ball Width (in)	0.625 in
Head Diameter (in)	1.312 in
Length to Center of Ball (in)	2.13 in

Technical Specifications

Race Material	DELRIN
Zerk Fitting SW	N
Lubrication Type	Self Lubricating
Bearing Type	Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Housing Style	Female Rod End
Thread Type	UNF
Product Type	CTFD
Series	Commercial
Misalignment Angle - a Deg. +/-	6
Axial Load	342
Construction	Three-Piece Rod End
Liner	DELRIN* Liner
Across Wrench Flats	0.75
Configuration	Female
Product Selection Available SW	Y
Thread	RH
Lubrication	No Zerk Fitting
Type	Female Rod End
Max Static Radial Load	3,420
Bore Size (in)	0.5000 in
Class	Commercial
Lubrication Method	Self Lubricating
Maximum Ambient Temperature (F)	150 °F
Ability to Relubricate	Self

General Specifications

UPC	662288725992
Weight	0.29 LB
Packaged Length	2.78 IN
Packaged Width	1.31 IN
Packaged Height	0.75 IN
HTC	8483.30.8055
Country of Origin	Mexico
