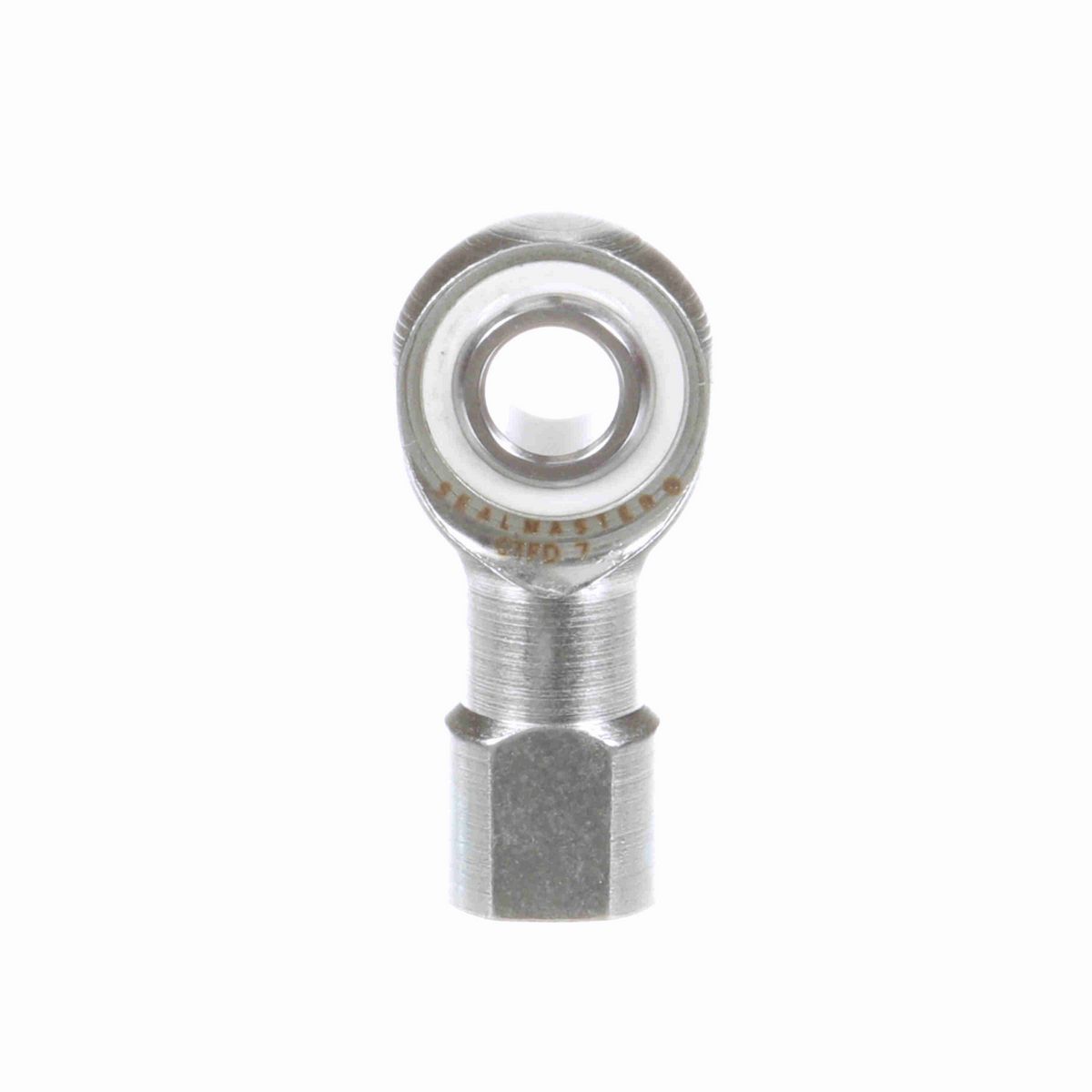

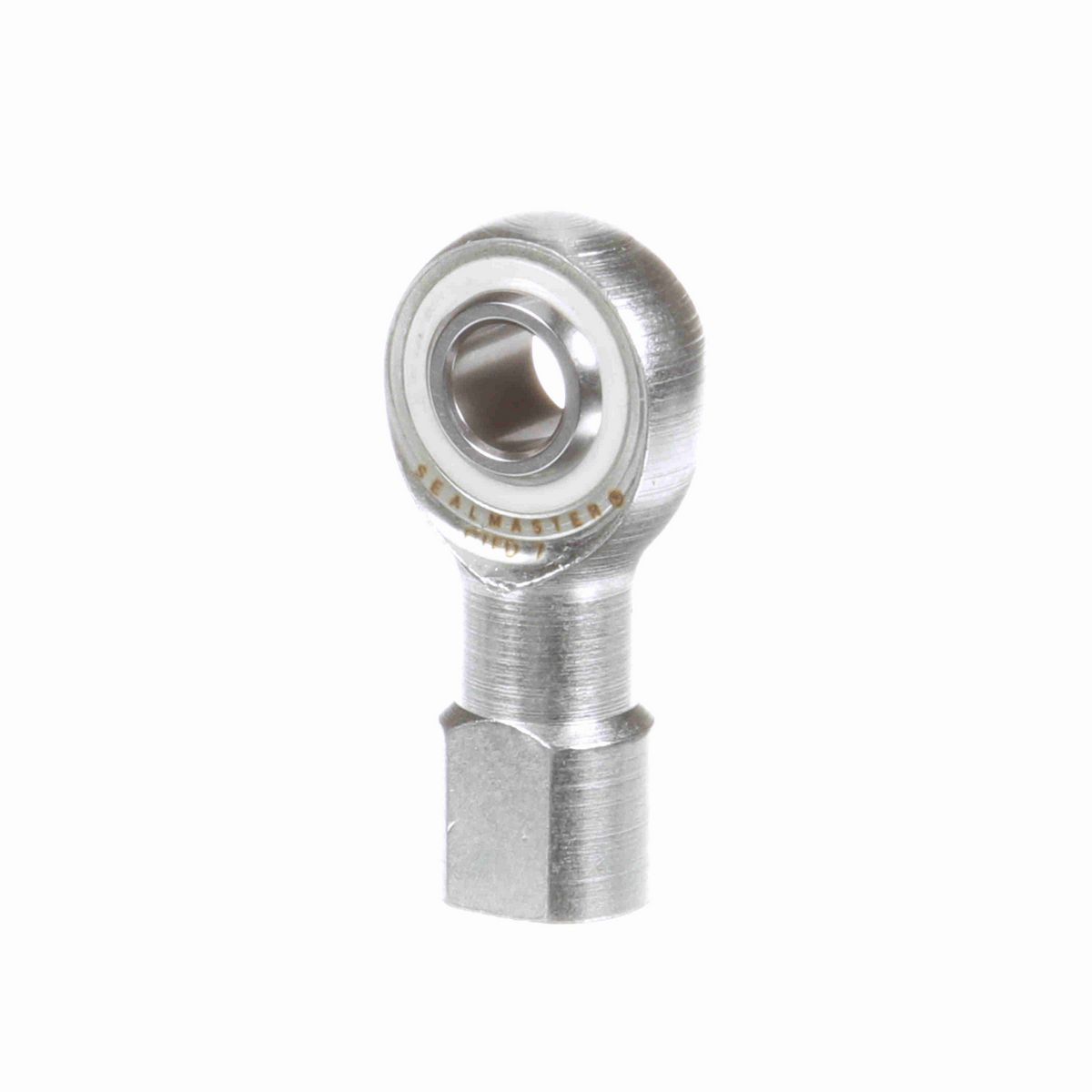

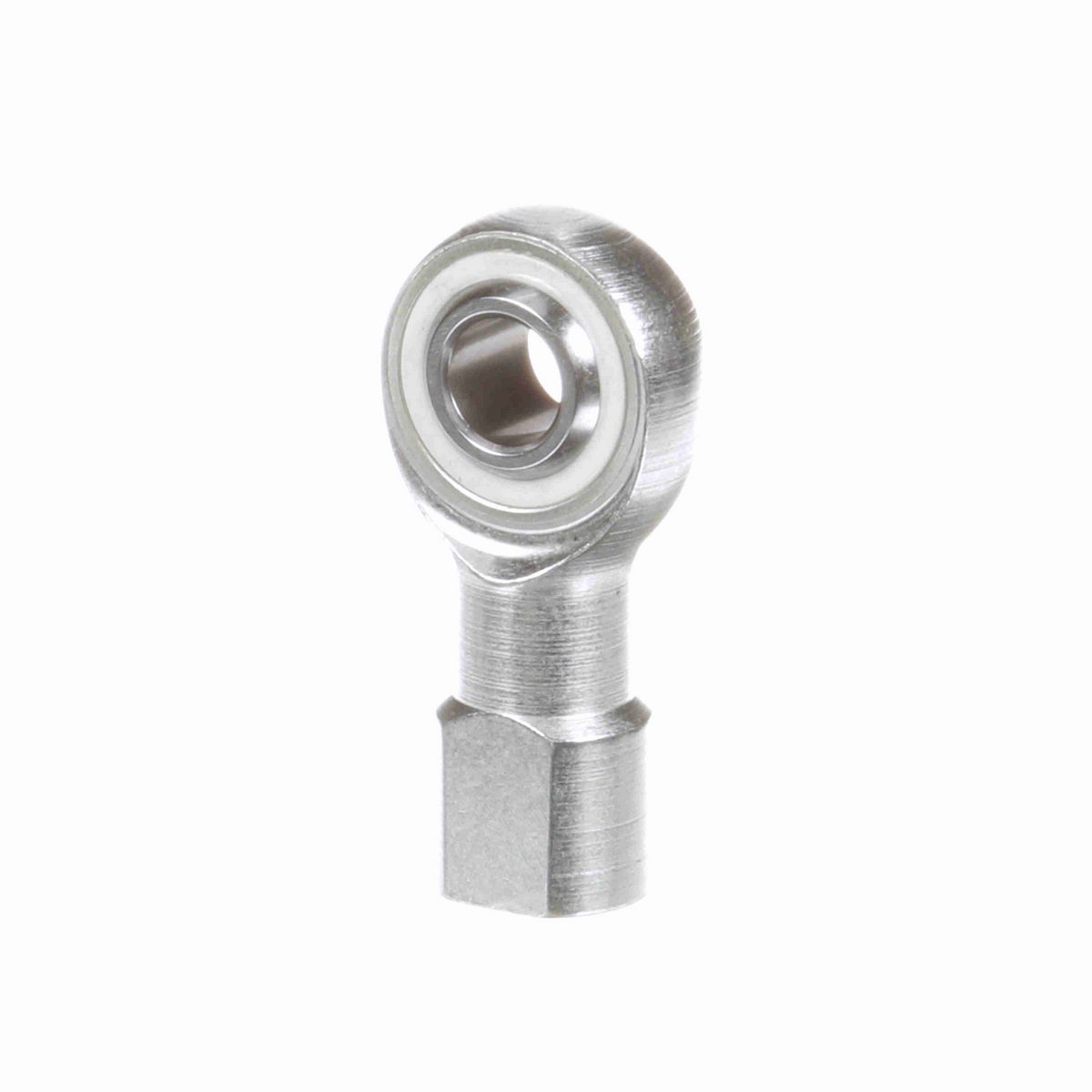

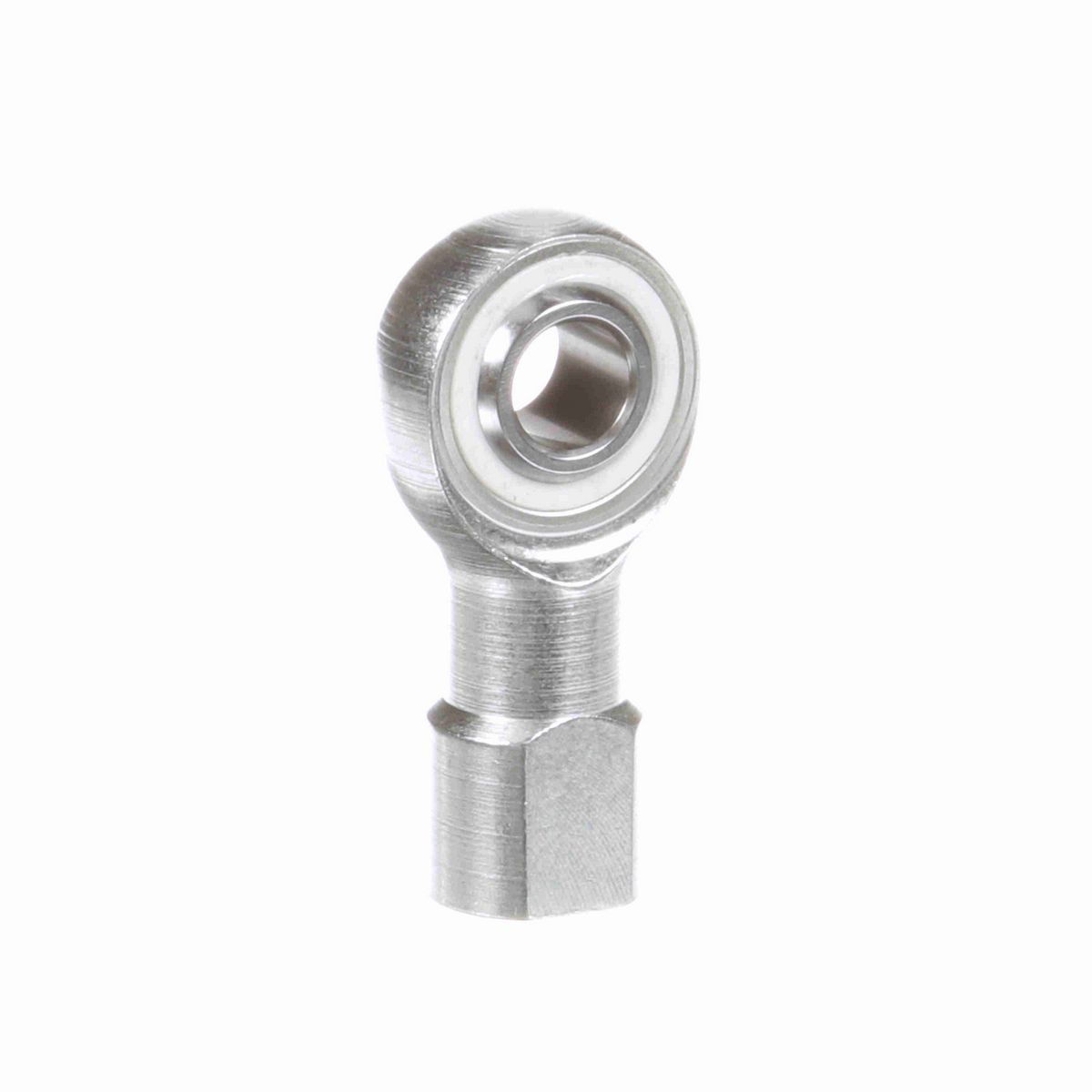

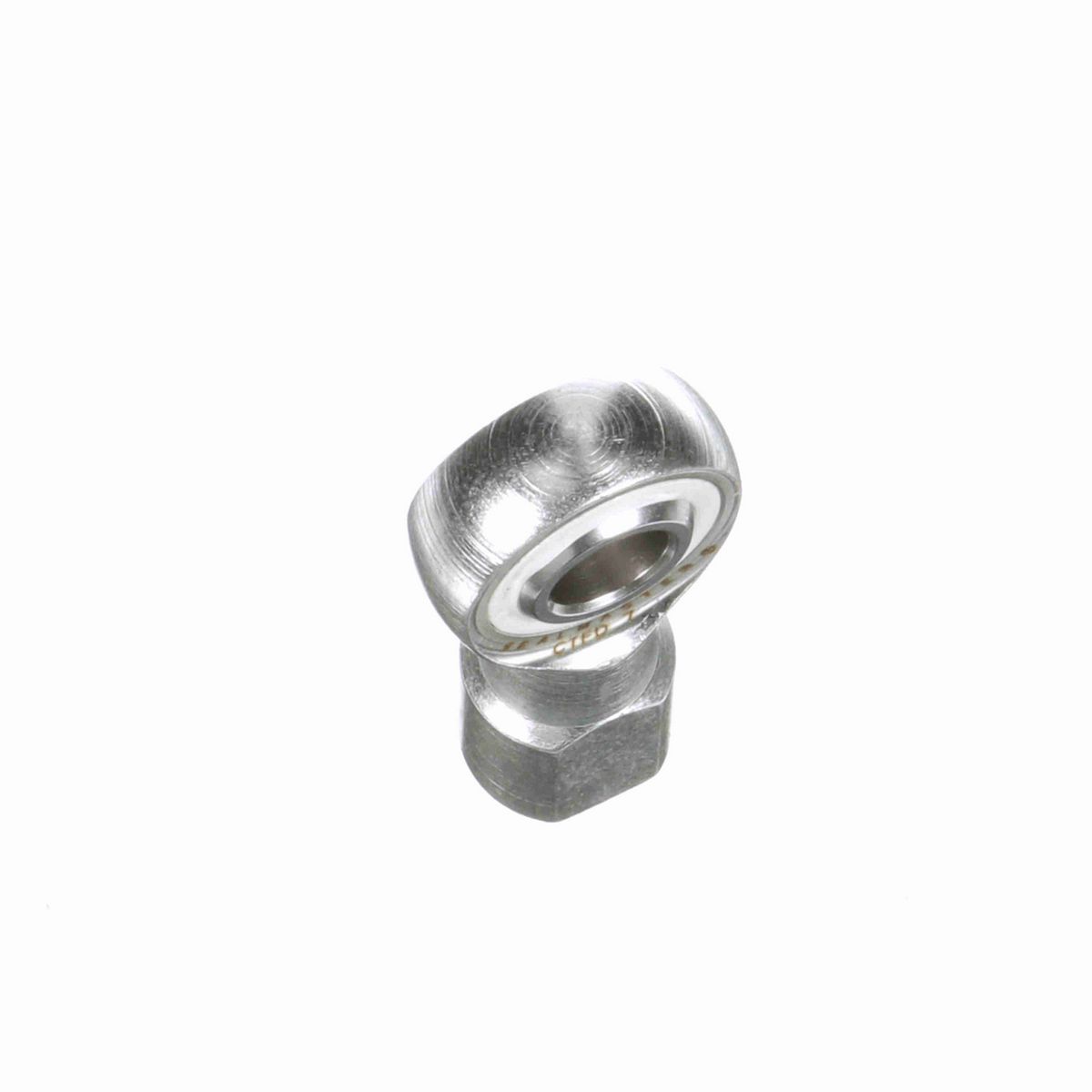

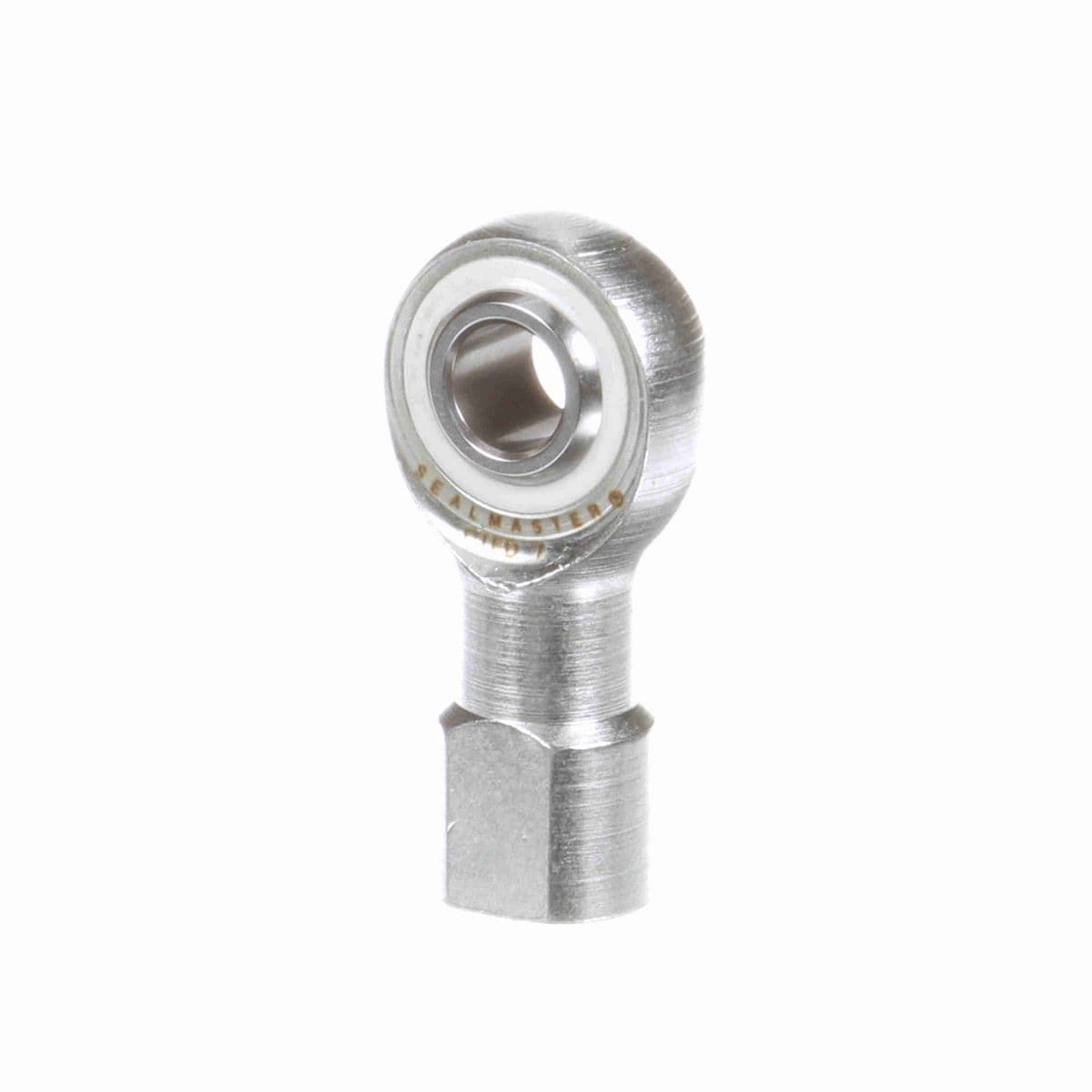

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• Delrin Race

Dimensions

Ball Flat Diameter (in)	0.586 in
Ball Width (in)	0.562 in
Thread Length (in)	1.031 in
Ball Diameter (in)	0.812 in
Base Diameter (in)	0.75 in
Housing Width (in)	0.437 in
Thread Size	#7/16-20
Head Diameter (in)	1.125 in
Length to Center of Ball (in)	1.81 in

Technical Specifications

Lubrication Type	Self Lubricating
Zerk Fitting SW	N
Thread Type	UNF
Misalignment Angle - a Deg. +/-	7
Liner	DELRIN* Liner
Axial Load	260
Product Selection Available SW	Y
Housing Style	Female Rod End
Race Material	DELRIN
Construction	Three-Piece Rod End
Product Type	CTFD
Configuration	Female
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Bearing Type	Rod End
Across Wrench Flats	0.625
Series	Commercial
Outer Material	Carbon Steel - Corrosion Resistant Plating
Max Static Radial Load	2,600
Lubrication	No Zerk Fitting
Type	Female Rod End
Thread	RH
Class	Commercial
Bore Size (in)	0.4375 in
Lubrication Method	Self Lubricating
Maximum Ambient Temperature (F)	150 °F
Ability to Relubricate	Self

General Specifications

UPC	662288725985
Weight	0.17 LB
Packaged Length	2.38 IN
Packaged Width	1.13 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
