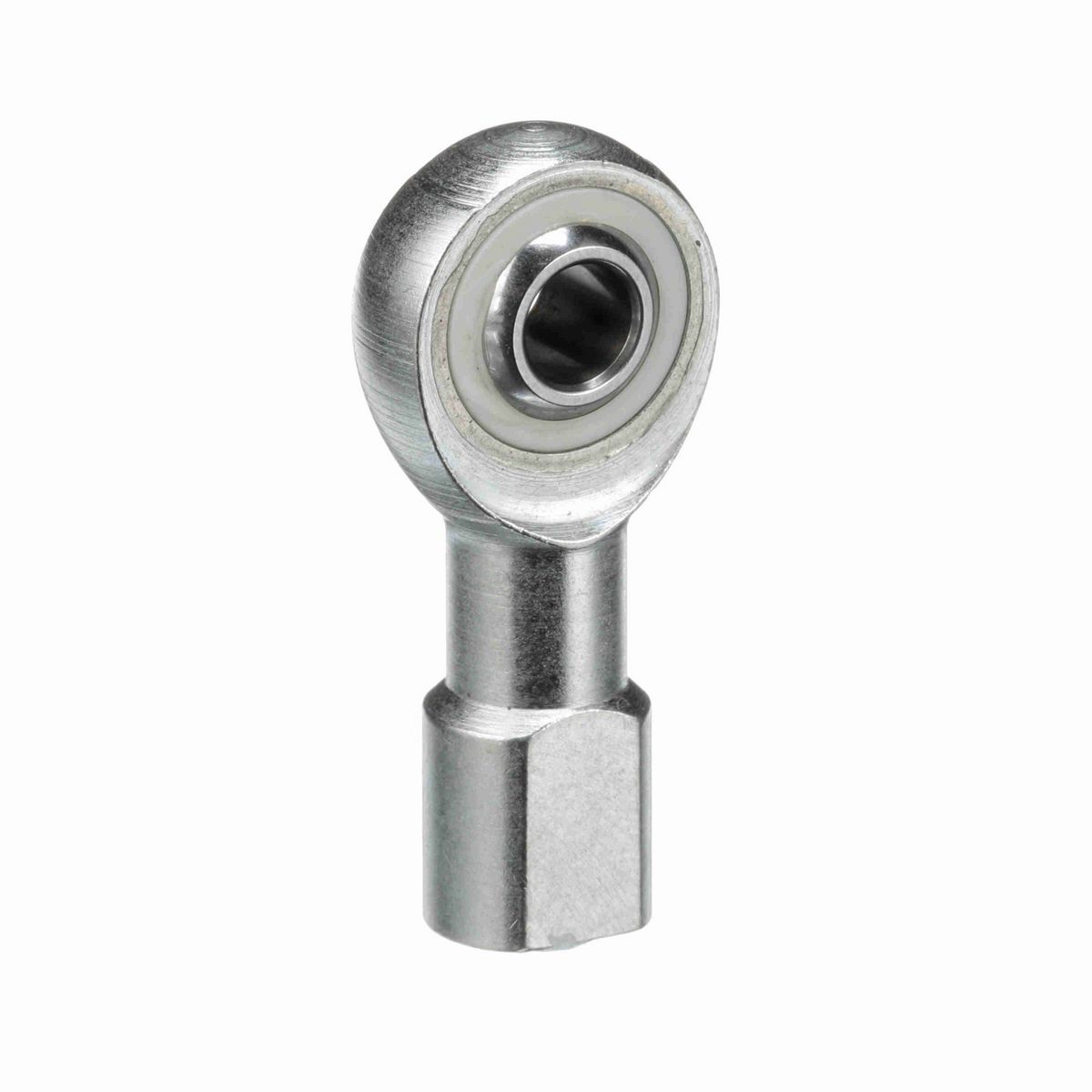

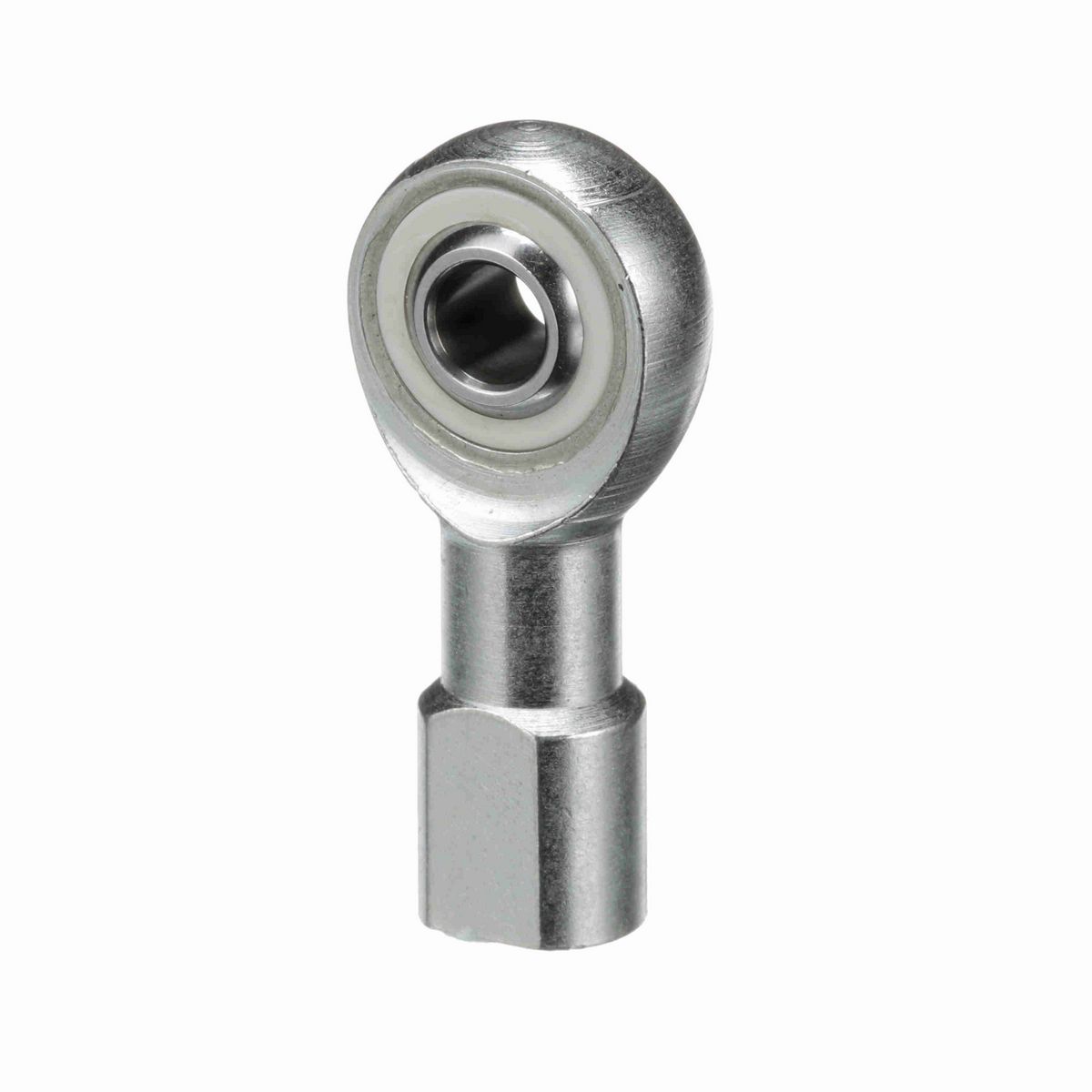

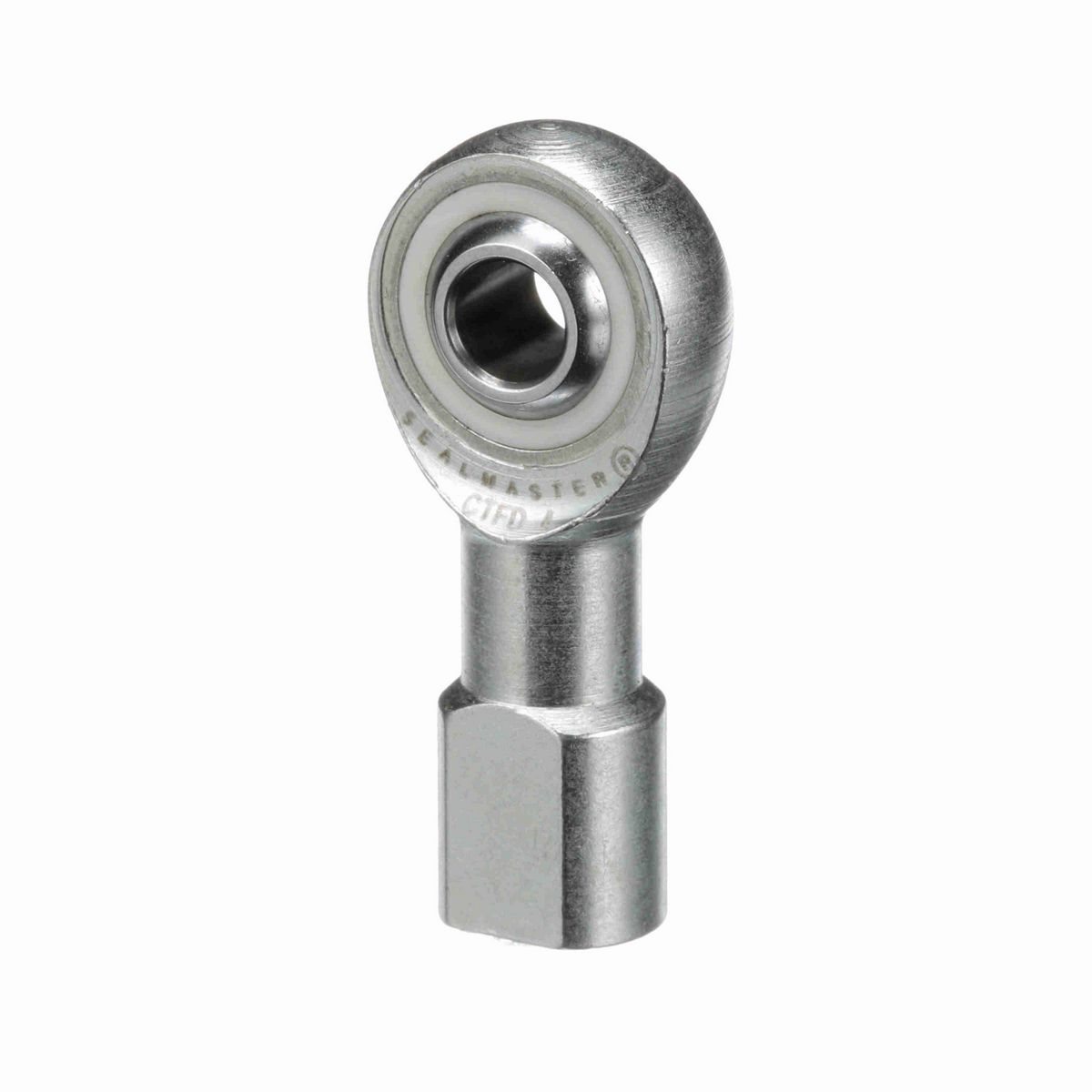

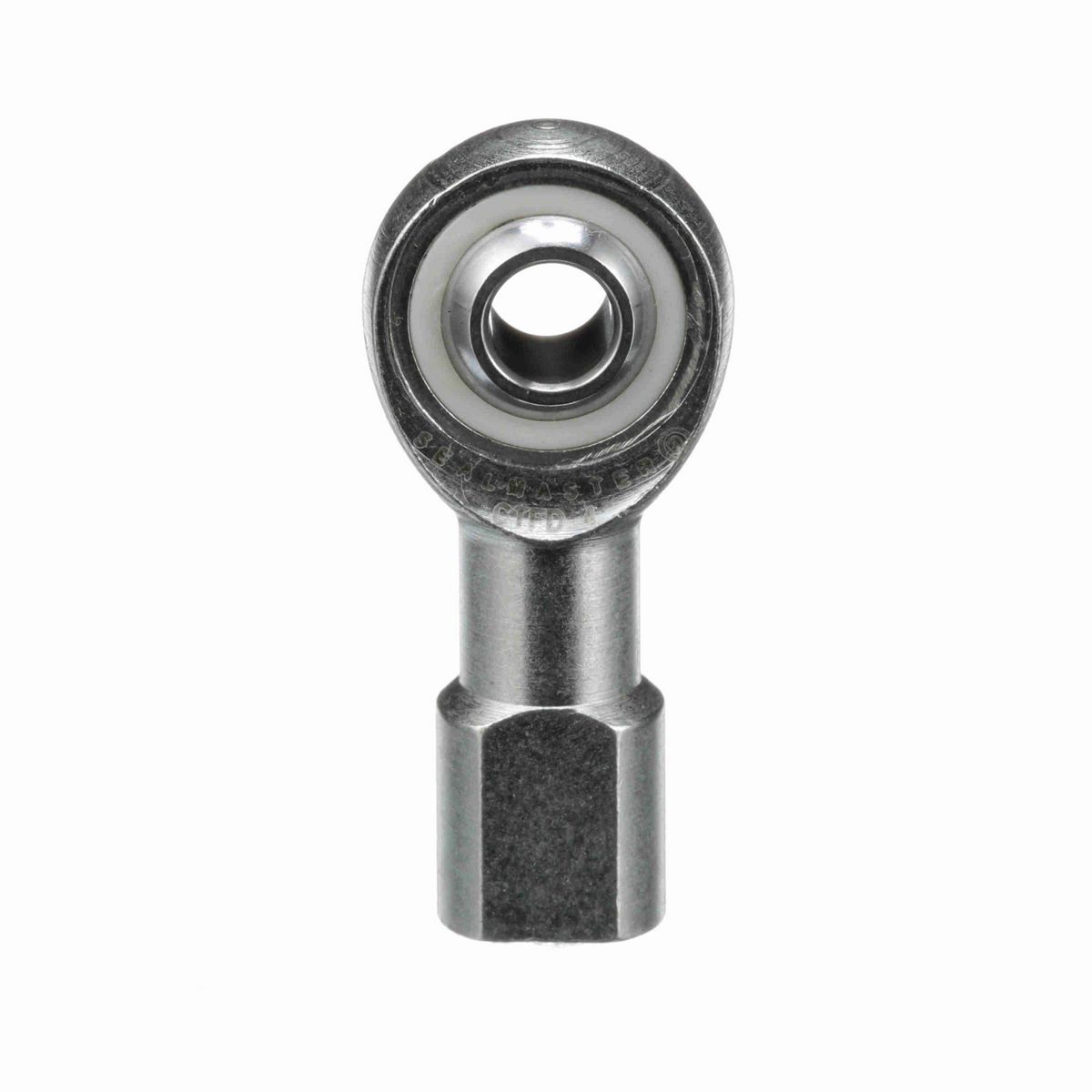

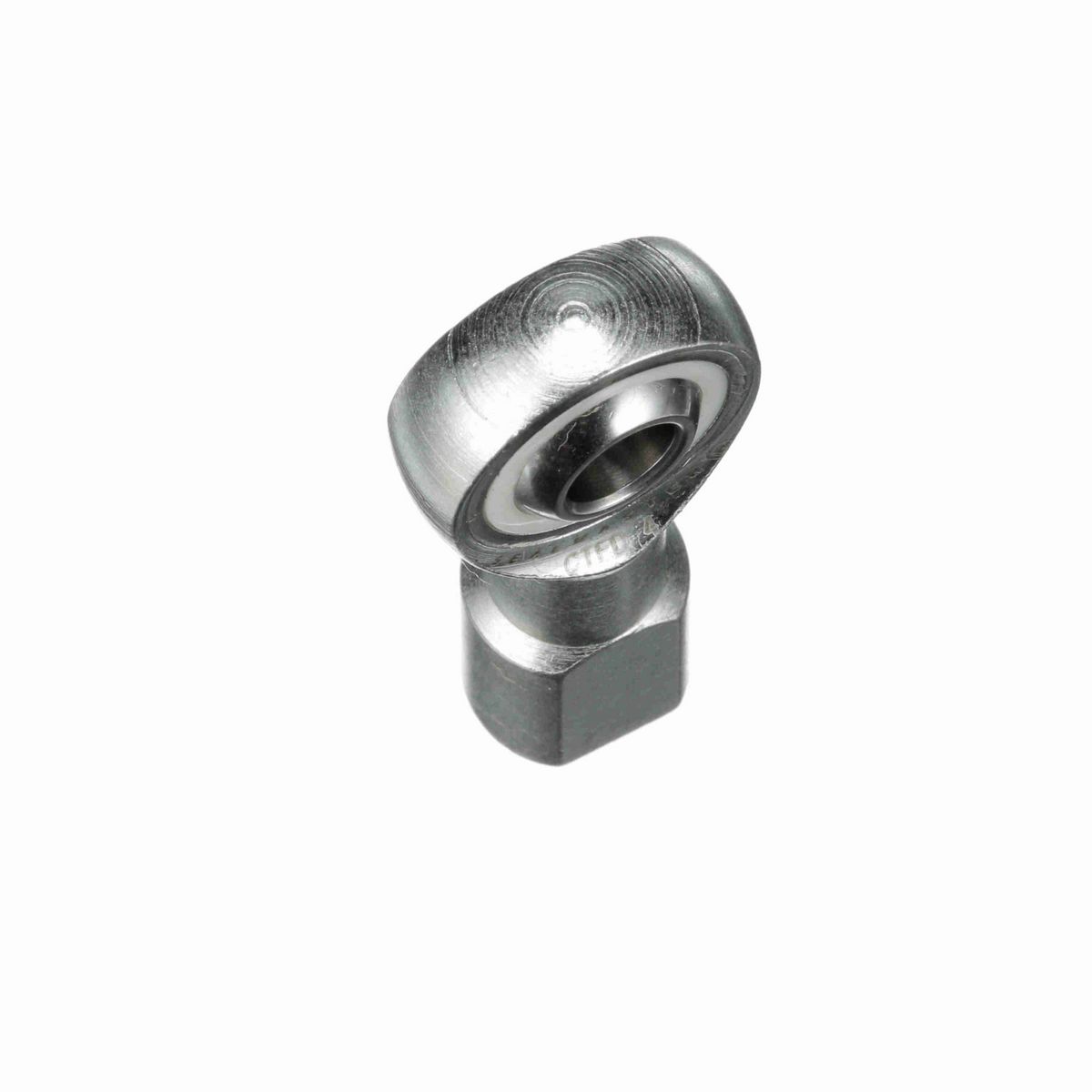

• Three-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• Delrin Race

Dimensions

Thread Length (in)	0.719 in
Ball Diameter (in)	0.5 in
Ball Flat Diameter (in)	0.331 in
Housing Width (in)	0.281 in
Ball Width (in)	0.375 in
Thread Size	#1/4-28
Head Diameter (in)	0.75 in
Base Diameter (in)	0.469 in
Length to Center of Ball (in)	1.31 in

Technical Specifications

Thread Type	UNF
Across Wrench Flats	0.375
Race Material	DELRIN
Product Selection Available SW	Y
Liner	DELRIN* Liner
Configuration	Female
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Zerk Fitting SW	N
Housing Style	Female Rod End
Bearing Type	Rod End
Lubrication Type	Self Lubricating
Construction	Three-Piece Rod End
Misalignment Angle - a Deg. +/-	8
Axial Load	106
Outer Material	Carbon Steel - Corrosion Resistant Plating
Product Type	CTFD
Series	Commercial
Lubrication	No Zerk Fitting
Thread	RH
Max Static Radial Load	1,060
Type	Female Rod End
Bore Size (in)	0.2500 in
Class	Commercial
Lubrication Method	Self Lubricating
Ability to Relubricate	Self
Maximum Ambient Temperature (F)	150 °F

General Specifications

UPC	662288725954
Weight	0.06 LB
Packaged Length	1.69 IN
Packaged Width	0.75 IN
Packaged Height	0.38 IN
HTC	8483.30.8055
Country of Origin	Mexico
