• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
• Solid construction with machined base was designed for minimal gaps and no fillers

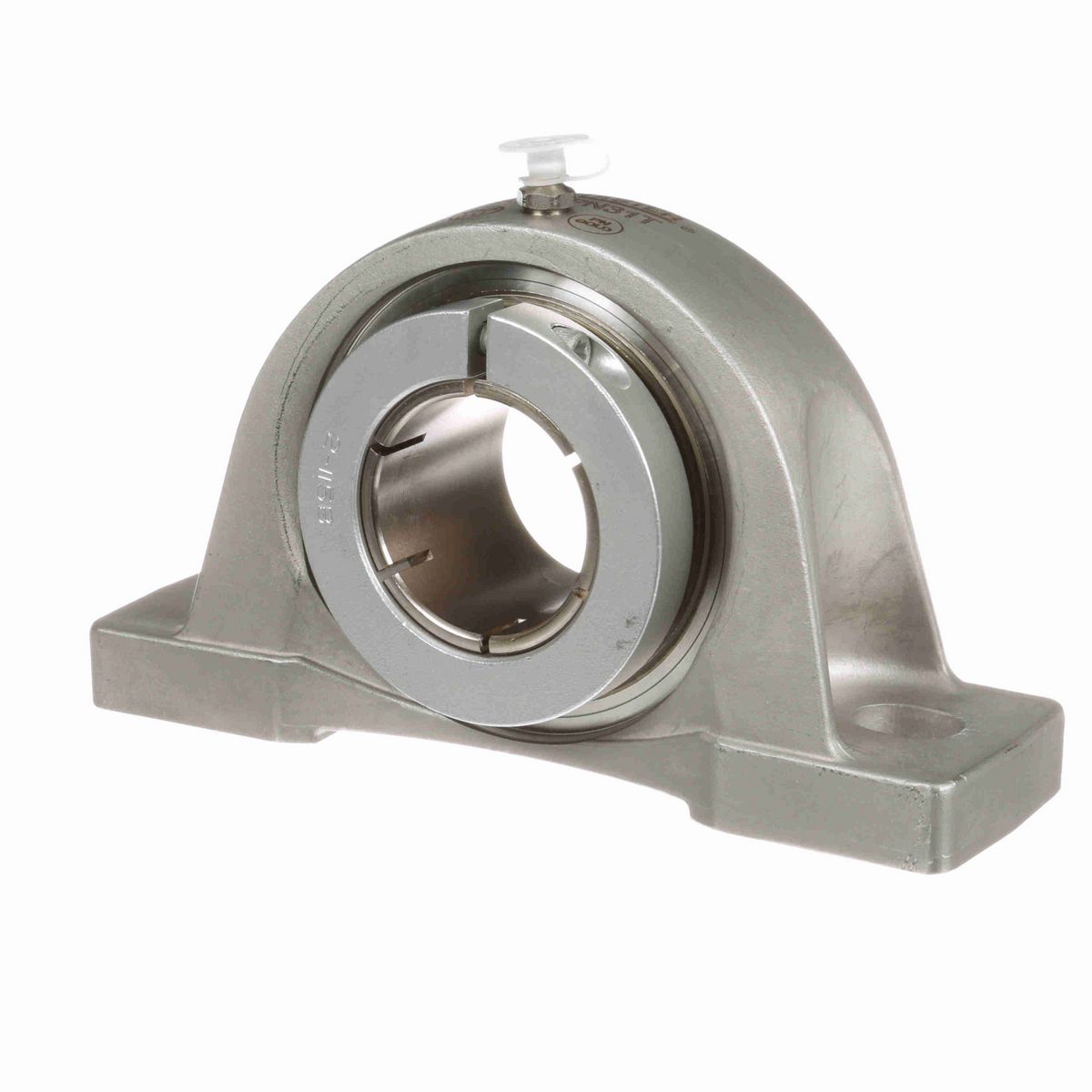

• Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
• Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
• USDA H1 complaint food grade grease

Dimensions

Overall Length (in)	5.5 in
Overall Height (in)	4.56 in
Base Width (in)	2.38 in
Overall Width (in)	2.38 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Base to Center Height (in)	2.2500 in
Foot Height (in)	0.75 in
Length Through Bore (in)	2.03 in
Bolt Spacing Min (in)	6 in
Bolt Spacing Max (in)	6.5 in
Centerline to Outermost Bearing Face (in)	1.28 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Options	Corrosion Resistant
Outer Ring Land Profile	Standard
Housing Color	Silver
Misalignment Type	Static Only
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Multi-Lip Contact Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3.38 in
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/8 NPT
Lubricant	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Base Length (in)	8.13 in
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Inner Ring Defect	0.0984 cps
Insert	PN-31T
End Cap Available	Yes
Vibration Frequency Outer Ring Defect	0.0683 cps
Shaft Locking Type	Concentric
Size Code	2-115
Radial Clearance	Standard
Maximum Speed (RPM)	1500 rpm
Vibration Frequency Roller Spin	0.0445 cps
Bearing Type	Standard Duty
Dynamic Load Rating (lb)	7,889 lb
Bearing Insert Finish	Phosphorus Nickel Coated
Max Operating Temperature (F)	220 °F
Static Load Rating (lb)	5,216 lb
Housing Material	Stainless Steel
Inner Ring Outside Diameter (in)	2.469 in
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461348079
Weight	7.90 LB
Packaged Length	9.00 IN
Packaged Width	5.19 IN
Packaged Height	2.38 IN
HTC	8483.20.8040
Country of Origin	United States of America
