• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
• Solid construction with machined base was designed for minimal gaps and no fillers
• Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
• Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	4.14 in
Bolt Size (in)	1/2 in
Overall Length (in)	6.94 in
Overall Height (in)	2.073 in
Bore Diameter (in)	1.5 in
Foot Height (in)	0.56 in
Bolt Spacing (in)	5.6363 in

Technical Specifications

Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Bore Shape	Straight
Options	Corrosion Resistant - Reduced Maintenance - Lubed for Life

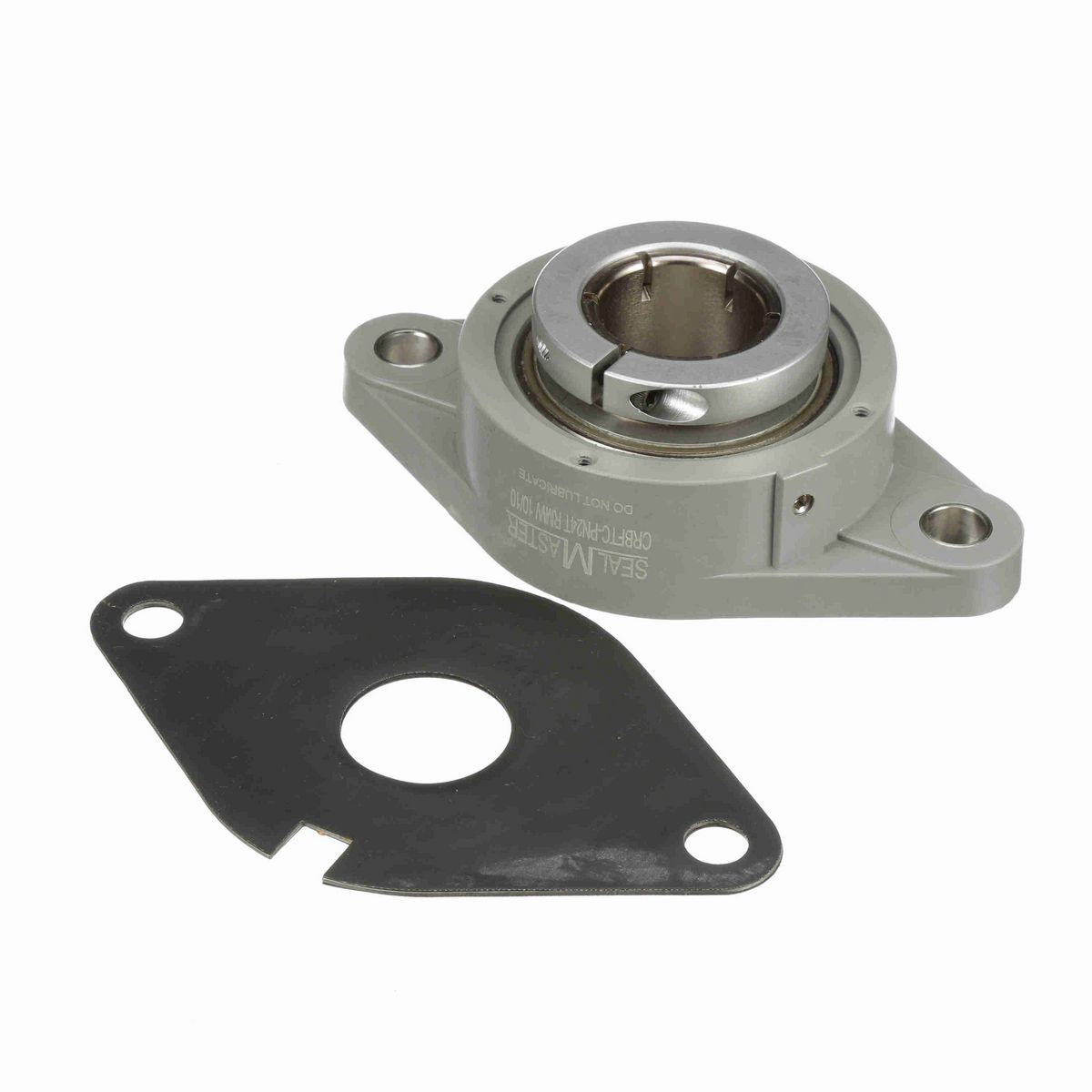

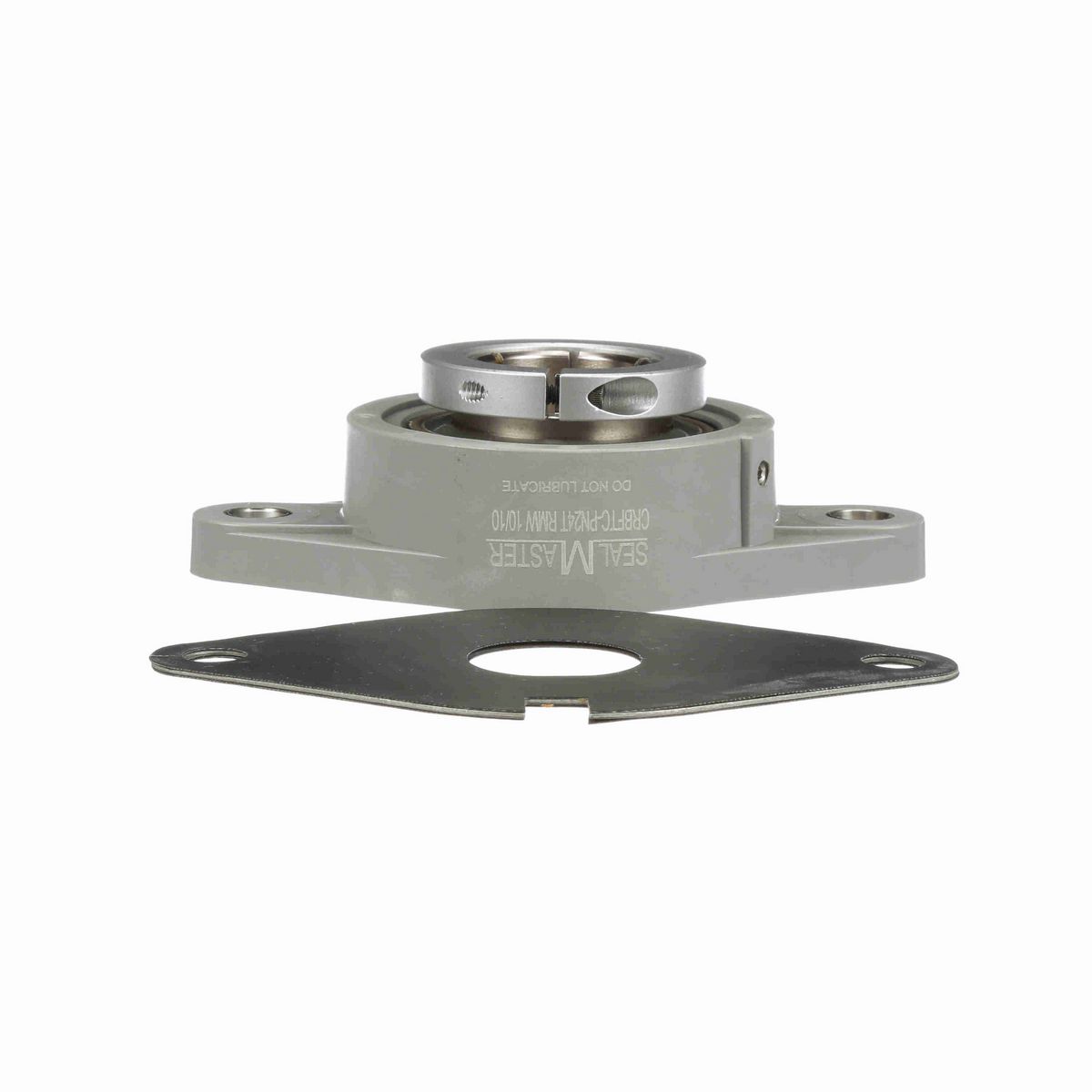

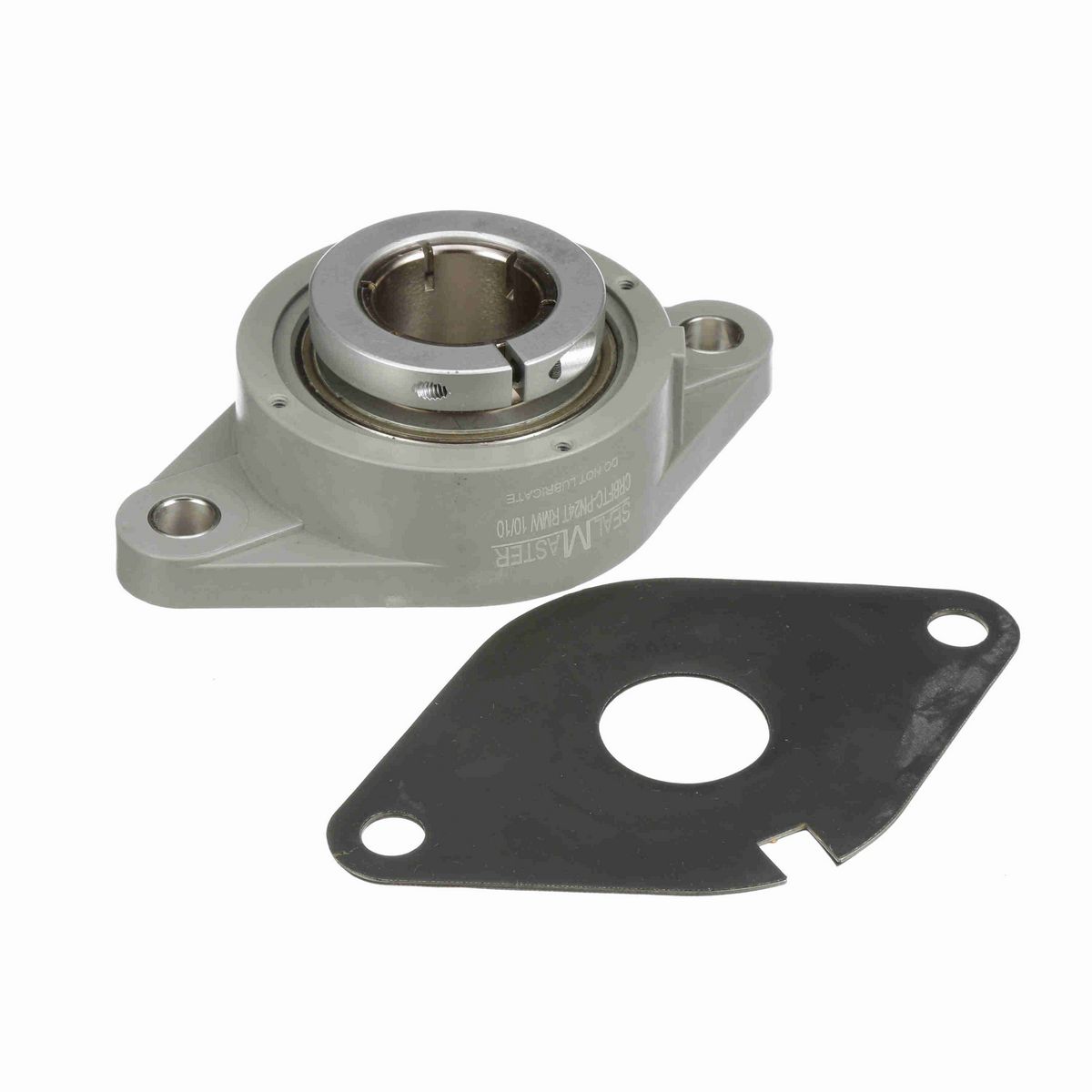

Backside Shield/Seal	Backside Shield included loose in box
Housing Color	Light Gray
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Two Bolt
Seal Type	Multi-Lip Contact Seal
Housing Style	Flange Block
Ability to Relubricate	No
Locking Collar Outside Diameter (in)	2.69 in
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
Cage Type	Land Riding Retainer
Size Code	2-19
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	4,467 lb
Bearing Type	Standard Duty
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Composite
Grease Fitting Thread Size	1/4-28
Insert	PN-24T
Shaft Locking Type	Concentric
End Cap Available	Yes
Bearing Insert Finish	Phosphorus Nickel Coated
Maximum Speed (RPM)	1750 rpm
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	2.063 in
Lubricant	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Dynamic Load Rating (lb)	7,340 lb

General Specifications

UPC	662461353028
Weight	2.95 LB
Packaged Length	4.63 IN
Packaged Width	2.31 IN
Packaged Height	7.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
