• High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
• Solid construction with machined base was designed for minimal gaps and no fillers
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
• USDA H1 complaint food grade grease

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	4.63 in
Overall Length (in)	4.63 in
Overall Height (in)	1.75 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	0.56 in
Length Through Bore (in)	1.69 in
Bolt Spacing (in)	3.6250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands

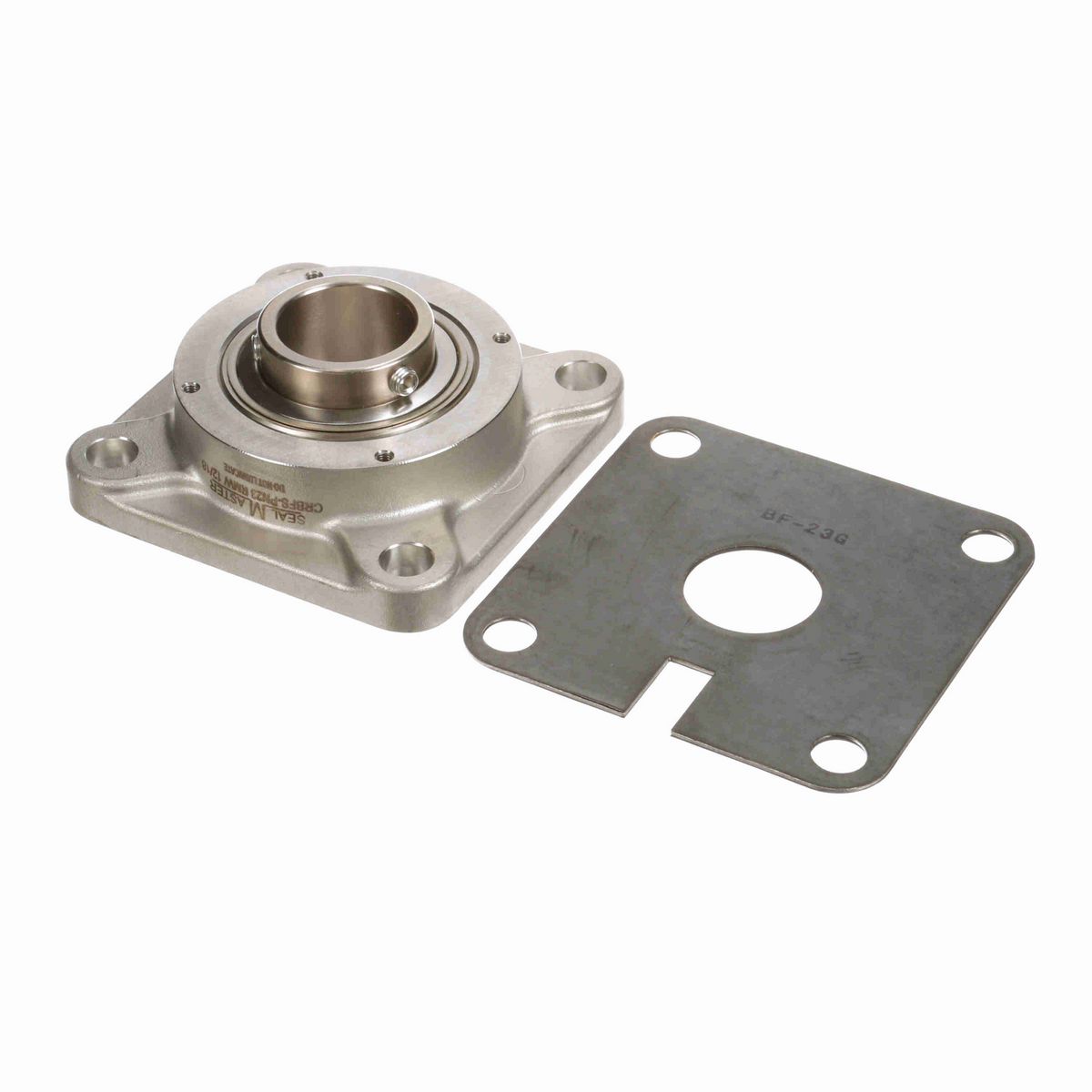

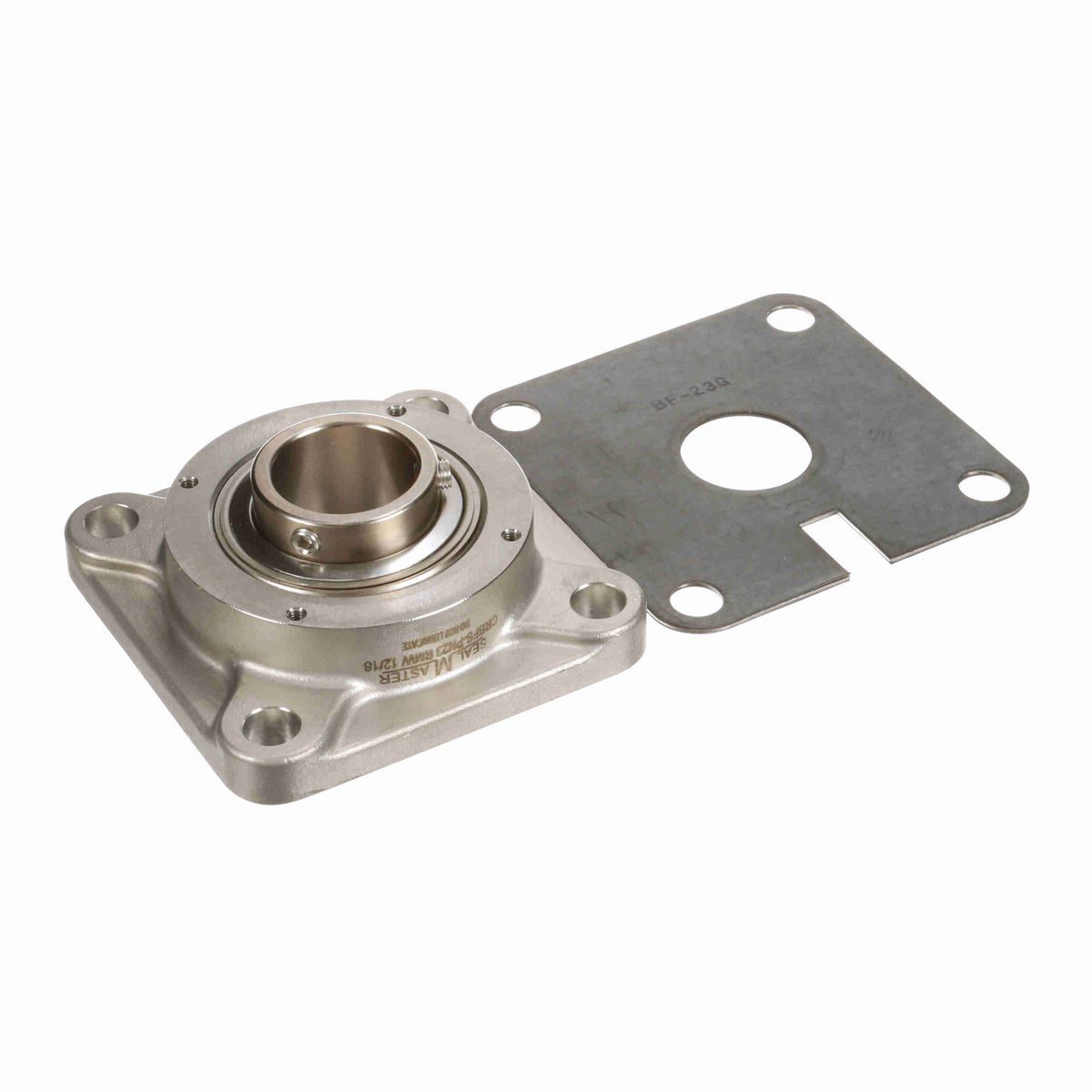

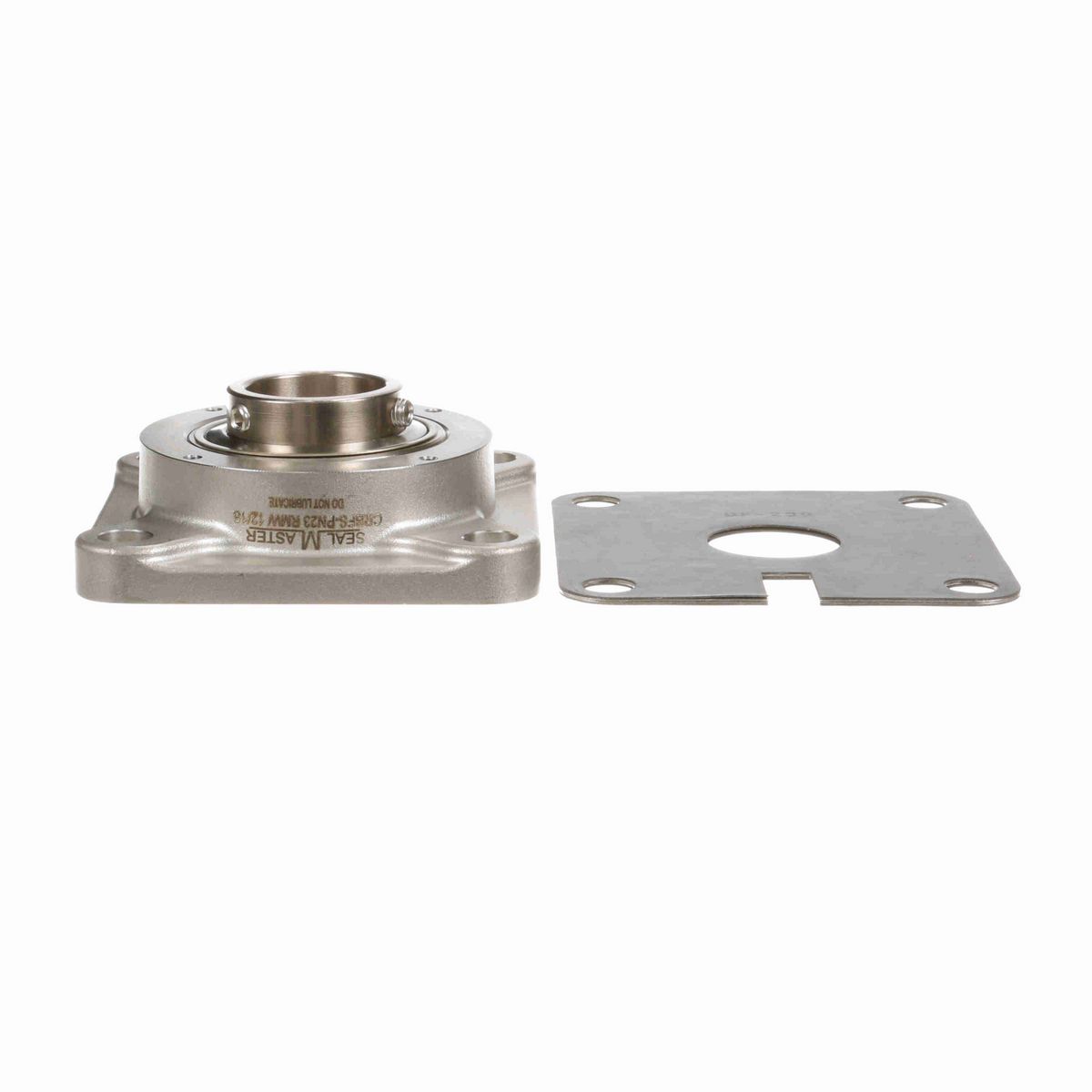

Backside Shield/Seal	Backside Shield included loose in box
Housing Color	Silver
Options	Corrosion Resistant - Reduced Maintenance - Lubed for Life
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Four Bolt
Seal Type	Multi-Lip Contact Seal
Housing Style	Flange Block
Ability to Relubricate	No
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.0595 cps
Cage Type	Land Riding Retainer
Maximum Speed (RPM)	2000 rpm
Bearing Insert Material	52100 Bearing Steel
Housing Material	Stainless Steel
Housing Backside Inner Diameter	3.31
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Bearing Type	Standard Duty
Size Code	2-17
Vibration Frequency Roller Spin	0.0386 cps
Dynamic Load Rating (lb)	5,782 lb
Bearing Insert Finish	Phosphorus Nickel Coated
Shaft Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0905 cps
Inner Ring Outside Diameter (in)	1.86 in
Insert	PN-23
Radial Clearance	Standard
Vibration Frequency Fundamental Train	0.0066 cps
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	3,493 lb
End Cap Available	Yes
Lubricant	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Grease Fitting Thread Size	1/4-28

General Specifications

UPC	662461374382
Weight	4.00 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
