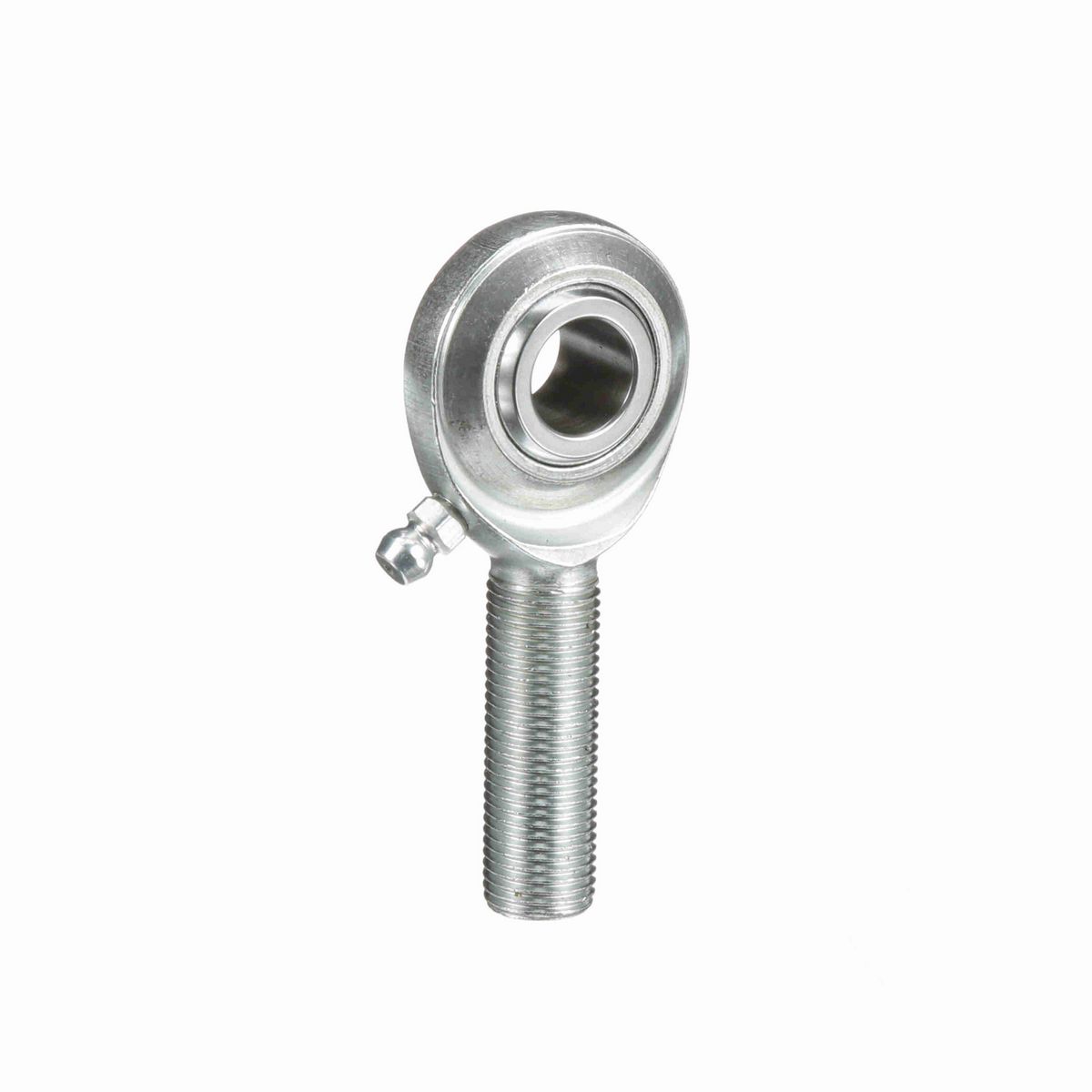

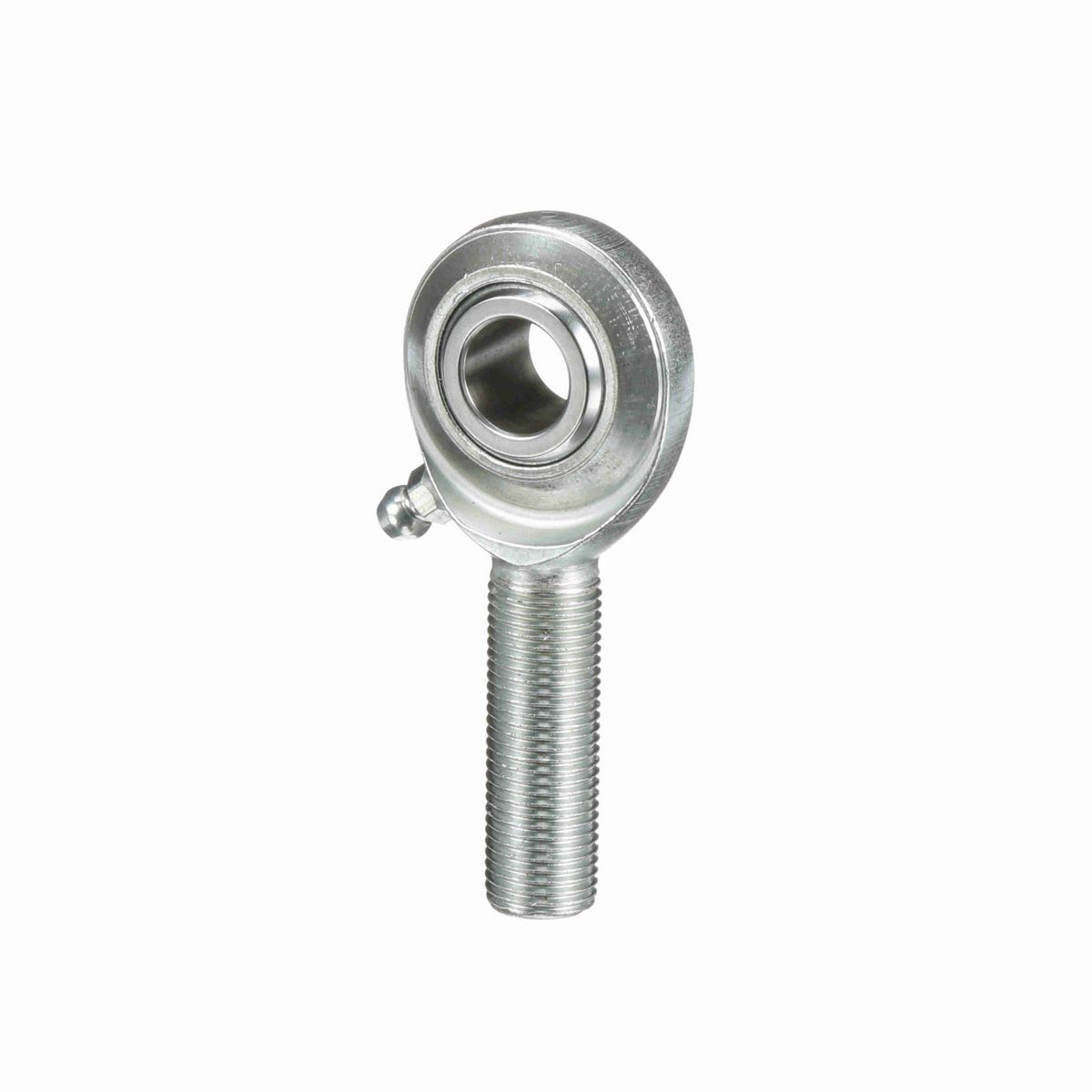

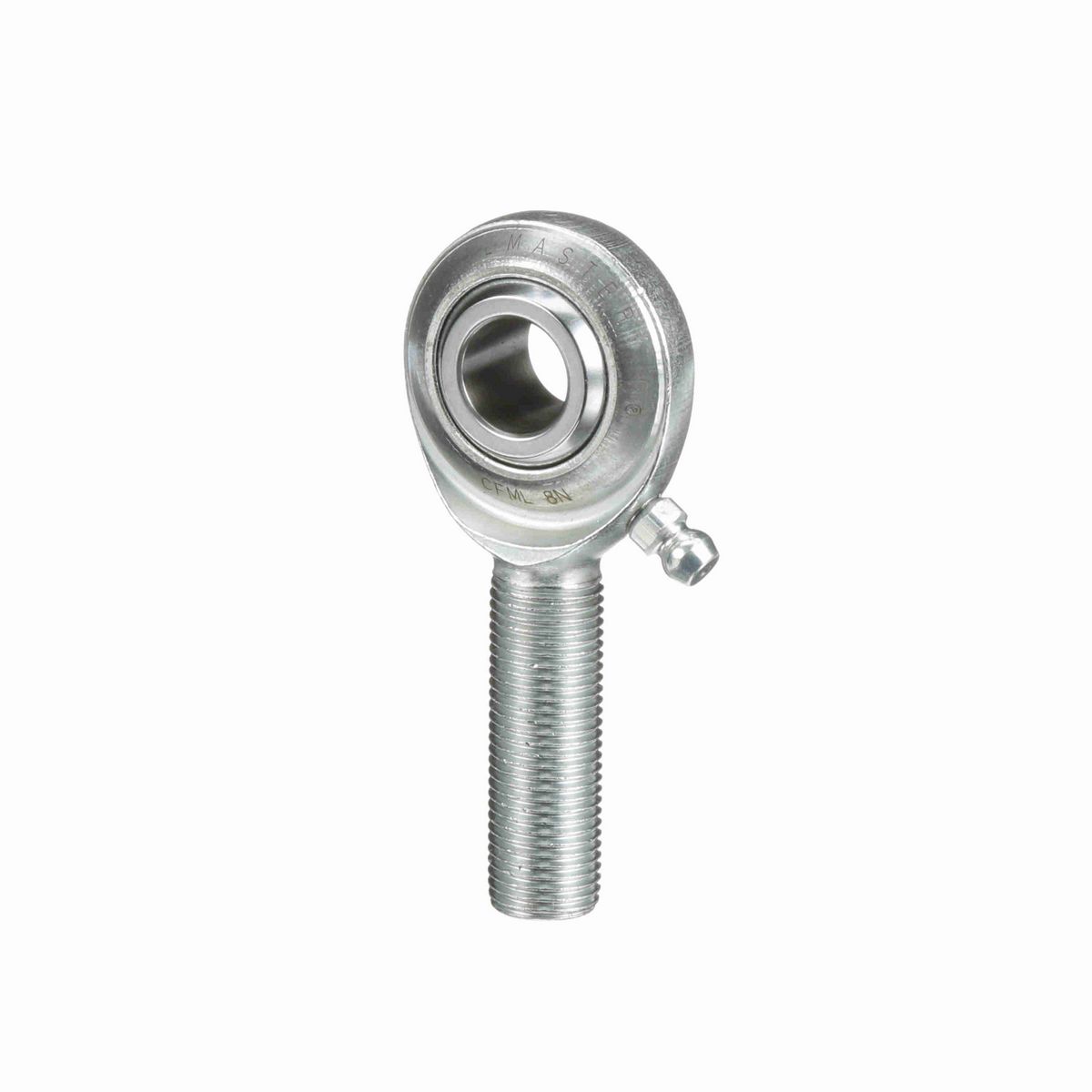

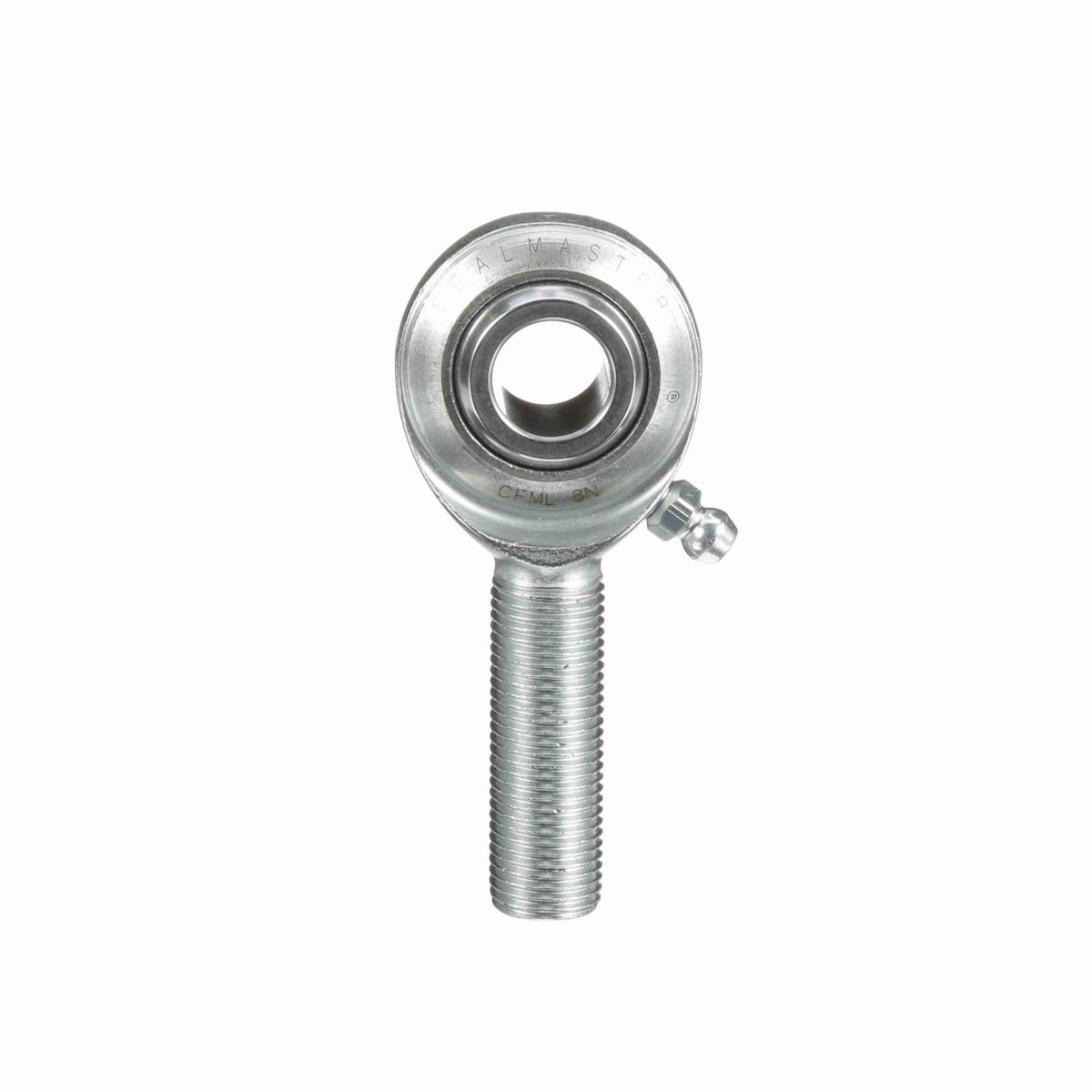

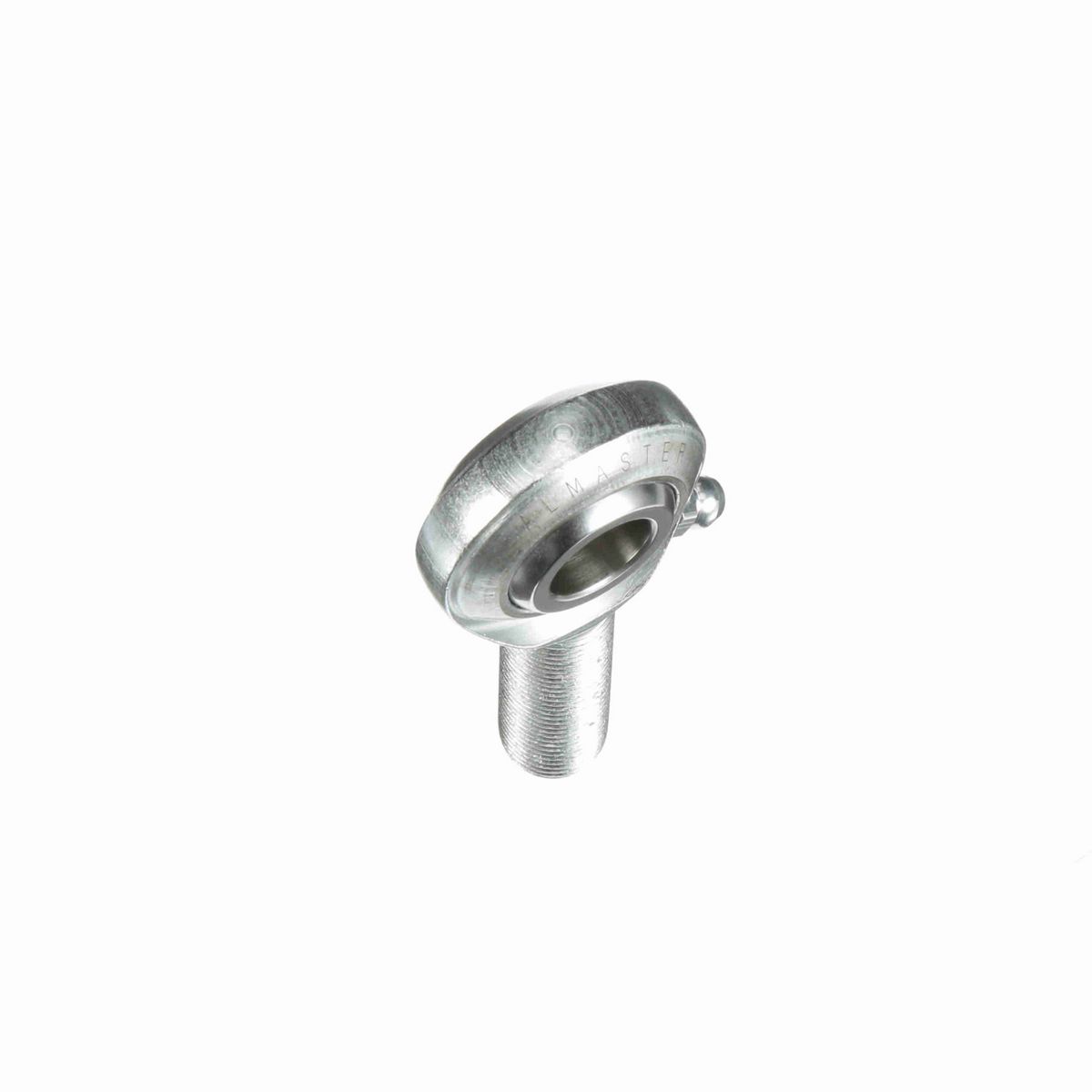

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads

Dimensions

Ball Diameter (in)	0.937 in
Thread Size	#1/2-20
Housing Width (in)	0.5 in
Head Diameter (in)	1.312 in
Thread Length (in)	1.469 in
Ball Flat Diameter (in)	0.698 in
Ball Width (in)	0.625 in
Length to Center of Ball (in)	2.44 in

Technical Specifications

Outer Material	Carbon Steel - Corrosion Resistant Plating
Lubrication Type	Grease
Axial Load	900
Thread Type	UNF
Configuration	Male
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Zerk Fitting SW	Y
Housing Style	Male Rod End
Construction	Two-Piece Rod End with Zerk Fitting
Product Type	CFM
Bearing Type	Rod End
Series	Commercial
Misalignment Angle - a Deg. +/-	6
Product Selection Available SW	Y
Lubrication	Zerk Fitting
Max Static Radial Load	9,000
Type	Male Rod End
Thread	LH
Class	Precision
Bore Size (in)	0.5000 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288725671
Weight	0.25 LB
Packaged Length	3.09 IN
Packaged Width	1.31 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
