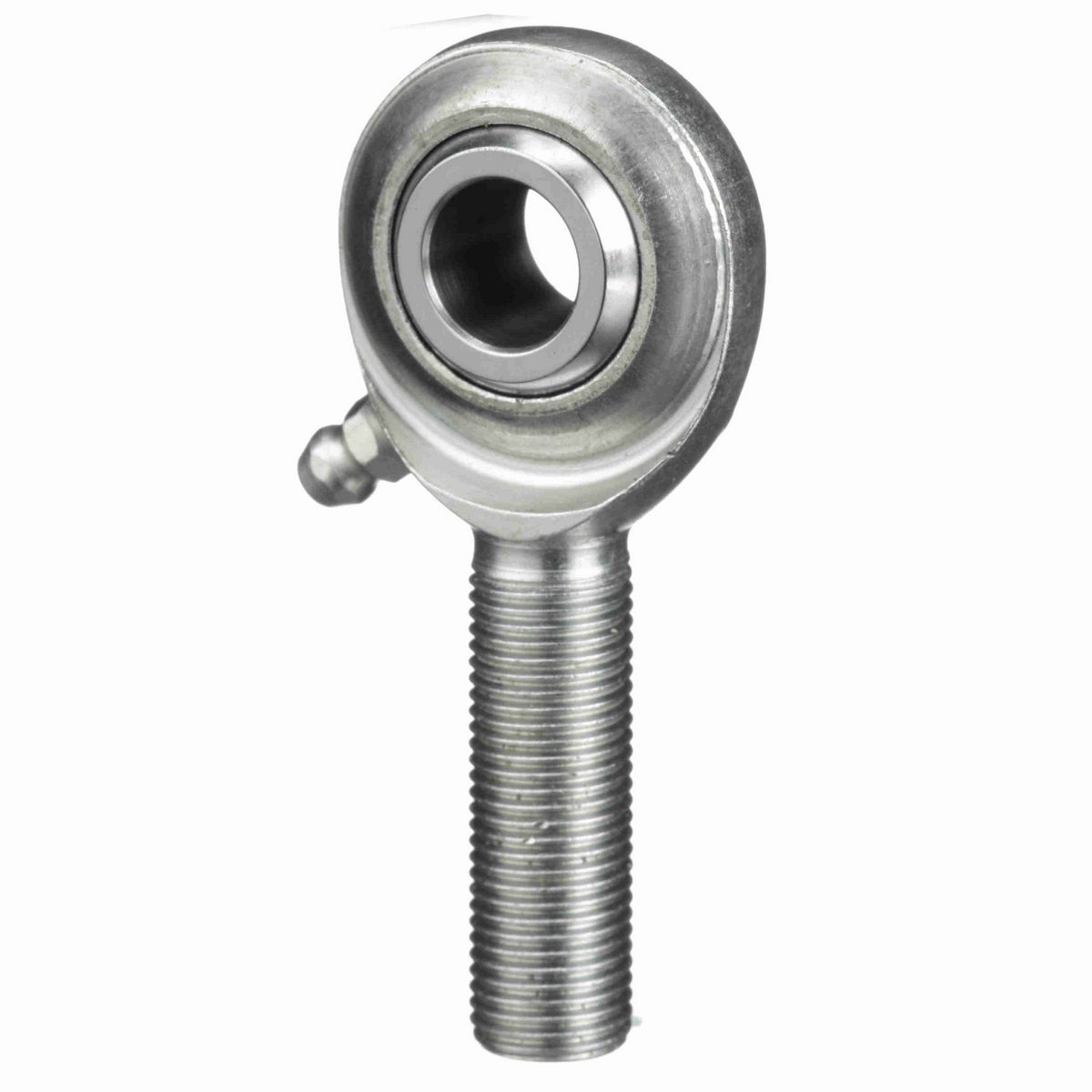

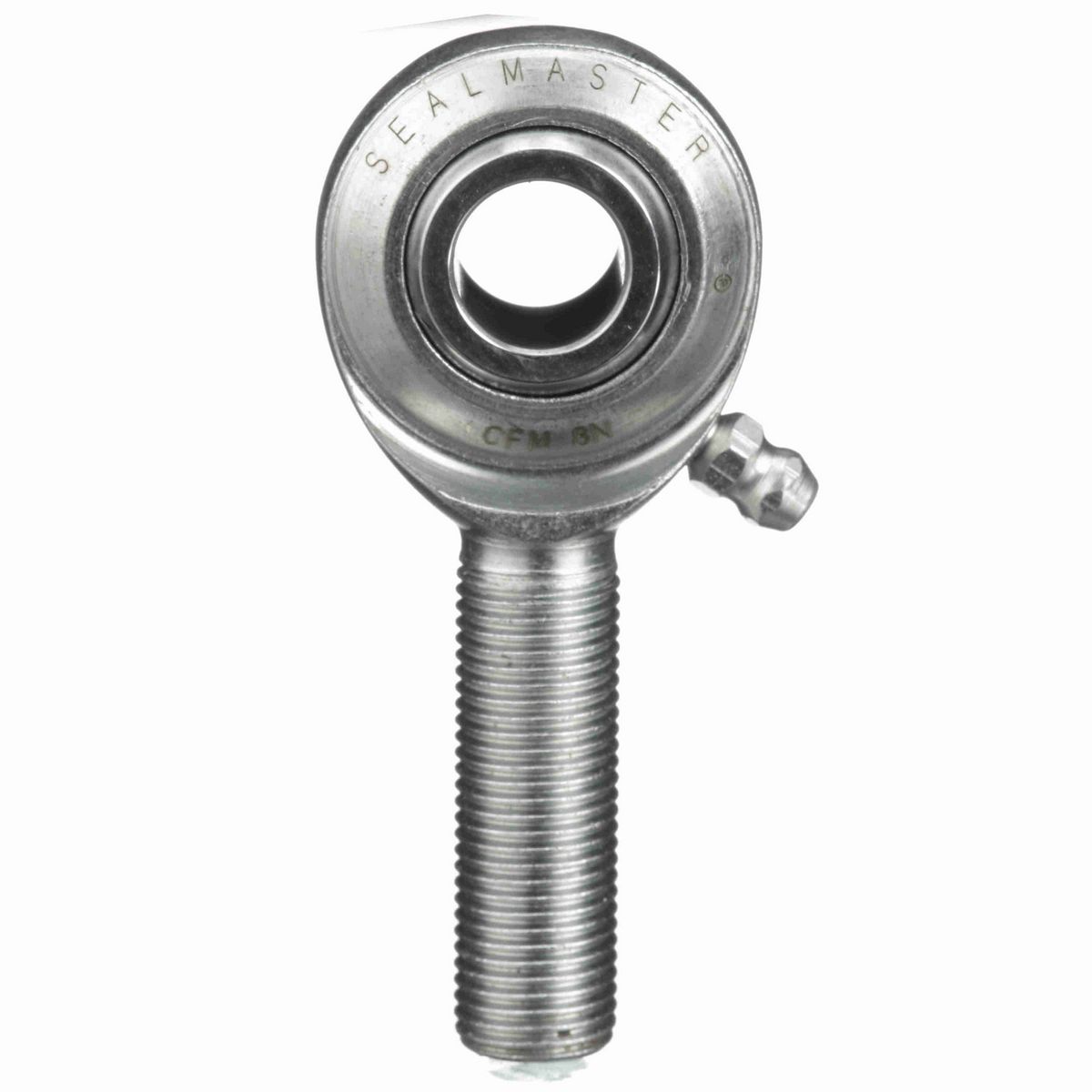

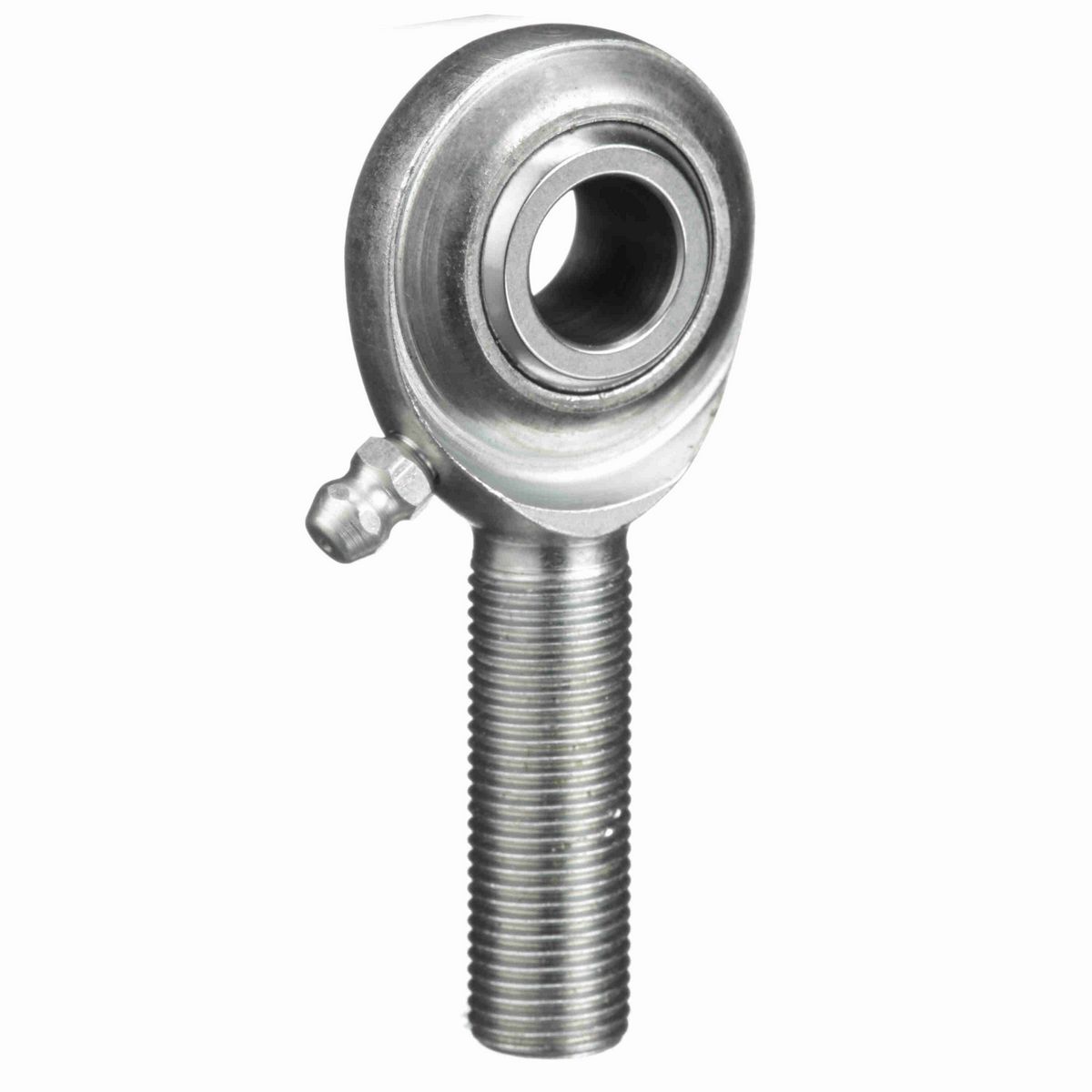

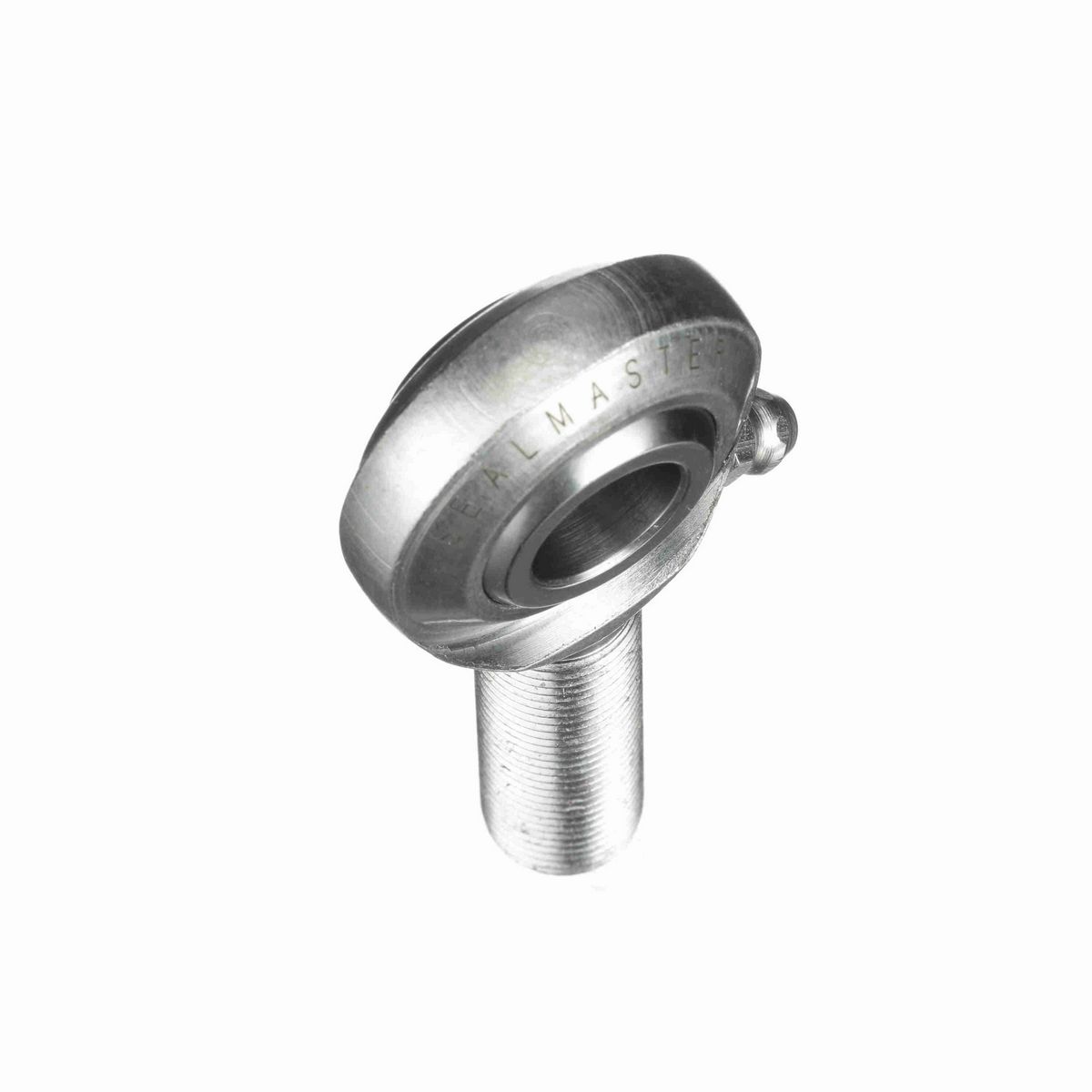

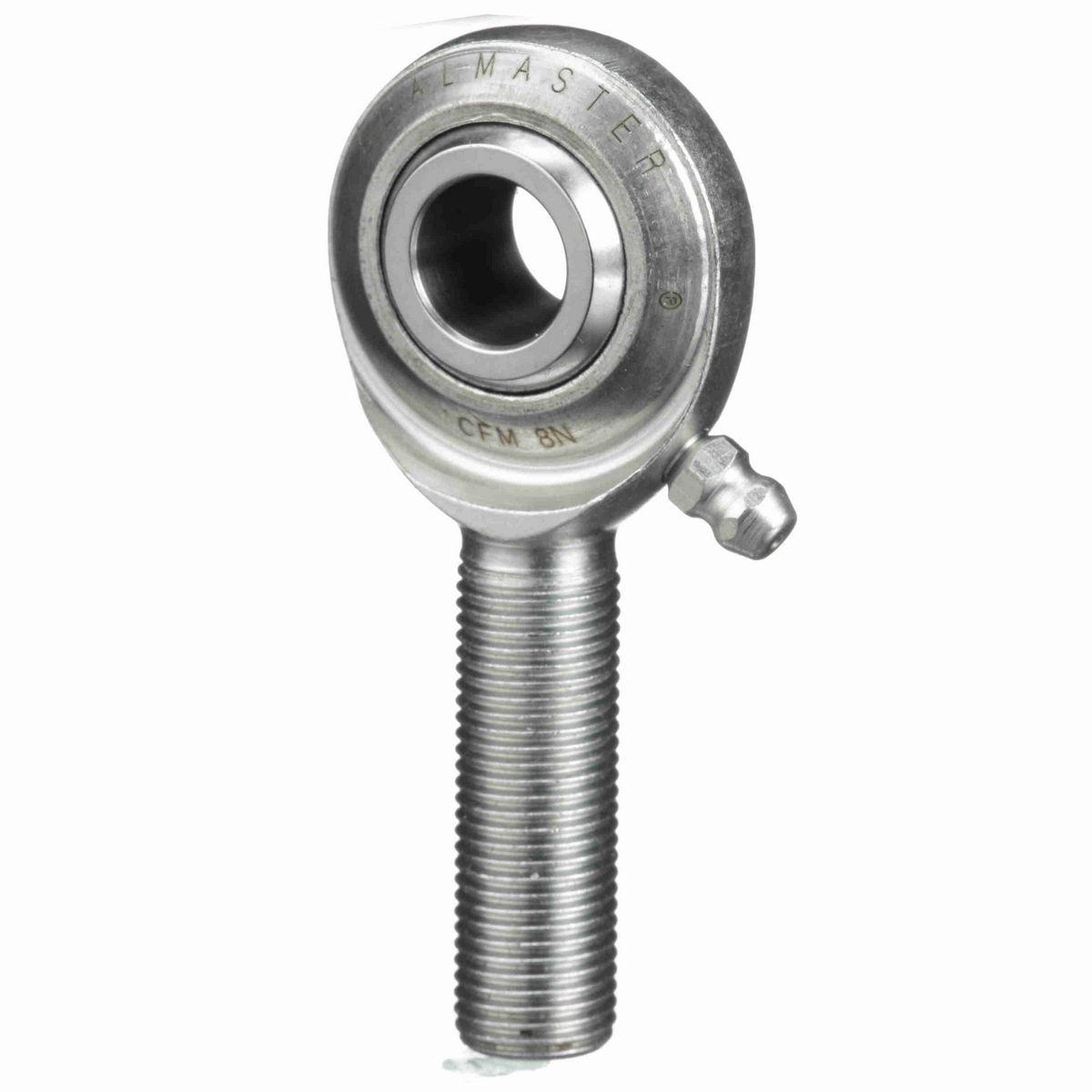

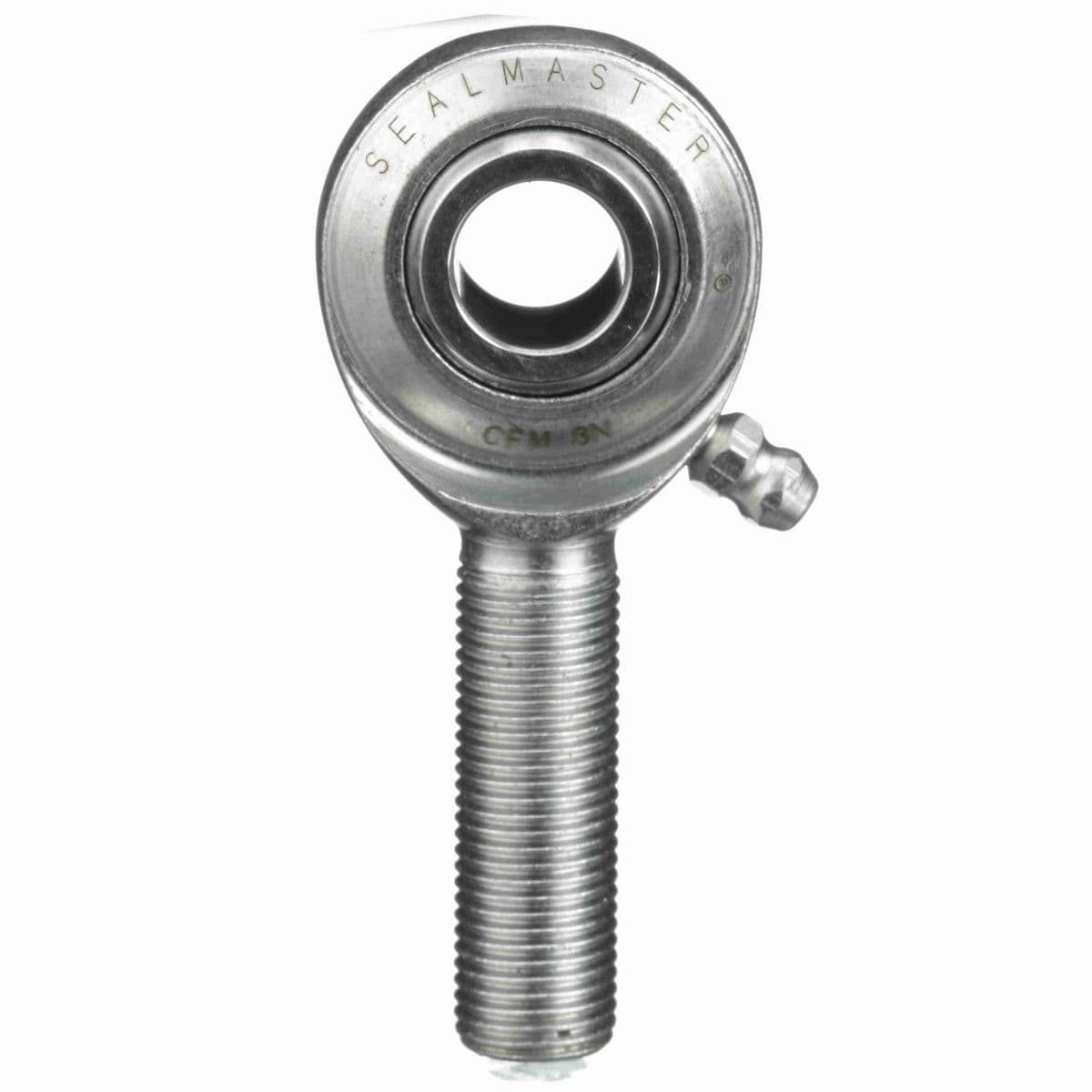

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads

Dimensions

Thread Length (in)	1.469 in
Ball Diameter (in)	0.937 in
Head Diameter (in)	1.312 in
Housing Width (in)	0.5 in
Ball Flat Diameter (in)	0.698 in
Thread Size	#1/2-20
Ball Width (in)	0.625 in
Length to Center of Ball (in)	2.44 in

Technical Specifications

Thread Type	UNF
Construction	Two-Piece Rod End with Zerk Fitting
Zerk Fitting SW	Y
Axial Load	900
Bearing Type	Rod End
Misalignment Angle - a Deg. +/-	6
Housing Style	Male Rod End
Series	Commercial
Product Type	CFM
Configuration	Male
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Selection Available SW	Y
Outer Material	Carbon Steel - Corrosion Resistant Plating
Lubrication Type	Grease
Type	Male Rod End
Lubrication	Zerk Fitting
Thread	RH
Max Static Radial Load	9,000
Class	Commercial
Bore Size (in)	0.5000 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288725077
Weight	0.25 LB
Packaged Length	3.09 IN
Packaged Width	1.31 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
