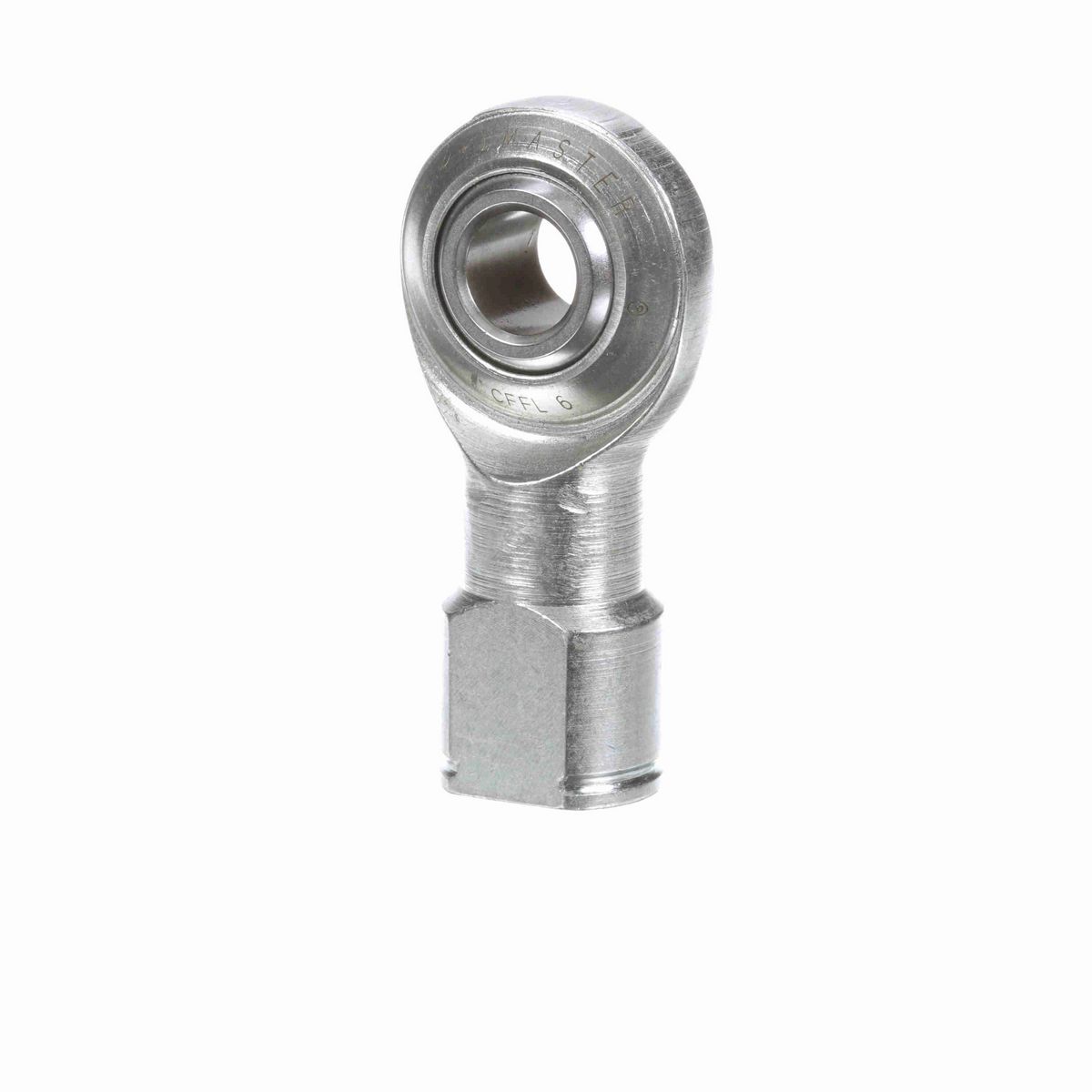

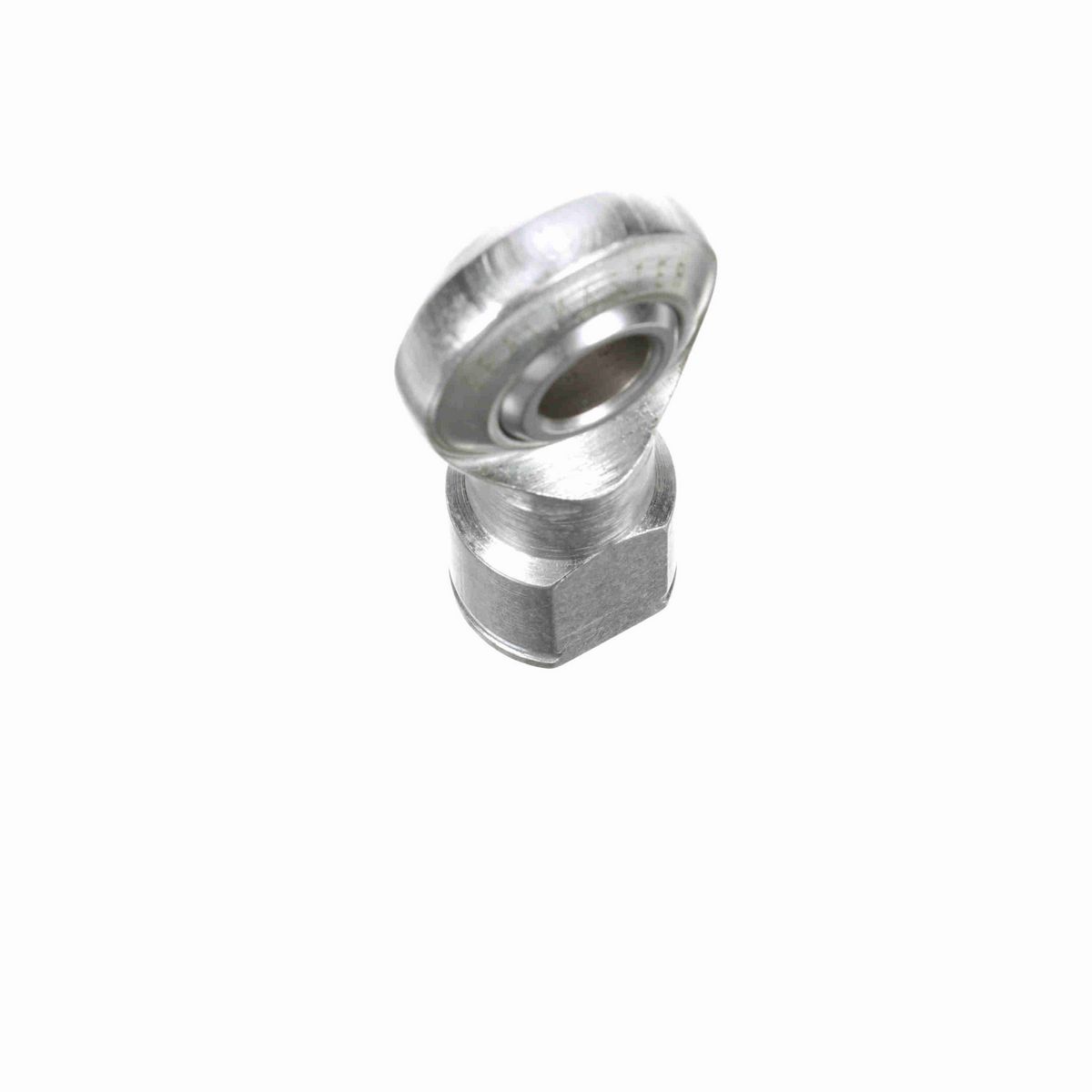

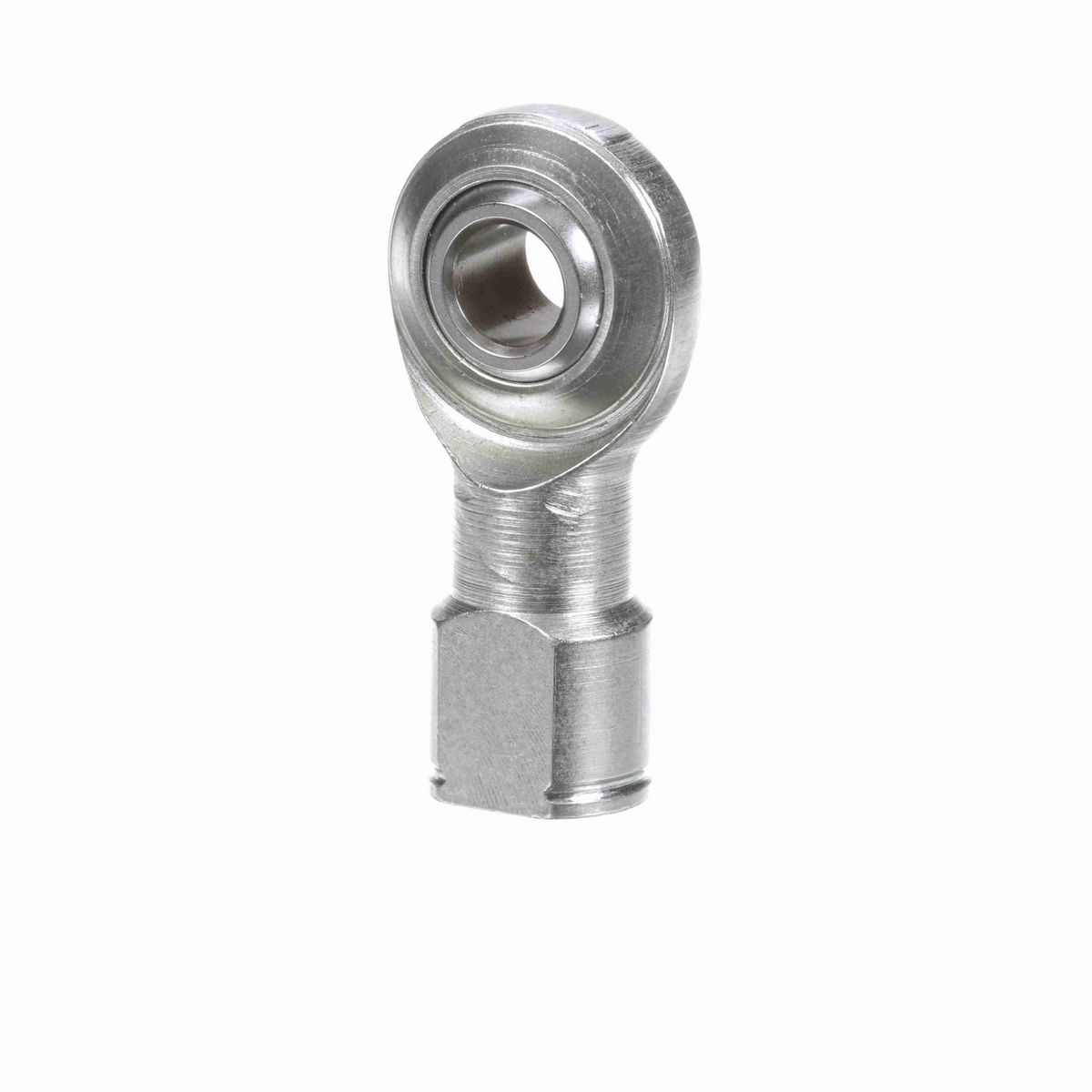

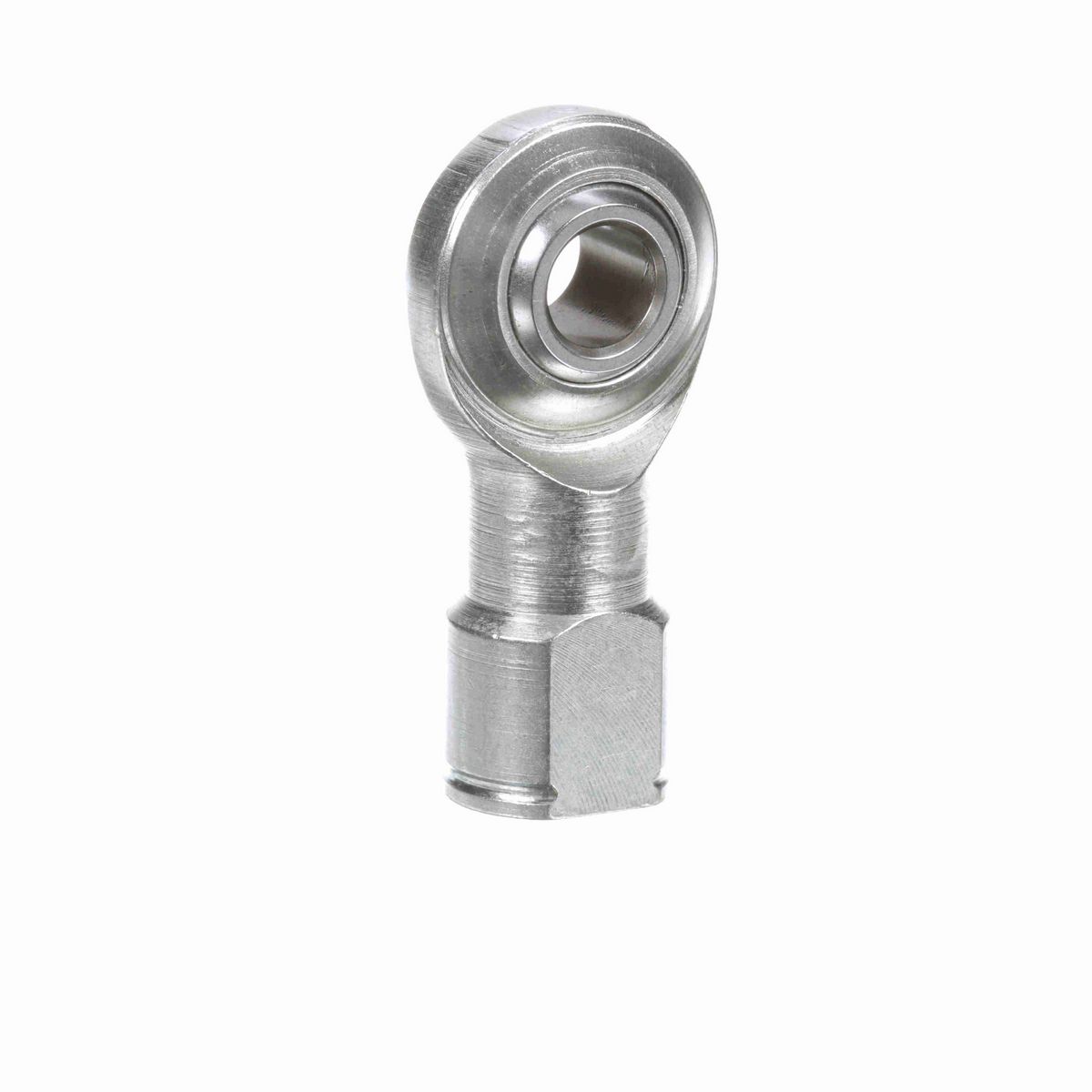

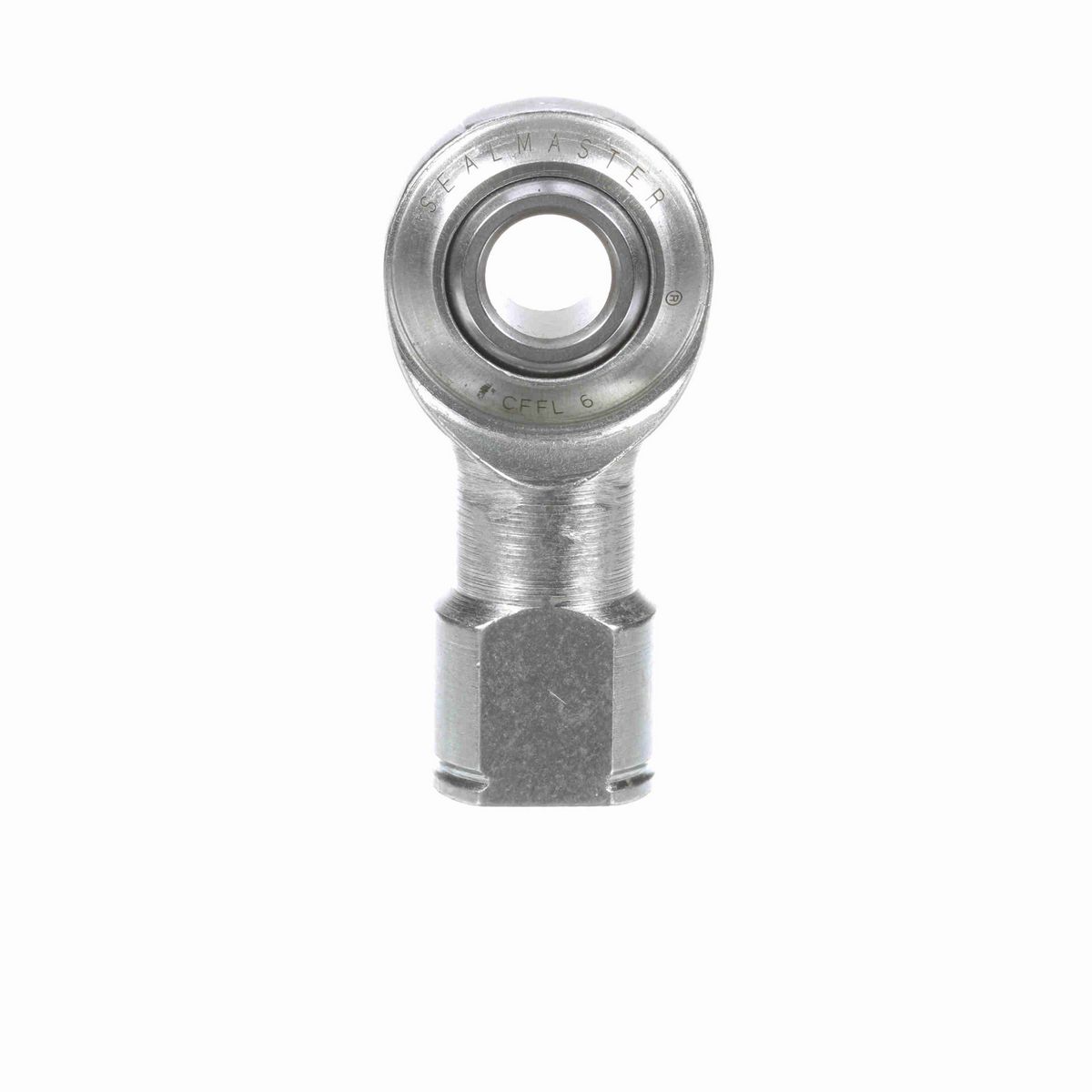

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads

Dimensions

Thread Length (in)	0.781 in
Head Diameter (in)	1 in
Ball Flat Diameter (in)	0.517 in
Base Diameter (in)	0.688 in
Ball Width (in)	0.5 in
Ball Diameter (in)	0.718 in
Housing Width (in)	0.406 in
Thread Size	#3/8-24
Length to Center of Ball (in)	1.63 in

Technical Specifications

Configuration	Female
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Lubrication Type	Grease
Series	Commercial
Product Selection Available SW	Y
Housing Style	Female Rod End
Product Type	CFF
Thread Type	UNF
Axial Load	500
Bearing Type	Rod End
Zerk Fitting SW	N
Misalignment Angle - a Deg. +/-	6
Construction	Two-Piece Rod End
Outer Material	Carbon Steel - Corrosion Resistant Plating
Across Wrench Flats	0.562
Thread	LH
Type	Female Rod End
Max Static Radial Load	5,000
Lubrication	No Zerk Fitting
Class	Commercial
Bore Size (in)	0.3750 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288725282
Weight	0.13 LB
Packaged Length	2.13 IN
Packaged Width	1.00 IN
Packaged Height	0.56 IN
HTC	8483.30.8055
Country of Origin	Mexico
