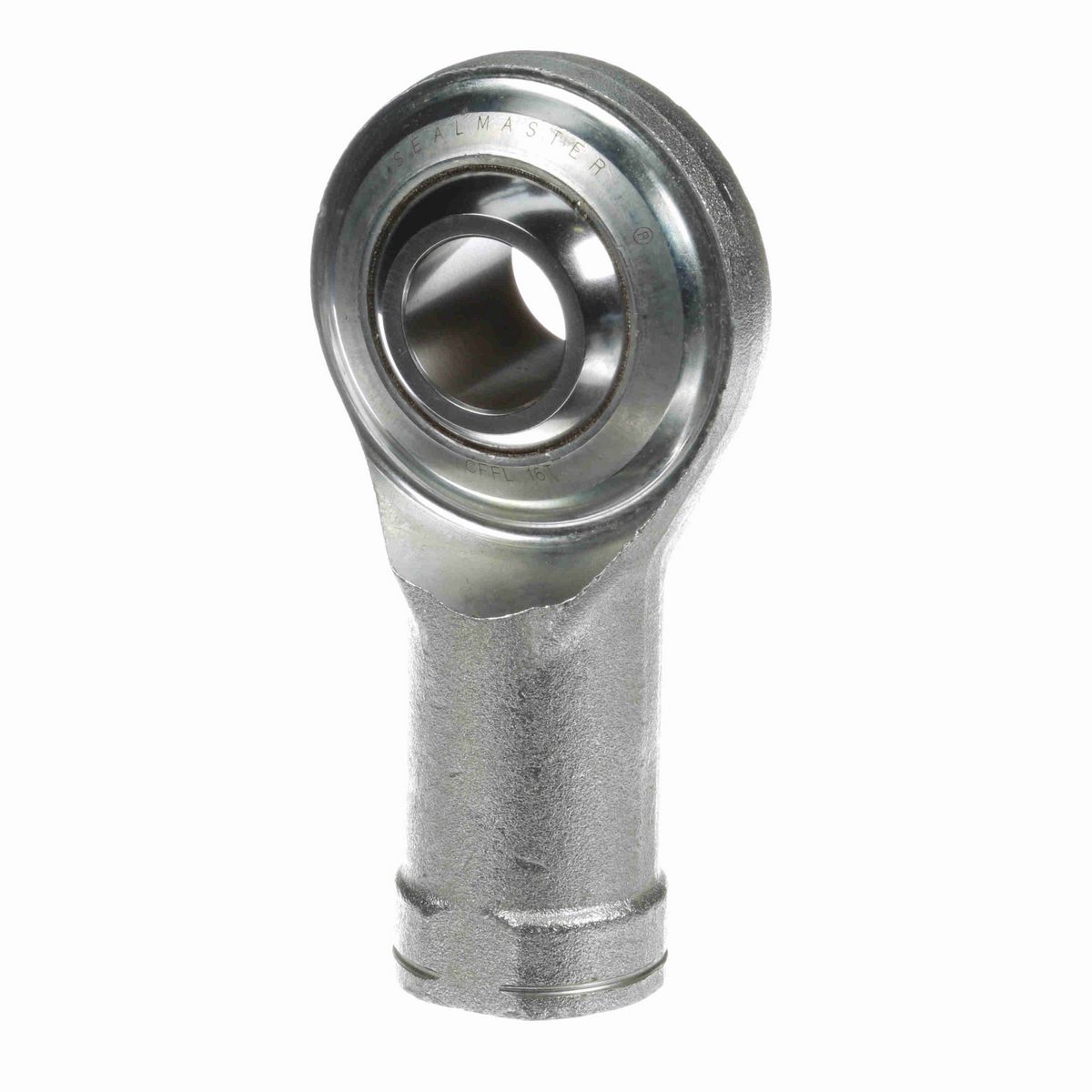

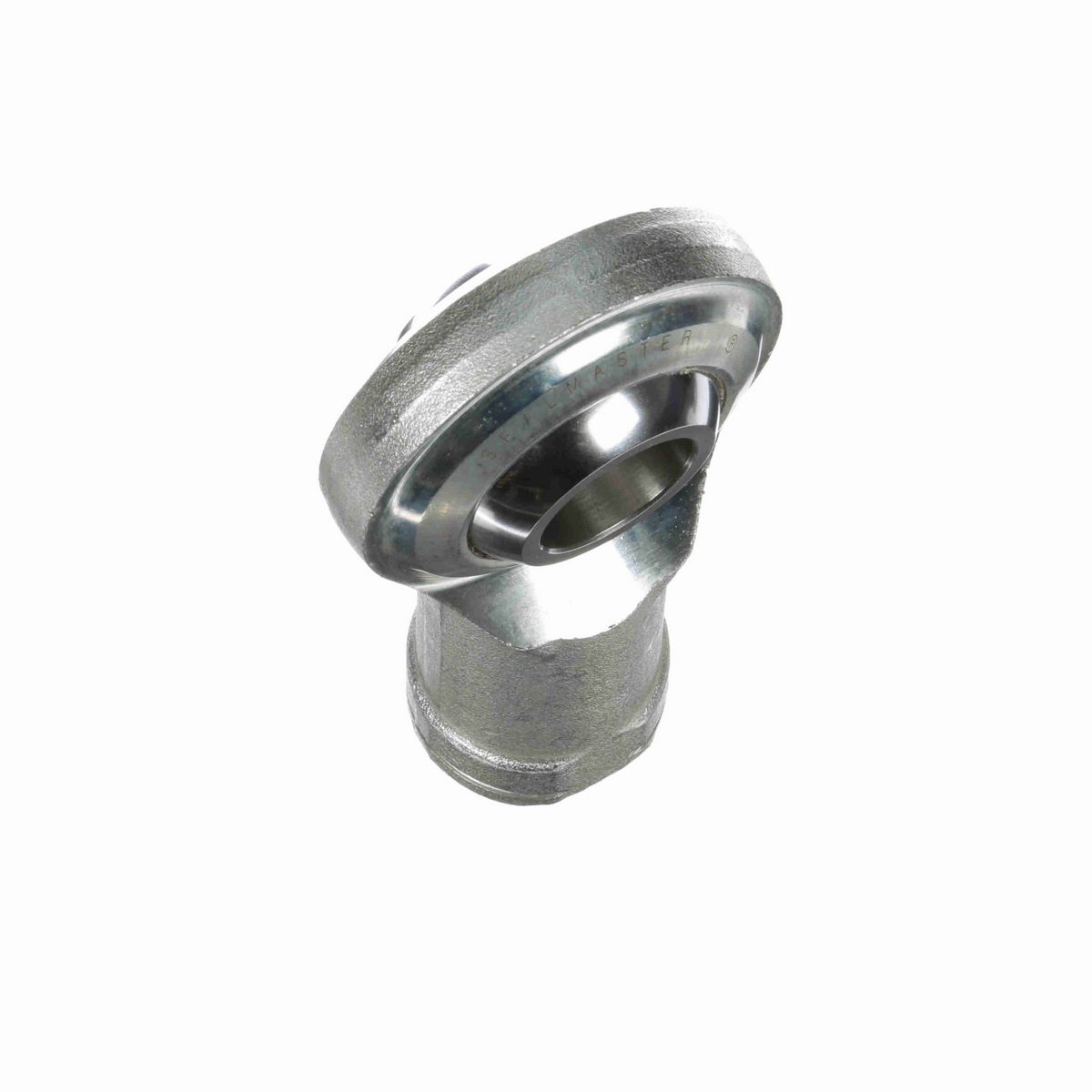

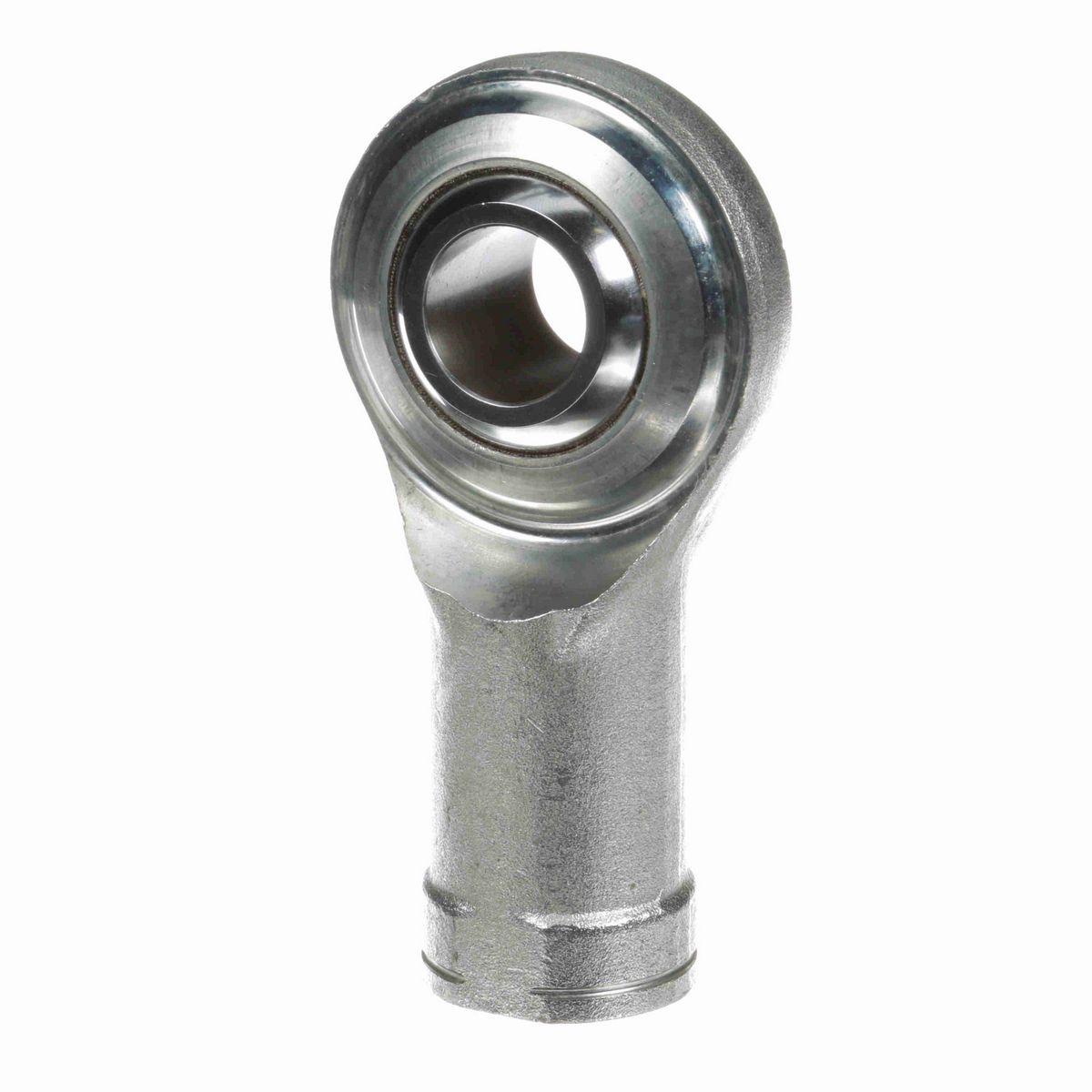

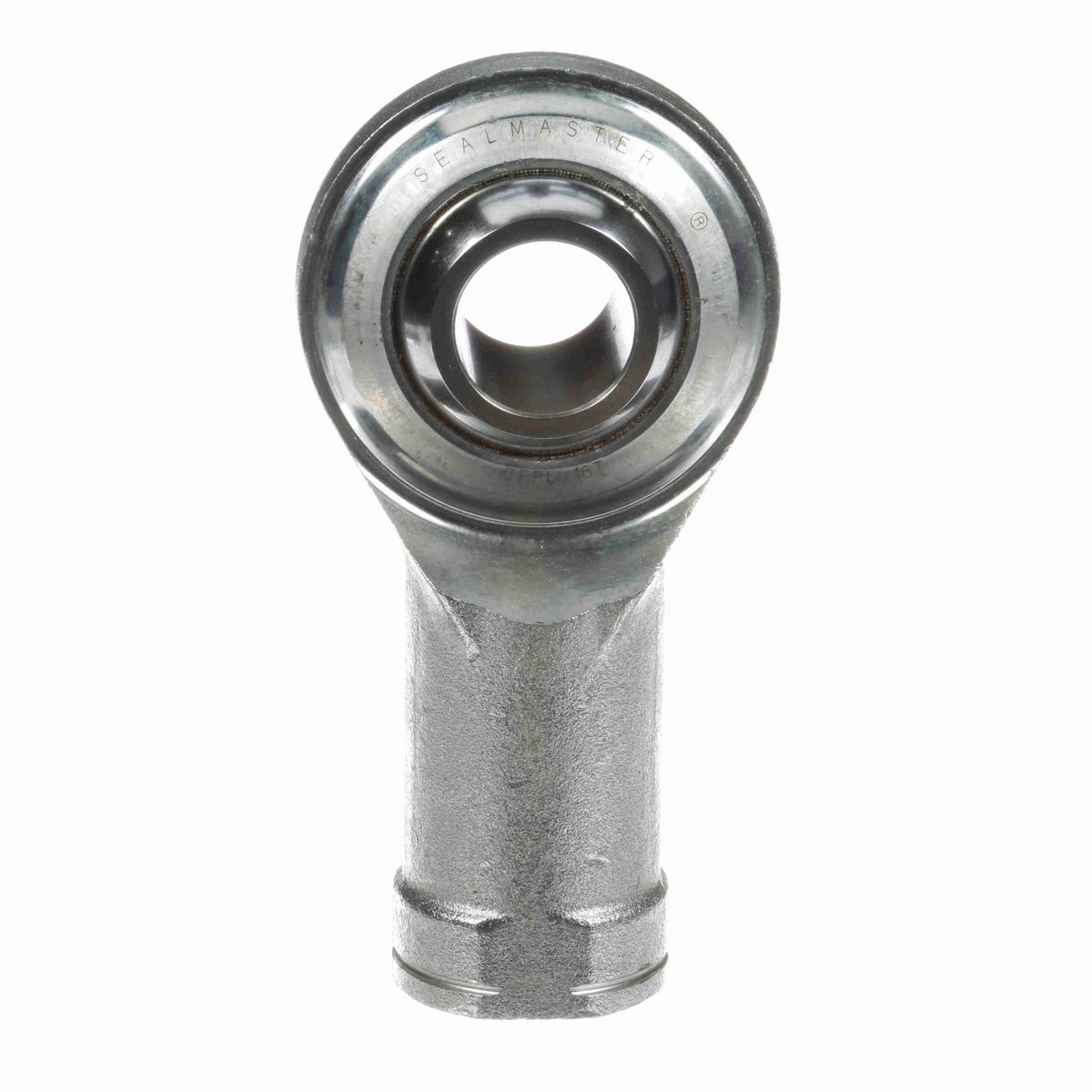

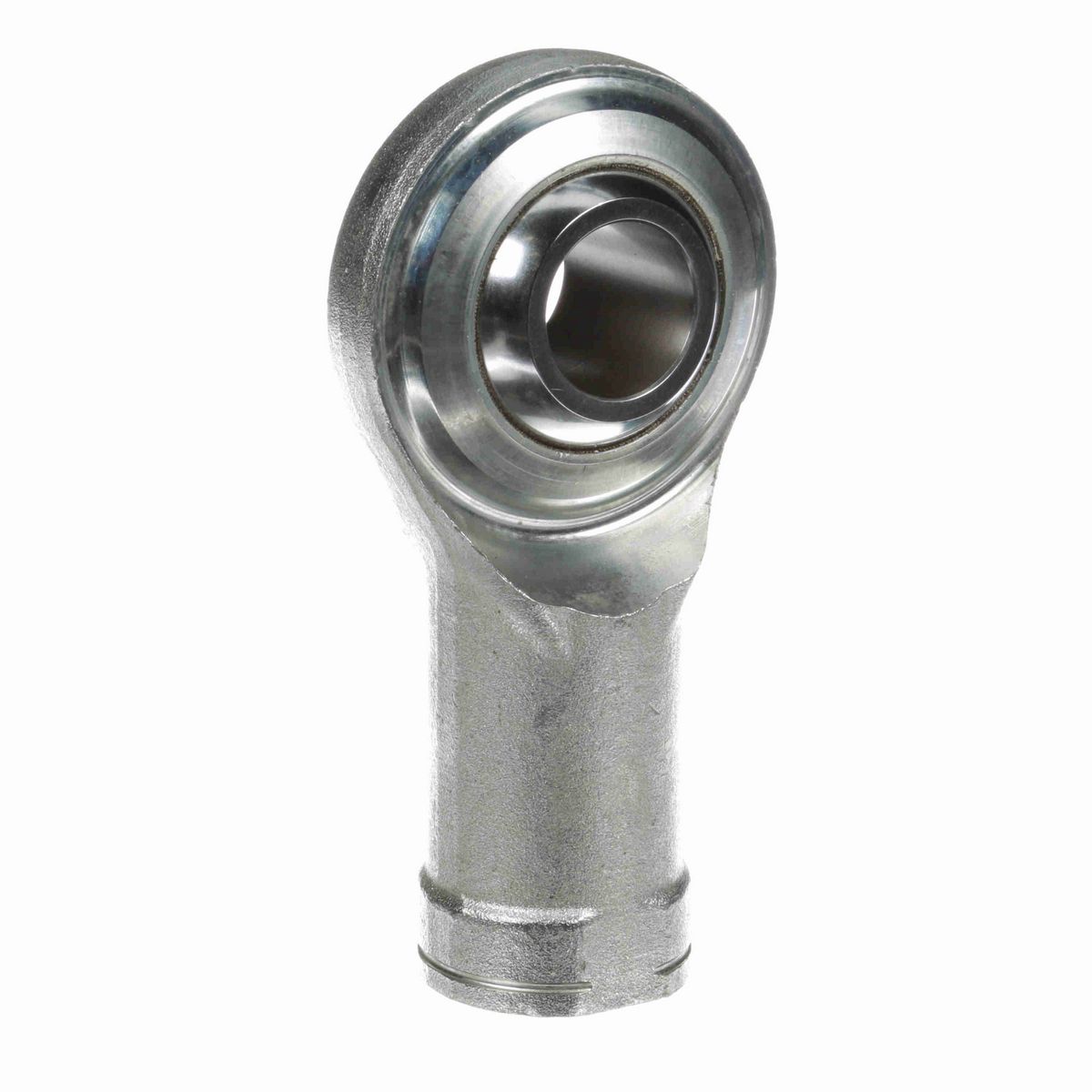

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Left-Hand Threads
• PTFE Liner

Dimensions

Ball Flat Diameter (in)	1.269 in
Ball Diameter (in)	1.875 in
Thread Size	#1 1/4-12
Base Diameter (in)	1.688 in
Housing Width (in)	1 in
Ball Width (in)	1.375 in
Thread Length (in)	2 in
Head Diameter (in)	2.75 in
Length to Center of Ball (in)	4.13 in

Technical Specifications

Bearing Type	Rod End
Misalignment Angle - a Deg. +/-	8.5
Liner	TEFLON* Fabric Liner
Product Selection Available SW	Y
Lubrication Type	Self Lubricating
Housing Style	Female Rod End
Series	Precision
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Configuration	Female
Across Wrench Flats	1.5
Construction	Two-Piece Rod End
Product Type	CFF
Race Material	TEFLON
Outer Material	Carbon Steel - Corrosion Resistant Plating
Zerk Fitting SW	N
Thread Type	UNF
Axial Load	2,100
Type	Female Rod End
Thread	LH
Lubrication	No Zerk Fitting
Max Static Radial Load	21,000
Bore Size (in)	1 in
Class	Precision
Lubrication Method	Self Lubricating
Ability to Relubricate	None
Maximum Ambient Temperature (F)	250 °F

General Specifications

UPC	662288721246
Weight	2.38 LB
Packaged Length	5.50 IN
Packaged Width	2.75 IN
Packaged Height	1.50 IN
HTC	8483.30.8055
Country of Origin	Mexico
