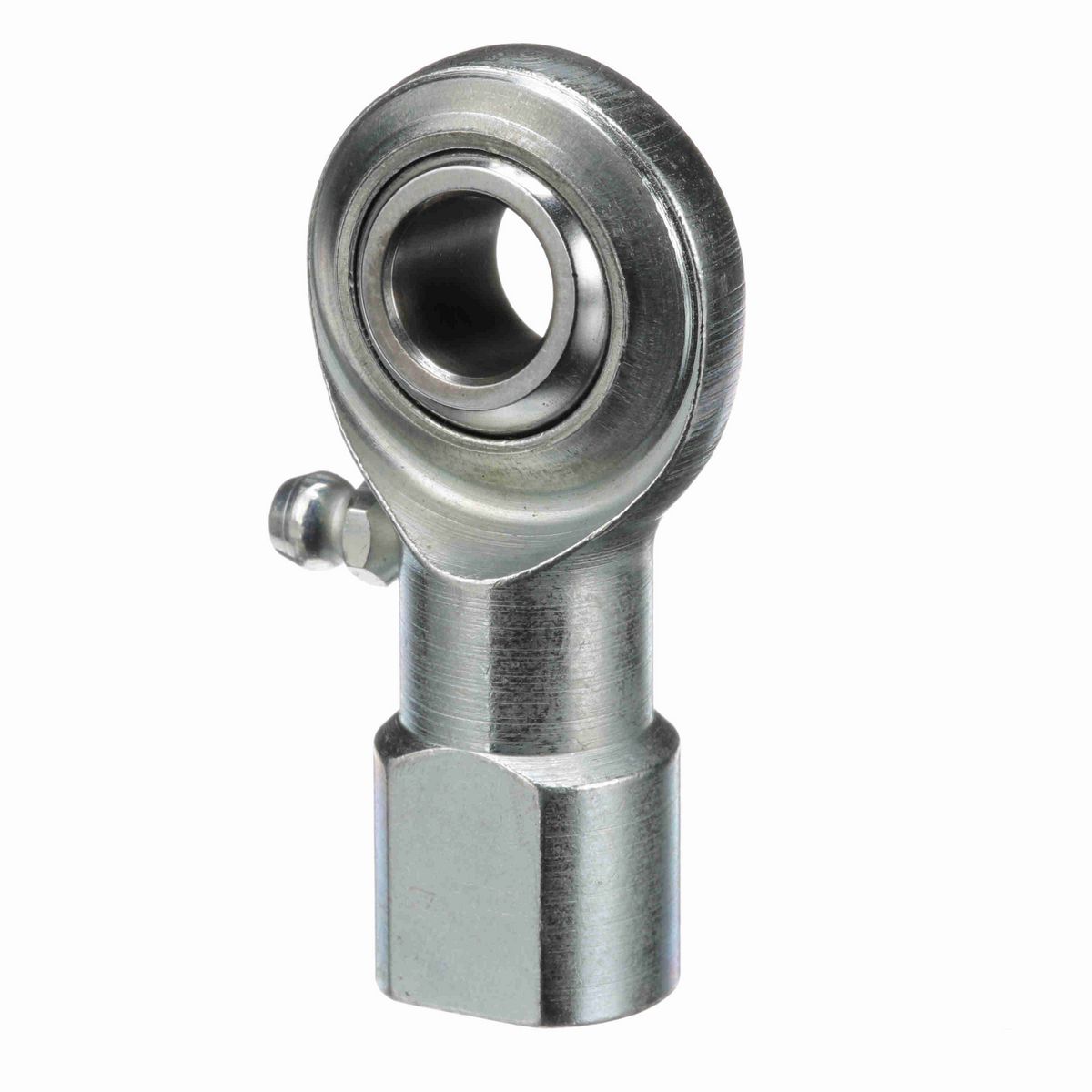

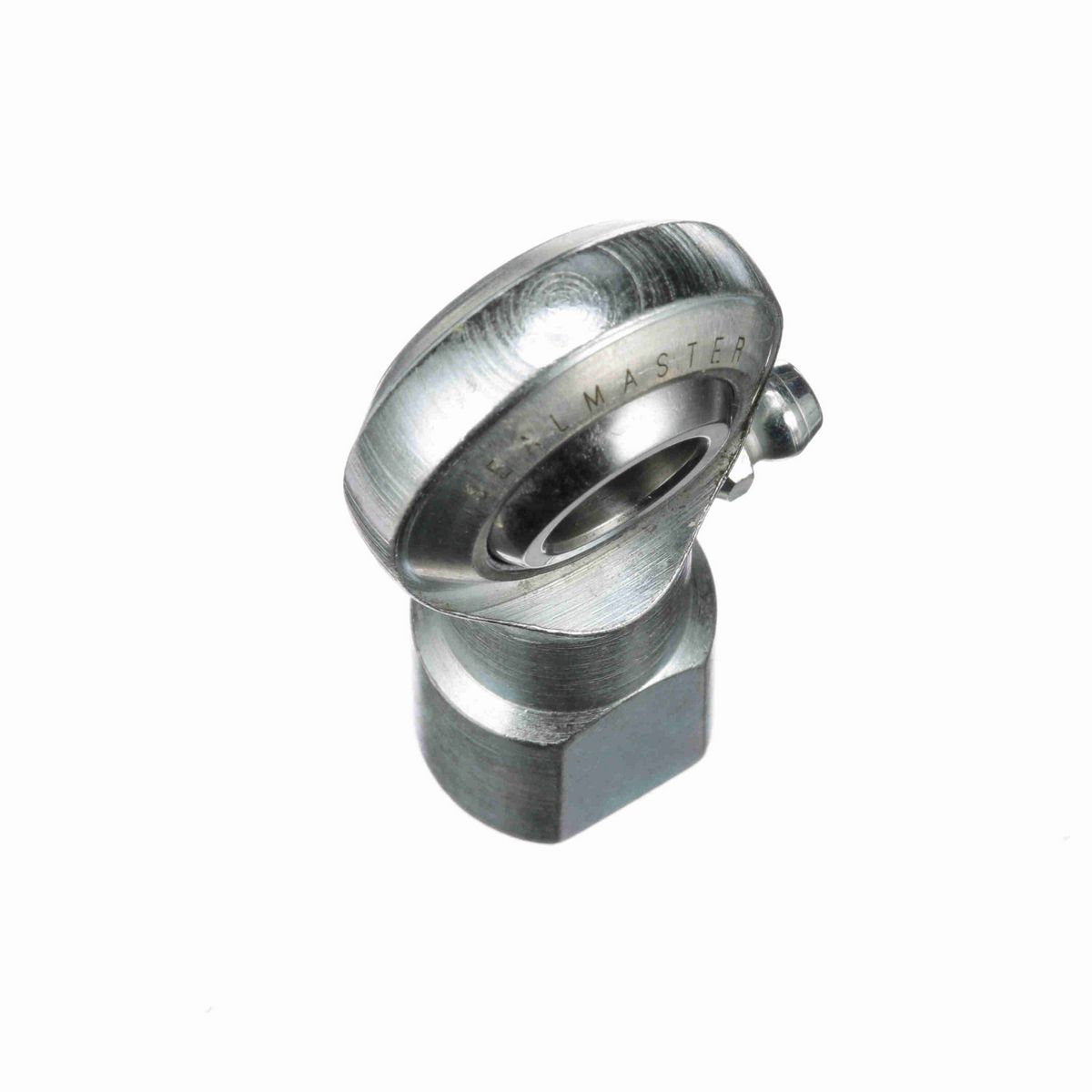

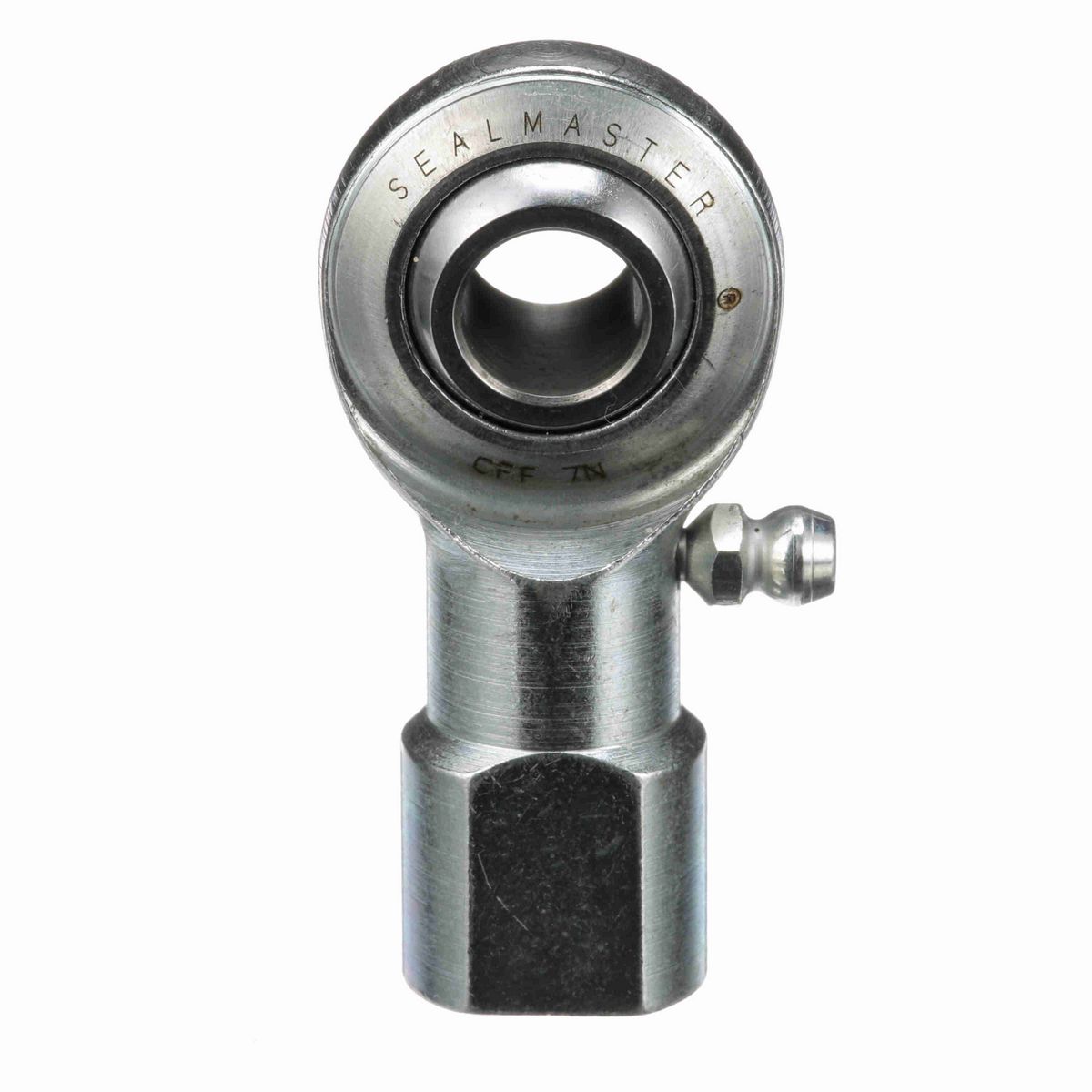

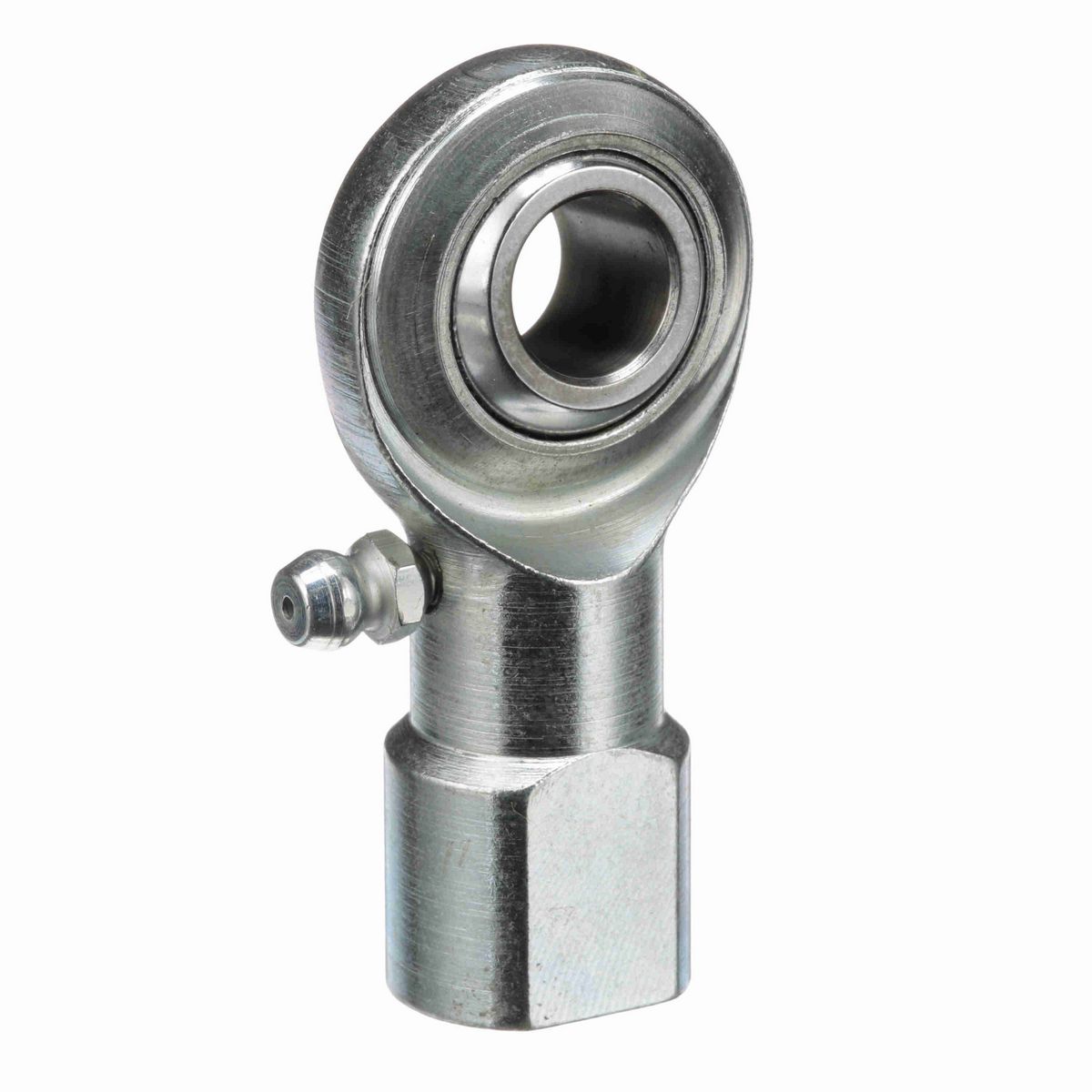

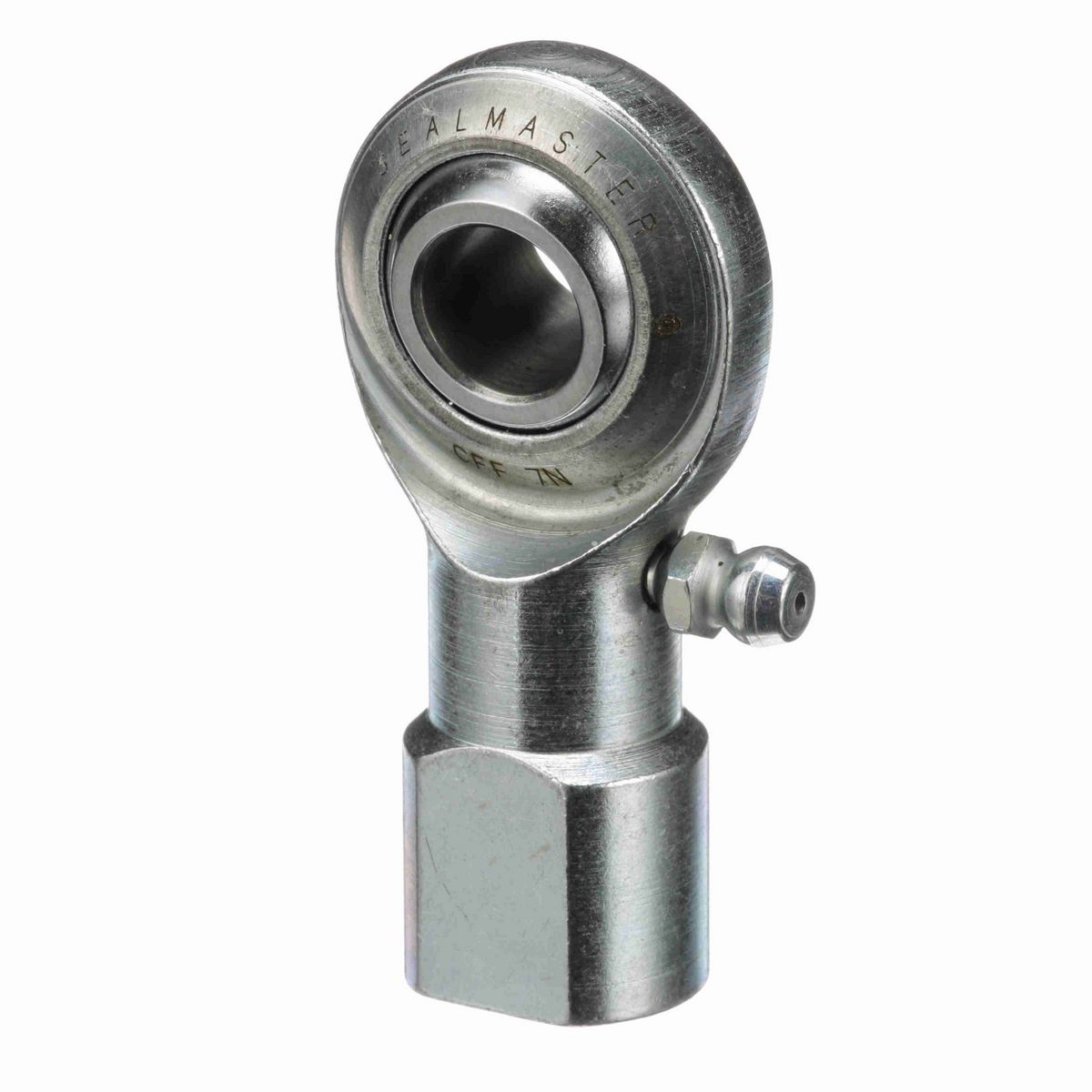

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads

Dimensions

Housing Width (in)	0.437 in
Ball Diameter (in)	0.812 in
Base Diameter (in)	0.75 in
Ball Width (in)	0.562 in
Thread Size	#7/16-20
Ball Flat Diameter (in)	0.586 in
Thread Length (in)	0.906 in
Head Diameter (in)	1.125 in
Length to Center of Ball (in)	1.81 in

Technical Specifications

Product Selection Available SW	Y
Series	Commercial
Axial Load	650
Lubrication Type	Grease
Configuration	Female
Housing Style	Female Rod End
Construction	Two-Piece Rod End with Zerk Fitting
Bearing Type	Rod End
Across Wrench Flats	0.625
Zerk Fitting SW	Y
Misalignment Angle - a Deg. +/-	7
Product Type	CFF
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Thread Type	UNF
Outer Material	Carbon Steel - Corrosion Resistant Plating
Type	Female Rod End
Thread	RH
Max Static Radial Load	6,500
Lubrication	Zerk Fitting
Bore Size (in)	0.4375 in
Class	Commercial
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288724742
Weight	0.18 LB
Packaged Length	2.38 IN
Packaged Width	1.13 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
