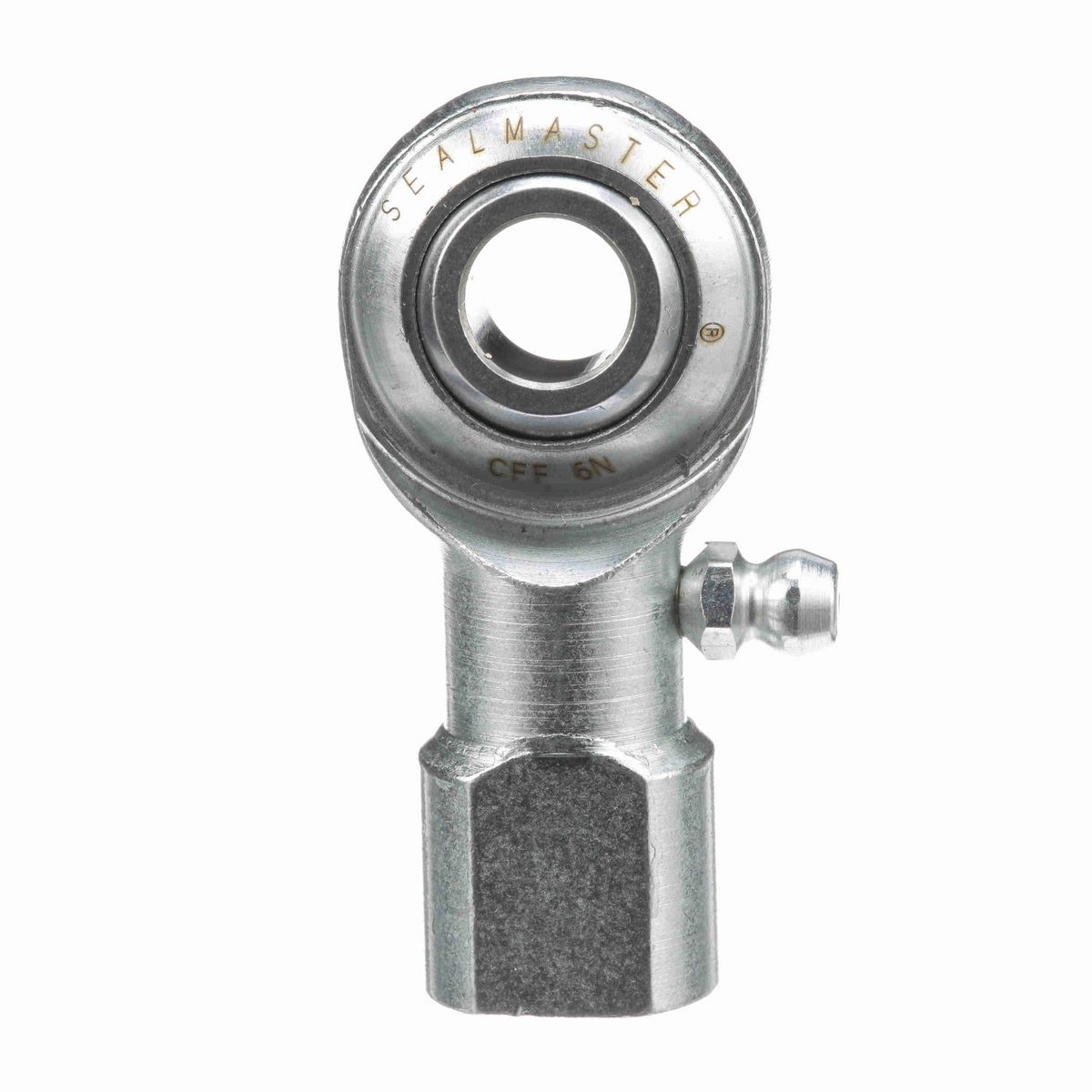

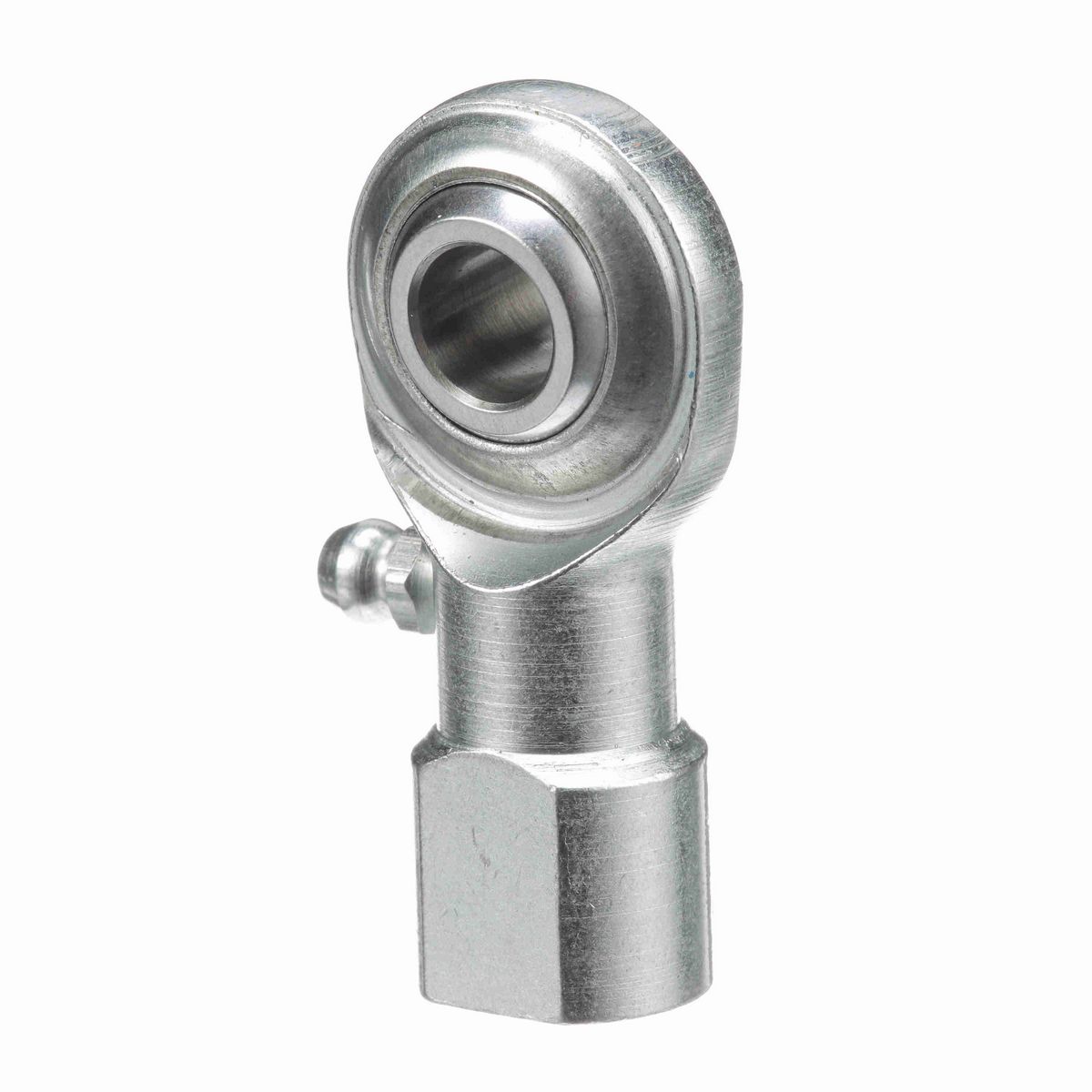

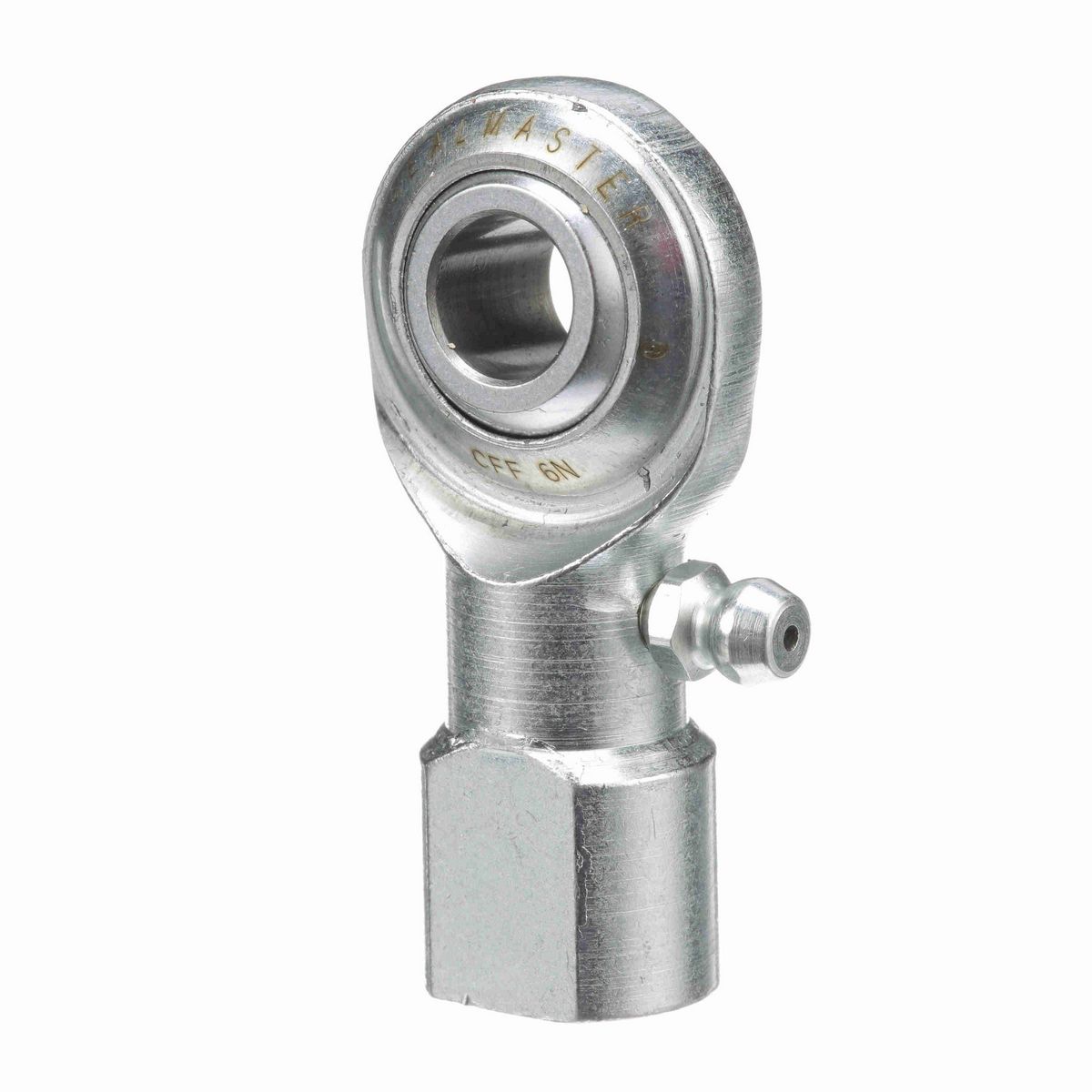

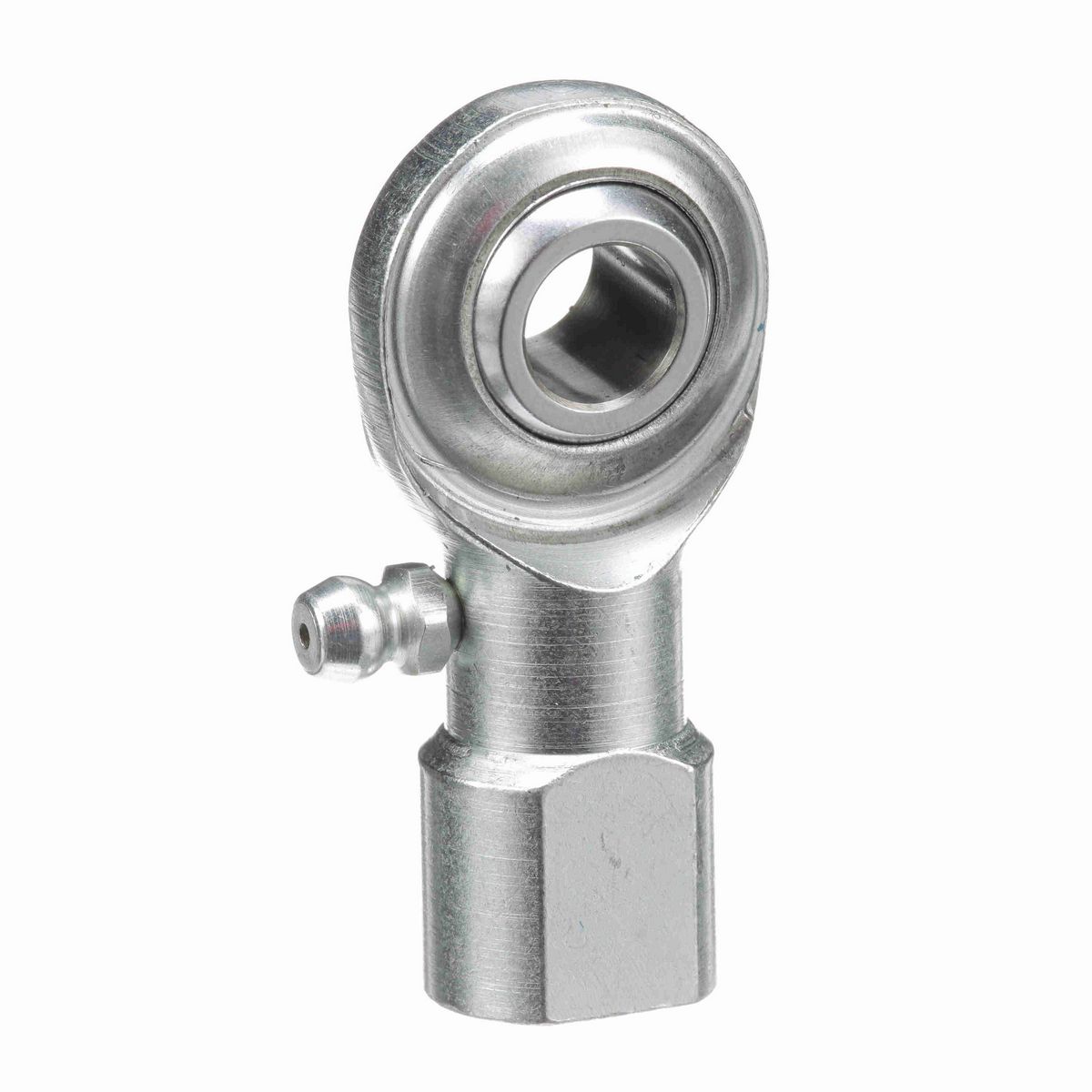

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads

Dimensions

Ball Width (in)	0.5 in
Thread Length (in)	0.781 in
Head Diameter (in)	1 in
Thread Size	#3/8-24
Base Diameter (in)	0.688 in
Ball Flat Diameter (in)	0.517 in
Ball Diameter (in)	0.718 in
Housing Width (in)	0.406 in
Length to Center of Ball (in)	1.63 in

Technical Specifications

Misalignment Angle - a Deg. +/-	6
Series	Commercial
Product Type	CFF
Zerk Fitting SW	Y
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Across Wrench Flats	0.562
Product Selection Available SW	Y
Axial Load	500
Housing Style	Female Rod End
Construction	Two-Piece Rod End with Zerk Fitting
Thread Type	UNF
Configuration	Female
Bearing Type	Rod End
Lubrication Type	Grease
Outer Material	Carbon Steel - Corrosion Resistant Plating
Type	Female Rod End
Thread	RH
Lubrication	Zerk Fitting
Max Static Radial Load	5,000
Bore Size (in)	0.3750 in
Class	Commercial
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288724704
Weight	0.14 LB
Packaged Length	2.13 IN
Packaged Width	1.00 IN
Packaged Height	0.56 IN
HTC	8483.30.8055
Country of Origin	Mexico
