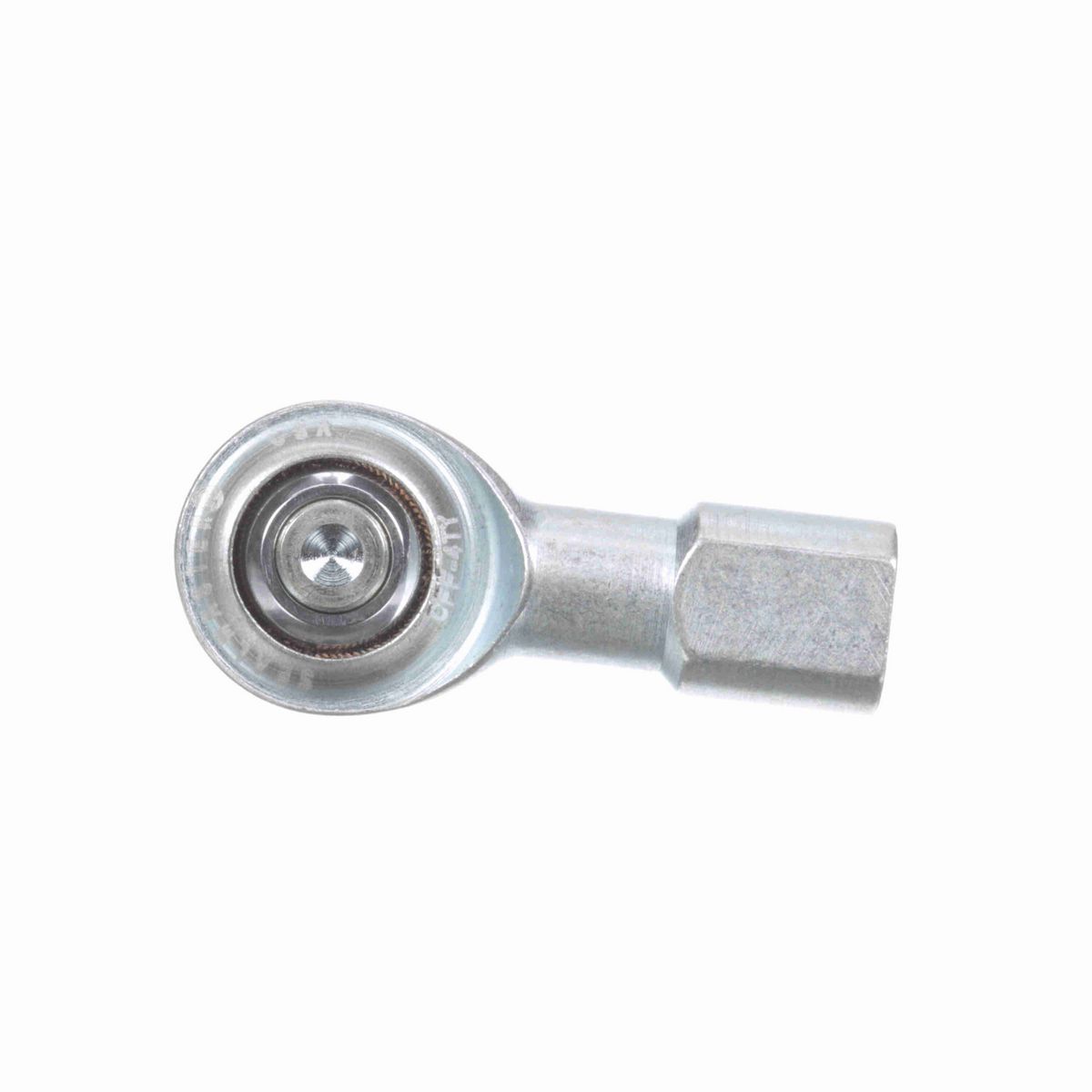

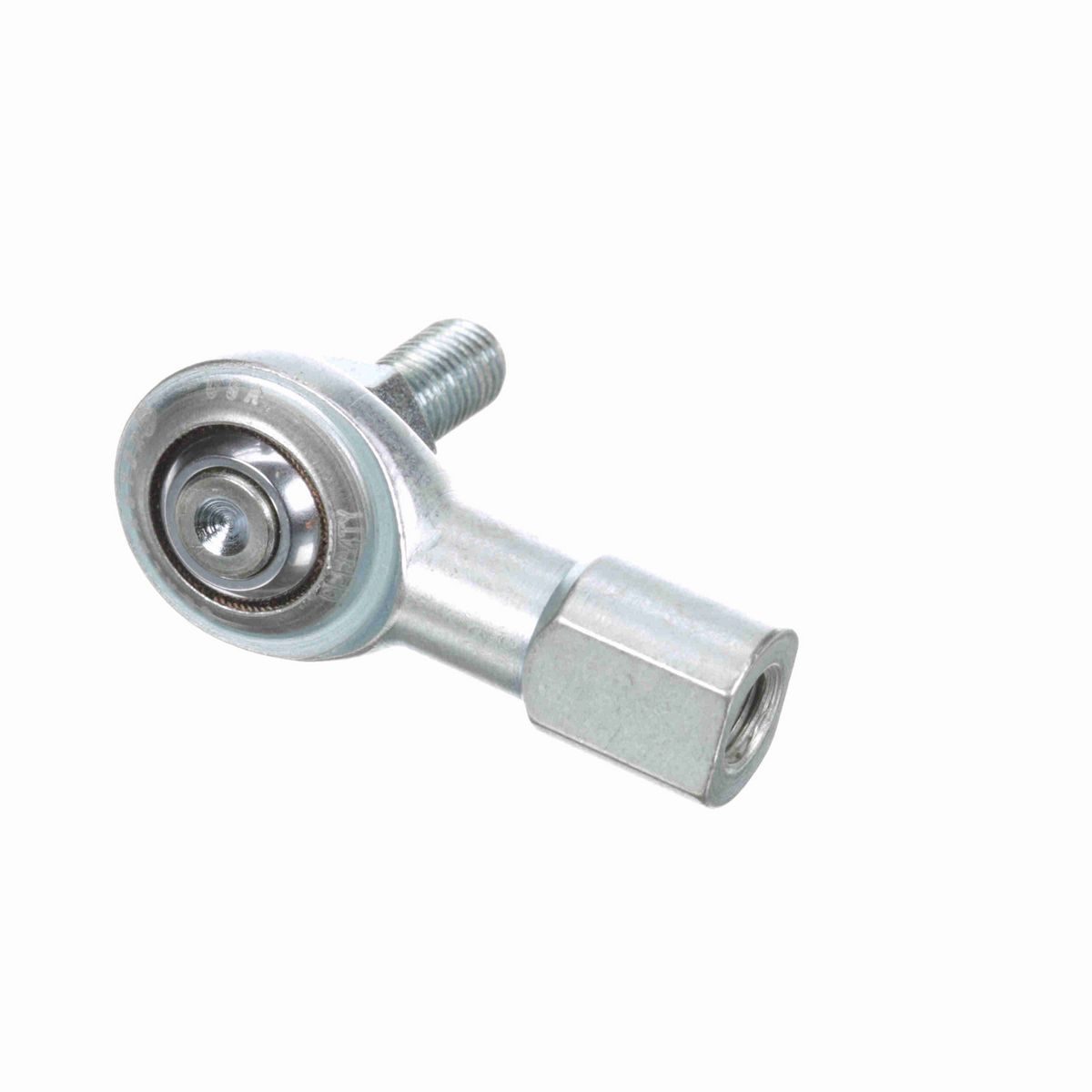

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads
• PTFE Liner
• Y Stud

Dimensions

Ball Flat Diameter (in)	0.331 in
Ball Width (in)	0.375 in
Thread Length (in)	0.656 in
Head Diameter (in)	0.75 in
Base Diameter (in)	0.469 in
Housing Width (in)	0.281 in
Thread Size	#1/4-28
Ball Diameter (in)	0.5 in
Stud Length to Center of Ball (in)	1.05 in
Length to Center of Ball (in)	1.31 in
Stud Length to Hex (in)	0.56 in
Stud Thread Length (in)	0.5 in

Technical Specifications

Housing Style	Female Rod End
Race Material	TEFLON
Bearing Type	Rod End
Axial Load	155
Outer Material	Carbon Steel - Corrosion Resistant Plating
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Configuration	Female
Thread Type	UNF
Across Wrench Flats	0.375
Y Stud Material	Carbon Steel - corrosion resistant plating
Product Selection Available SW	N
Lubrication Type	Self Lubricating
Liner	TEFLON* Fabric Liner
Product Type	CFF
Construction	Two-Piece Rod End with Stud
Series	Precision
Zerk Fitting SW	N
Max Static Radial Load	1,550
Lubrication	No Zerk Fitting
Misalignment Angle B3	23.7
Type	Female Rod End
Thread	RH
Bore Size (in)	0.2500 in
Class	Precision
Lubrication Method	Self Lubricating
Maximum Ambient Temperature (F)	250 °F
Ability to Relubricate	None

General Specifications

UPC	662288721376
Weight	0.08 LB
Packaged Length	1.69 IN
Packaged Width	0.75 IN
Packaged Height	1.24 IN
HTC	8483.30.8055
Country of Origin	Mexico
