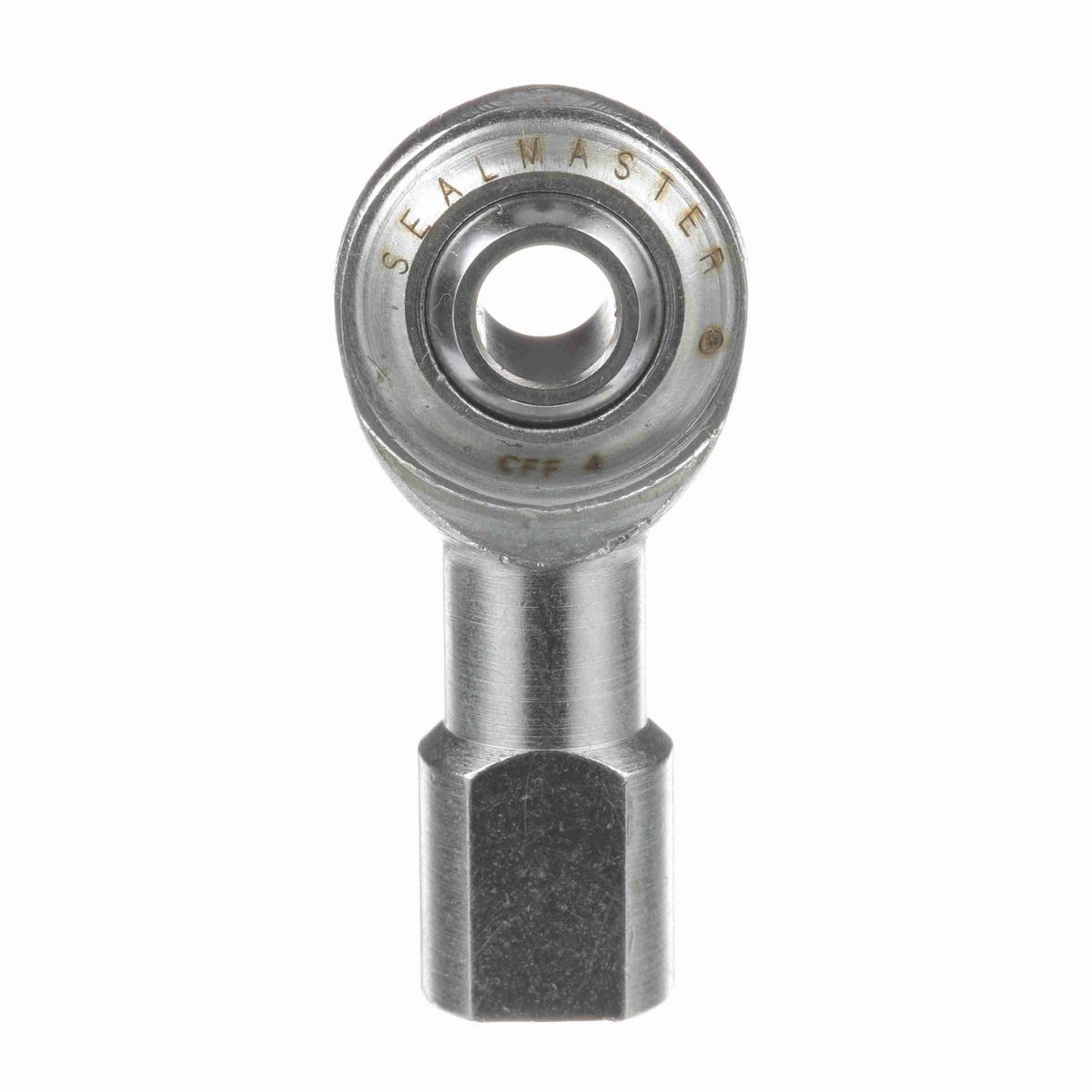

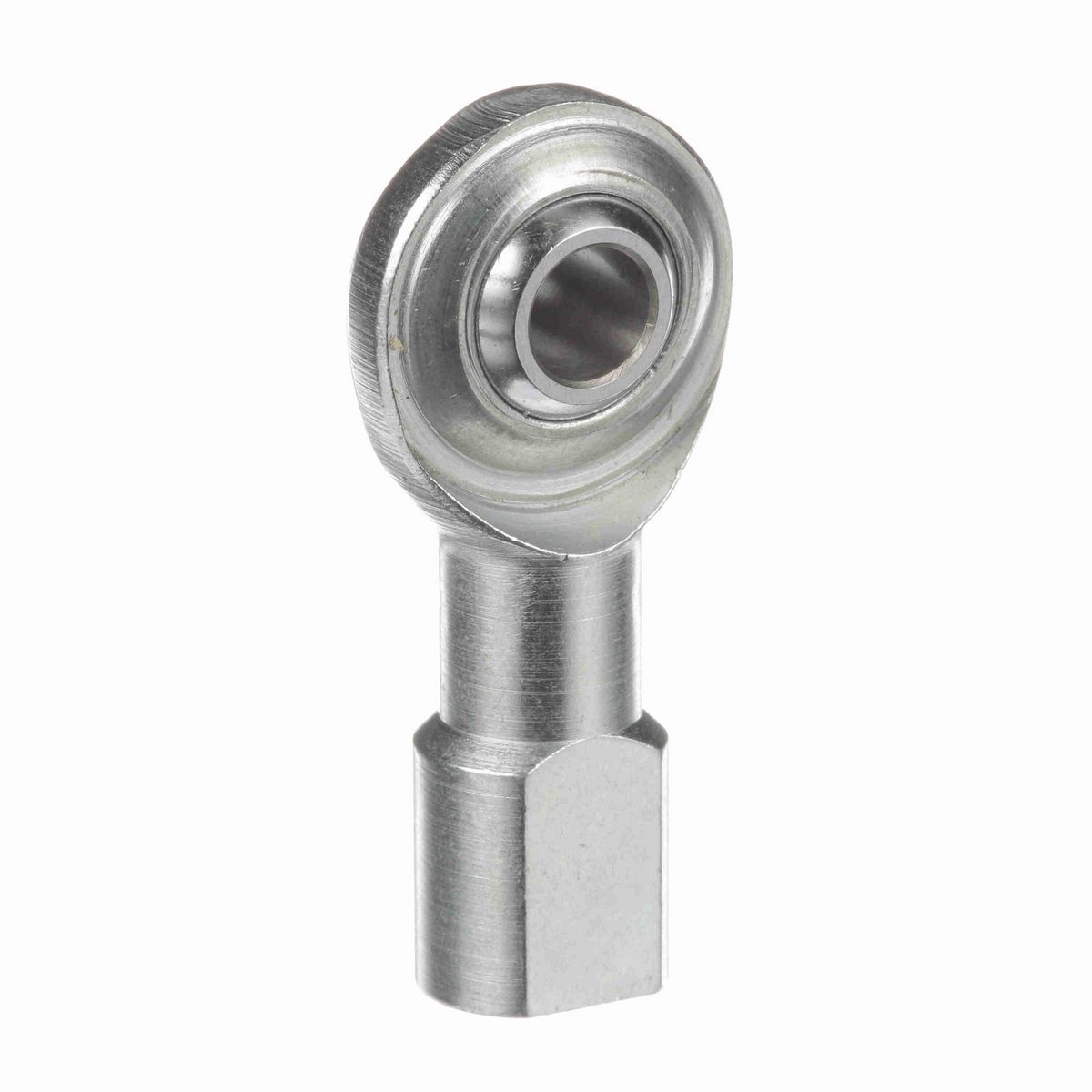

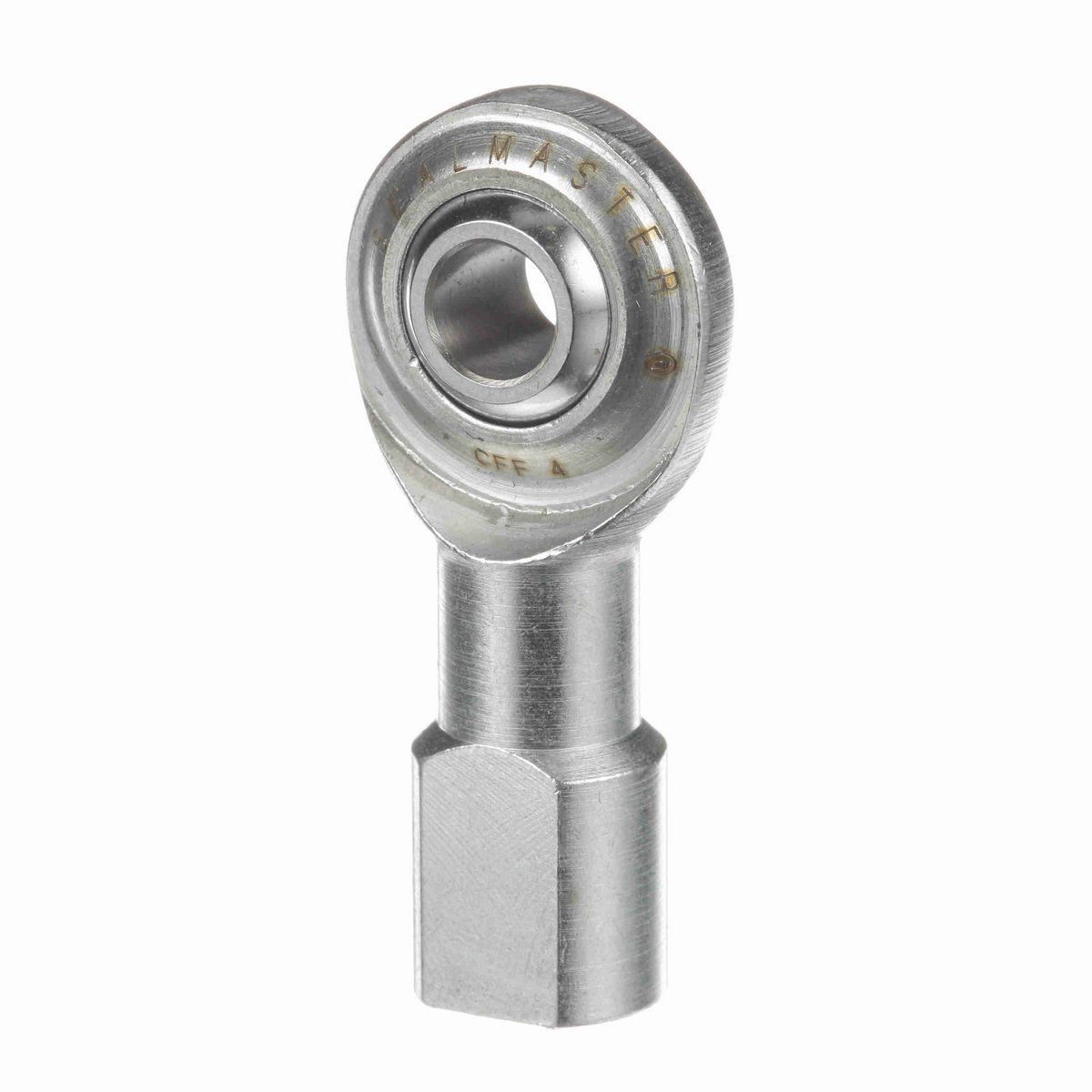

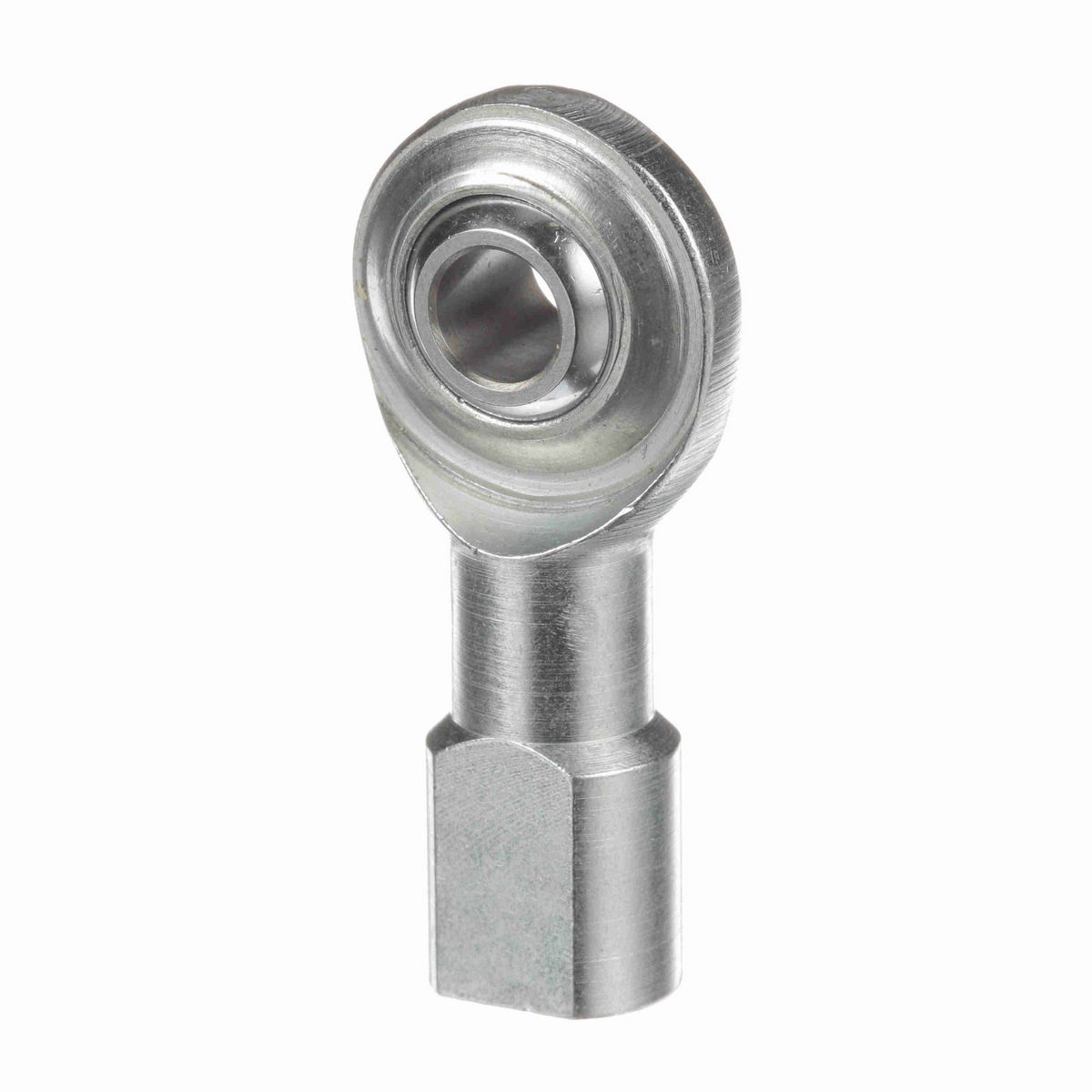

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads

Dimensions

Thread Size	#1/4-28
Ball Width (in)	0.375 in
Thread Length (in)	0.656 in
Ball Flat Diameter (in)	0.331 in
Head Diameter (in)	0.75 in
Housing Width (in)	0.281 in
Ball Diameter (in)	0.5 in
Base Diameter (in)	0.469 in
Length to Center of Ball (in)	1.31 in

Technical Specifications

Misalignment Angle - a Deg. +/-	8
Construction	Two-Piece Rod End
Series	Commercial
Bearing Type	Rod End
Configuration	Female
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Axial Load	320
Outer Material	Carbon Steel - Corrosion Resistant Plating
Across Wrench Flats	0.375
Zerk Fitting SW	N
Thread Type	UNF
Lubrication Type	Grease
Housing Style	Female Rod End
Product Selection Available SW	Y
Product Type	CFF
Thread	RH
Lubrication	No Zerk Fitting
Type	Female Rod End
Max Static Radial Load	3,200
Bore Size (in)	0.2500 in
Class	Commercial
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288724612
Weight	0.06 LB
Packaged Length	1.69 IN
Packaged Width	0.75 IN
Packaged Height	0.38 IN
HTC	8483.30.8055
Country of Origin	Mexico
