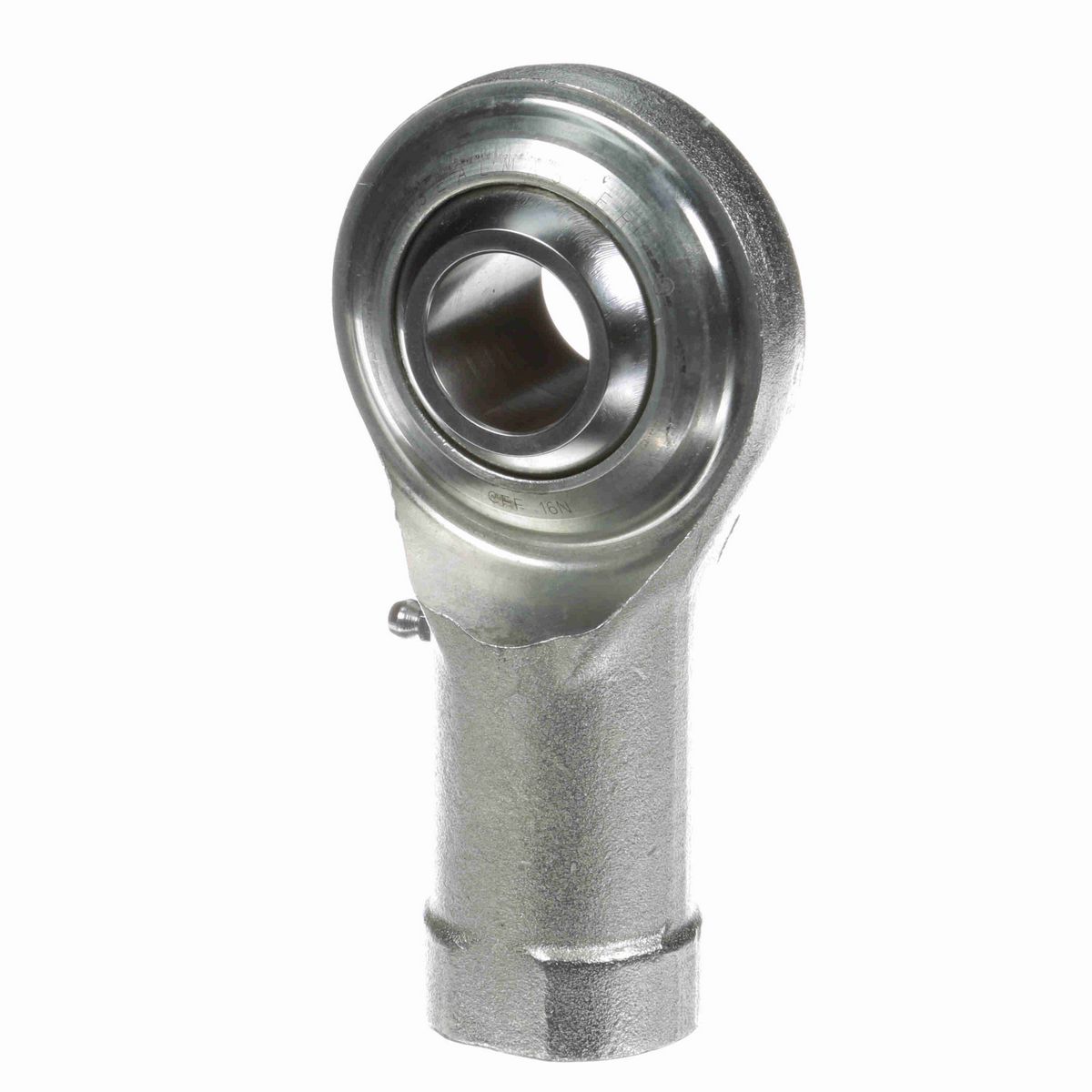

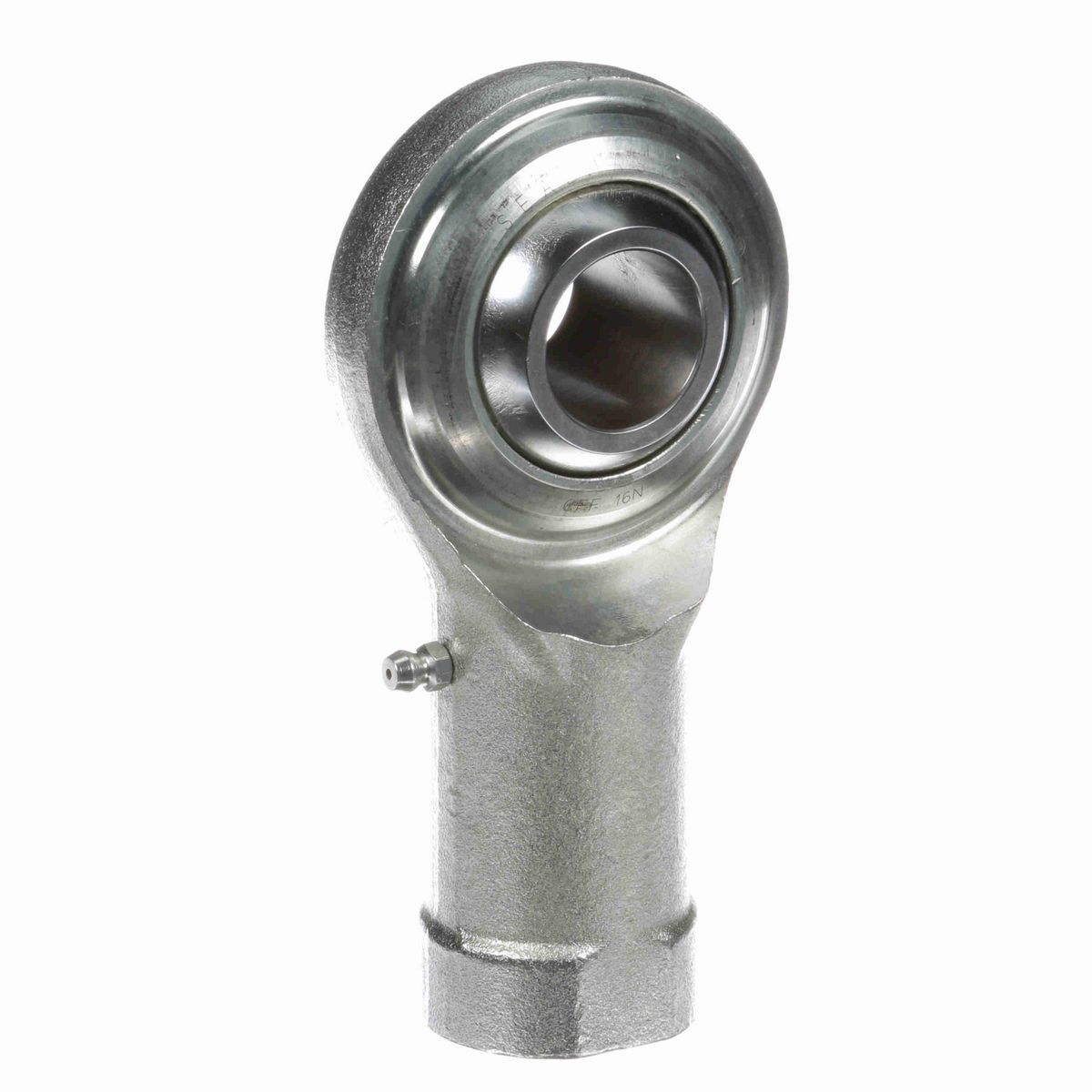

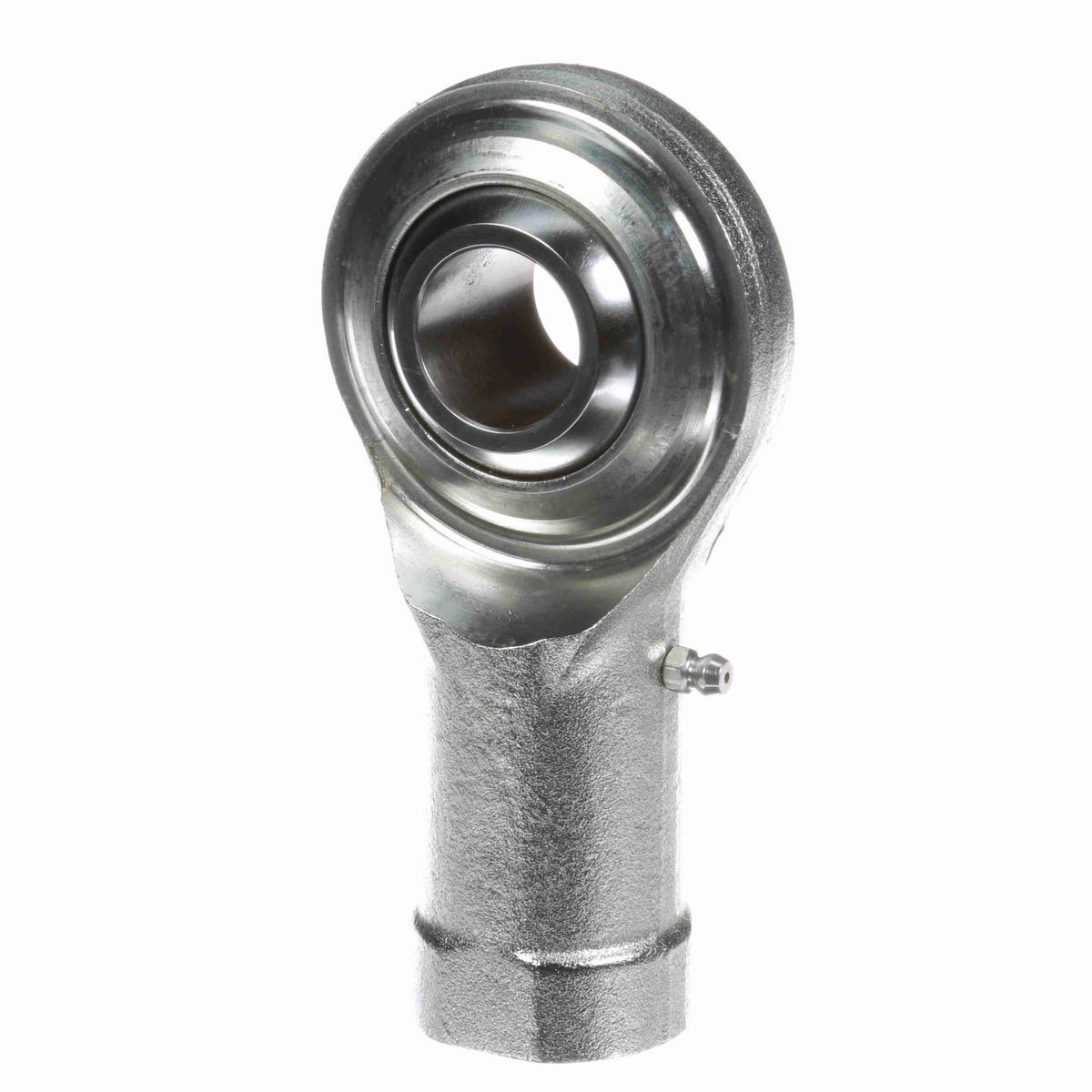

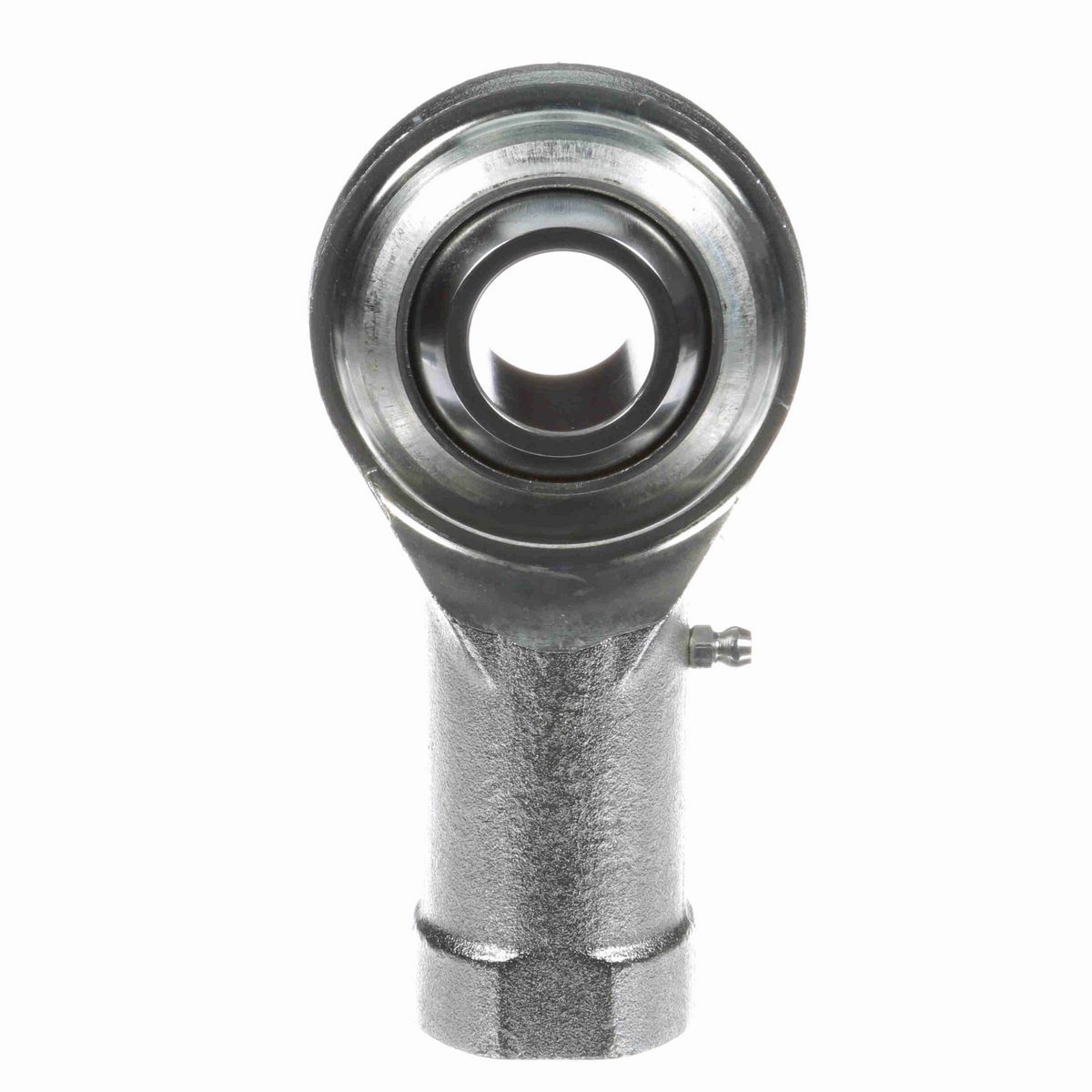

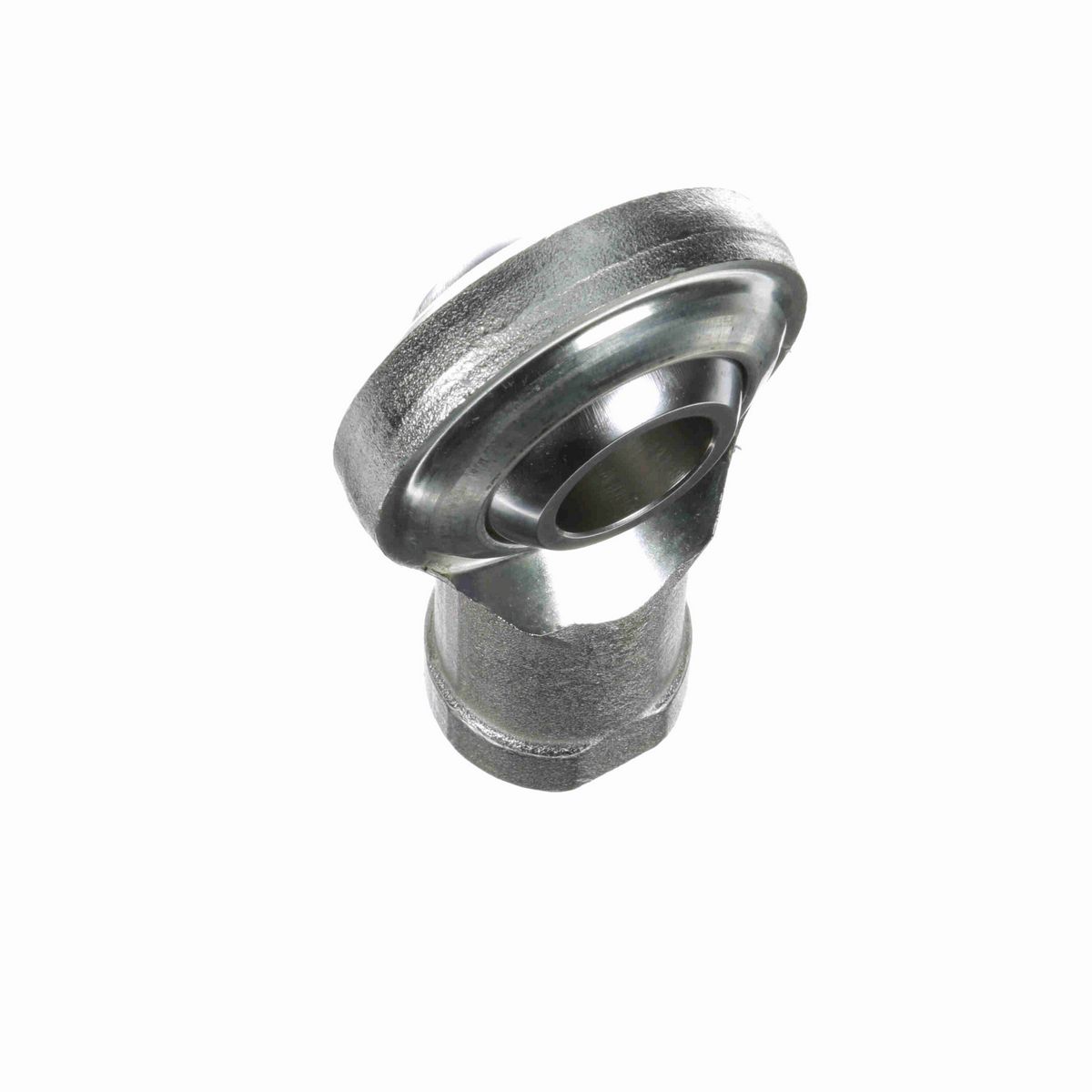

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads

Dimensions

Ball Flat Diameter (in)	1.269 in
Base Diameter (in)	1.688 in
Ball Width (in)	1.375 in
Ball Diameter (in)	1.875 in
Thread Size	#1 1/4-12
Head Diameter (in)	2.75 in
Housing Width (in)	1 in
Thread Length (in)	2 in
Length to Center of Ball (in)	4.13 in

Technical Specifications

Product Selection Available SW	Y
Zerk Fitting SW	Y
Configuration	Female
Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	8.5
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Across Wrench Flats	1.5
Lubrication Type	Grease
Thread Type	UNF
Housing Style	Female Rod End
Series	Commercial
Axial Load	2,520
Construction	Two-Piece Rod End with Zerk Fitting
Product Type	CFF
Bearing Type	Rod End
Thread	RH
Max Static Radial Load	25,200
Type	Female Rod End
Lubrication	Zerk Fitting
Class	Commercial
Bore Size (in)	1 in
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288729181
Weight	1.97 LB
Packaged Length	5.50 IN
Packaged Width	2.75 IN
Packaged Height	1.50 IN
HTC	8483.30.8055
Country of Origin	Mexico
