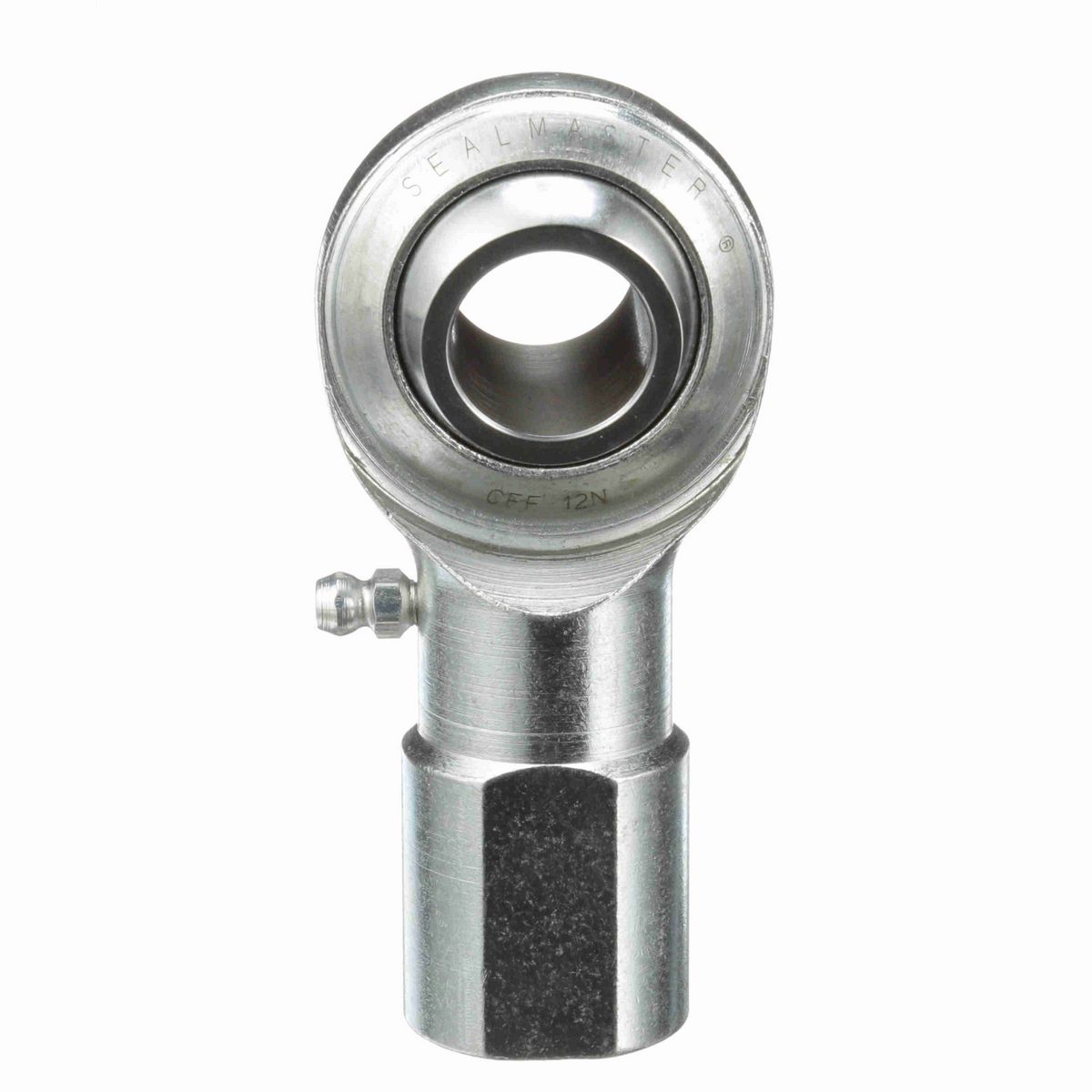

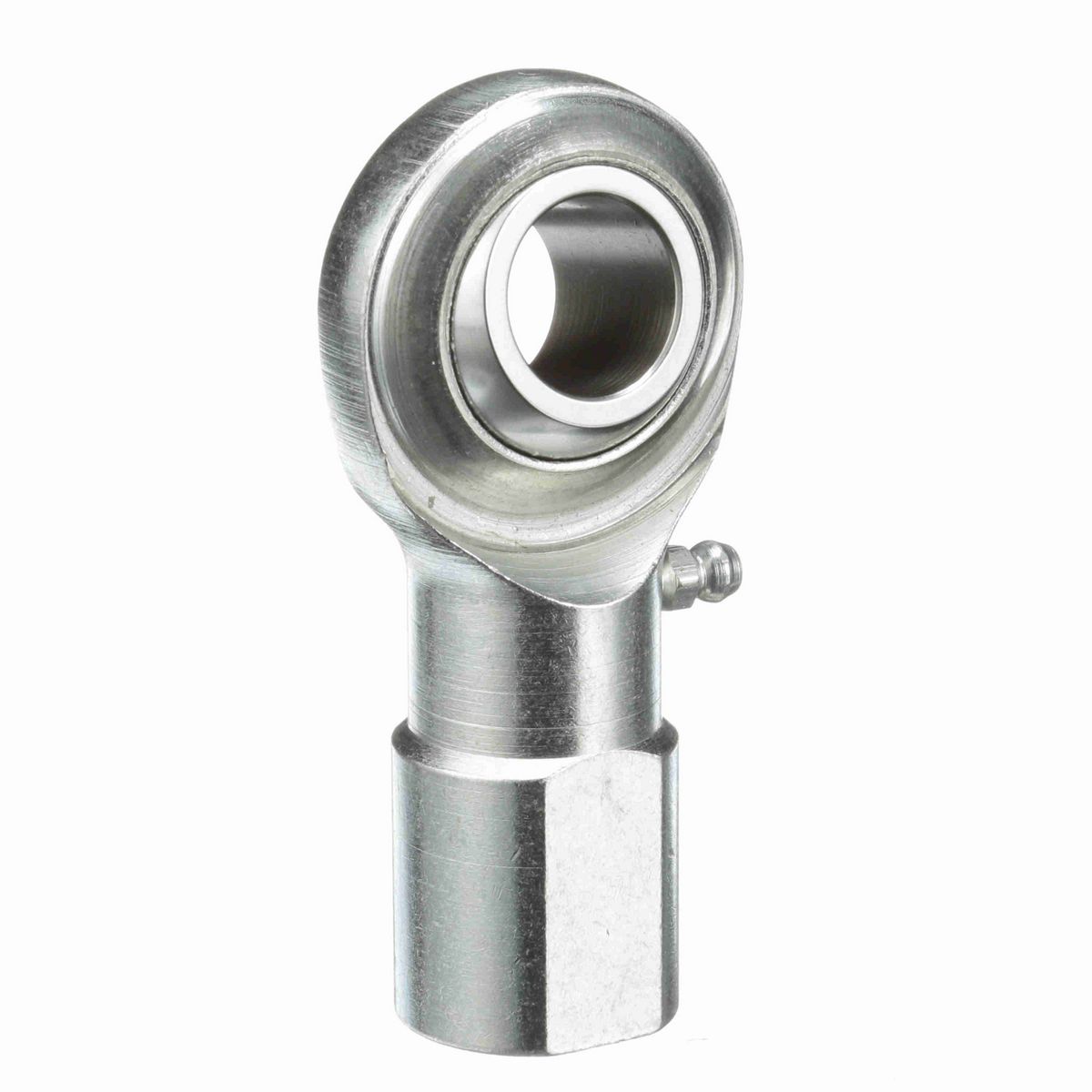

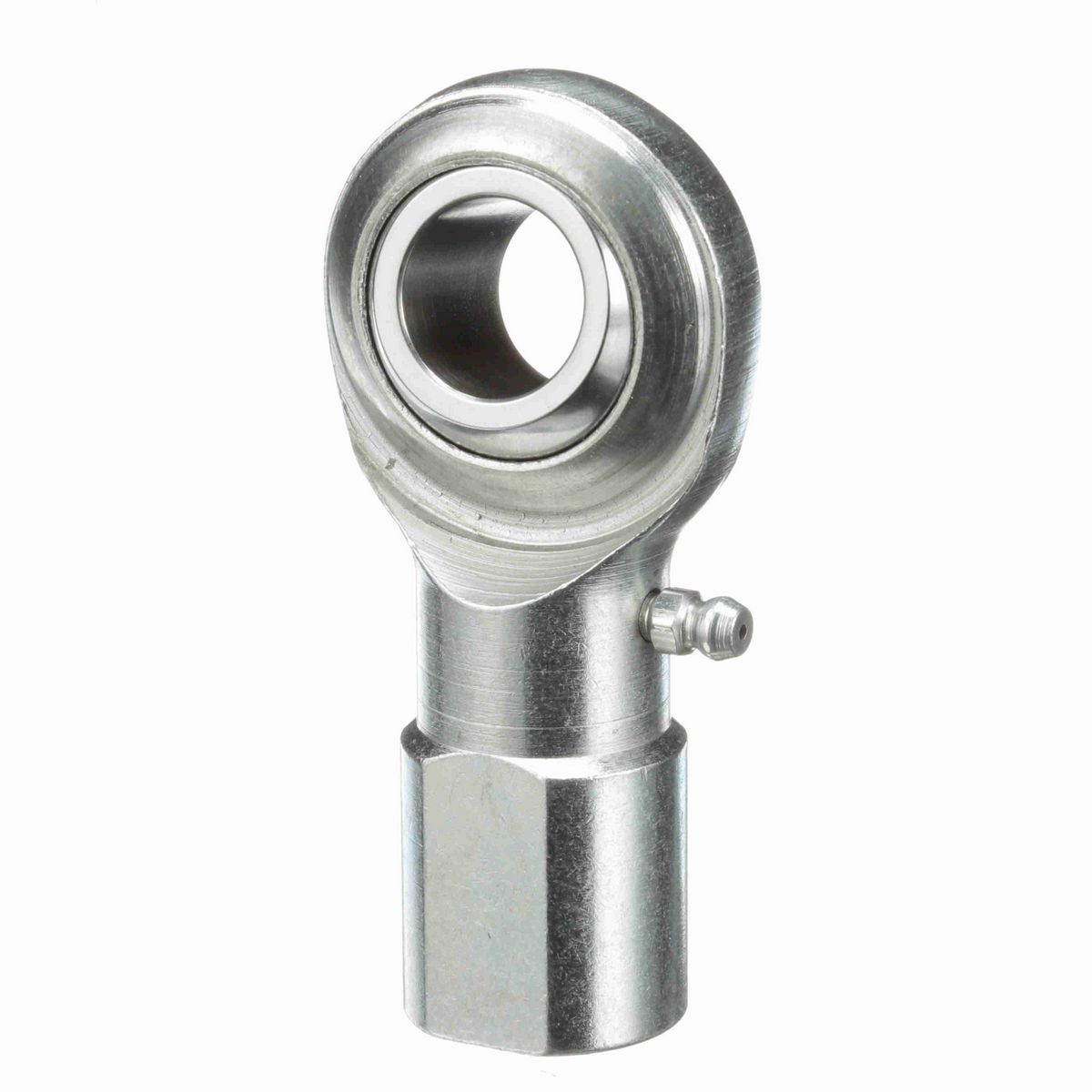

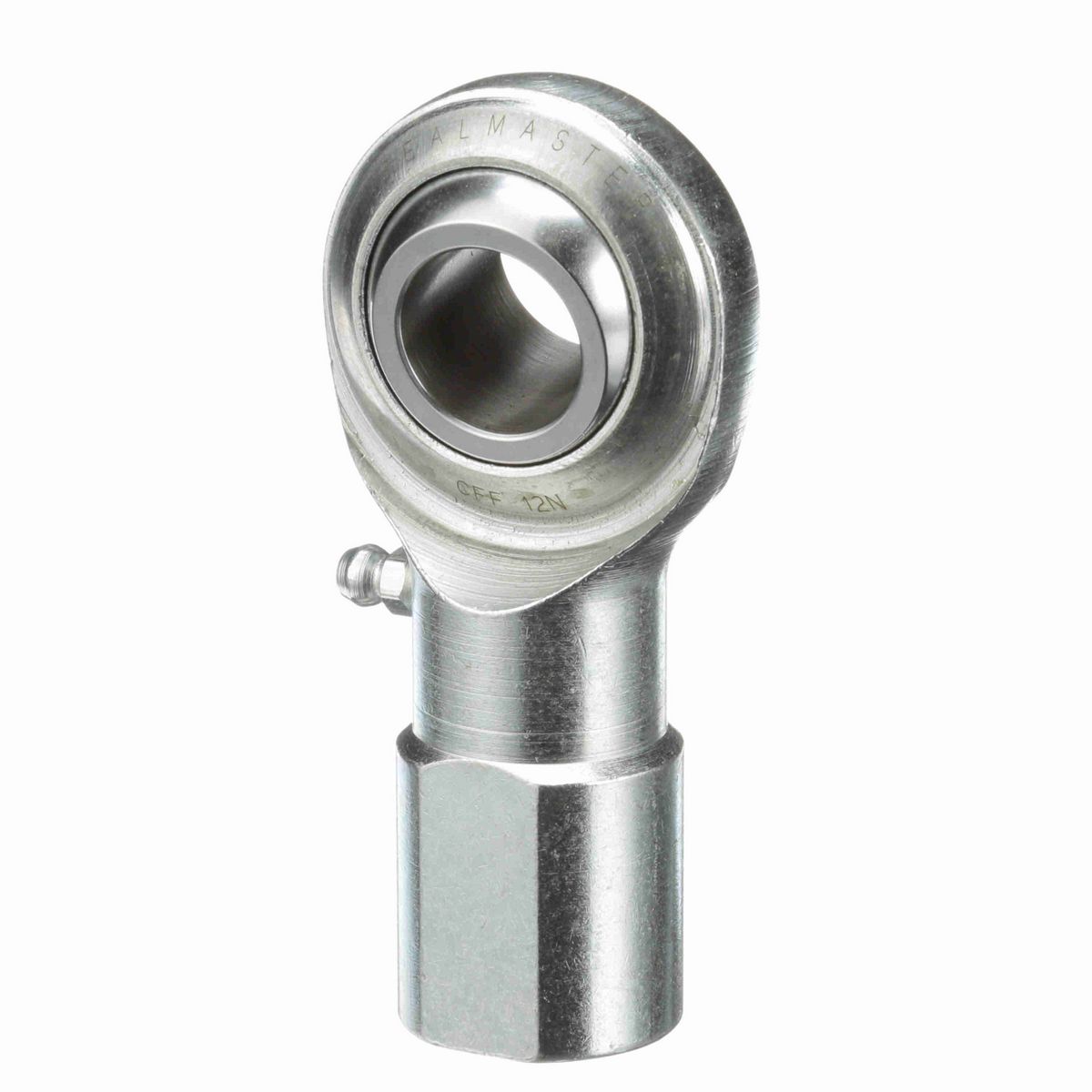

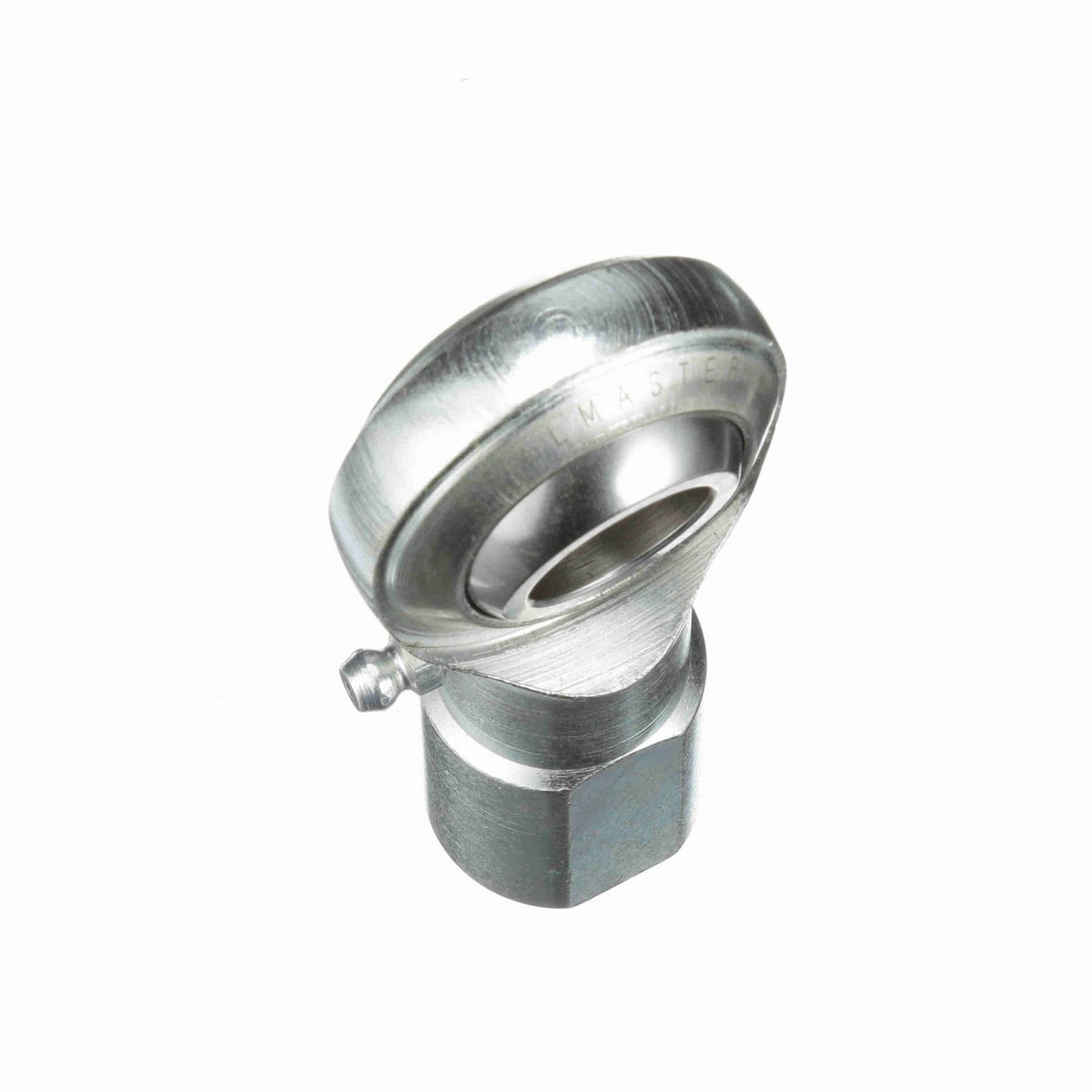

• Two-Piece Commercial Construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Female External Threads

Dimensions

Thread Size	#3/4-16
Ball Flat Diameter (in)	0.978 in
Base Diameter (in)	1.125 in
Housing Width (in)	0.687 in
Ball Diameter (in)	1.312 in
Head Diameter (in)	1.75 in
Thread Length (in)	1.531 in
Ball Width (in)	0.875 in
Length to Center of Ball (in)	2.88 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Configuration	Female
Product Type	CFF
Bearing Type	Rod End
Thread Type	UNF
Outer Material	Carbon Steel - Corrosion Resistant Plating
Misalignment Angle - a Deg. +/-	7
Series	Commercial
Lubrication Type	Grease
Housing Style	Female Rod End
Zerk Fitting SW	Y
Axial Load	1,400
Construction	Two-Piece Rod End with Zerk Fitting
Across Wrench Flats	1
Product Selection Available SW	Y
Lubrication	Zerk Fitting
Max Static Radial Load	14,000
Thread	RH
Type	Female Rod End
Class	Commercial
Bore Size (in)	0.7500 in
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288724865
Weight	0.64 LB
Packaged Length	4.85 IN
Packaged Width	2.20 IN
Packaged Height	1.50 IN
HTC	8483.30.8055
Country of Origin	Mexico
