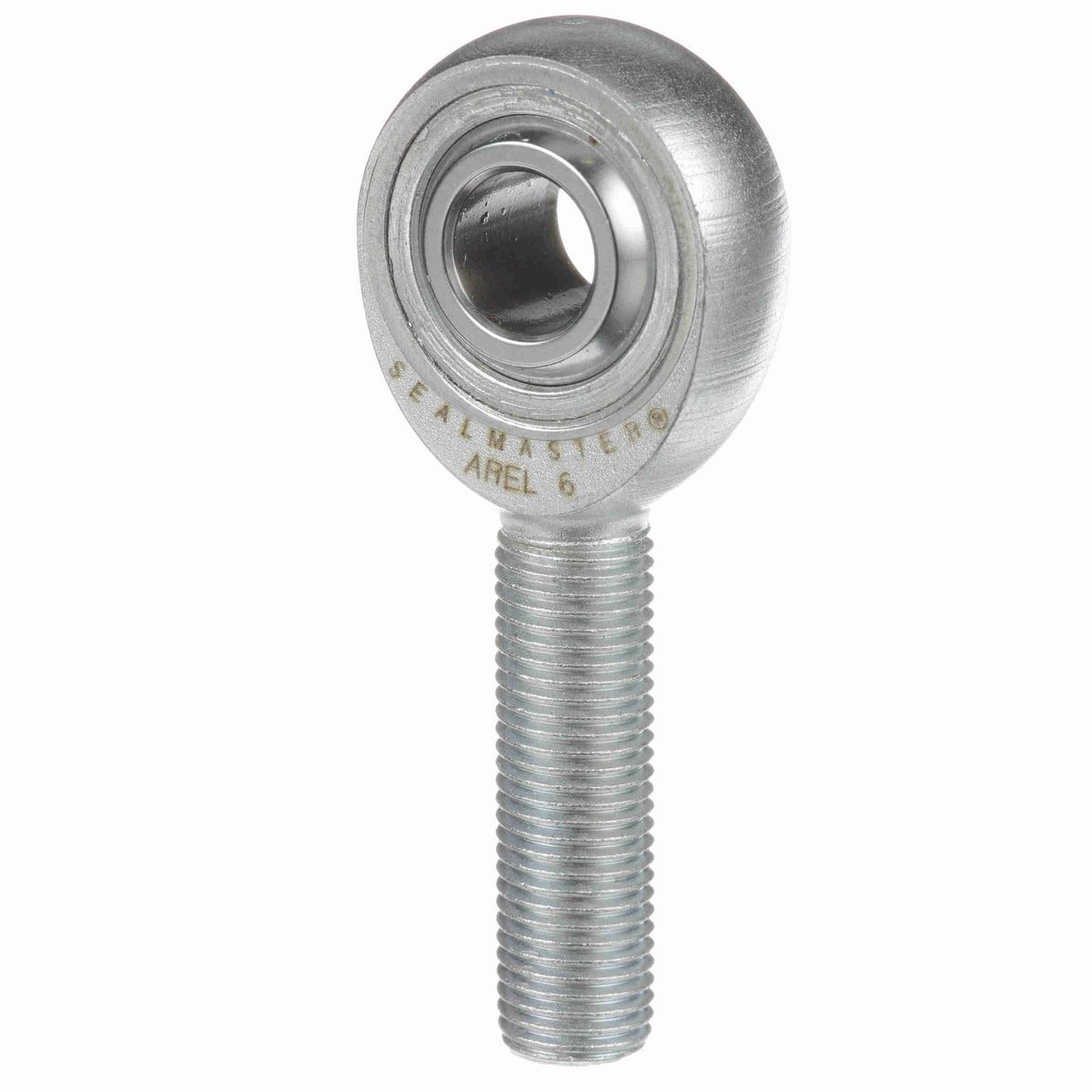

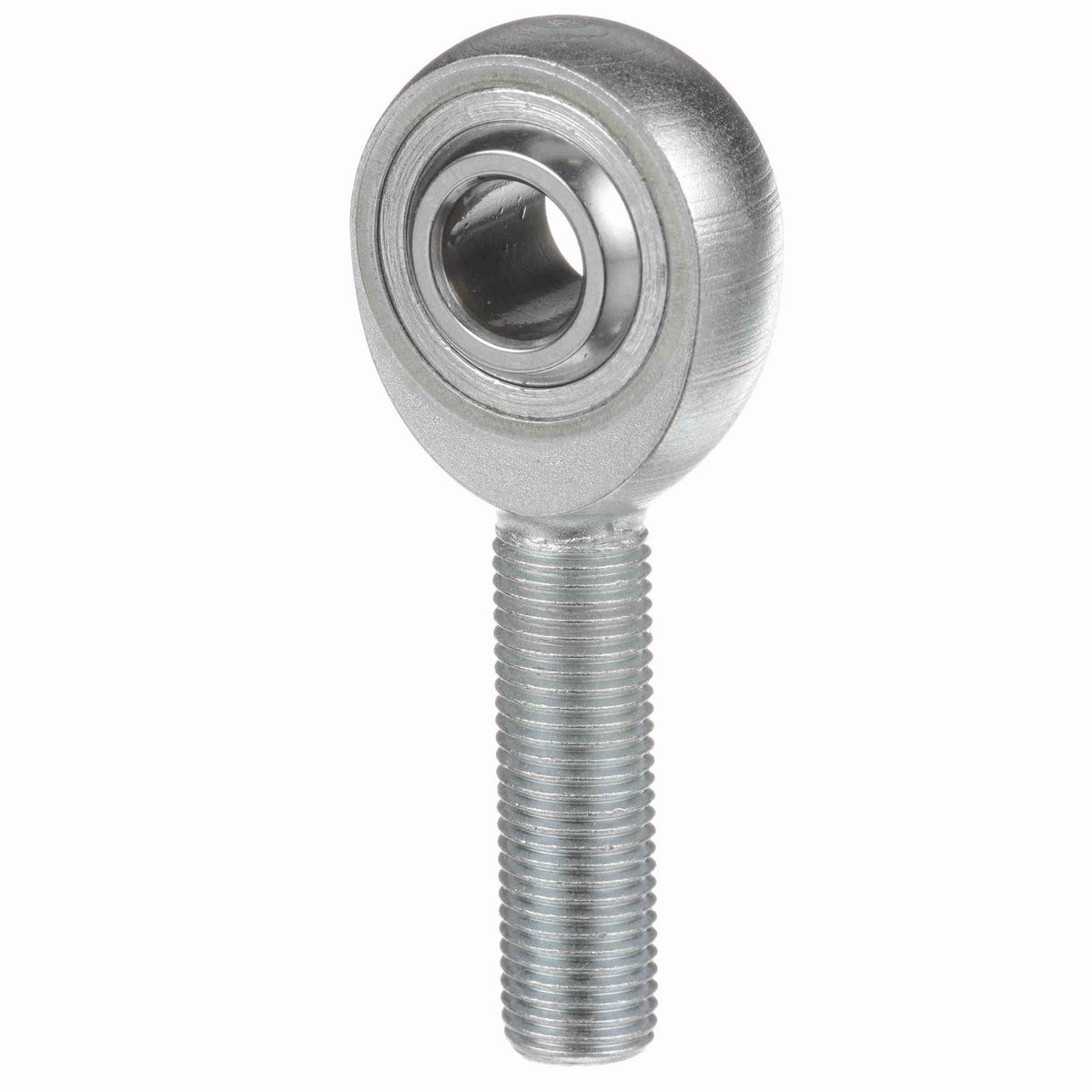

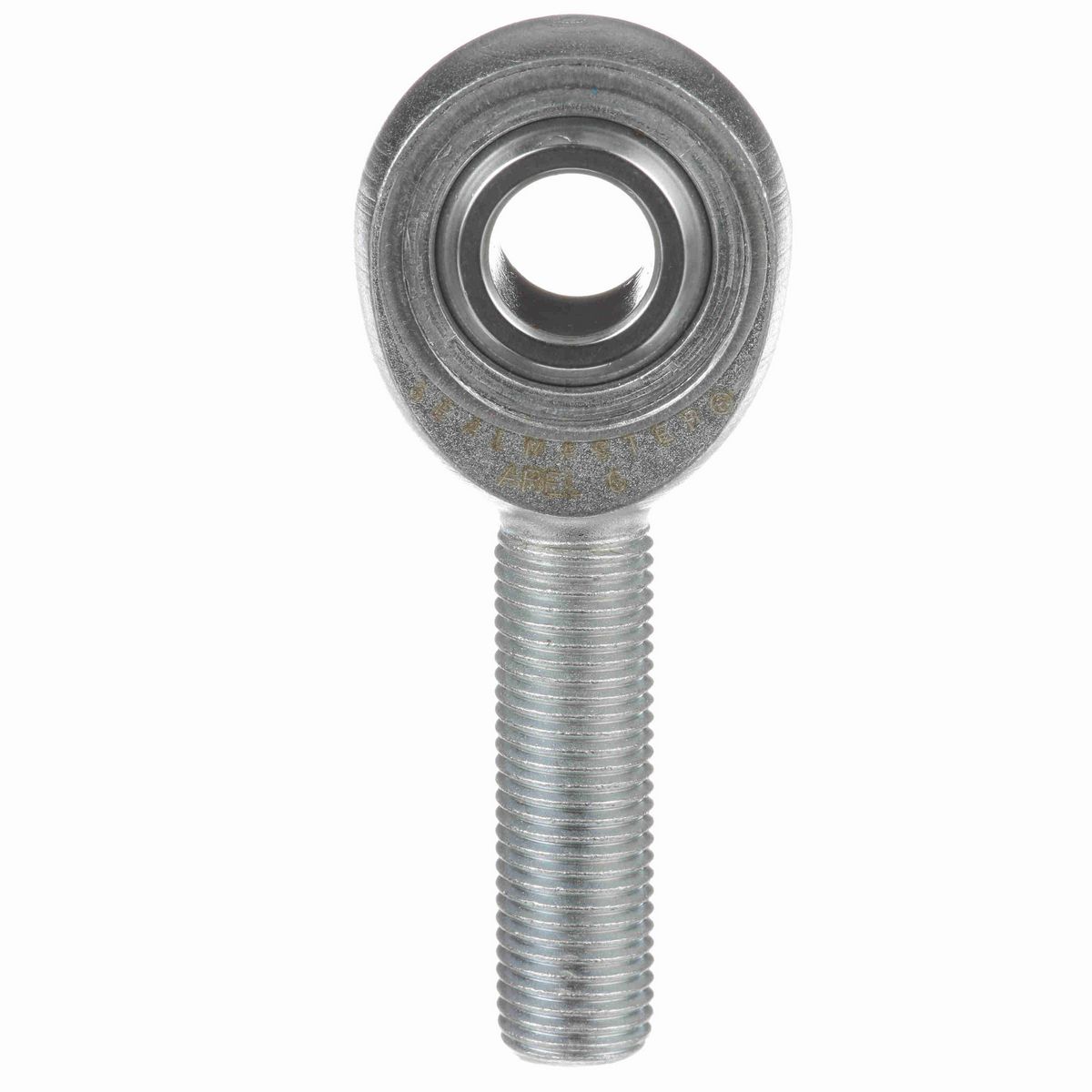

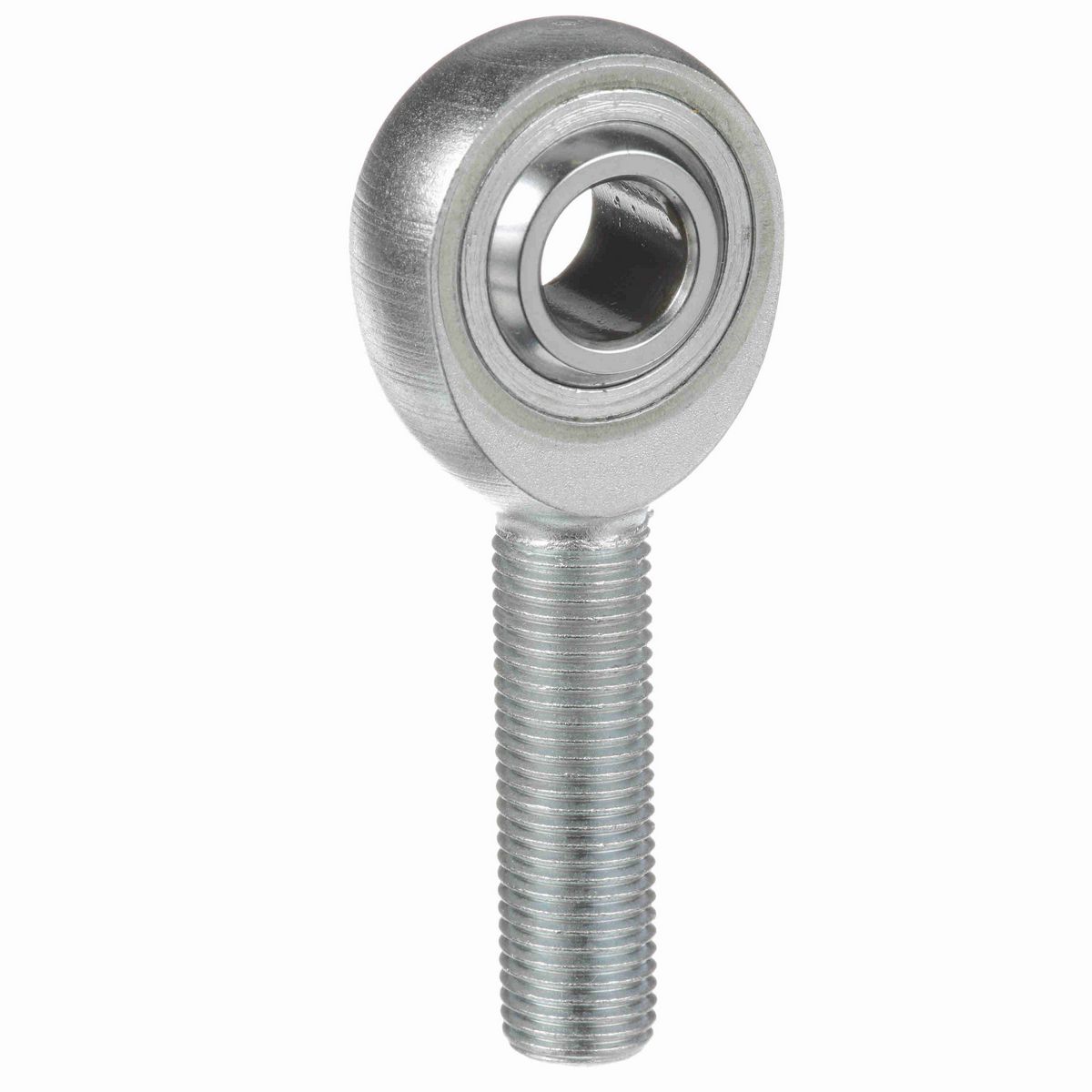

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Length (in)	1.219 in
Ball Width (in)	0.5 in
Housing Width (in)	0.406 in
Head Diameter (in)	1 in
Ball Diameter (in)	0.718 in
Thread Size	#3/8-24
Ball Flat Diameter (in)	0.517 in
Length to Center of Ball (in)	1.94 in

Technical Specifications

Series	Precision Extra Capacity
Lubrication Type	Grease
Product Type	ARE
Construction	Three-Piece Rod End
Bearing Type	Rod End
Axial Load	958
Housing Style	Male Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Configuration	Male
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Race Material	Carbon Steel - corrosion resistant plating
Zerk Fitting SW	N
Misalignment Angle - a Deg. +/-	6
Thread Type	UNF
Product Selection Available SW	Y
Type	Male Rod End
Thread	LH
Max Static Radial Load	9,580
Lubrication	No Zerk Fitting
Bore Size (in)	0.3750 in
Class	Precision
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719359
Weight	0.13 LB
Packaged Length	2.55 IN
Packaged Width	2.45 IN
Packaged Height	0.55 IN
HTC	8483.30.8055
Country of Origin	Mexico
