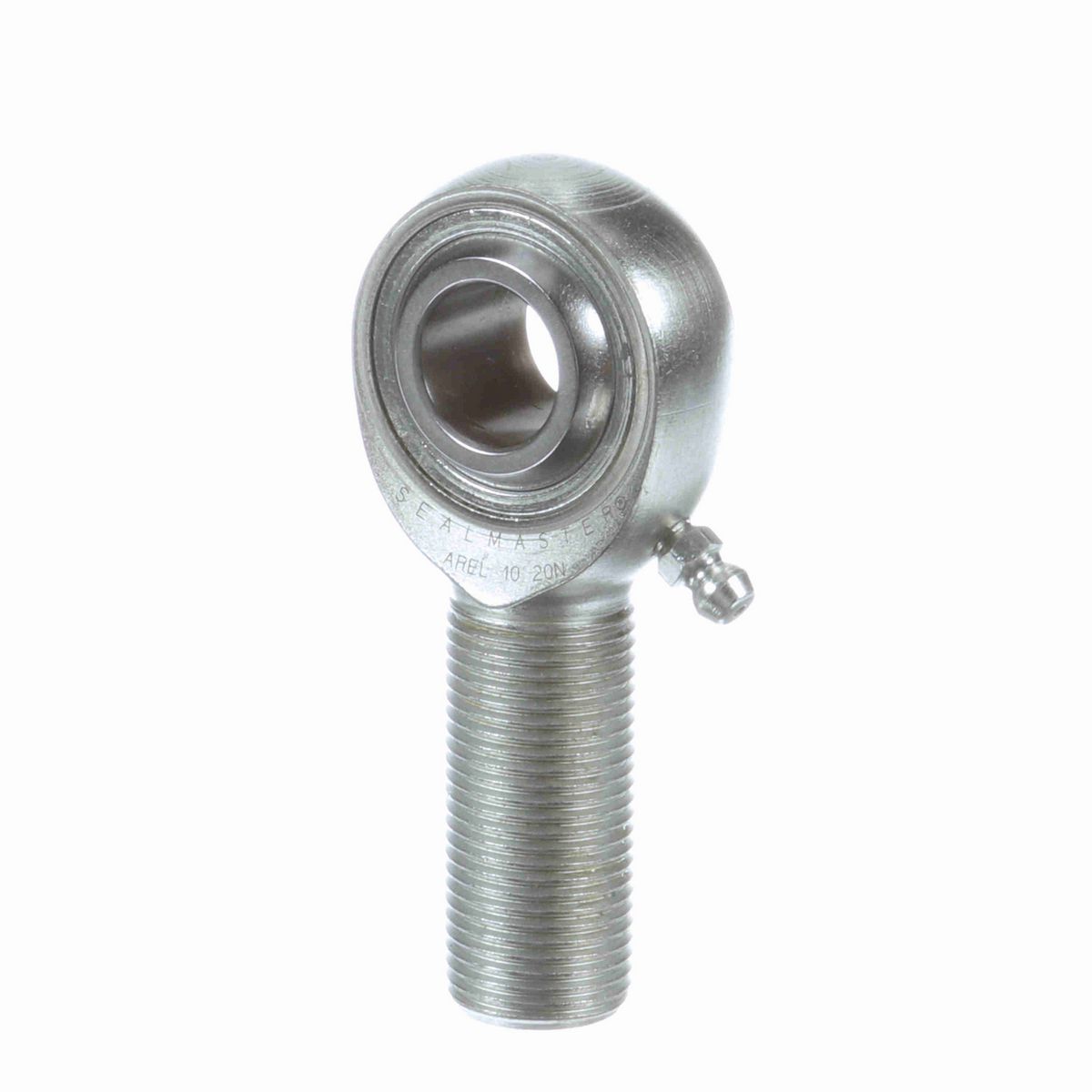

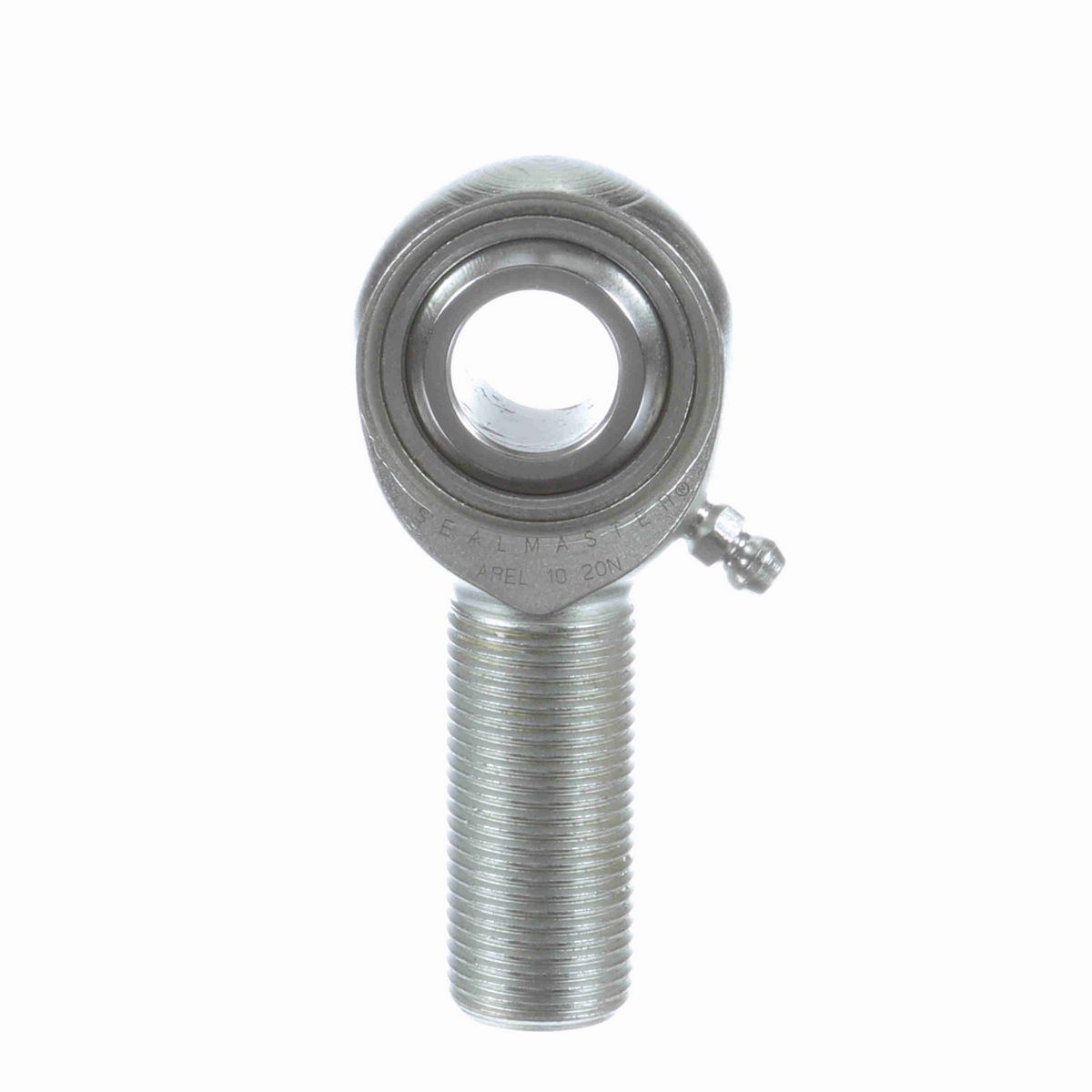

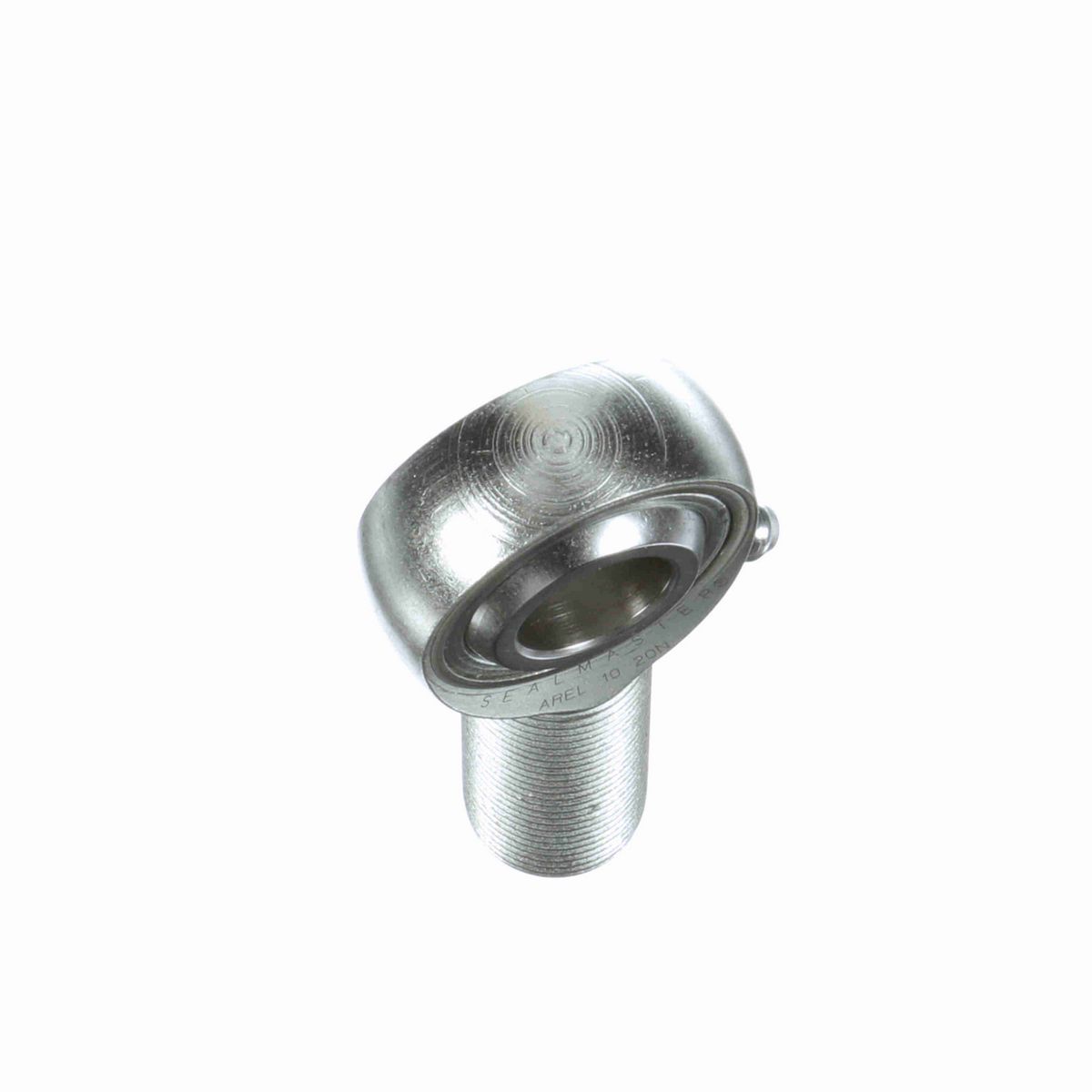

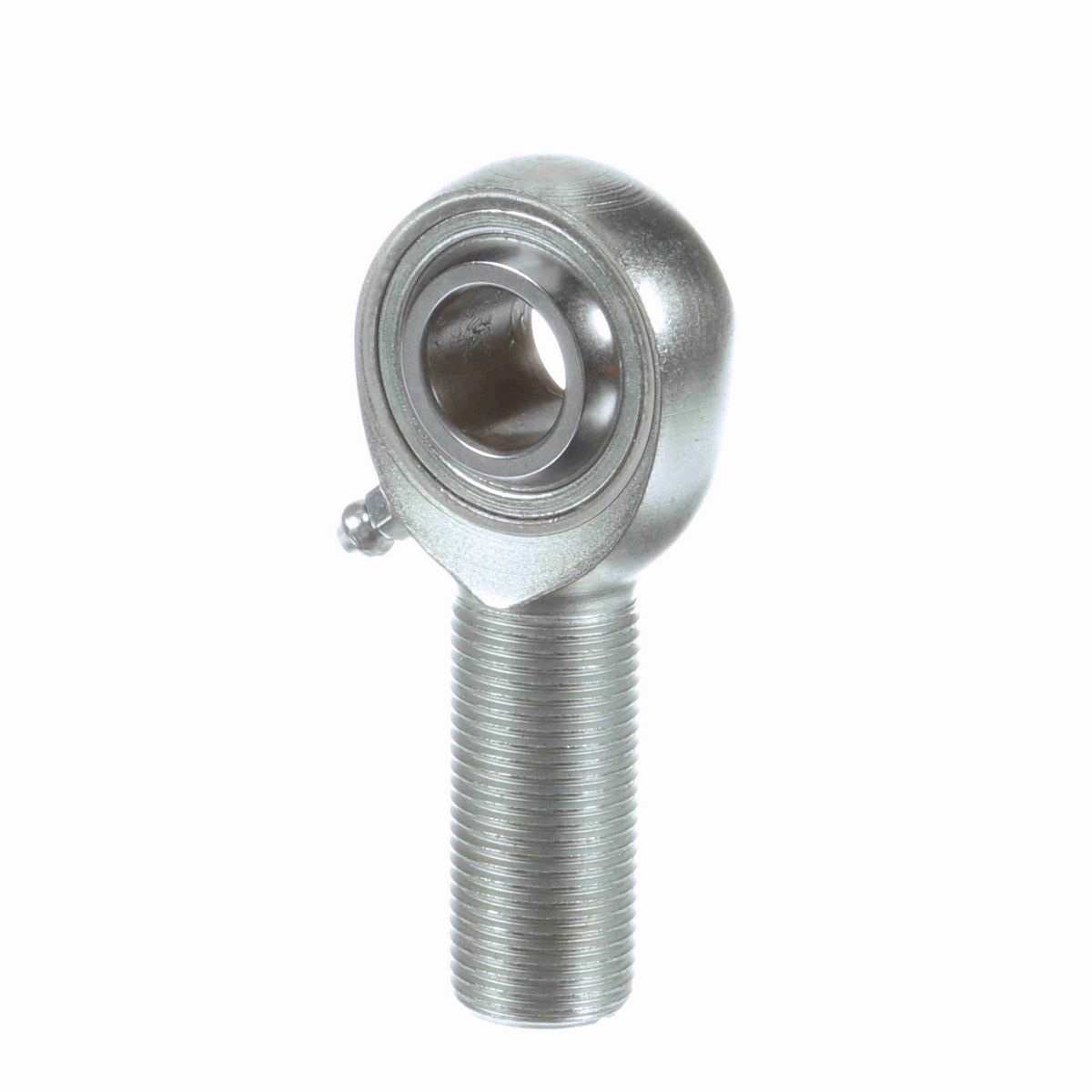

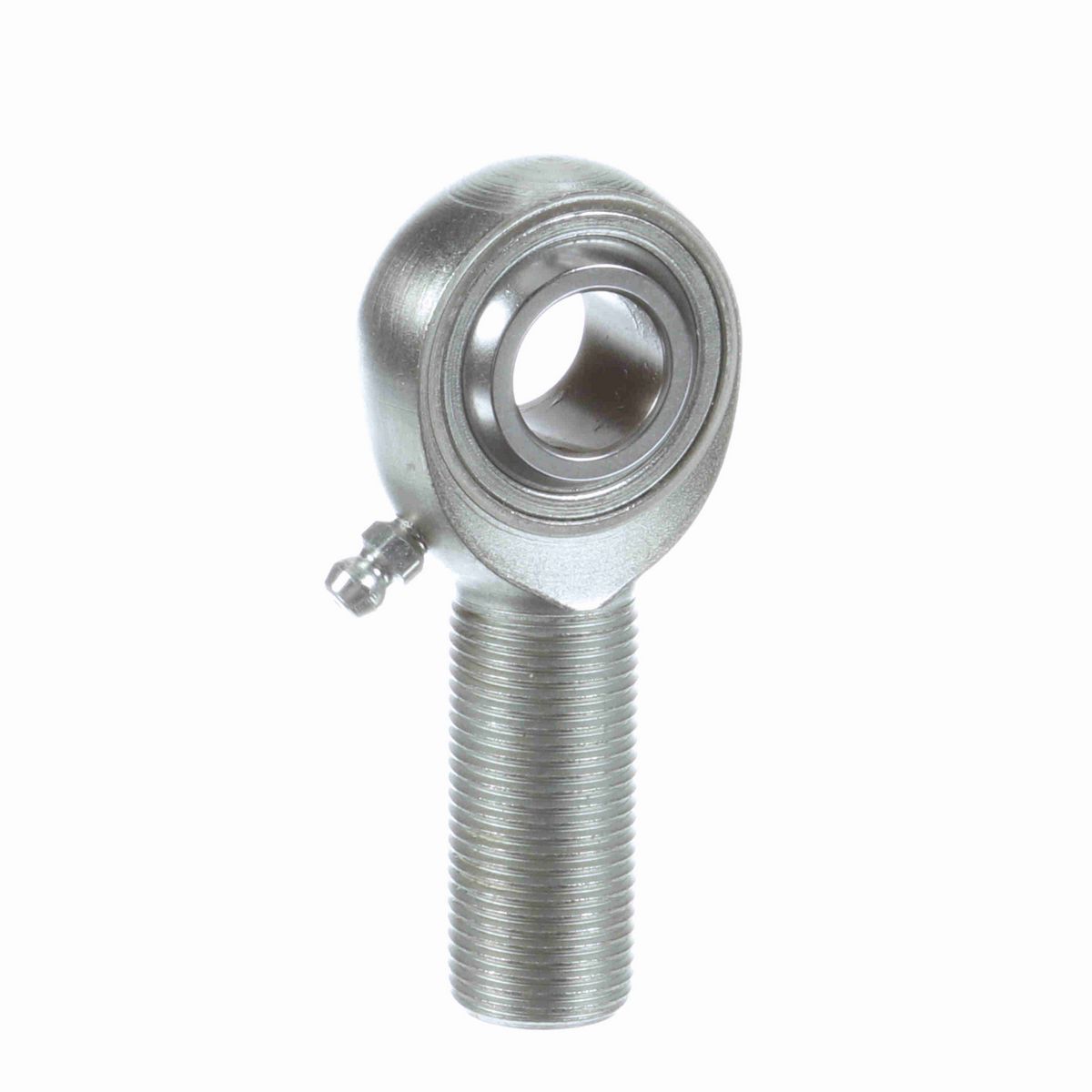

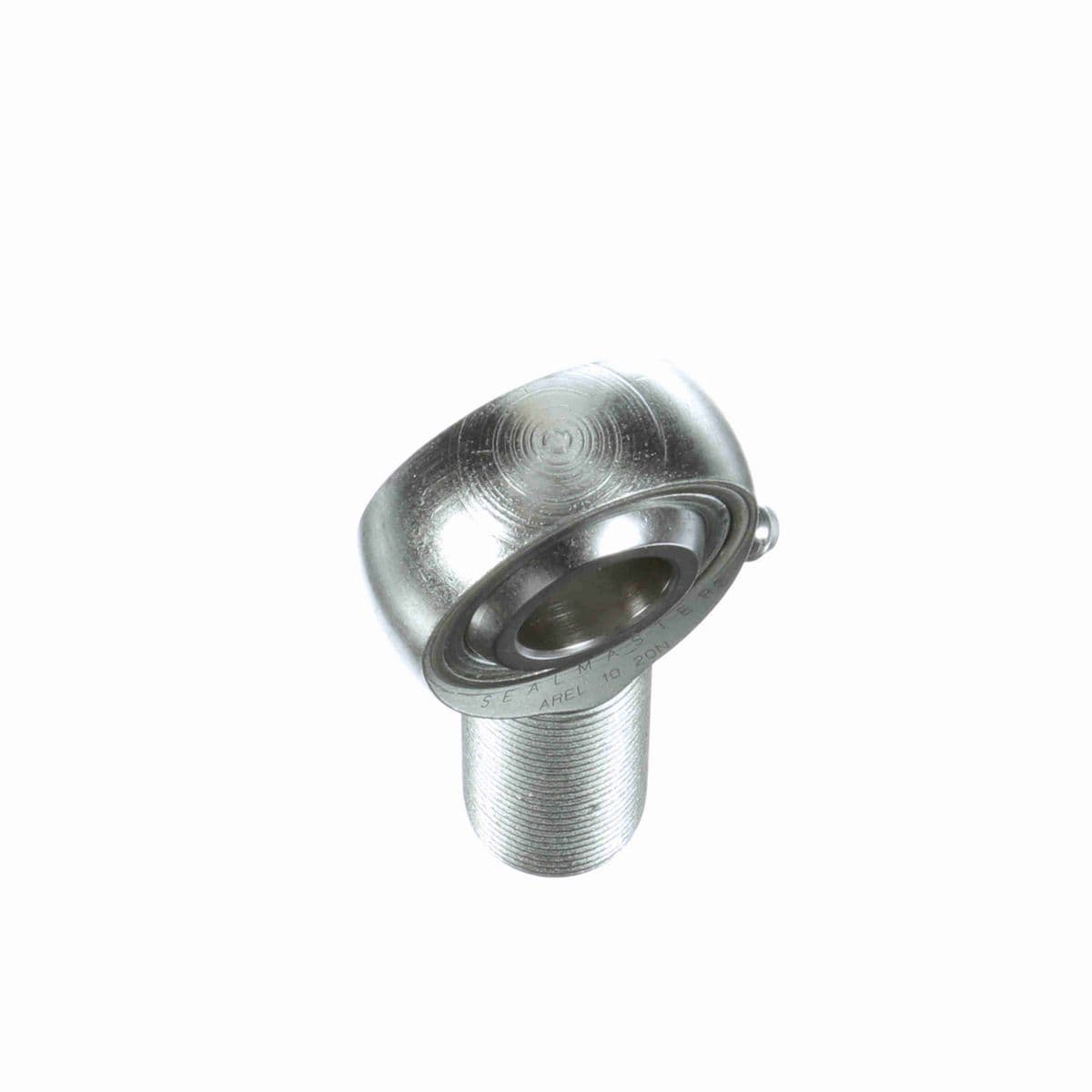

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Left-Hand Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#3/4-16
Ball Flat Diameter (in)	0.839 in
Thread Length (in)	1.594 in
Housing Width (in)	0.562 in
Ball Width (in)	0.75 in
Head Diameter (in)	1.5 in
Ball Diameter (in)	1.125 in
Length to Center of Ball (in)	2.63 in

Technical Specifications

Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Product Type	ARE-20
Housing Style	Male Rod End
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Lubrication Type	Grease
Construction	Three-Piece Rod End with Zerk Fitting
Zerk Fitting SW	Y
Configuration	Male
Misalignment Angle - a Deg. +/-	8
Thread Type	UNF
Bearing Type	Rod End
Product Selection Available SW	Y
Axial Load	1,730
Series	Precision Extra Capacity
Race Material	Carbon Steel - corrosion resistant plating
Thread	LH
Type	Male Rod End
Lubrication	Zerk Fitting
Max Static Radial Load	17,300
Class	Precision
Bore Size (in)	0.6250 in
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288720195
Weight	0.44 LB
Packaged Length	3.38 IN
Packaged Width	1.50 IN
Packaged Height	0.75 IN
HTC	8483.30.8055
Country of Origin	Mexico
