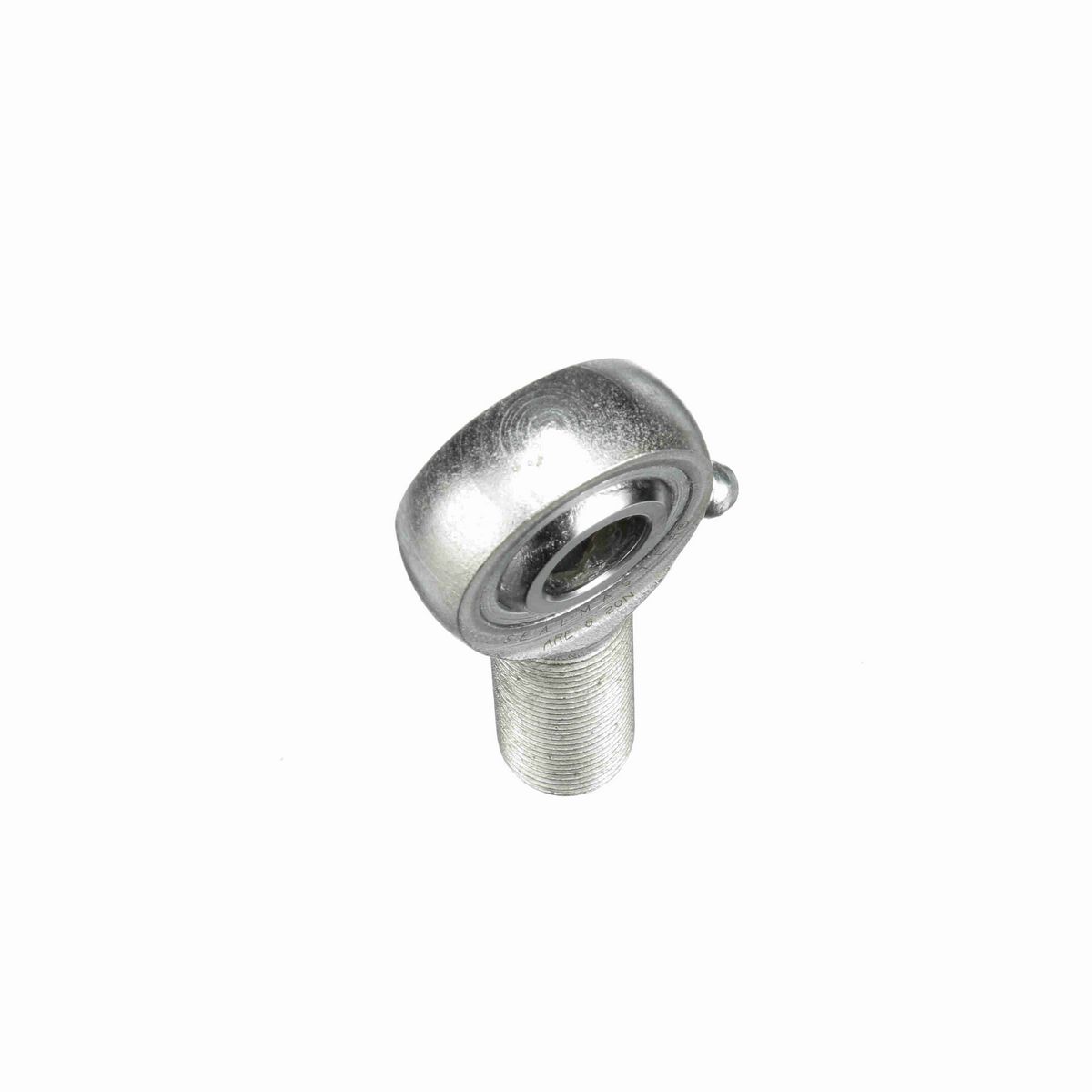

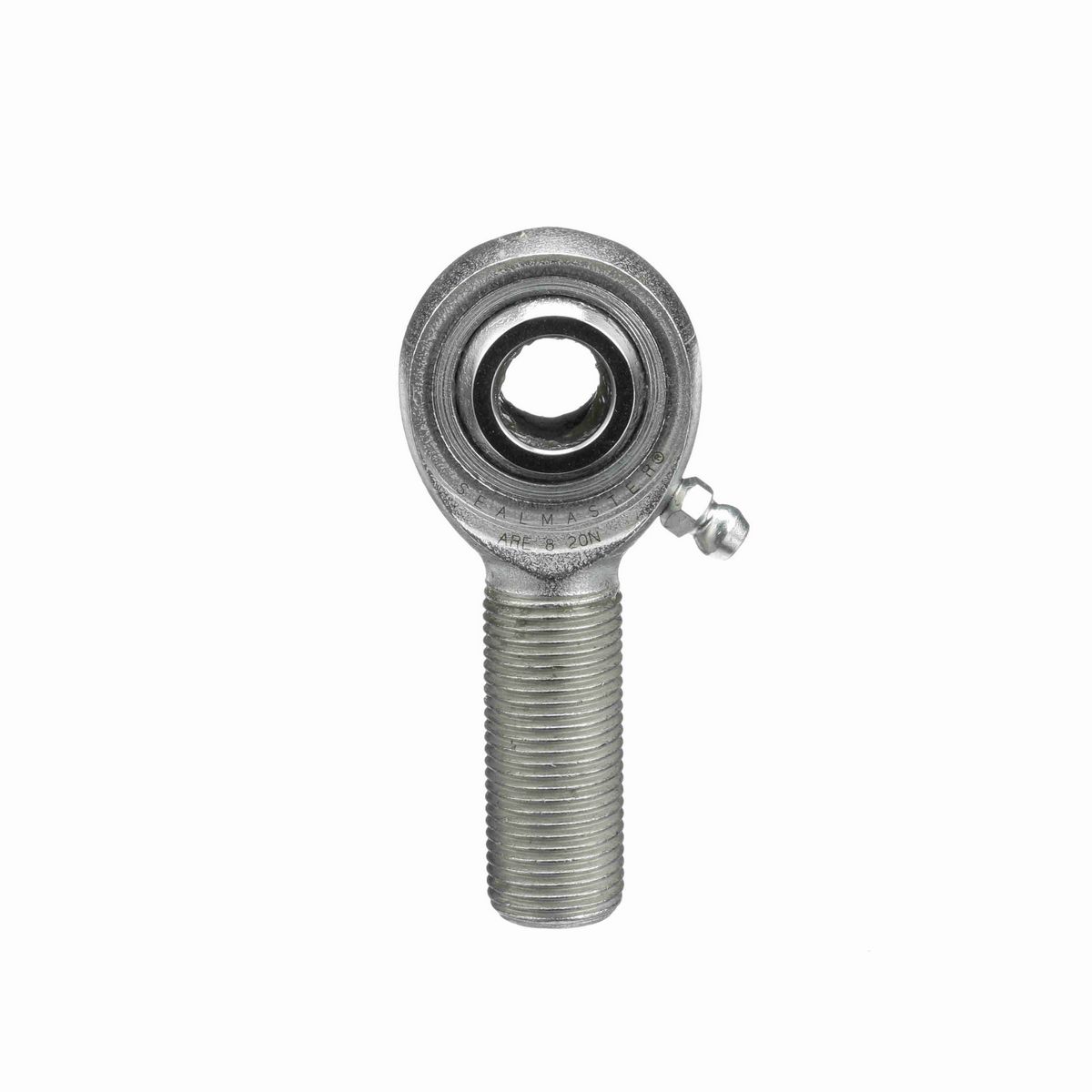

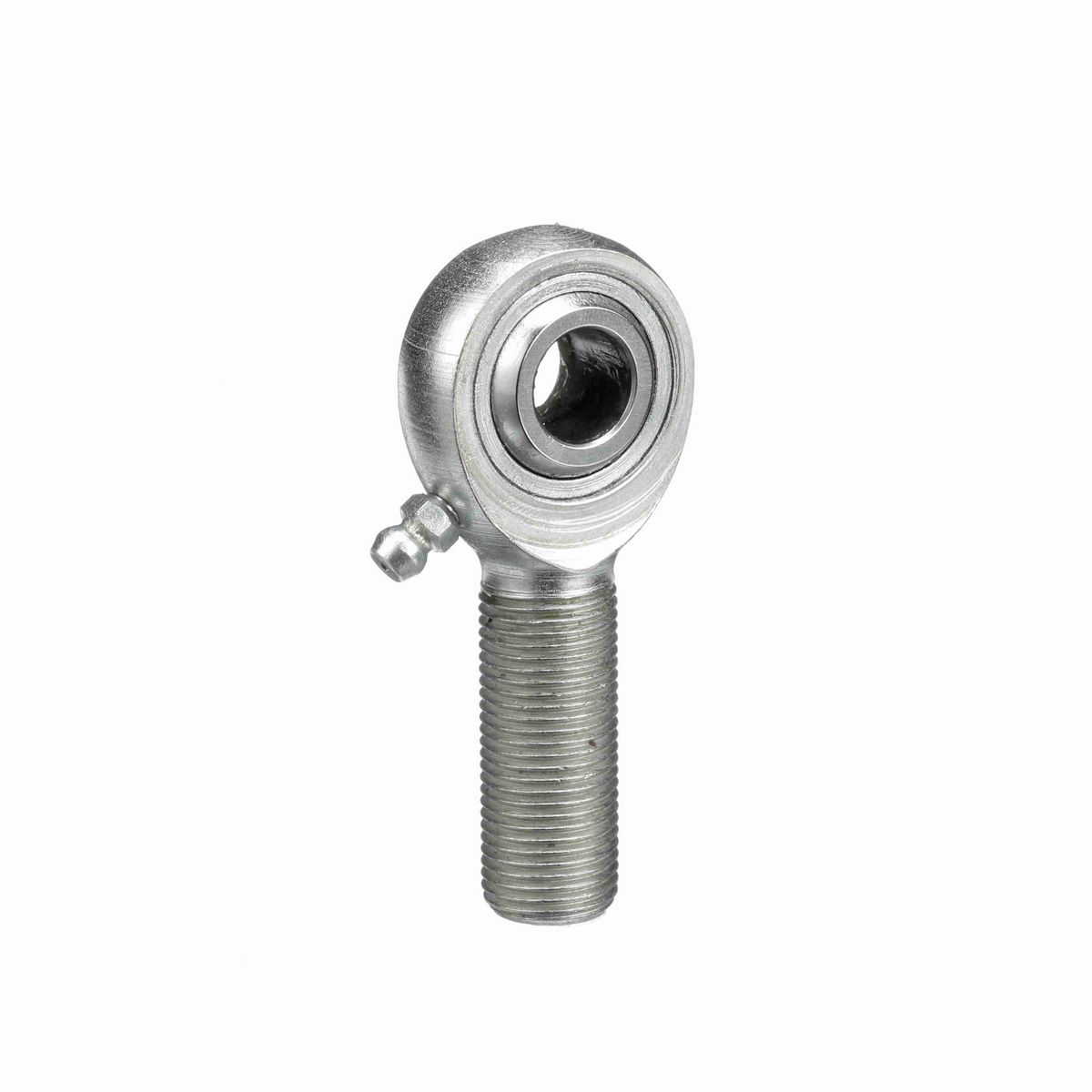

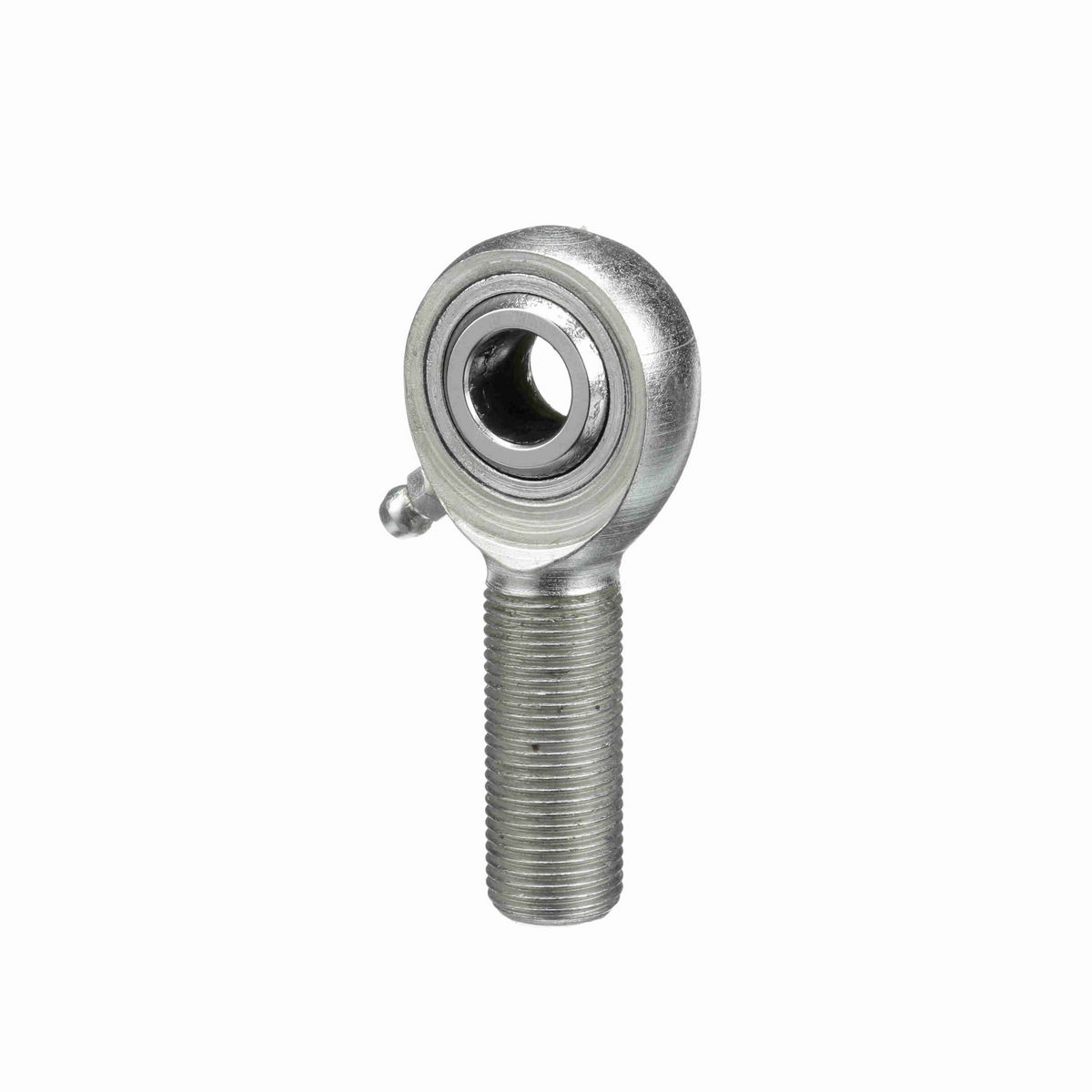

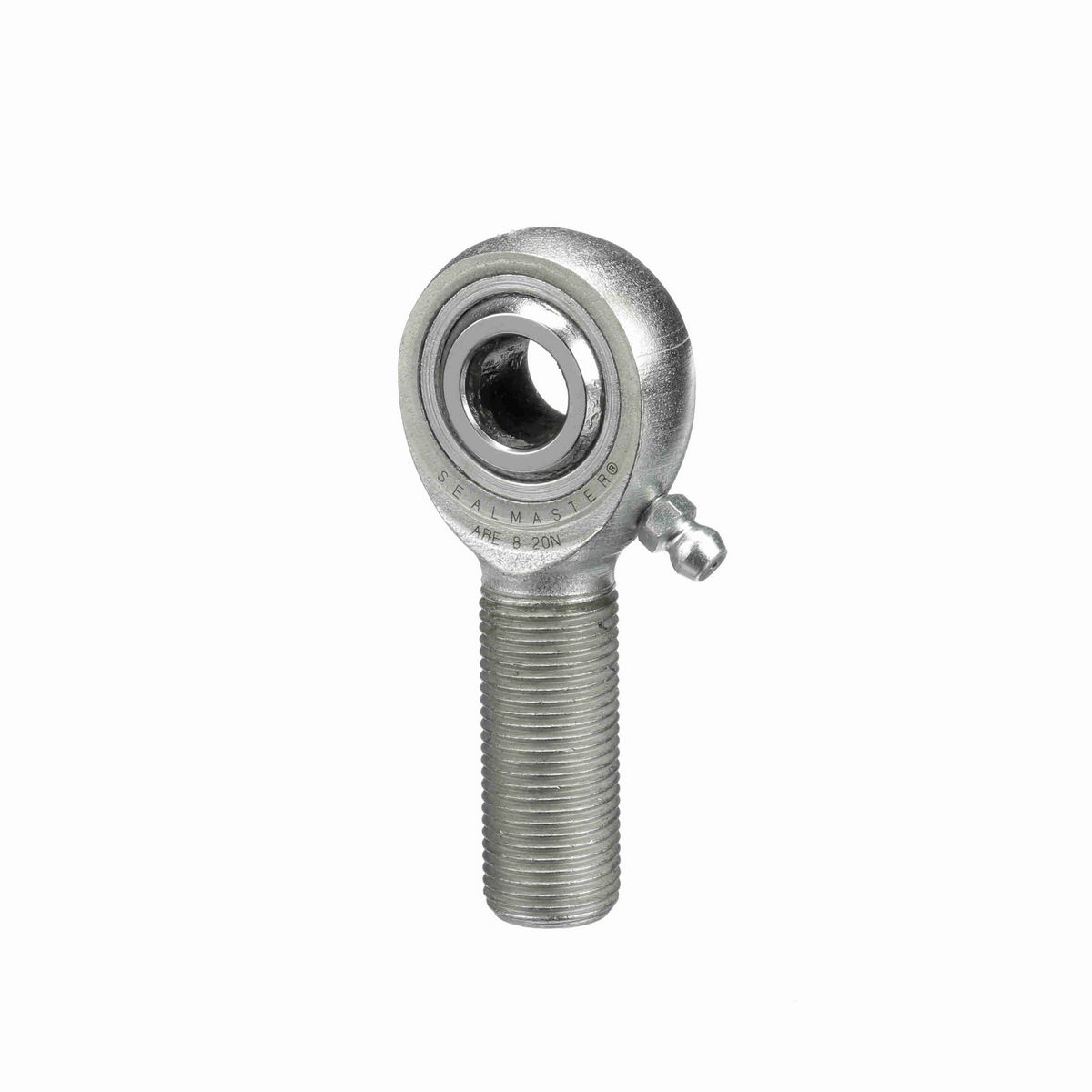

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Thread Size	#5/8-18
Ball Width (in)	0.625 in
Ball Diameter (in)	0.937 in
Thread Length (in)	1.469 in
Head Diameter (in)	1.312 in
Housing Width (in)	0.5 in
Ball Flat Diameter (in)	0.698 in
Length to Center of Ball (in)	2.44 in

Technical Specifications

Product Selection Available SW	Y
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Construction	Three-Piece Rod End with Zerk Fitting
Zerk Fitting SW	Y
Lubrication Type	Grease
Race Material	Carbon Steel - corrosion resistant plating
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Thread Type	UNF
Configuration	Male
Bearing Type	Rod End
Housing Style	Male Rod End
Series	Precision Extra Capacity
Axial Load	1,350
Misalignment Angle - a Deg. +/-	6
Product Type	ARE-20
Max Static Radial Load	13,500
Thread	RH
Type	Male Rod End
Lubrication	Zerk Fitting
Bore Size (in)	0.5000 in
Class	Precision
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719816
Weight	0.31 LB
Packaged Length	3.09 IN
Packaged Width	1.31 IN
Packaged Height	0.63 IN
HTC	8483.30.8055
Country of Origin	Mexico
