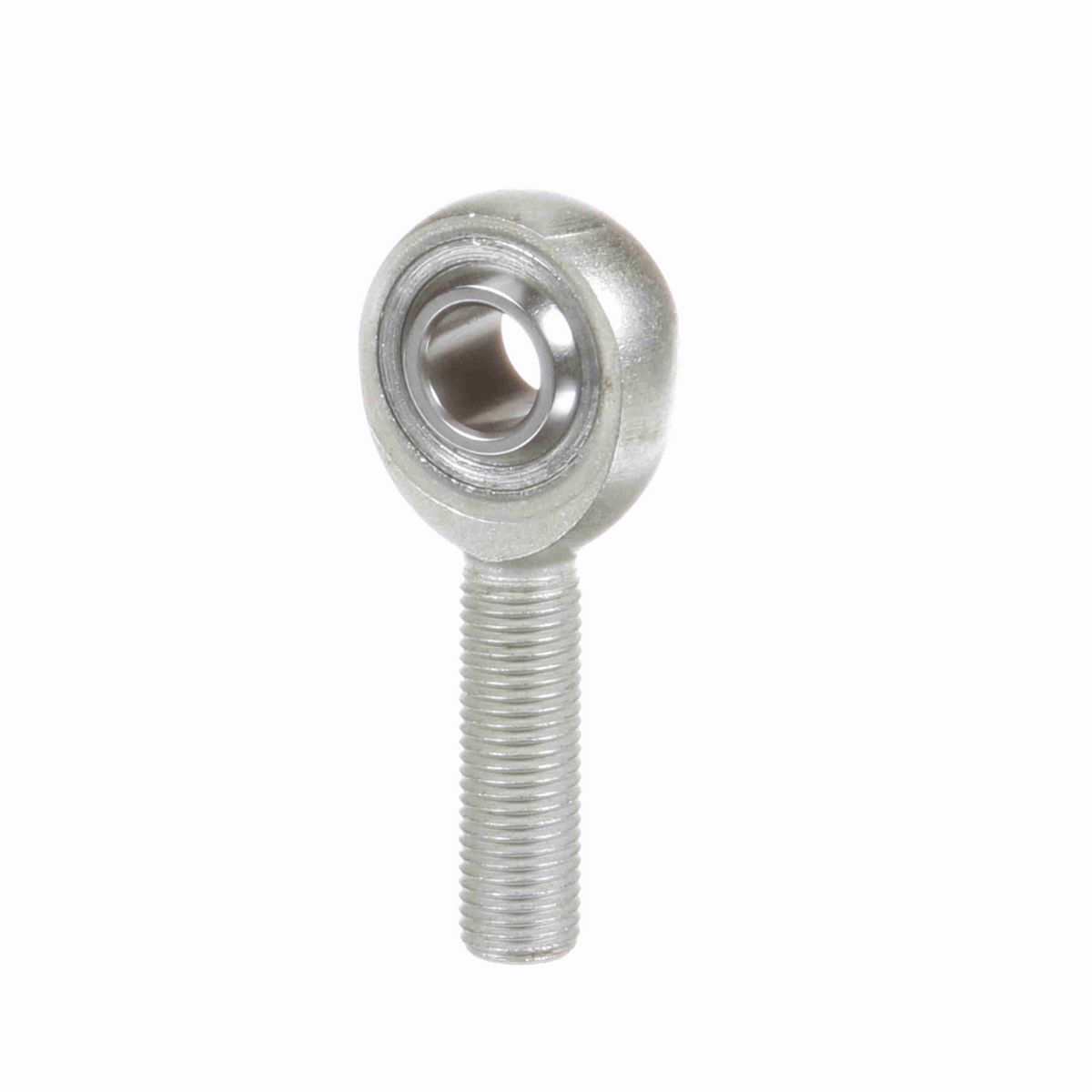

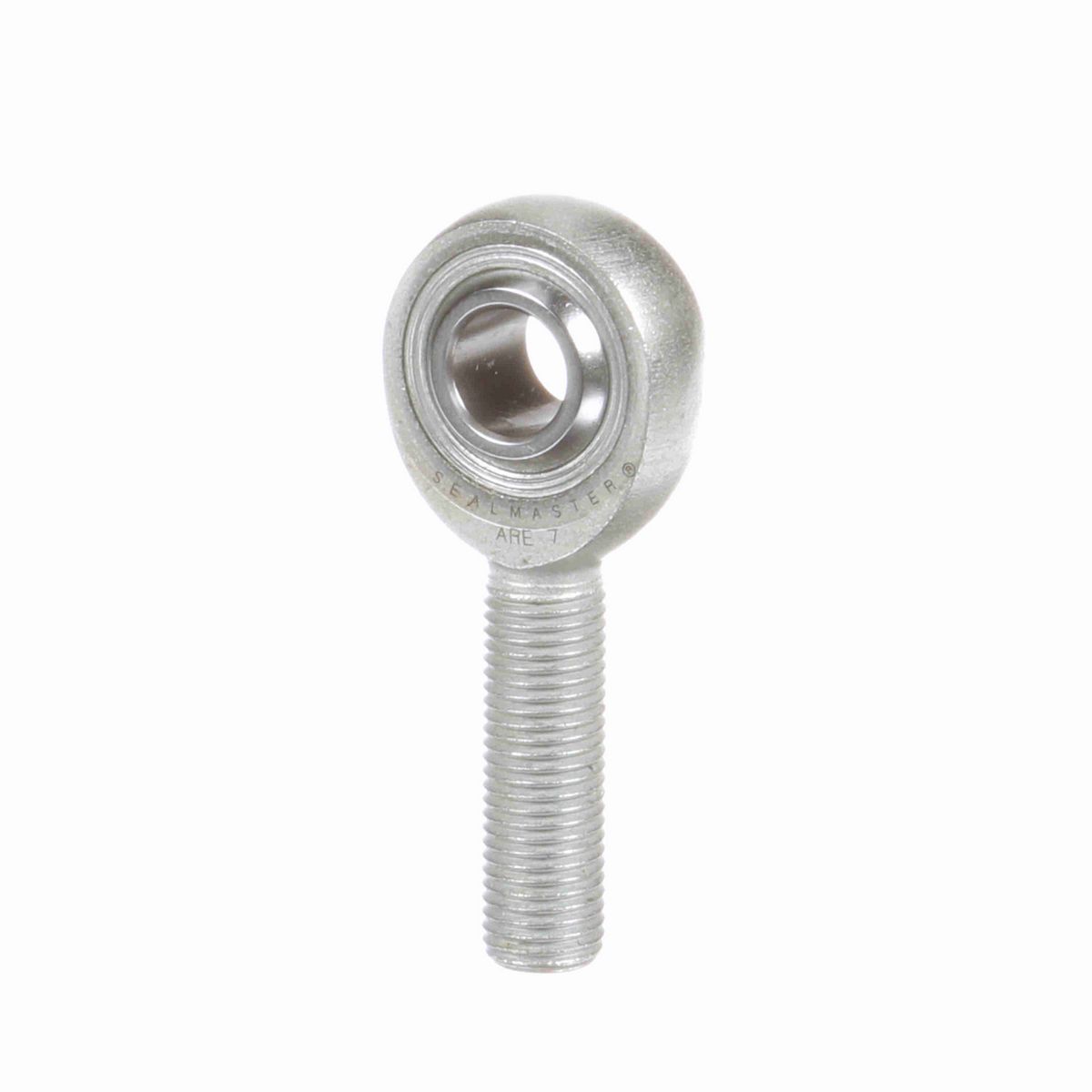

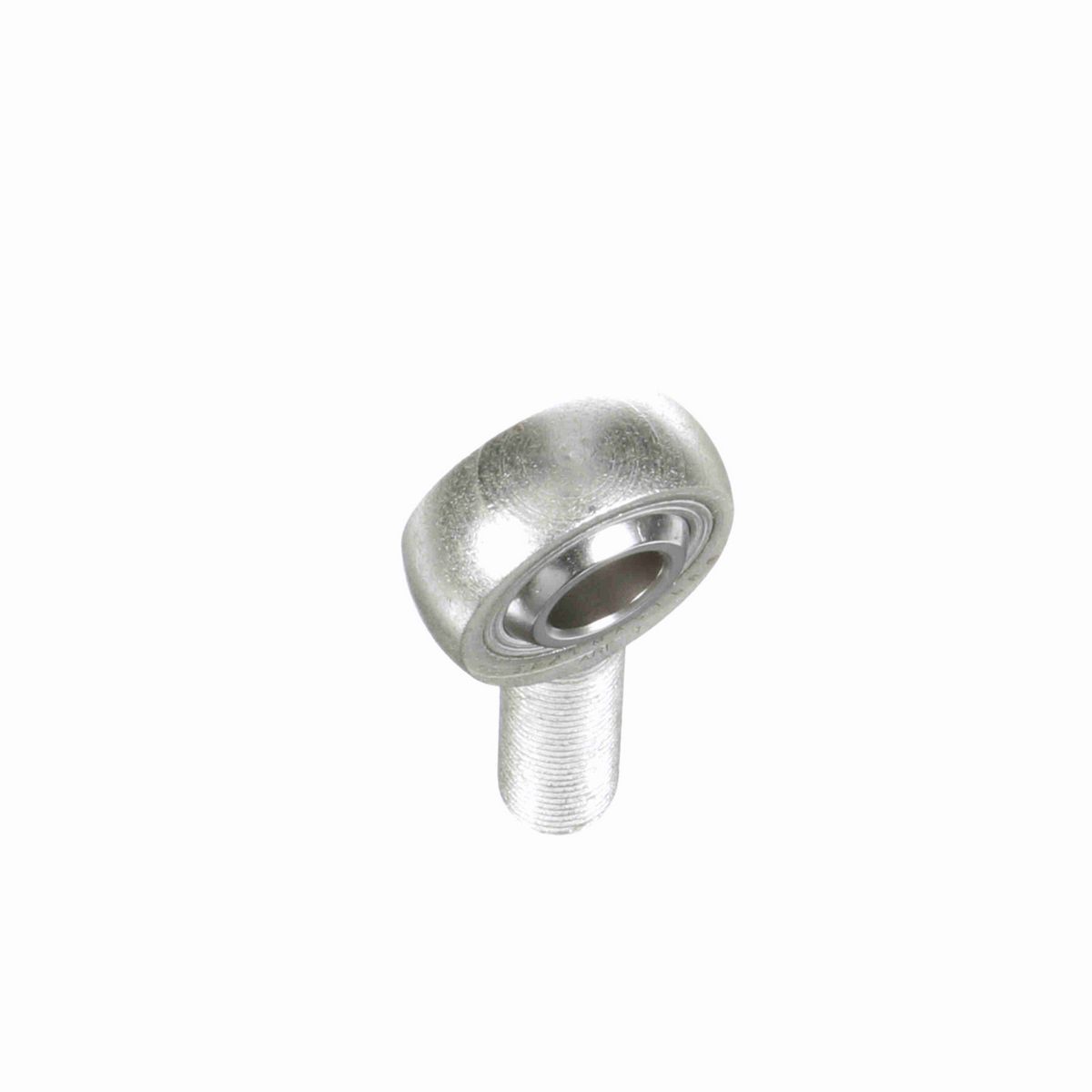

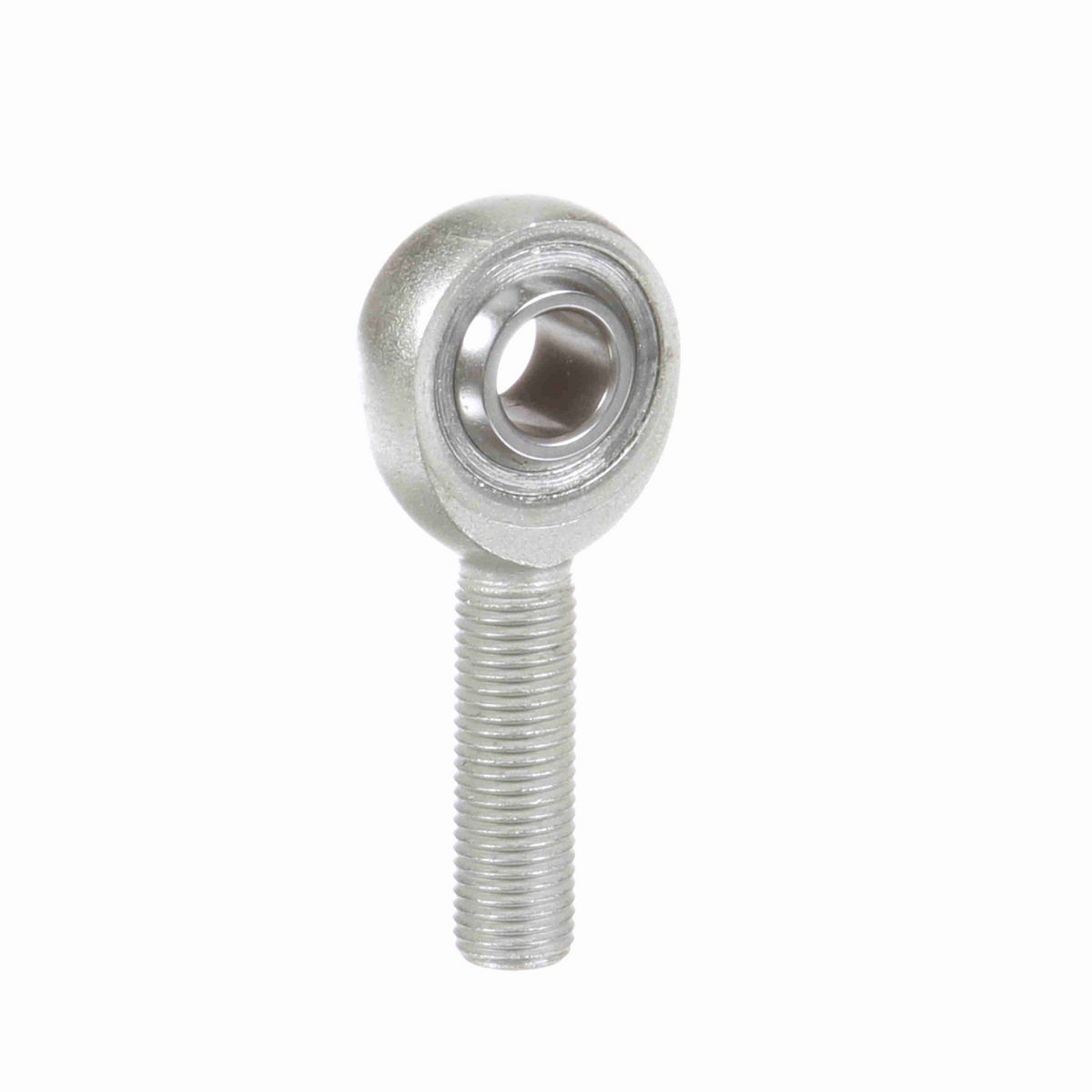

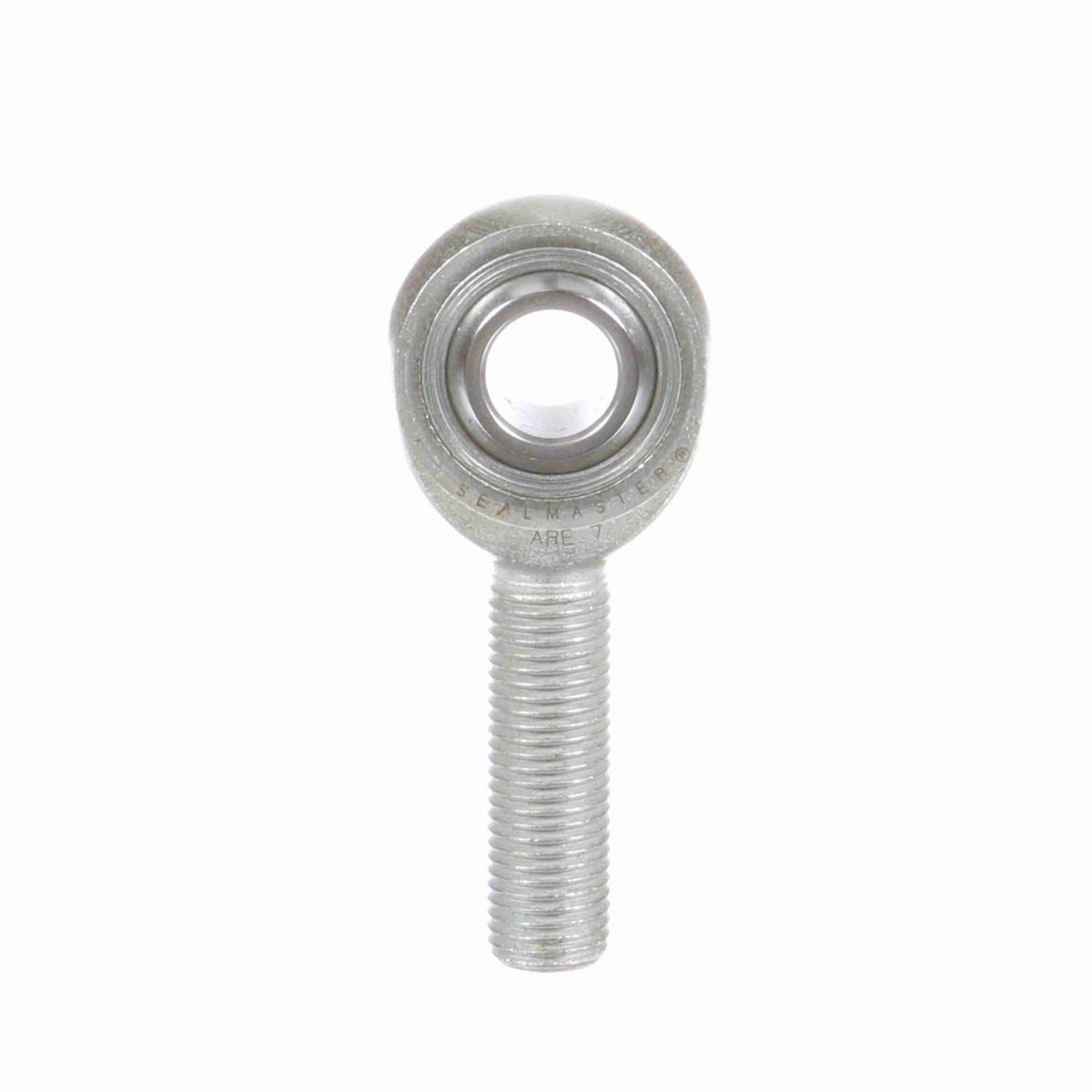

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Flat Diameter (in)	0.586 in
Thread Size	#7/16-20
Ball Width (in)	0.562 in
Head Diameter (in)	1.125 in
Housing Width (in)	0.437 in
Ball Diameter (in)	0.812 in
Thread Length (in)	1.344 in
Length to Center of Ball (in)	2.13 in

Technical Specifications

Housing Style	Male Rod End
Misalignment Angle - a Deg. +/-	7
Lubrication Type	Grease
Thread Type	UNF
Race Material	Carbon Steel - corrosion resistant plating
Construction	Three-Piece Rod End
Series	Precision Extra Capacity
Bearing Type	Rod End
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Axial Load	1,100
Product Selection Available SW	Y
Product Type	ARE
Zerk Fitting SW	N
Configuration	Male
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Lubrication	No Zerk Fitting
Thread	RH
Type	Male Rod End
Max Static Radial Load	11,000
Class	Precision
Bore Size (in)	0.4375 in
Lubrication Method	No Fitting
Ability to Relubricate	None
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288718970
Weight	0.17 LB
Packaged Length	3.40 IN
Packaged Width	2.40 IN
Packaged Height	0.65 IN
HTC	8483.30.8055
Country of Origin	Mexico
