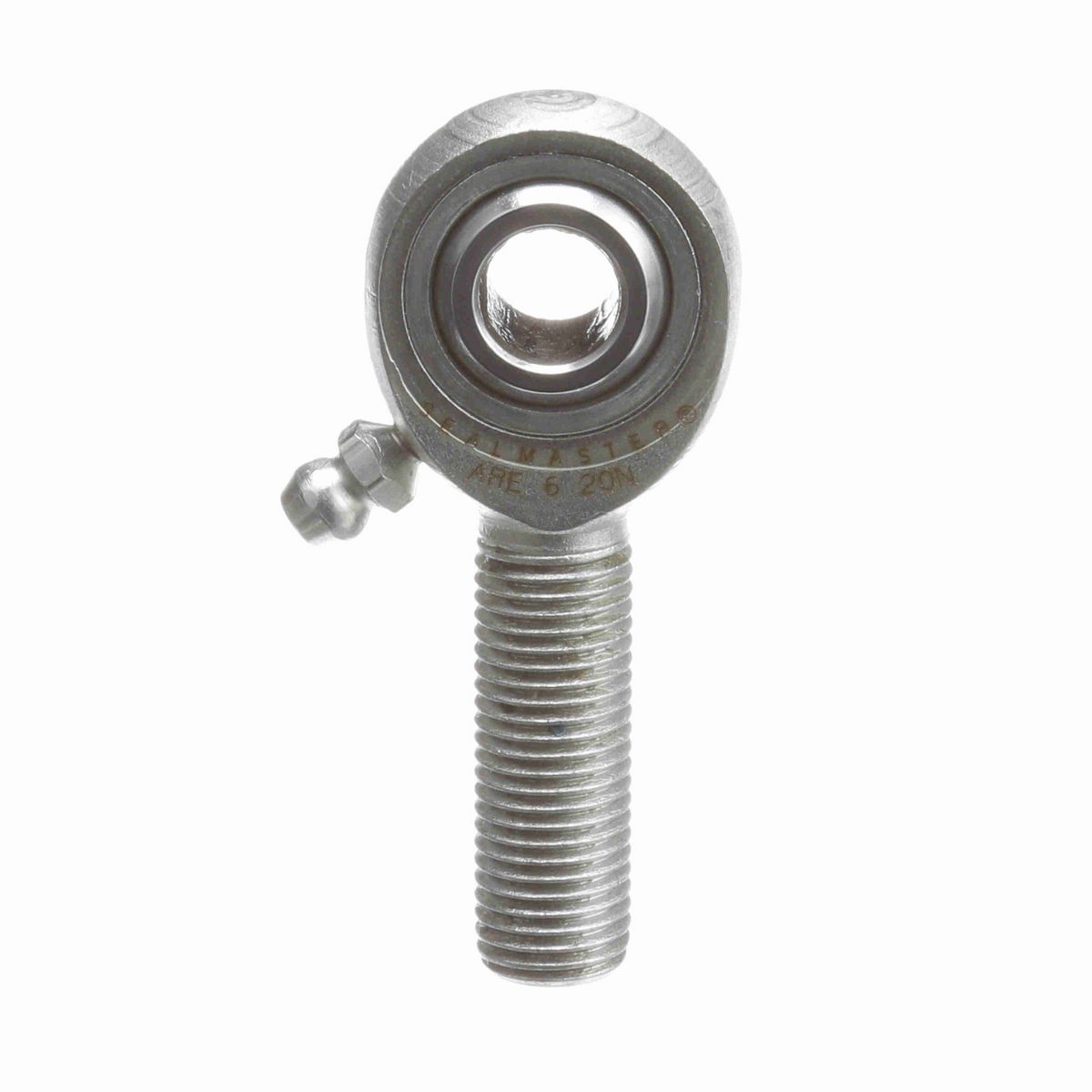

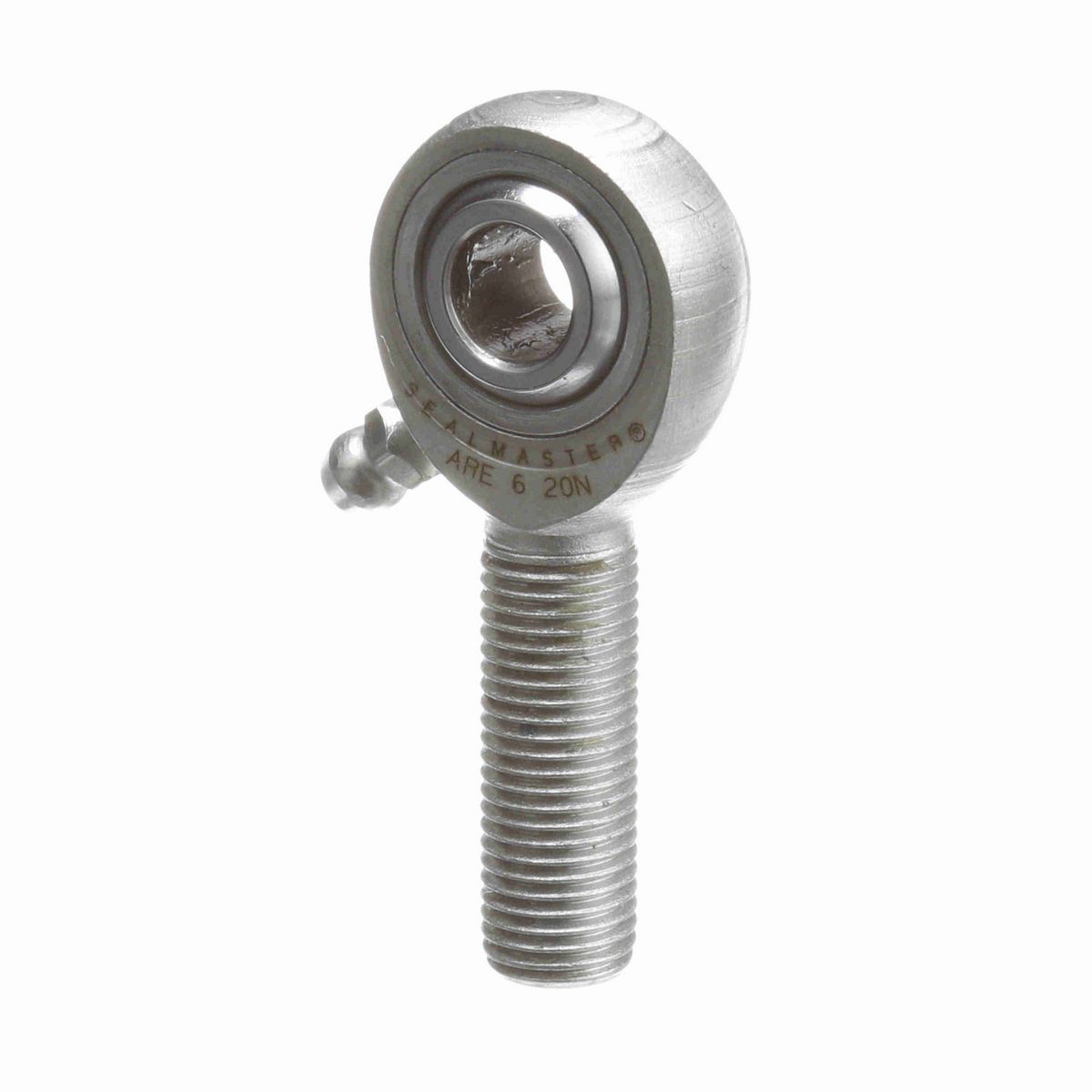

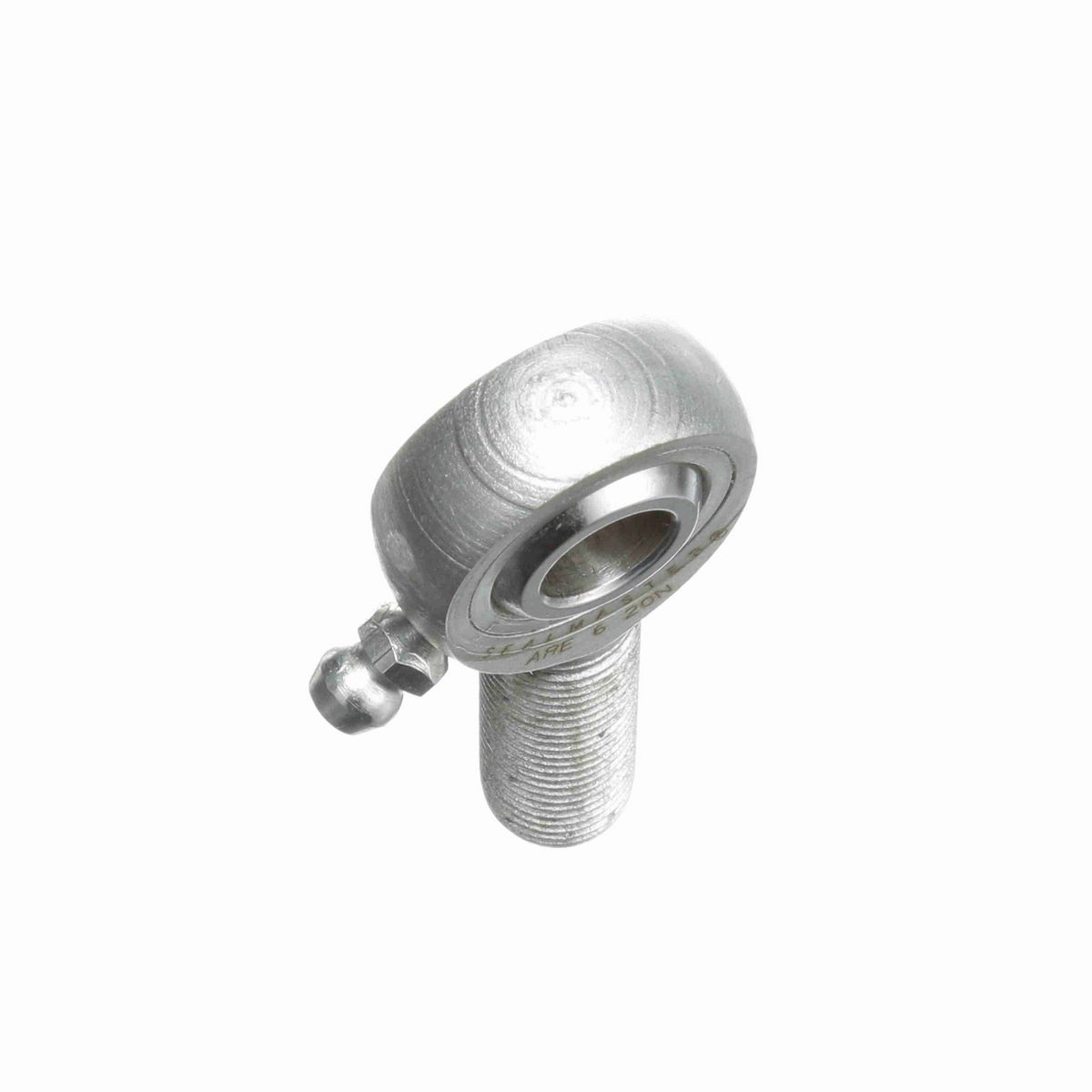

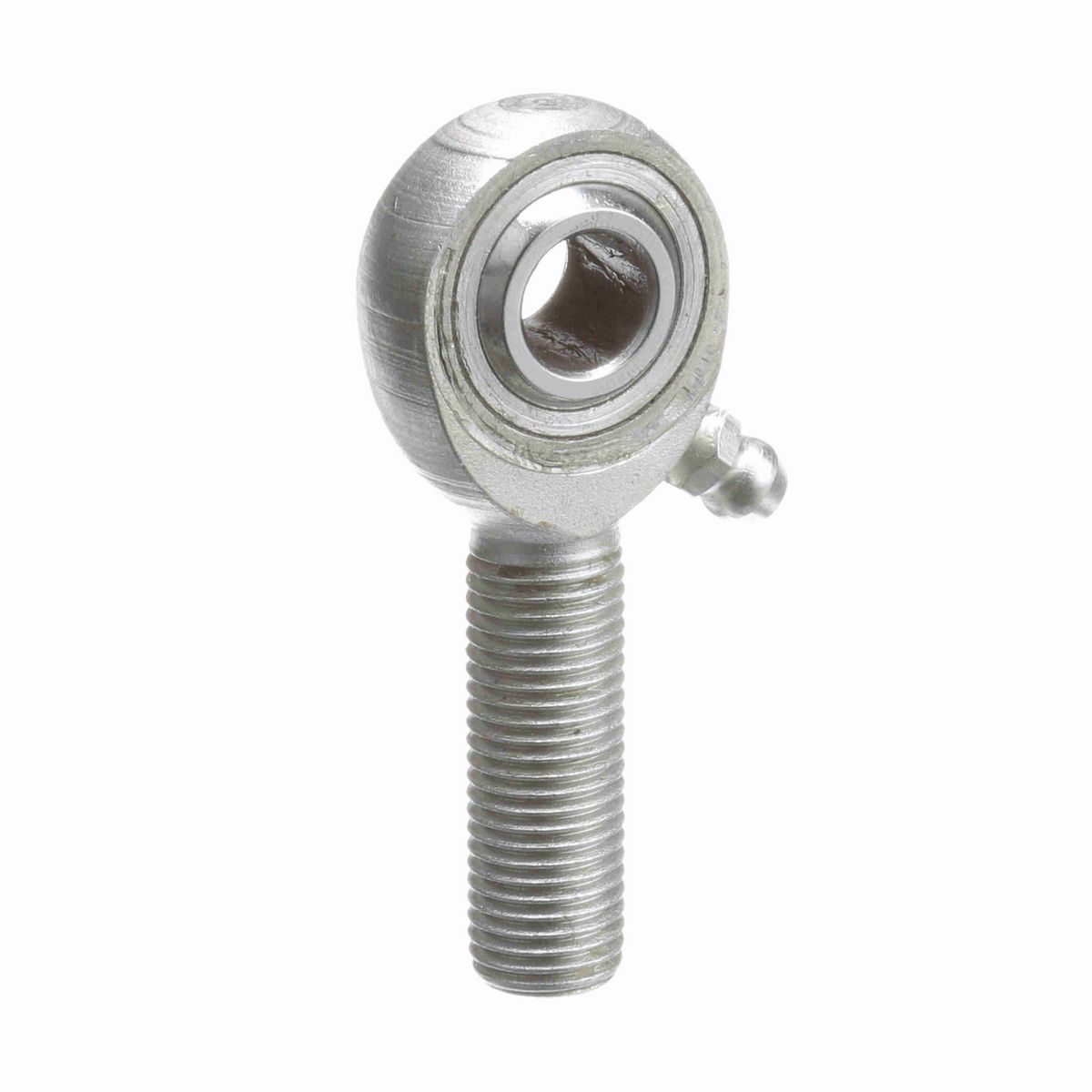

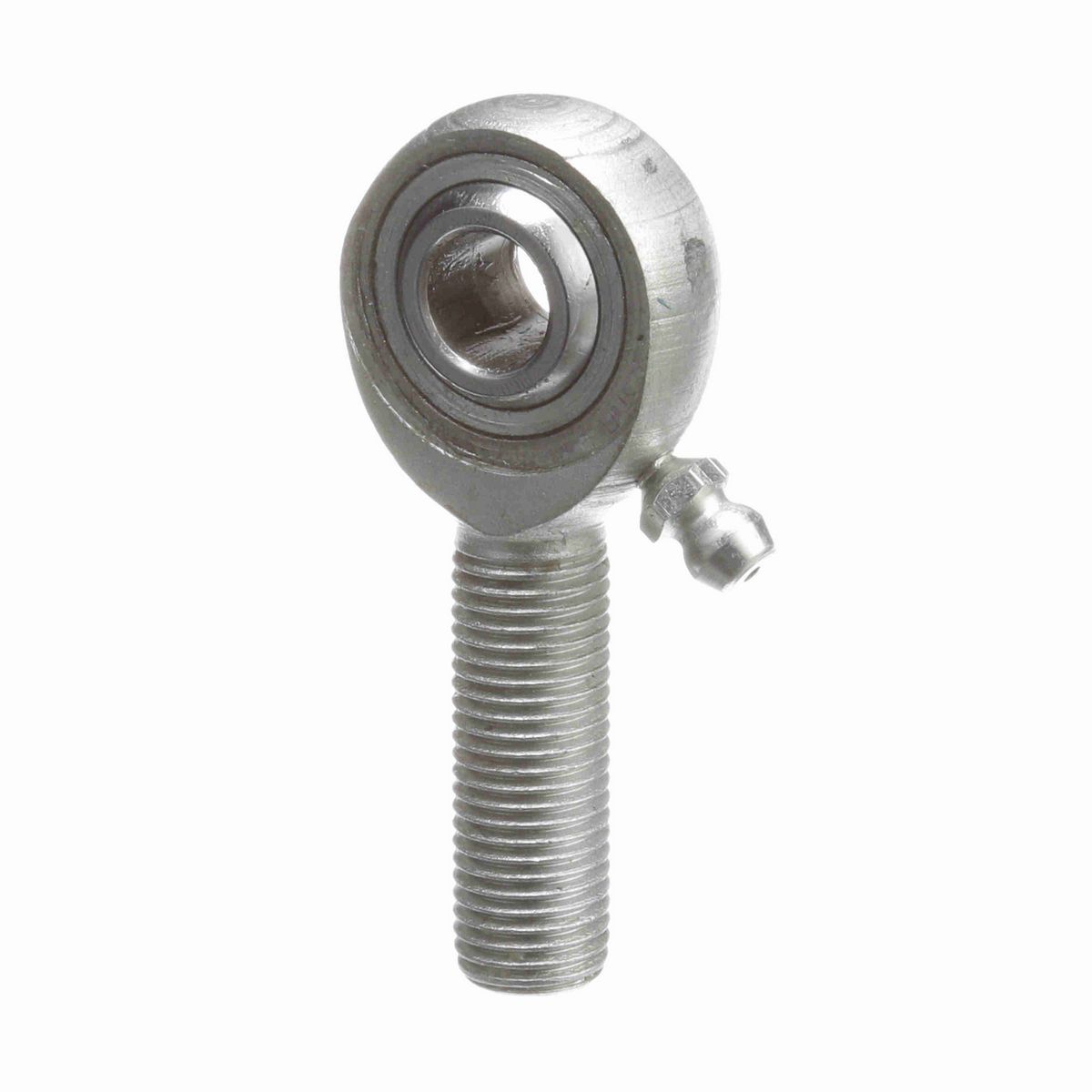

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Head Diameter (in)	1 in
Ball Diameter (in)	0.718 in
Thread Size	#7/16-20
Ball Flat Diameter (in)	0.517 in
Ball Width (in)	0.5 in
Thread Length (in)	1.219 in
Housing Width (in)	0.406 in
Length to Center of Ball (in)	1.94 in

Technical Specifications

Series	Precision Extra Capacity
Construction	Three-Piece Rod End with Zerk Fitting
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Bearing Type	Rod End
Thread Type	UNF
Race Material	Carbon Steel - corrosion resistant plating
Misalignment Angle - a Deg. +/-	6
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Product Selection Available SW	Y
Zerk Fitting SW	Y
Product Type	ARE-20
Axial Load	957
Configuration	Male
Housing Style	Male Rod End
Lubrication Type	Grease
Type	Male Rod End
Lubrication	Zerk Fitting
Max Static Radial Load	9,570
Thread	RH
Class	Precision
Bore Size (in)	0.3750 in
Lubrication Method	Fitting
Maximum Ambient Temperature (F)	350 °F
Ability to Relubricate	Yes

General Specifications

UPC	662288719793
Weight	0.14 LB
Packaged Length	2.70 IN
Packaged Width	2.15 IN
Packaged Height	0.70 IN
HTC	8483.30.8055
Country of Origin	Mexico
