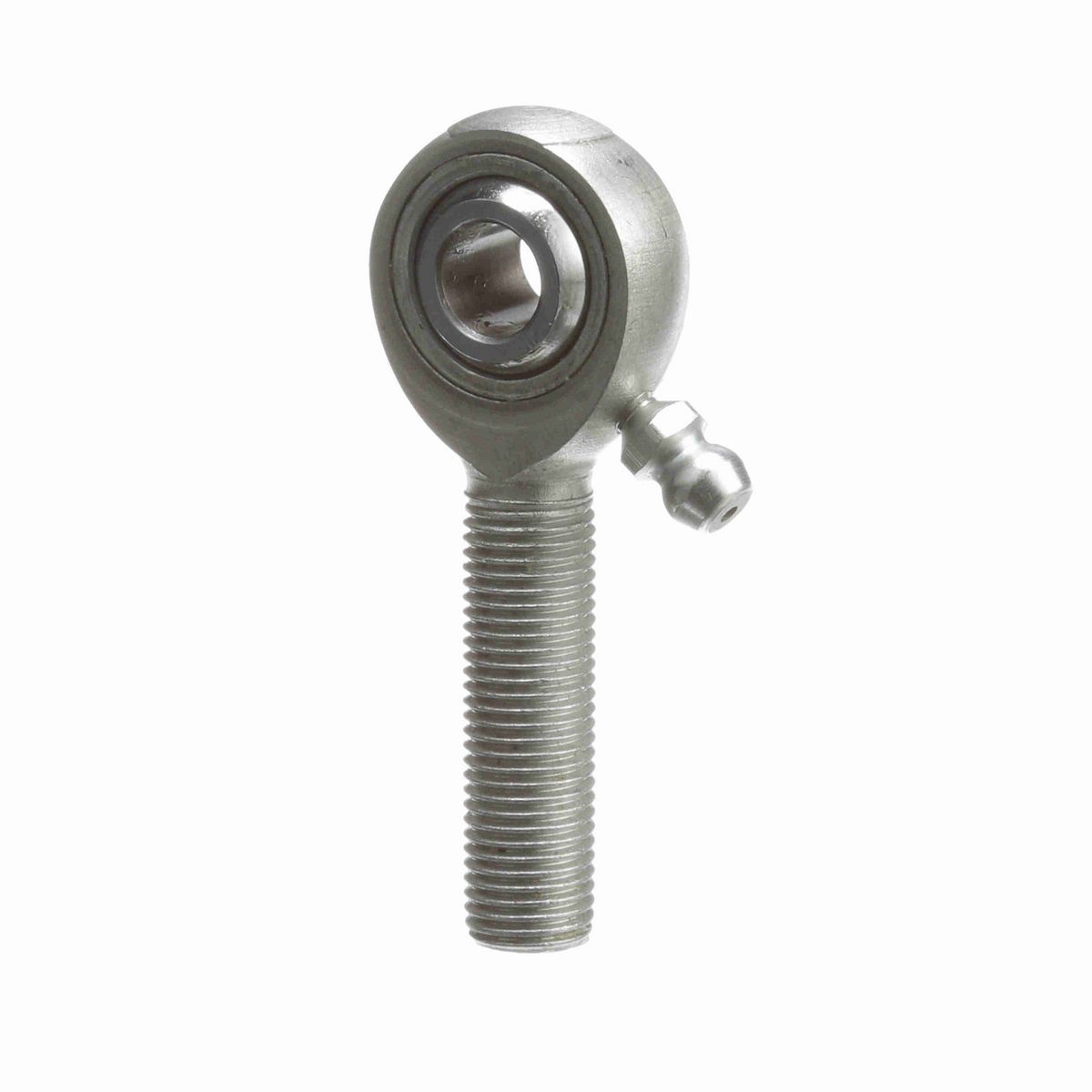

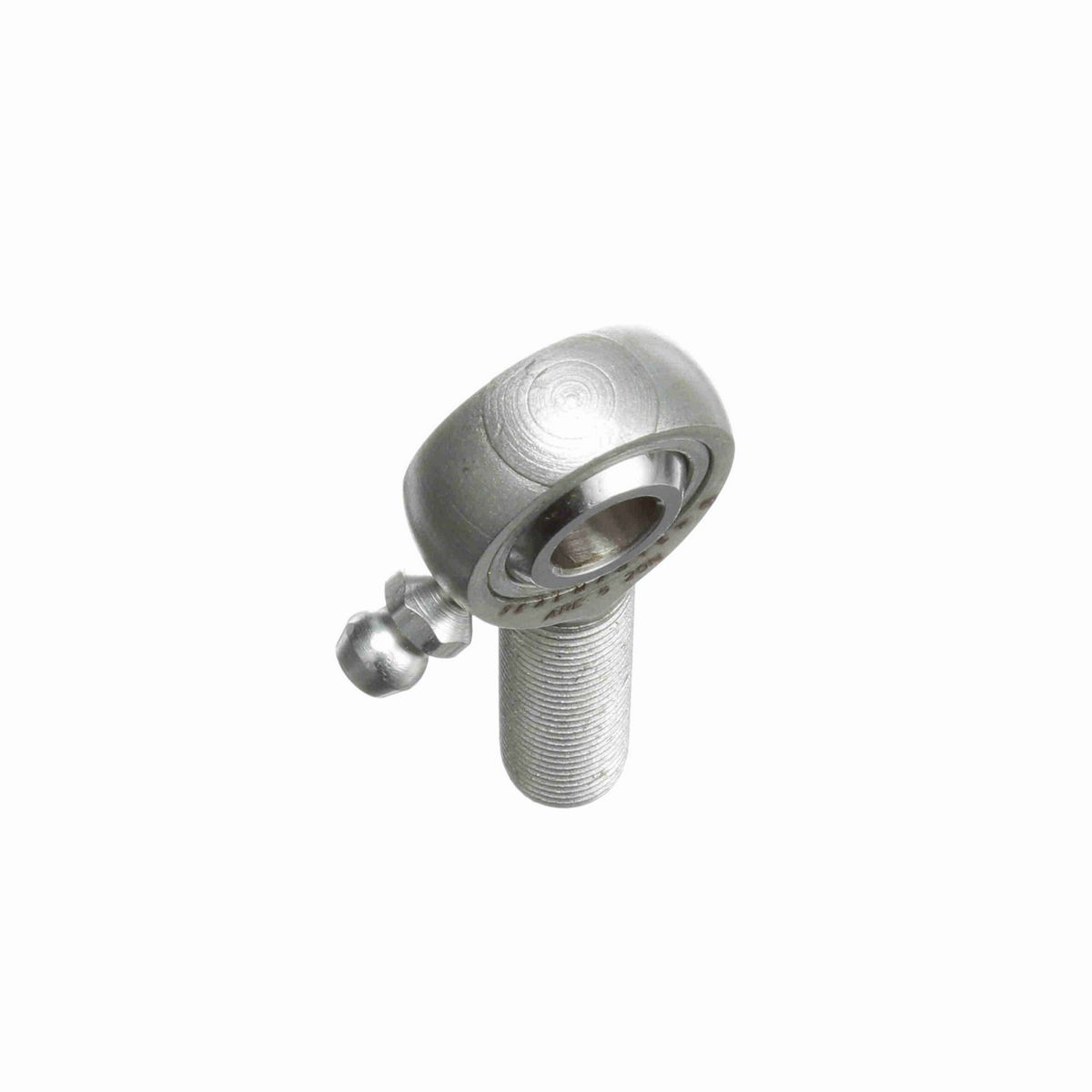

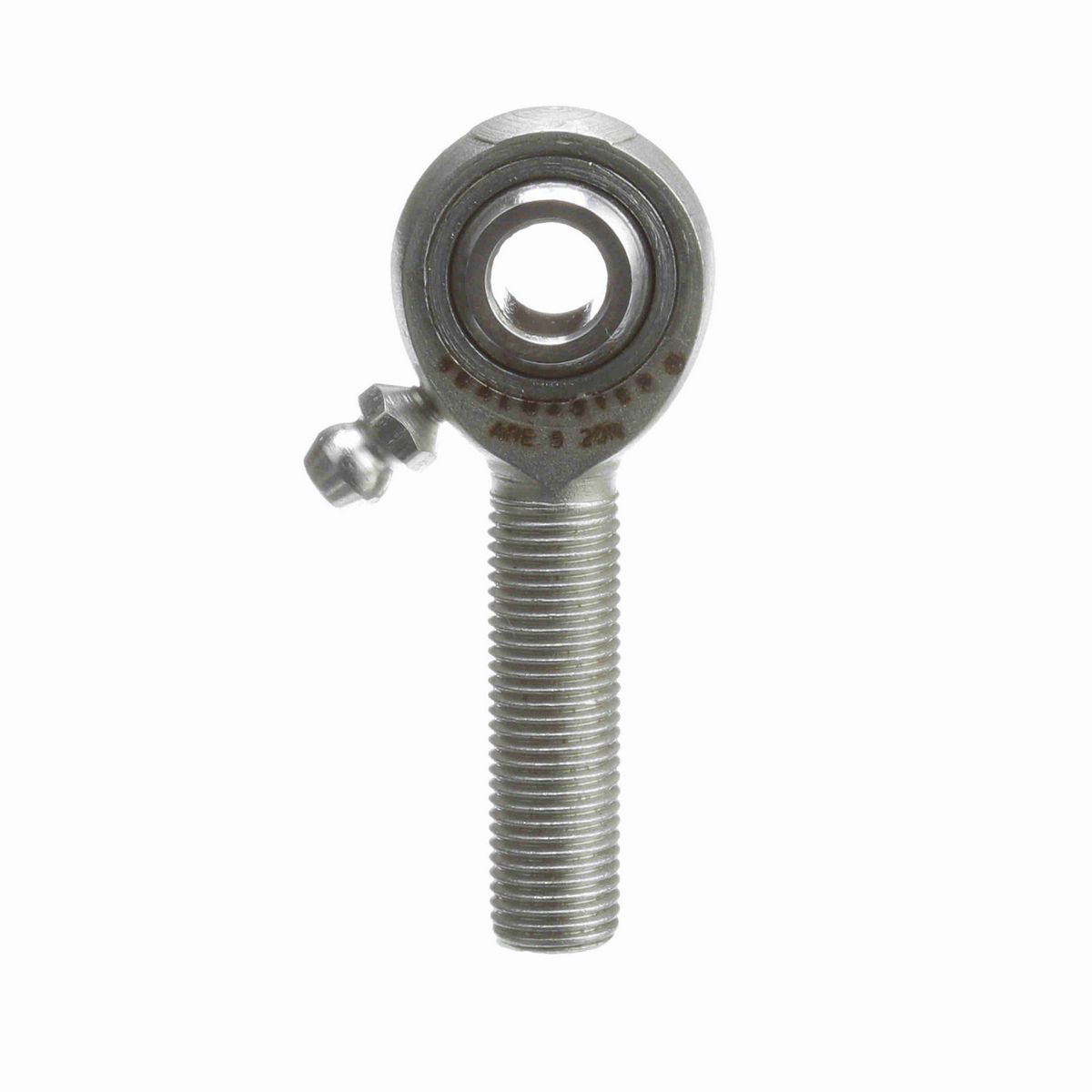

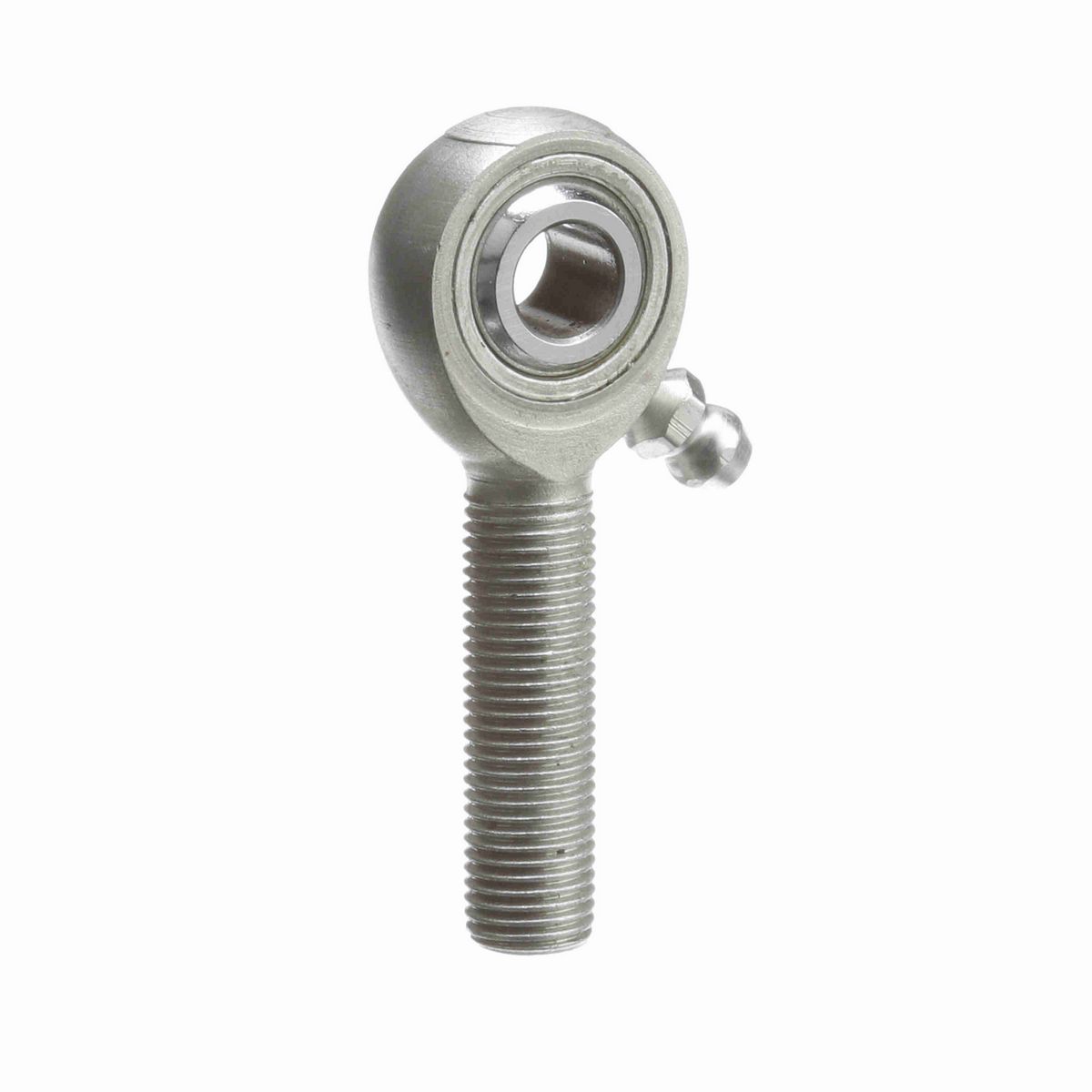

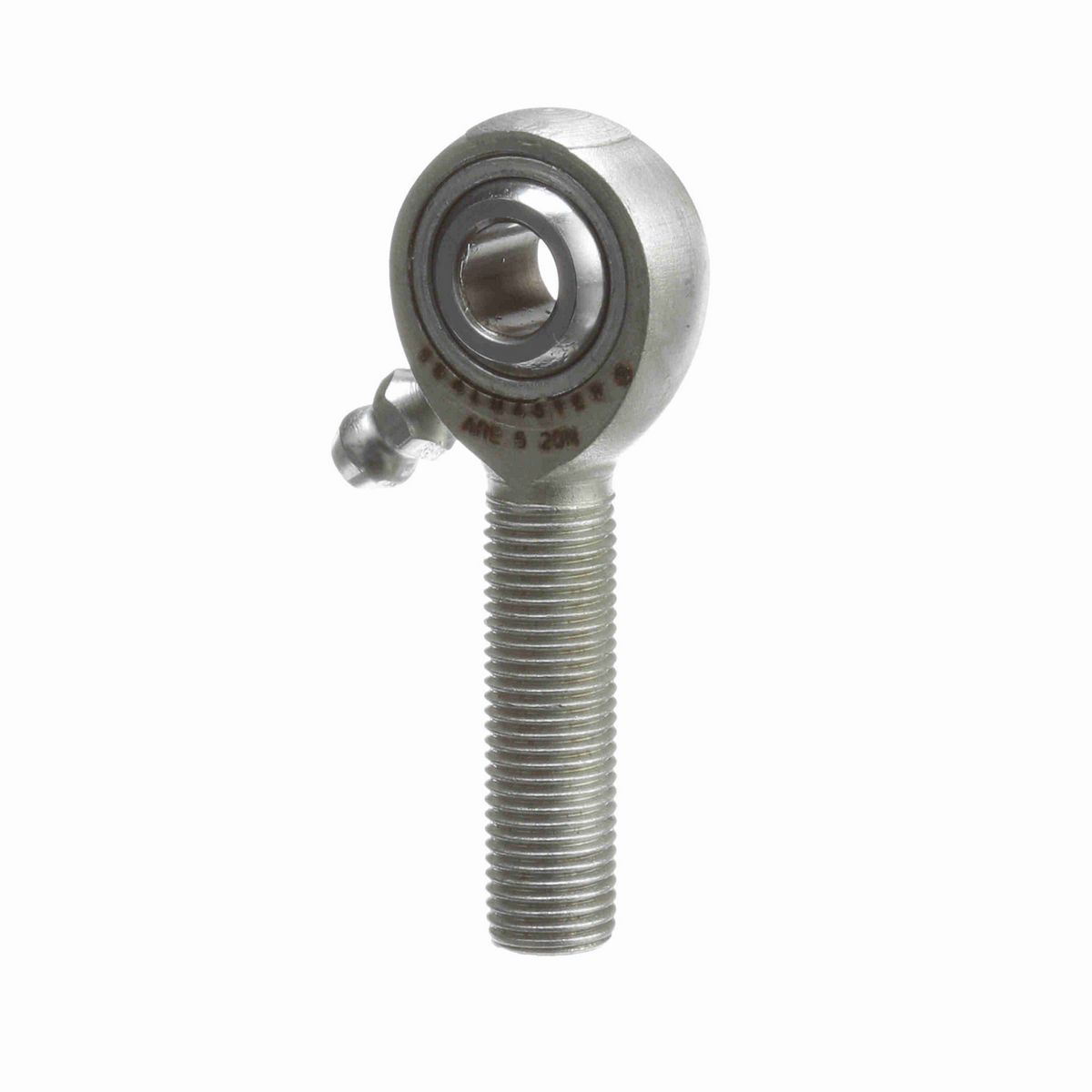

• Three-piece precision construction
• Heat Treated, Chrome Plated Ball
• Heat Treated, Plated Alloy steel housing
• Male External Threads
• One-Piece Carbon Steel Outer Race

Dimensions

Ball Flat Diameter (in)	0.447 in
Thread Size	#3/8-24
Ball Diameter (in)	0.625 in
Housing Width (in)	0.344 in
Head Diameter (in)	0.875 in
Ball Width (in)	0.437 in
Thread Length (in)	1.219 in
Length to Center of Ball (in)	1.88 in

Technical Specifications

Configuration	Male
Ball Material	Alloy Steel - Heat Treated - Chrome Plated
Thread Type	UNF
Product Selection Available SW	Y
Product Type	ARE-20
Series	Precision Extra Capacity
Housing Style	Male Rod End
Race Material	Carbon Steel - corrosion resistant plating
Lubrication Type	Grease
Construction	Three-Piece Rod End with Zerk Fitting
Bearing Type	Rod End
Zerk Fitting SW	Y
Misalignment Angle - a Deg. +/-	7
Outer Material	4130 Alloy Steel - Heat Treated - Corrosion Resistant Plating
Axial Load	750
Lubrication	Zerk Fitting
Type	Male Rod End
Max Static Radial Load	7,500
Thread	RH
Bore Size (in)	0.3125 in
Class	Precision
Lubrication Method	Fitting
Ability to Relubricate	Yes
Maximum Ambient Temperature (F)	350 °F

General Specifications

UPC	662288719786
Weight	0.09 LB
Packaged Length	2.31 IN
Packaged Width	0.88 IN
Packaged Height	0.44 IN
HTC	8483.30.8055
Country of Origin	Mexico
